PLM Tubular Upper Radiator Support – Honda Civic EK 1996–2000

Part Number: PLM-RAD-SUP-EK

Product Name or Type: Tubular Upper Radiator Support

Vehicle Fitment:

• 1996–2000 Honda Civic EK

Description:

The PLM Tubular Upper Radiator Support is engineered to provide superior engine bay clearance while maintaining strength and rigidity. Designed for boosted and custom setups, this support bar eliminates unnecessary bulk and offers extra room for turbochargers, intercoolers, or upgraded radiators. Constructed from solid stainless steel tubing with CNC-cut tabs and TIG welds, it's a race-proven solution for serious EK chassis builds.

Key Features and Benefits:

• Maximizes clearance for turbo, intercooler, and radiator setups
• Ultra lightweight with robust structural integrity
• Direct bolt-on to factory crash bar and frame points

Technical Specs / Material Info:

• 12mm (0.5") stainless steel solid tubing
• CNC plasma-cut mounting brackets
• TIG welded for durability
• Brushed stainless steel finish

Installation Info:

• Mounts to OEM locations – no cutting required
• One side mounts to the crash bar, the other under the fender
• EK version includes welded tabs for hood pins

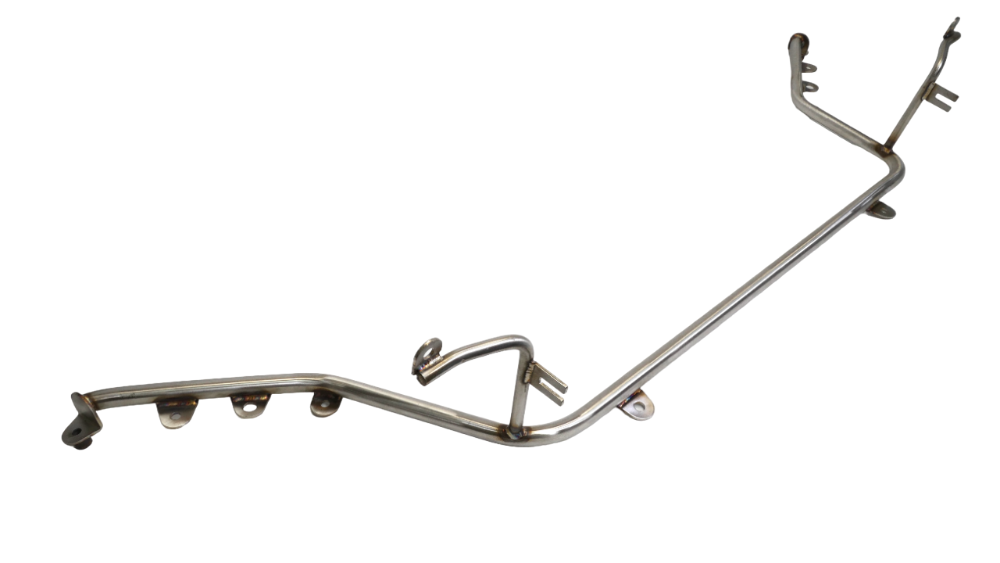

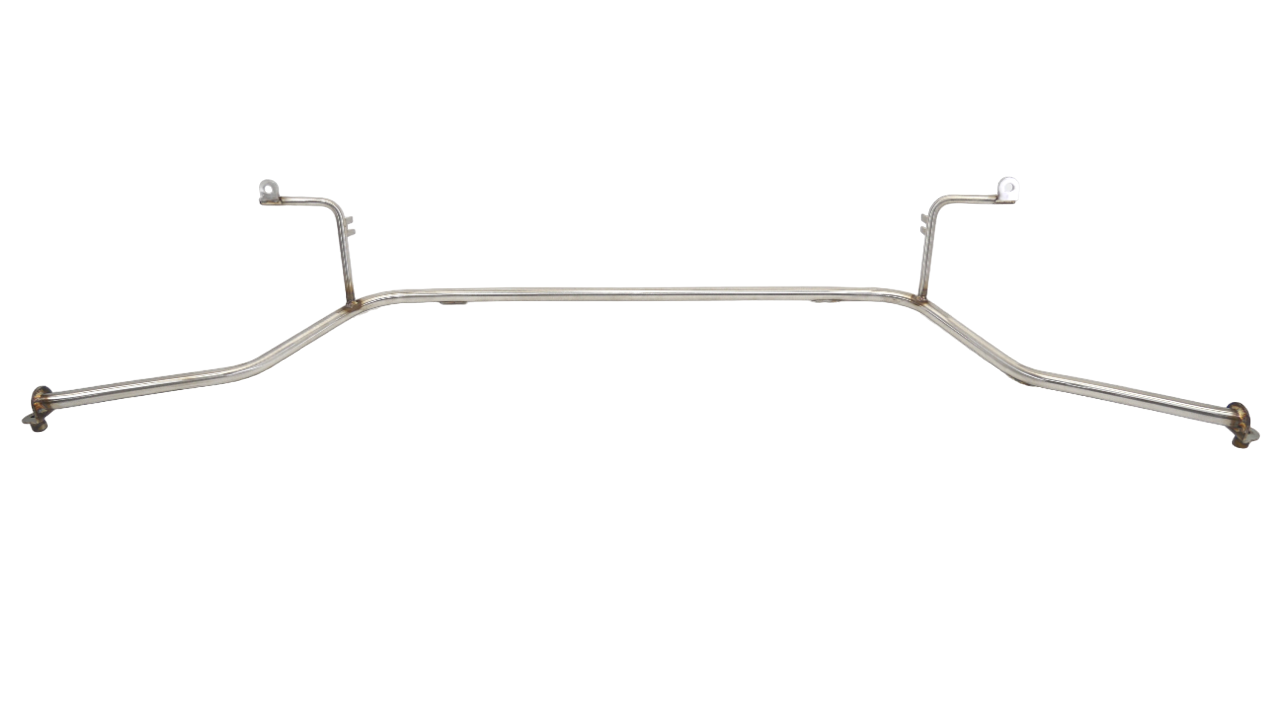

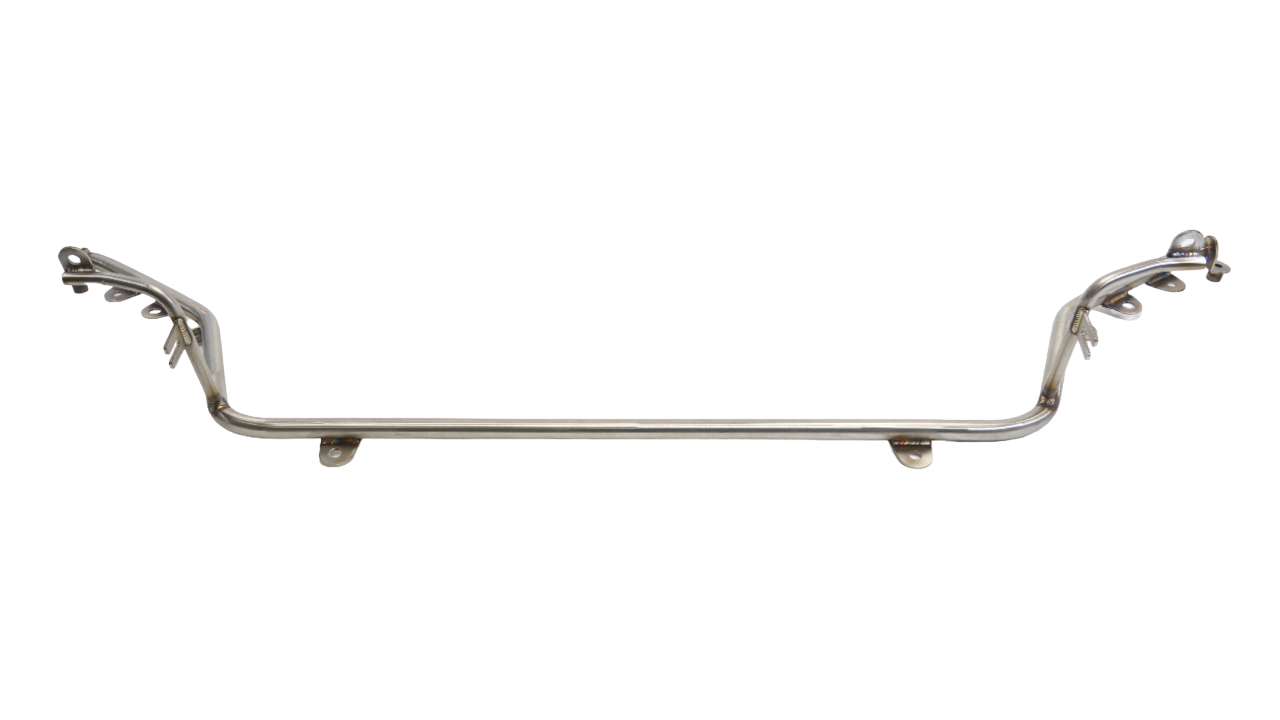

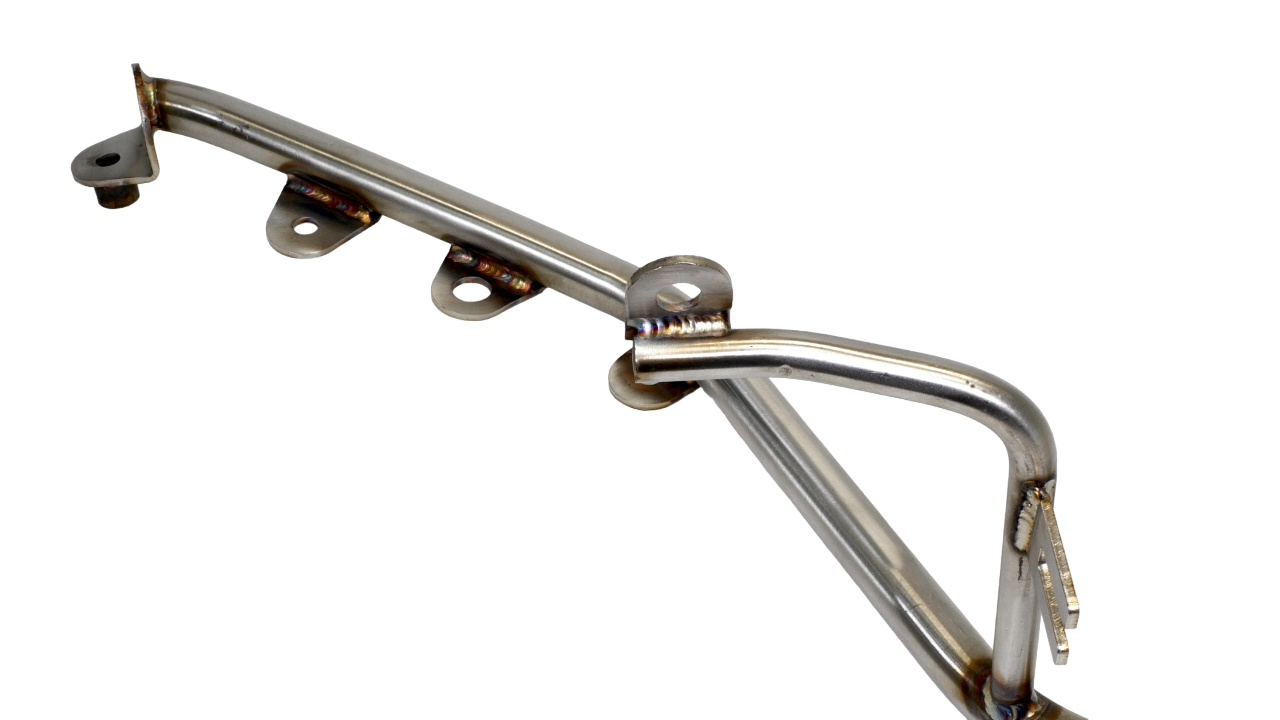

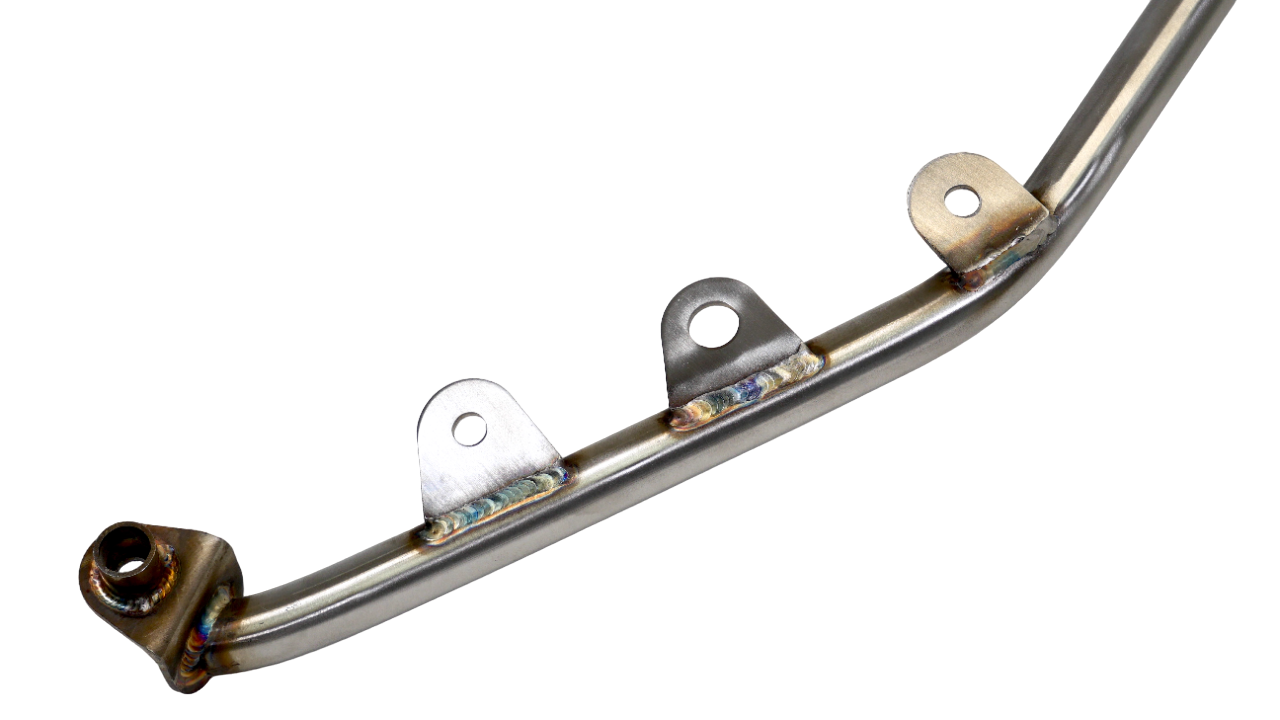

Images:
