PLM Vertical Flow Intercooler XL – K-Series Turbo Opposite Inlet/Outlet

Part Number: PLM-IC-VF-XL-OP

Product Name or Type: Vertical Flow Intercooler XL – Opposite Inlet/Outlet

Vehicle Fitment:

• Honda / Acura K-Series (K20, K24) Turbo Engines
• Acura RSX DC5 K-Series Turbo
• Honda Civic K-Series Turbo
• Acura Integra K-Series Turbo
• Custom turbo setups requiring opposite-side inlet/outlet configuration

Description:

The PLM Vertical Flow Intercooler XL is engineered for high-output K-Series turbo applications. With inlet and outlet ports on opposite sides, this unit is optimized for packaging flexibility and performance. The large core provides superior cooling efficiency, reducing intake temperatures and enabling consistent power delivery under high boost. Built from high-quality aluminum with a bar-and-plate design, it delivers reliability and performance for demanding street and track use.

Key Features and Benefits:

• Optimized for turbo applications needing opposite-side inlet/outlet
• Large surface area for improved cooling and reduced heat soak
• Supports builds up to 1000 HP
• Clean vertical flow layout with a compact footprint

Technical Specs / Material Info:

• Core Size: 27" x 6" x 4.5"
• 3.0" inlet and 3.0" outlet
• High-density bar and plate aluminum core
• Fully TIG welded construction
• Four integrated mounting bungs
• Air-to-air intercooler type

Installation Info:

• Universal fitment for custom turbo K-Series applications
• Hardware, piping, and hoses not included

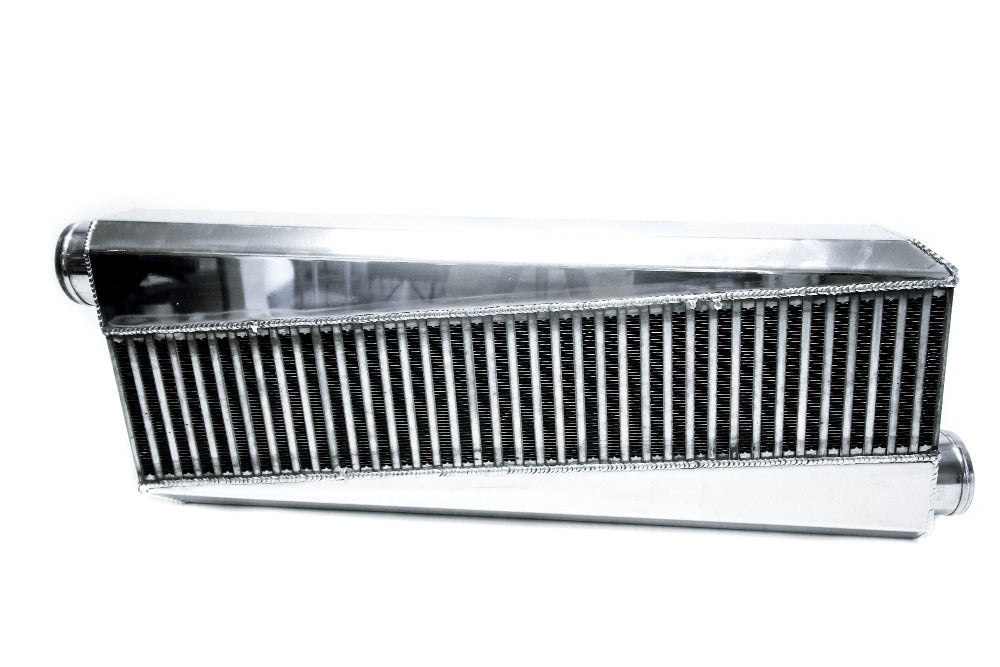

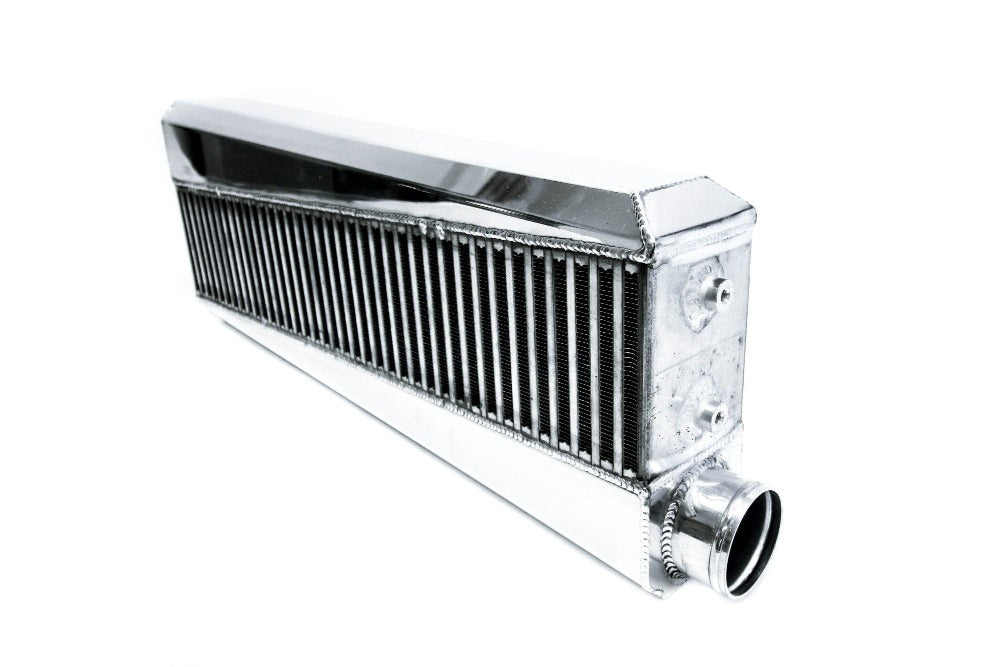

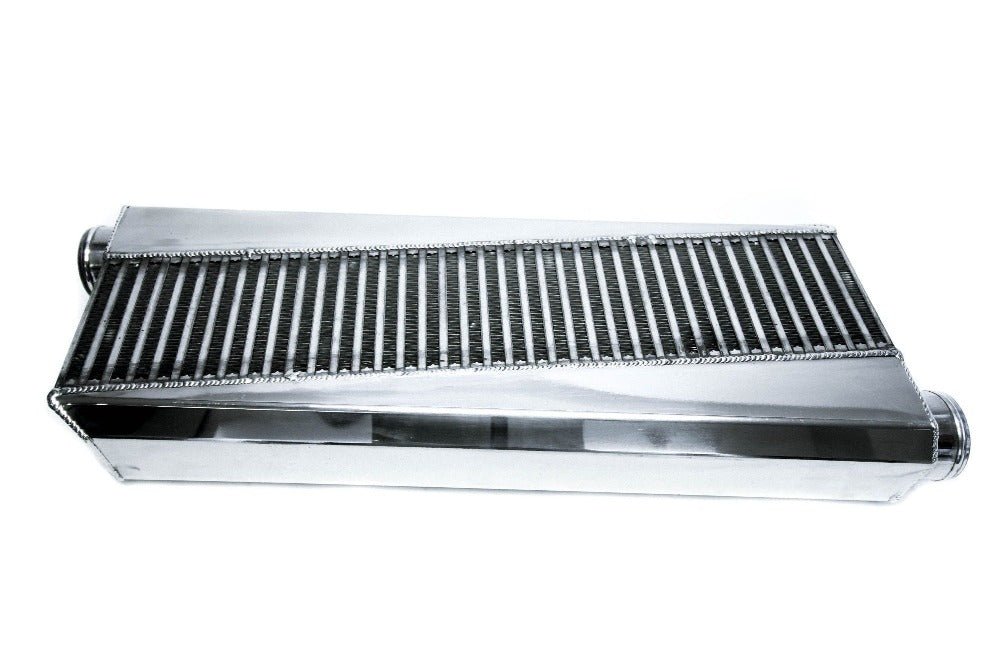

Images:
