AirDog II-5G 220 GPH Lift Pump for 2001-2010 GMC Sierra & Chevy Silverado 6.6L Duramax A7SABC512

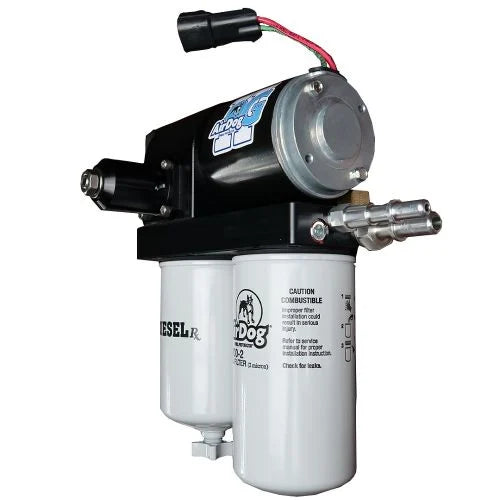

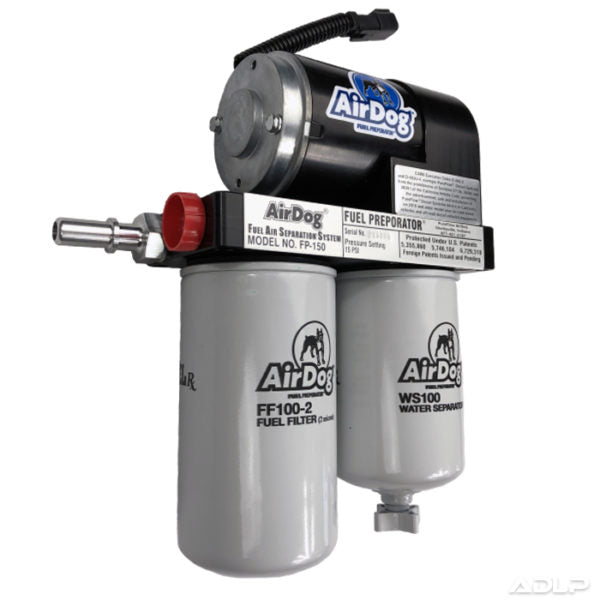

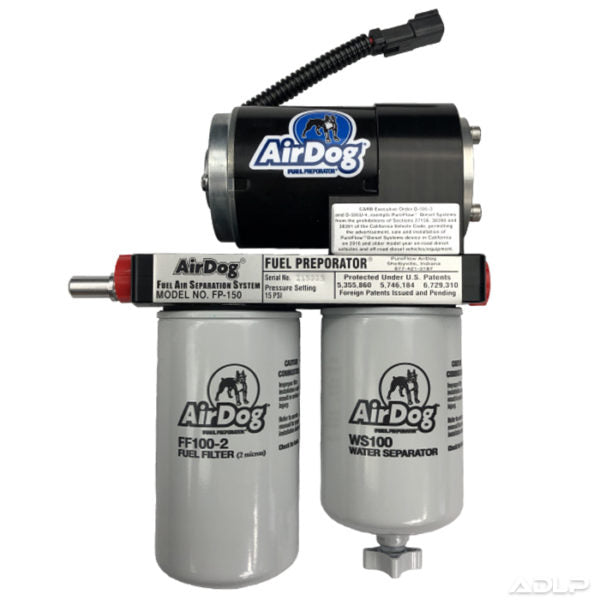

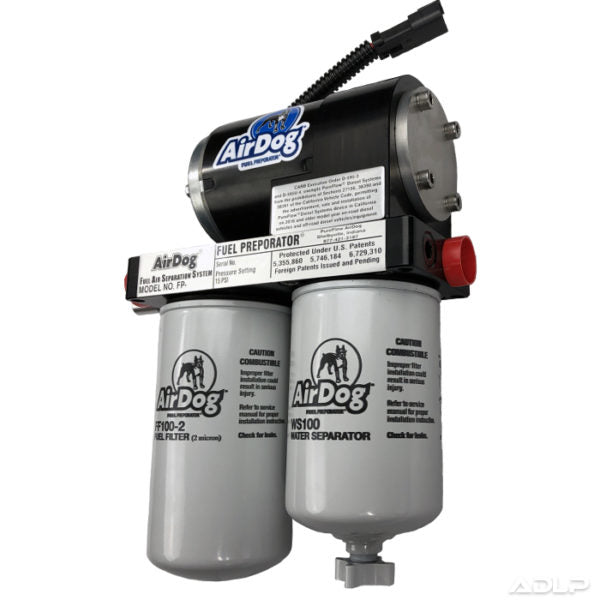

The Pureflow AirDog II-5G A7SABC512 DF-220-5G Air/Fuel Separation System is the next generation in fuel delivery systems for your 2001-2010 GM 6.6L Duramax. The 5G is designed to be the longest lasting, most efficient, and quietest lift pump system AirDog has to offer.

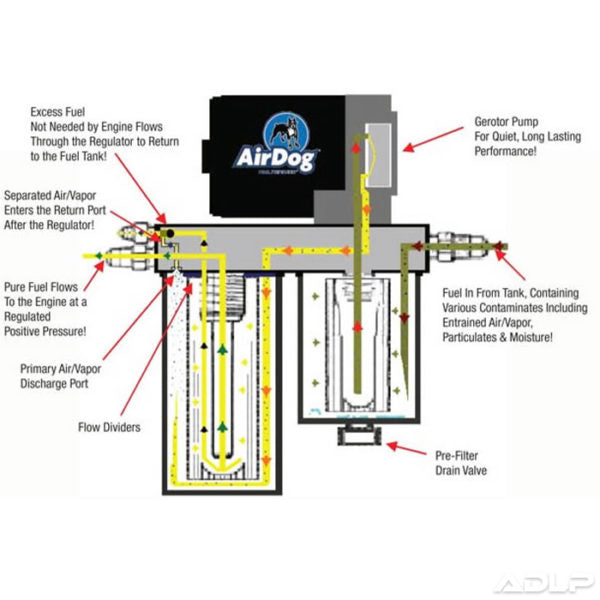

The AirDog II-5G utilizes a diaphragm style fuel pressure regulator allowing the pump to be boost referenced and adjusted from 7-70 PSI. The 5G Fuel/Air Separation System features a 4-bearing motor with an intermediate shaft that improves reliability and reduces pump noise. A demand flow design allows the pump to only send the necessary amount of fuel to the engine.

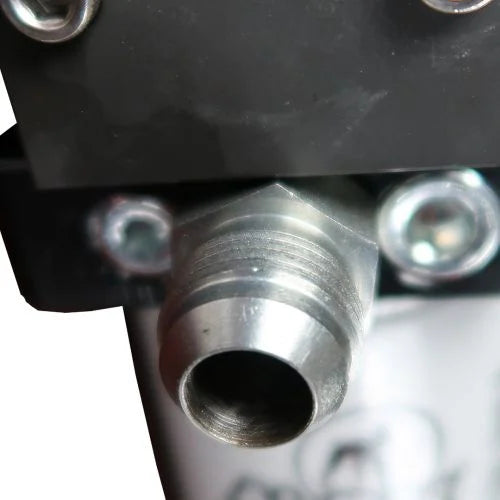

The dual feed motor supplies fuel to both sides of the gerotor pump to decrease air bubbles that cause cavitation. The 5G system features larger 3/4-16 O-ring boss inlet and outlet ports. A 7/16-20 (-4) low-flow return is used to prevent aeration in the fuel being sent to back to the tank.

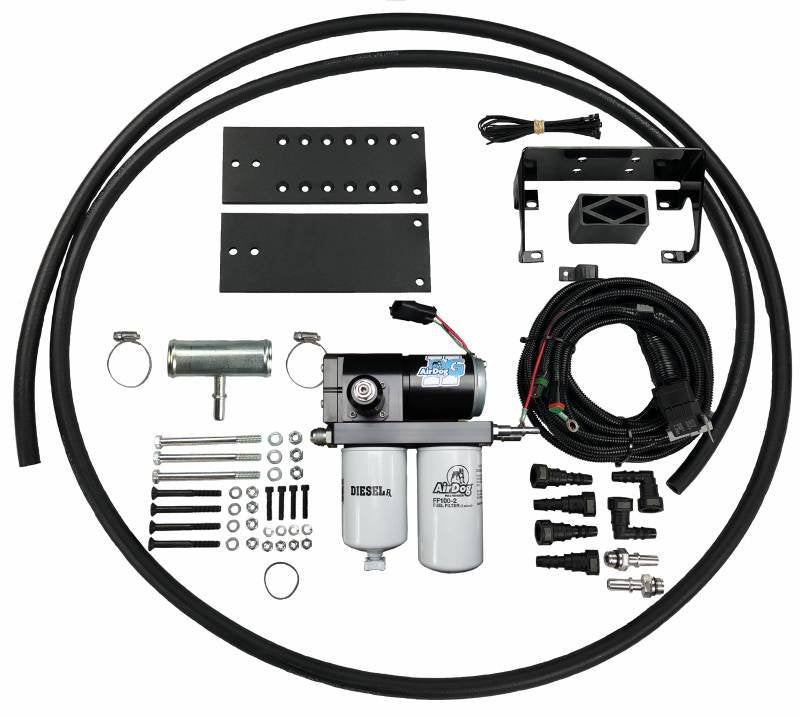

AirDog II-5G Features:

• 220 GPH Pump
• 4 Bearing Motor with Intermediate Shaft
• Larger Ports Over Previous Pumps
• Diaphragm Fuel Pressure Regulator
• Demand Flow Design
• Reduced Aeration From Low Flow Return
• Relay Control Wiring Harness
• All Required Fuel Fittings
• All Require Fuel Lines
• Mounting Brackets and Hardware
• Installation Manual
