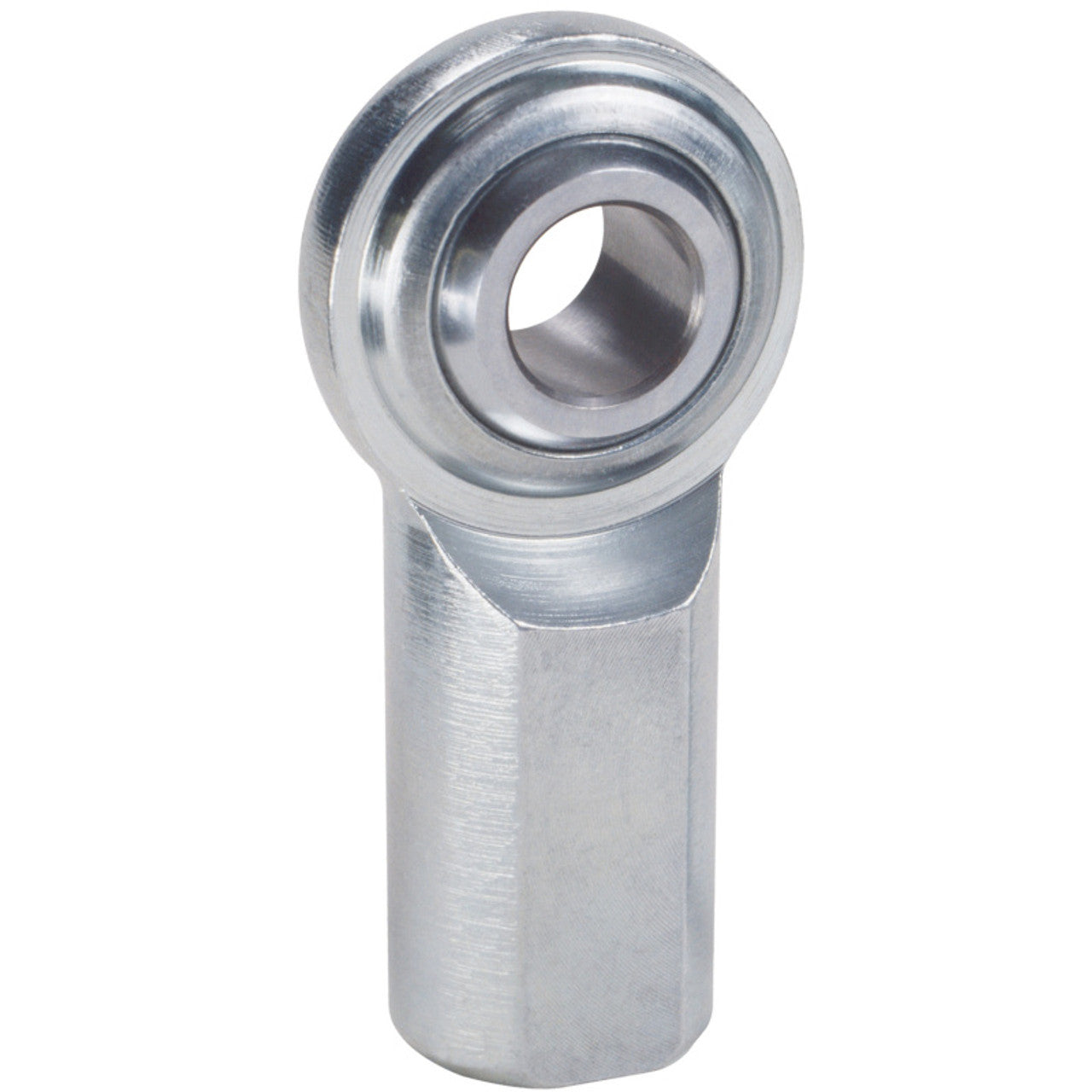

QA1 C Series 2 Piece Carbon Rod End 3/8in Bore 3/8-24 RH Female - CFR6S

Key Features & Specs:

• Brand: QA1
• Part Number: CFR6S
• Series: C Series
• Product Type: 2-Piece Carbon Rod End (Studded)
• Bore Size: 3/8 inch (0.3750 in.)
• Thread Size: 3/8in-24
• Thread Direction: Right-Hand (RH)
• Thread Type: Female
• Configuration: Studded (pre-attached stud)
• Ball Material: 52100 bearing steel, heat-treated, precision ground, hard chrome plated
• Body Material: Carbon steel with corrosion-resistant coating
• Stud Material: Carbon steel
• Construction: Traditional 2-piece design
• Performance: Increased misalignment vs bolt-mounted designs

The QA1 CFR6S C Series 2-Piece Carbon Rod End is designed for dependable performance in a wide range of commercial and industrial applications. Featuring a traditional two-piece construction, this rod end offers strength and reliability with a corrosion-resistant carbon steel body. It includes a pre-attached stud with right-hand threads, allowing for easier installation and greater misalignment capability compared to standard bolt-mounted designs. The precision-ground 52100 bearing steel ball ensures smooth operation, making this rod end a durable and efficient solution for linkage and motion control systems.
