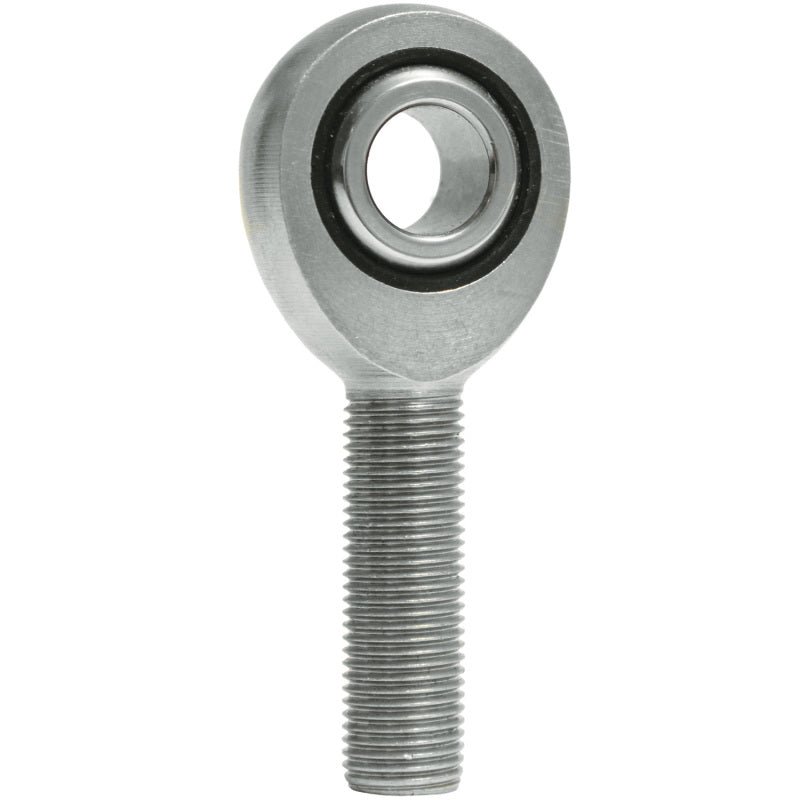

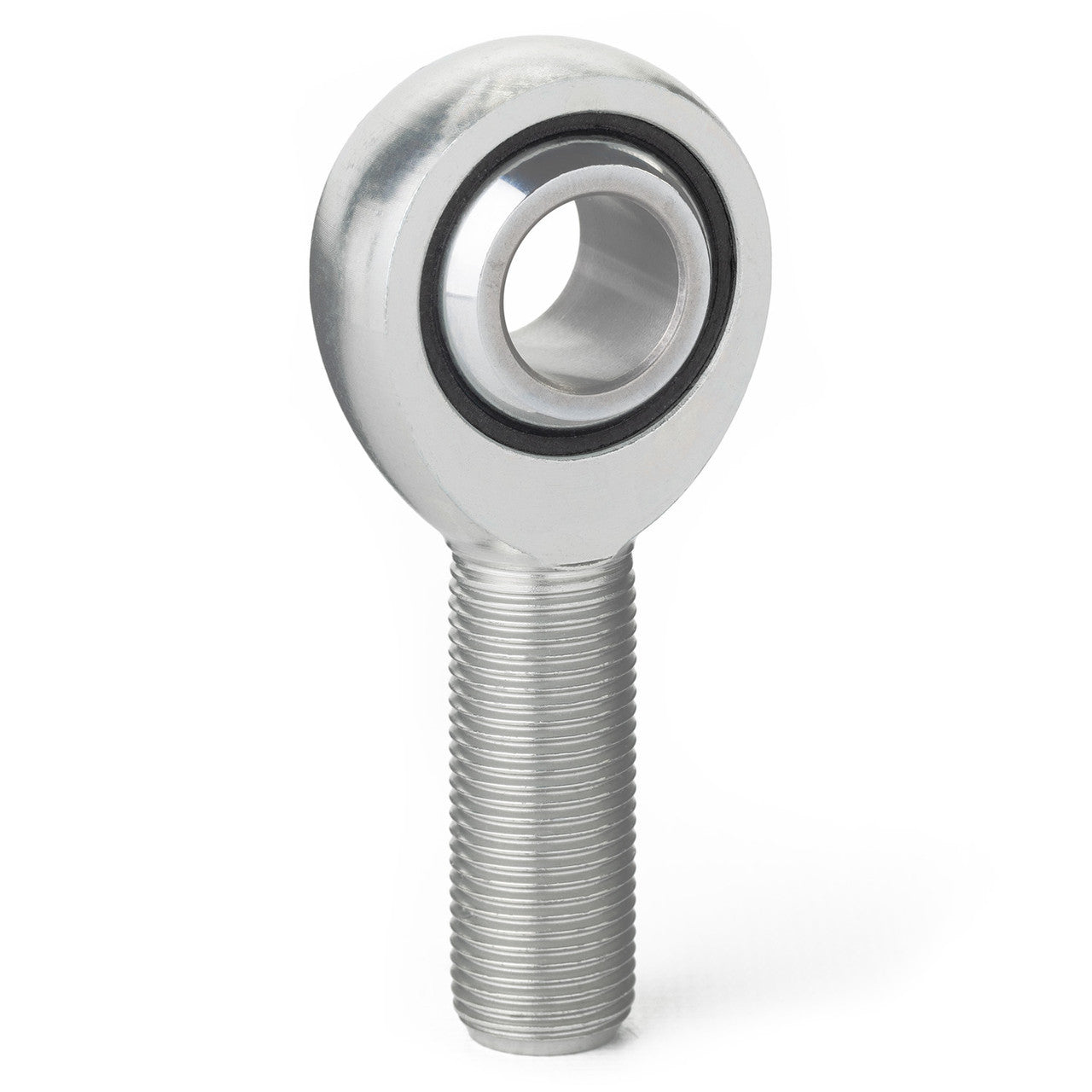

QA1 N Series Rod End 1/4in Bore 1/4-28 RH Male - NMR4

Key Features & Specs:

• Brand: QA1
• Part Number: NMR4
• Series: N Series
• Product Type: Male Rod End
• Bore Size: 1/4 inch (0.2500 in.)
• Thread Size: 1/4in-28
• Thread Direction: Right-Hand (RH)
• Thread Type: Male
• Ball Material: 52100 bearing steel, heat-treated, precision ground, hard chrome plated
• Race Material: Reinforced Nylon 12 with self-lubricating properties
• Body Material: Carbon steel with corrosion-resistant coating
• Design: Injection-molded, no drilled holes for maximum strength
• Performance: Low friction, moisture-resistant, high wear resistance
• Application: Low-load, moderate oscillation environments

The QA1 NMR4 N Series Rod End is a durable and cost-effective solution designed for low-load, moderate oscillation applications. Built with a three-piece construction, this rod end features a reinforced Nylon 12 race with self-lubricating properties that reduce friction, resist moisture, and provide excellent wear resistance. Its injection-molded design eliminates the need for drilled holes, preserving the structural integrity and strength of the body. The heat-treated 52100 steel ball ensures smooth articulation, while the carbon steel body is protective-coated for corrosion resistance, making it ideal for commercial, industrial, and custom linkage applications.
