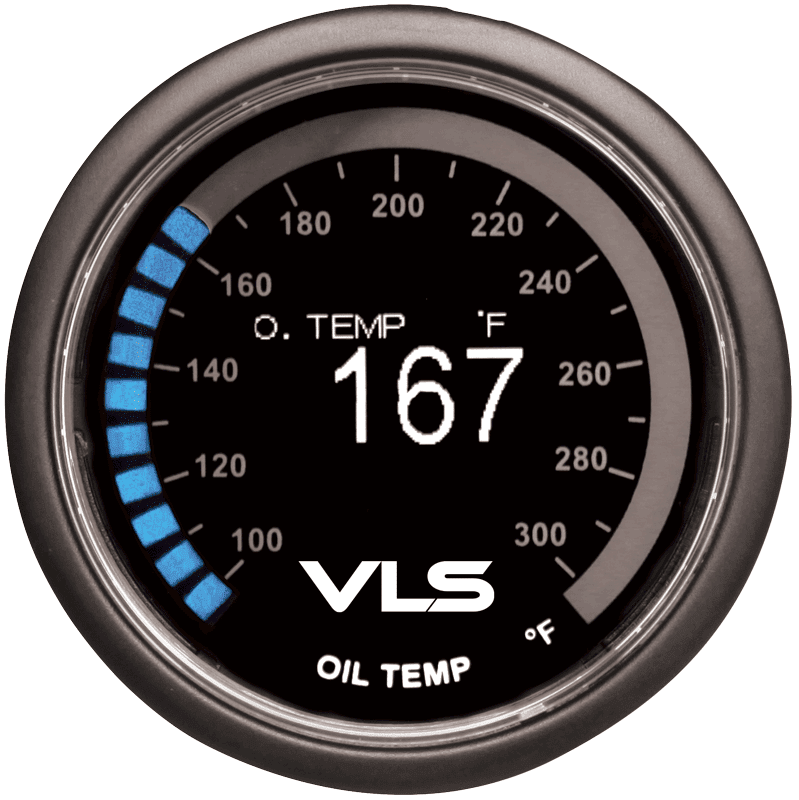

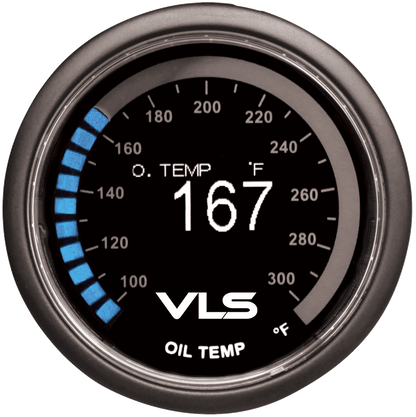

Revel VLS Oil Temperature OLED Gauge 52mm 100°F-300°F - 1TR1AA003R

The Revel VLS Oil Temperature OLED Gauge (1TR1AA003R) is a 52mm (2 1/16 in.) digital gauge designed to monitor oil temperatures from 100°F to 300°F. It features a digital OLED display for clear visibility from multiple viewing angles and a 30-LED outer ring for quick reference during driving.

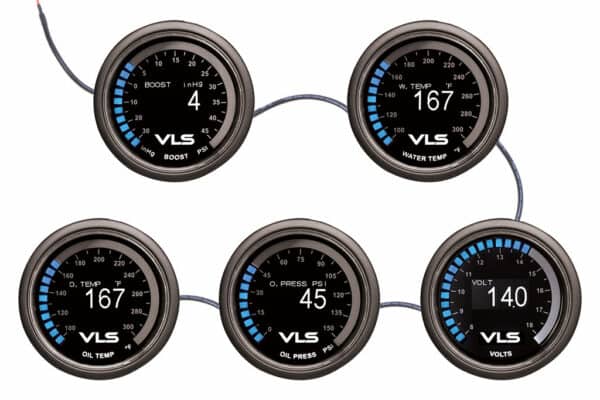

This kit includes a 1/8 NPT oil temperature sensor for installation. The gauge is daisy-chain compatible with other Revel VLS OLED gauges, including Boost, Water Temperature, Oil Pressure, and Voltage gauges.

VLS gauges are compatible only with other VLS OLED gauges for daisy-chain functionality. The VLS Wideband A/F and VLS Intercooler Dual Temperature gauges are not daisy-chain compatible.

Key Features:

• 52mm (2 1/16 in.) digital oil temperature gauge
• 100°F to 300°F reading range
• Digital OLED display
• 30-LED outer ring
• 1/8 NPT oil temperature sensor included
• Daisy-chain compatible (VLS OLED gauges only)
• Mounting kit included

Specifications:

• Brand: Revel
• Product Line: VLS
• Part Number: 1TR1AA003R
• Gauge Diameter: 52mm (2 1/16 in.)
• Temperature Range: 100°F-300°F
• Display Type: Digital OLED
• LED Ring: 30 LEDs
• Sensor Thread Pitch: 1/8 NPT
• Compatibility: VLS OLED gauges only

What’s Included:

• (1) Oil Temperature Gauge 52mm (2 1/16 in.)
• (1) Power Harness
• (1) Oil Temperature Sensor and Wiring Harness
• (1) Mounting Pod
• (1) Sun Shade (Hood)
• (1) 3M Double-Sided Tape
• (2) Mounting Bracket Threaded Extensions
• (2) Washers
• (2) Nuts
• (1) Mounting Bracket

Universal application.

Designed for vehicles requiring oil temperature monitoring with 1/8 NPT sensor installation. Professional installation is recommended.
