Revel VLS II Boost Analog Gauge 52mm 30inHg to 45 PSI - 1TR1AB001

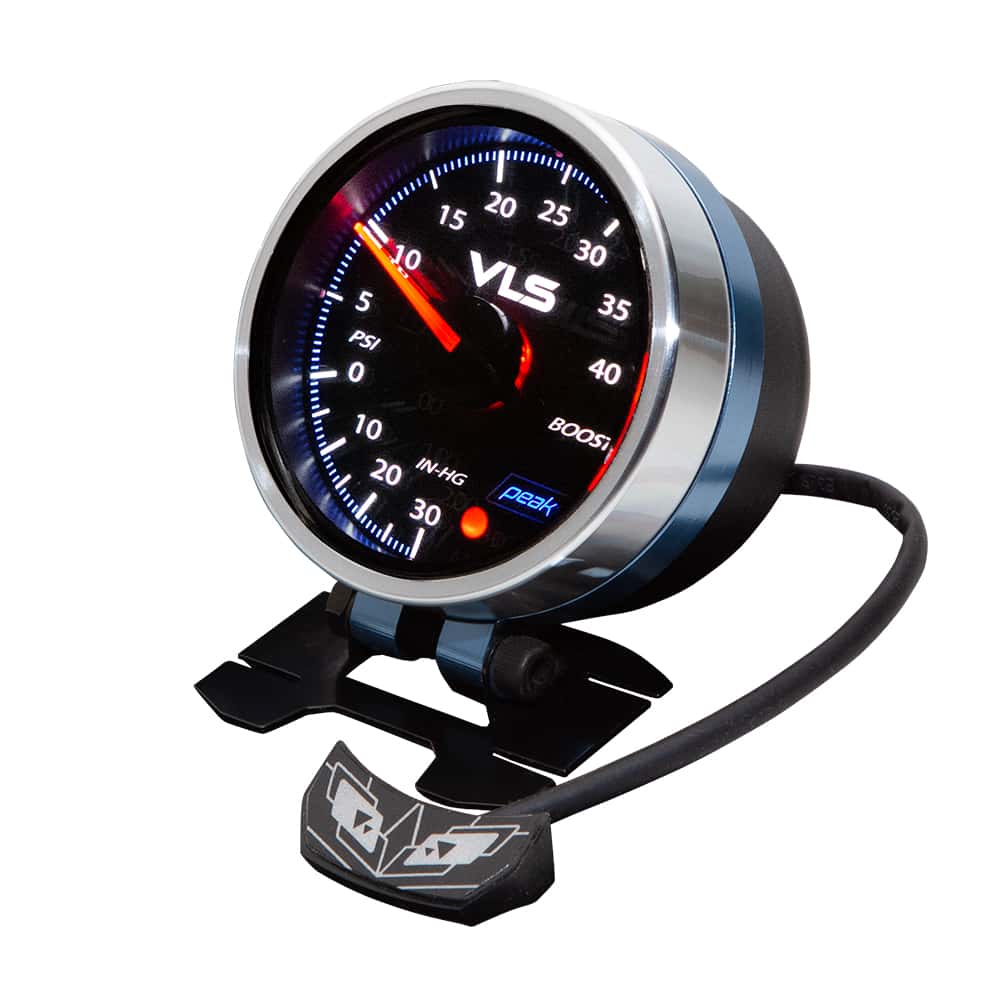

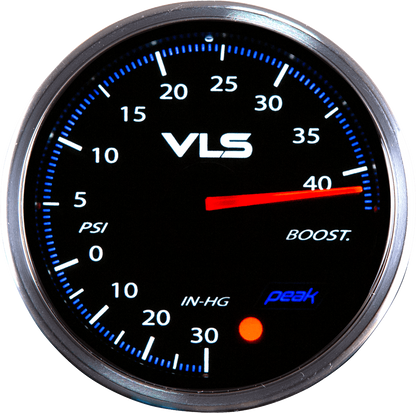

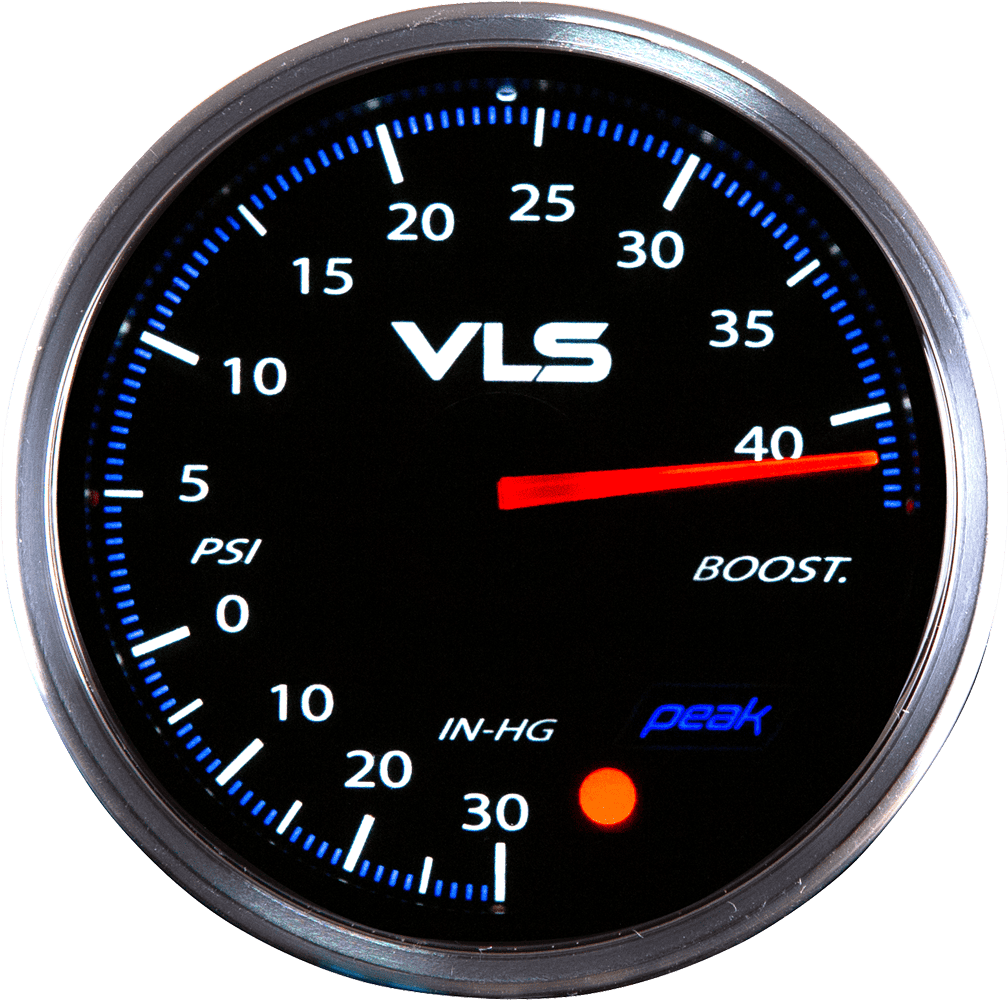

The Revel VLS II Boost Analog Gauge (1TR1AB001) is a 52mm diameter analog gauge designed to monitor boost and vacuum pressure from 30 inHg to 45 PSI. It features a zero-friction brushless motor for smooth needle response and accurate readings.

The gauge includes white LED backlighting with optional red LED backlighting and adjustable brightness control. A peak/hold function with warning beep allows users to monitor maximum boost levels. An external remote is included for gauge configuration.

This gauge includes a boost/vacuum sending unit and supports daisy chain connection with other Revel VLS II analog gauges, including VLS II Water Temperature, Oil Temperature, and Oil Pressure gauges. VLS II gauges are only compatible with other VLS II analog gauges for daisy chain functionality.

Key Features:

• 52mm analog boost gauge
• Reads from 30 inHg to 45 PSI
• Zero-friction brushless motor
• White LED backlighting
• Optional red LED backlighting
• Adjustable LED brightness
• Peak/hold function with warning beep
• Includes boost/vacuum sending unit
• Daisy chain compatible (VLS II analog gauges only)
• Aluminum front bezel
• Aluminum mounting ring
• External remote included

Specifications:

• Brand: Revel
• Product Line: VLS II
• Part Number: 1TR1AB001
• Gauge Diameter: 52mm
• Reading Range: 30 inHg to 45 PSI

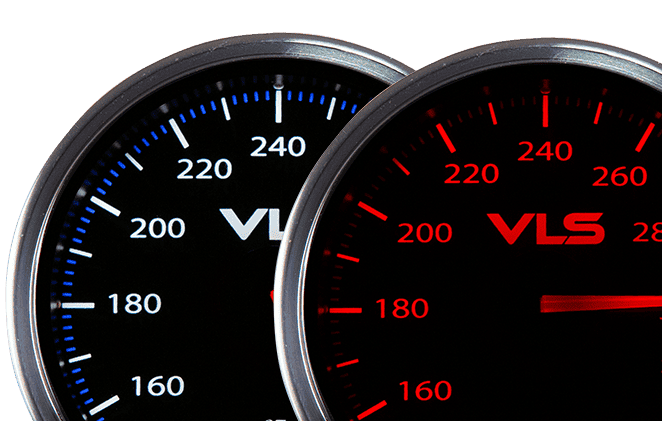

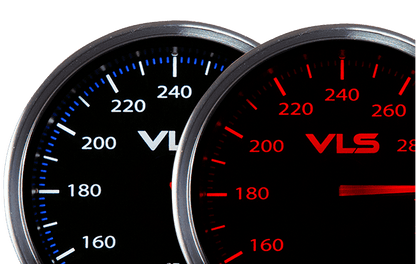

• Backlighting: White LED with optional red LED
• Motor Type: Zero-friction brushless
• Bezel Material: Aluminum
• Mounting Ring Material: Aluminum
• Compatibility: VLS II analog gauges only

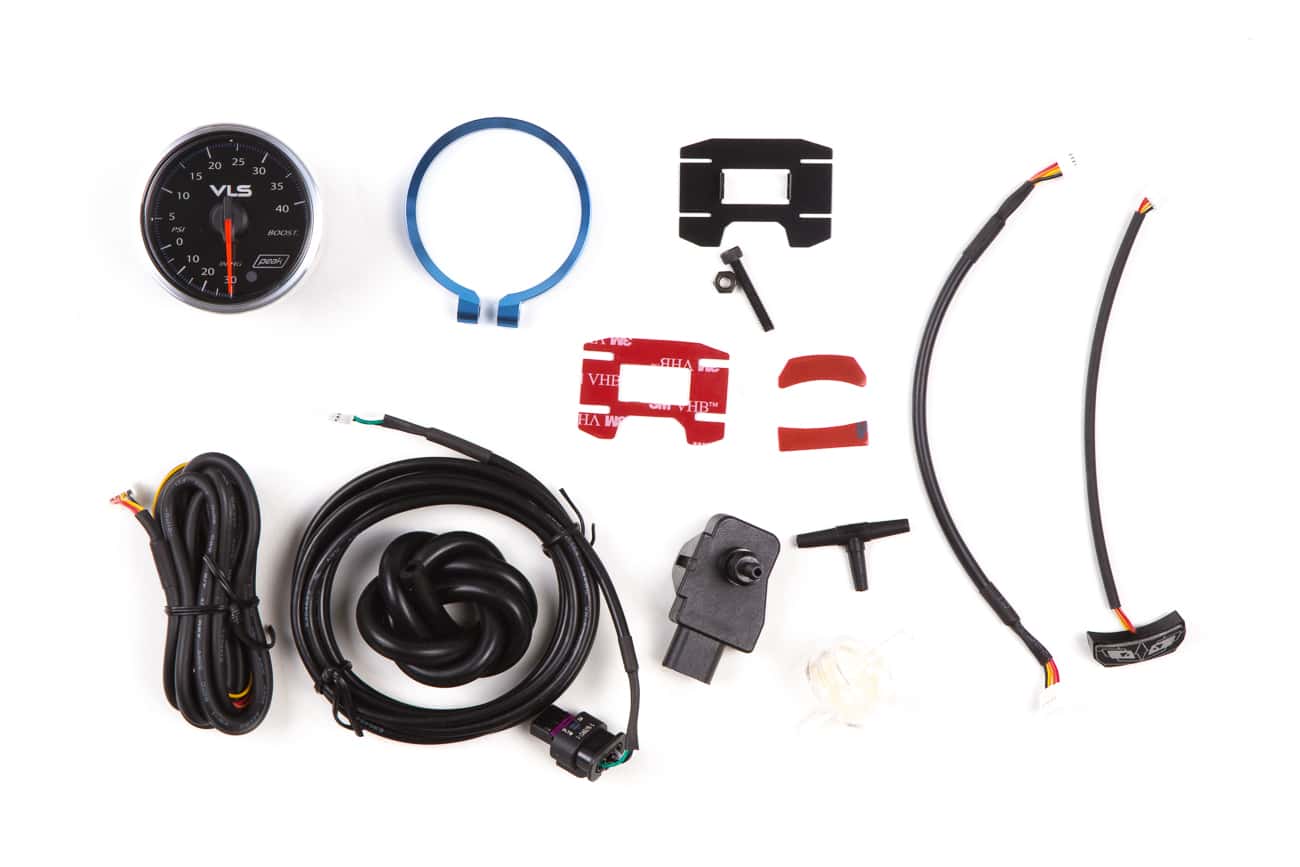

What’s Included:

• (1) 52mm Boost Gauge
• (1) Power Harness
• (1) Daisy Chain Harness
• (1) Boost/Vacuum Sensor and Wiring Harness
• (1) External Remote
• (1) Mounting Ring
• (1) Universal Mounting Base
• (3) 3M Double-Sided Tape Pieces
• (2) Washers
• (1) Nut
• (1) Mounting Bolt

Vehicle Fitment:

Universal application.

This boost gauge is designed for universal installation in compatible vehicles equipped with a forced induction system. Professional installation is recommended.
