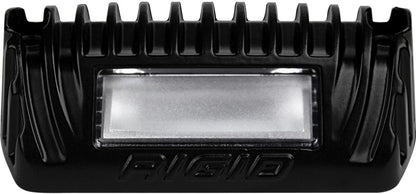

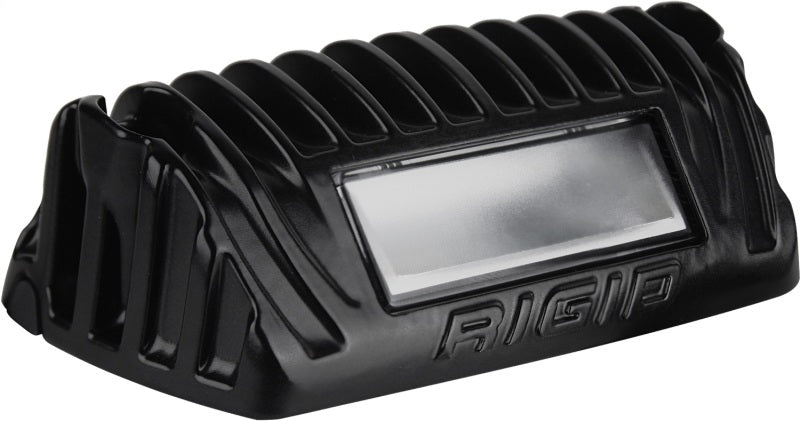

RIGID Industries 1x2 65 Degree DC Scene Light - 86610

The RIGID Industries 1x2 65 Degree DC Scene Light, part 86610, is an auxiliary LED light built to spread useful light across a wide work, cargo or scene area. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 1,100 raw lumens, 9 W power, 0.75 A draw, and 3 LEDs. The package includes Light, Mounting Hardware.

Key Features & Specs:

• Part Number: 86610
• SKU: RIG86610
• Series: 1x2 Scene
• UPC: 849774008610
• Includes: Light, Mounting Hardware
• Package Type: Box
• Package Dimensions: 5.8 x 4.9 x 2.4 in (H x W x D)
• Package Weight: 0.7 lb
• Product Weight: 0.5 lb
• Amp Draw: 0.75 A
• LED Count: 3
• Raw Lumens: 1,100
• Power: 9 W
• Output at 10 m: 7 lux
• 1-Lux Distance: 26.4 m
• Peak Beam Distance: 52.7 m
• Peak Intensity: 695 cd
• Field Width: 65°
• Field Height: 69°
• Warranty: Limited Lifetime
• DC Power LED Scene Or Area Lighting
• Flat Mounting Surface
• 65 Degree Horizontal Spread X 69 Degree Vertical Spread
• 9-36 V DC
• IP68 Compliant
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management
• Pressure Equalizing Vent
• RFI/EMI Protection
• Operating Temp -145 Deg To +145 Deg F
• Over/ Under Voltage Protection
• Durable UV Polyester Powder Coat
• High Grade Aluminum Alloy Housing And Heat Sink
• IP68 Compliant - Dust/Water Ingress
• White Polycarbonate Reflector with 98 Percent Reflectivity
• RoHS Compliant
• Off Road Use Only

Fitment:

• Universal fit

About the RIGID 1x2 Scene: RIGID Industries 1x2 scene and area lights are compact surface-mount fixtures designed to spread light across a wide work or utility area rather than project a narrow long-distance beam. The family includes different housing and light-color options with wide horizontal and vertical coverage. Voltage, output, housing color and environmental specifications vary by part number.
