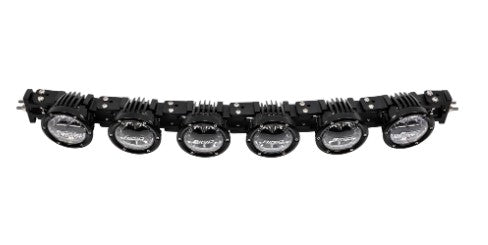

RIGID Industries Connect 30-Inch Light Bar Assembly - 36306

The RIGID Industries Connect 30-Inch Light Bar Assembly, part 36306, is an auxiliary LED light built to project focused forward light for longer-range visibility. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 18,360 raw lumens, 149.8 W power, 10.7 A draw, and 24 LEDs. The package includes 1 Lamp ASSEMBLY, 1 HARNESS, COVERS, Hardware.

Key Features & Specs:

• Part Number: 36306
• SKU: RIG36306
• Series: 360-Series
• UPC: 849774036705
• Includes: 1 Lamp ASSEMBLY, 1 HARNESS, COVERS, Hardware
• Package Type: Box
• Package Dimensions: 6 x 33.5 x 6 in (H x W x D)
• Package Weight: 13.1 lb
• Product Weight: 9.3 lb
• Amp Draw: 10.7 A
• LED Count: 24
• Raw Lumens: 18,360
• Power: 149.8 W
• Output at 10 m: 3,183 lux
• 1-Lux Distance: 564 m
• Peak Beam Distance: 1,128 m
• Peak Intensity: 318,306 cd
• Field Width: 21.4°
• Field Height: 16.6°
• Warranty: Limited Lifetime
• Adjustable Curve
• Drive and Spot Optic
• 18,360 Raw Lumens
• RGBW Back Light

Fitment:

• Universal fit

About the RIGID 360-Series: RIGID Industries 360-Series lighting uses a round auxiliary-light format with purpose-built optics for vehicle and powersports applications. The family includes multiple sizes, beam patterns, lens colors and backlight configurations, including SAE fog and off-road variants. Exact output, electrical draw, backlight function and road-use compliance depend on the specific part number.
