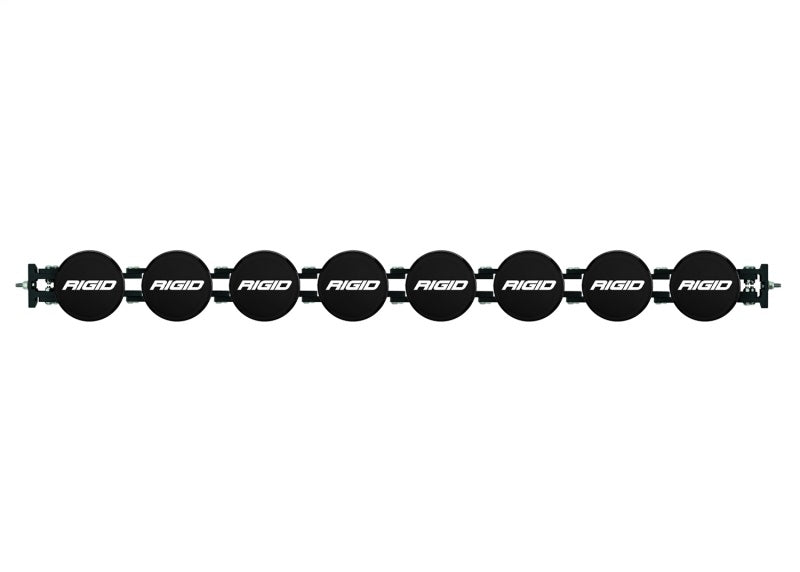

RIGID Industries Connect 40-Inch Light Bar Assembly - 36308

The RIGID Industries Connect 40-Inch Light Bar Assembly, part 36308, is an auxiliary LED light built to project focused forward light for longer-range visibility. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 24,480 raw lumens, 200.2 W power, 14.3 A draw, and 32 LEDs. The package includes 1 Lamp ASSEMBLY, 1 HARNESS, COVERS, Hardware.

Key Features & Specs:

• Part Number: 36308
• SKU: RIG36308
• Series: 360-Series
• UPC: 849774036712
• Includes: 1 Lamp ASSEMBLY, 1 HARNESS, COVERS, Hardware
• Package Type: Box
• Package Dimensions: 6 x 43.5 x 6 in (H x W x D)
• Package Weight: 16.2 lb
• Product Weight: 12.4 lb
• Amp Draw: 14.3 A
• LED Count: 32
• Raw Lumens: 24,480
• Power: 200.2 W
• Output at 10 m: 3,660 lux
• 1-Lux Distance: 605 m
• Peak Beam Distance: 1,210 m
• Peak Intensity: 366,044 cd
• Field Width: 26.8°
• Field Height: 17.3°
• Warranty: Limited Lifetime
• Adjustable Curve
• Drive and Spot Optic
• 24,480 Raw Lumens
• RGBW Back Light

Fitment:

• Universal fit

About the RIGID 360-Series: RIGID Industries 360-Series lighting uses a round auxiliary-light format with purpose-built optics for vehicle and powersports applications. The family includes multiple sizes, beam patterns, lens colors and backlight configurations, including SAE fog and off-road variants. Exact output, electrical draw, backlight function and road-use compliance depend on the specific part number.
