RIGID Industries Radiance+ SR-Series 40-Inch RGBW LED Light Bar - 240603

The RIGID Industries Radiance+ SR-Series 40-Inch RGBW LED Light Bar, part 240603, is an auxiliary LED light built to project focused forward light for longer-range visibility. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 22,848 raw lumens, 197 W power, 14.8 A draw, and 28 LEDs. The package includes Light Bar, Mounting Hardware.

Key Features & Specs:

• Part Number: 240603
• SKU: RIG240603
• Series: Radiance
• UPC: 815711015157
• Includes: Light Bar, Mounting Hardware
• Package Type: Box
• Package Dimensions: 6 x 43.5 x 6 in (H x W x D)
• Package Weight: 15 lb
• Product Weight: 8.8 lb
• Amp Draw: 14.8 A
• LED Count: 28
• Raw Lumens: 22,848
• Power: 197 W
• Output at 10 m: 2,800.7 lux
• 1-Lux Distance: 529.2 m
• Peak Beam Distance: 1,058.5 m
• Peak Intensity: 280,068 cd
• Field Width: 24°
• Field Height: 18.3°
• Warranty: 10 Years
• Same Construction As RIGID's SR-Series
• Fits All SR-Series Light Covers And Mounts
• Black Exposed Printed Circuit Board

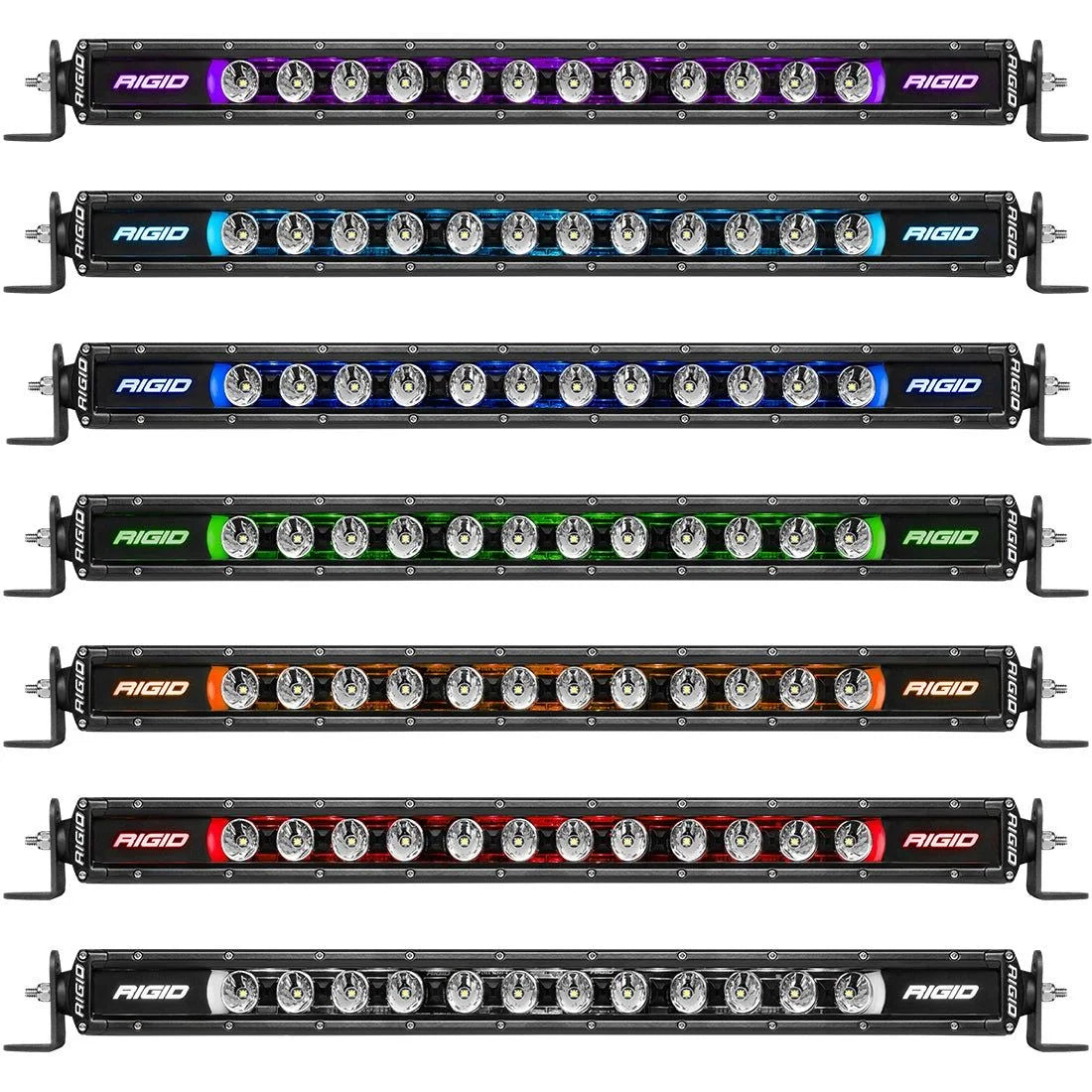

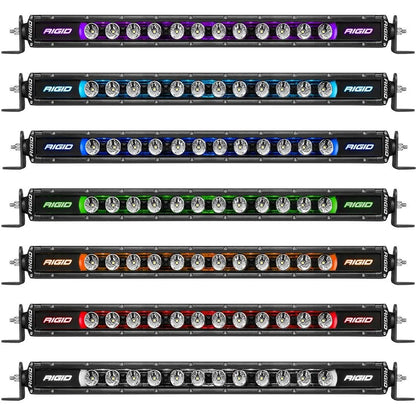

• 8 Back Lighting Options: Red, Green, Blue, Light Blue, Purple, Amber, White Or Rotating
• 9-15 V DC
• Harness And Switch Sold Separately, Part Number 40200
• Back Lighting Independently Controlled Using Switch Logic
• Black Powder Coat Finish
• Pressure Equalizing Vent
• IP68 Compliant - Dust/Water Ingress
• High Grade Aluminum Alloy Housing And Heat Sink
• Over/Under Voltage Protection
• High Impact Polycarbonate Lens
• Mounting Brackets Included
• RFI/EMI Protection
• RoHS Compliant
• Off Road Use Only

Fitment:

• Universal fit

About the RIGID Radiance: RIGID Industries Radiance+ lighting combines functional forward illumination with independently controlled backlighting for added appearance and visibility. The family includes pod and light-bar formats with RGBW or other backlight configurations depending on the model. Voltage, backlight options, beam pattern, size and warranty coverage should be confirmed from the part-specific specifications above.
