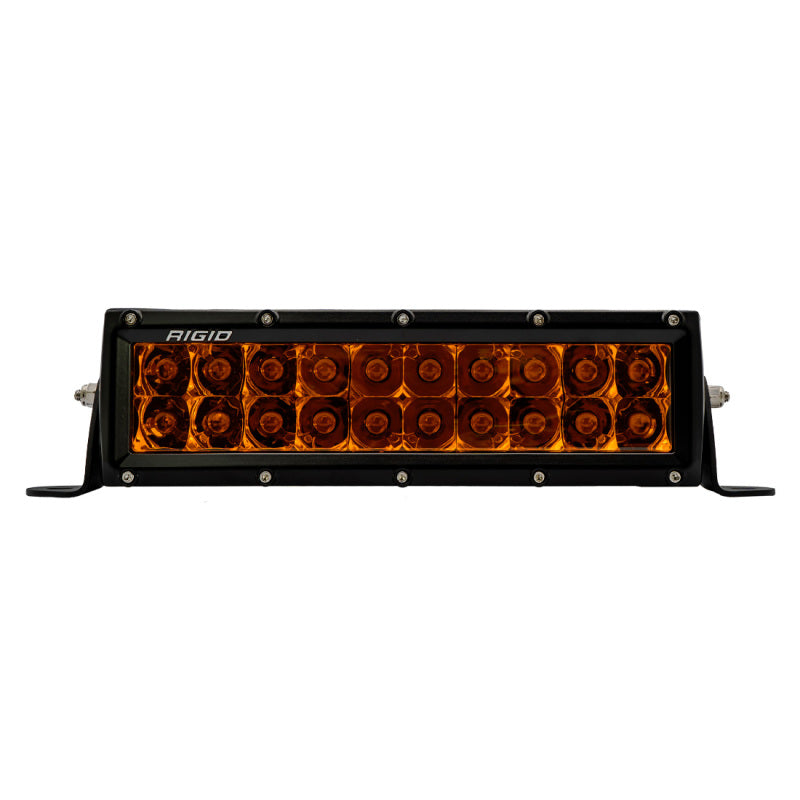

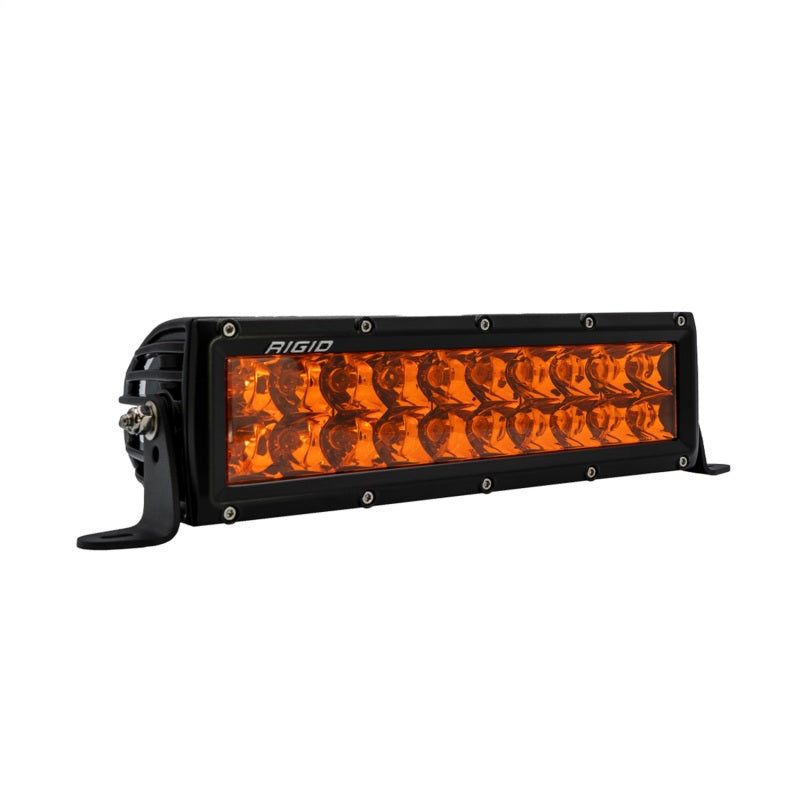

RIGID Industries E-Series PRO 10-Inch Spot Amber PRO LED Light Bar - 110223

The RIGID Industries E-Series PRO 10-Inch Spot Amber PRO LED Light Bar, part 110223, is an auxiliary LED light built to project focused forward light for longer-range visibility. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 15,840 raw lumens, 168 W power, 12 A draw, and 20 LEDs. The package includes 10IN E-Series PRO Spot with Amber PRO lens, harness and switch, Surface Mount Brackets, and Hardware. The Amber PRO configuration is intended for reduced-visibility conditions called out for this product, including dust, smoke or harsh weather.

Key Features & Specs:

• Part Number: 110223
• SKU: RIG110223
• Series: E-Series
• UPC: 849774021619
• Includes: 10IN E-Series PRO Spot with Amber PRO lens, harness and switch, Surface Mount Brackets, and Hardware
• Package Type: Box
• Package Dimensions: 6 x 12 x 6 in (H x W x D)
• Package Weight: 6.1 lb
• Product Weight: 4.3 lb
• Amp Draw: 12 A
• LED Count: 20
• Raw Lumens: 15,840
• Power: 168 W
• Output at 10 m: 1,727.3 lux
• 1-Lux Distance: 415.6 m
• Peak Beam Distance: 831.2 m
• Peak Intensity: 172,733 cd
• Field Width: 18.3°
• Field Height: 16.3°
• Warranty: Limited Lifetime
• Amber PRO Lens
• 9-36 VDC Operation
• Alloy Housing and Heatsink
• Reverse Polarity Protection
• Over/Under Voltage Protection
• IP68 Compliant - Dust/Water Ingress
• Pressure Equalizing Vent
• Patented Optics
• 50,000 Hr+ LED Lifespan
• Off Road Use Only

Fitment:

• Universal fit

About the RIGID E-Series: RIGID Industries E-Series PRO is the brand's classic double-row LED light-bar family, offered in multiple lengths and beam configurations for auxiliary forward lighting. The series includes dedicated covers and mounting hardware along with white and Amber PRO lighting options on selected models. Output, beam pattern, voltage, dimensions and included accessories vary by part number.
