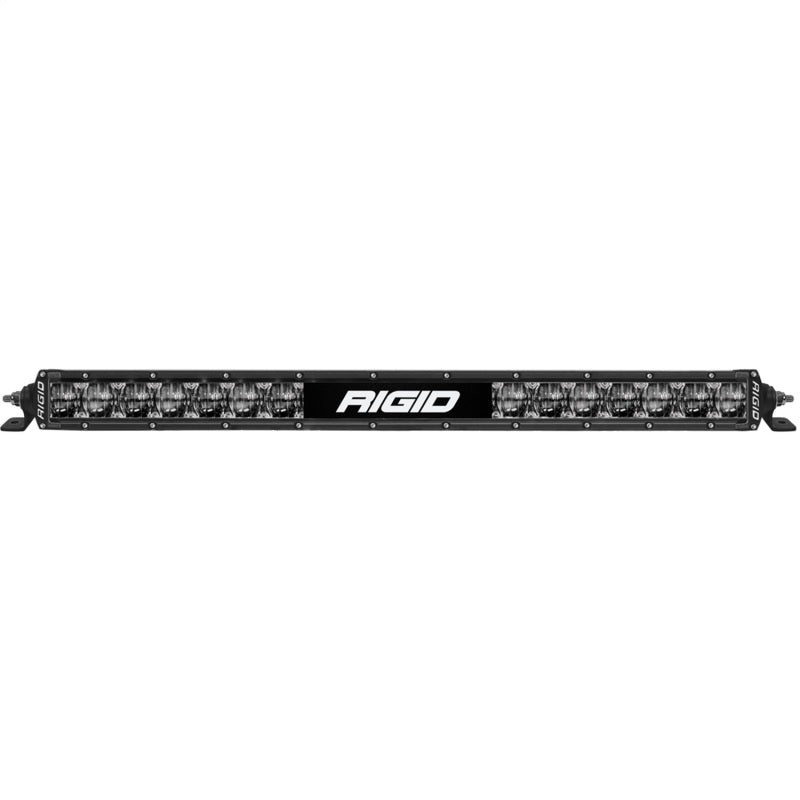

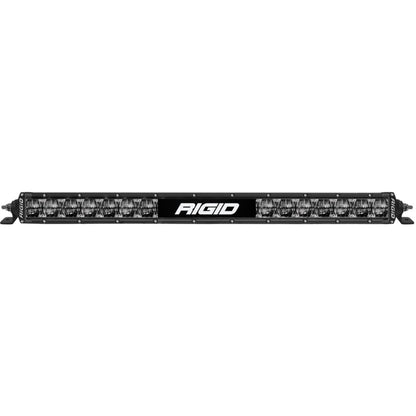

RIGID Industries SR-Series 20-Inch Dual Function SAE with Amber Backlight LED Light Bar - 920414

The RIGID Industries SR-Series 20-Inch Dual Function SAE with Amber Backlight LED Light Bar, part 920414, is an auxiliary LED light built to place controlled auxiliary light in a fog-light application. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 8,253 raw lumens, 95 W power, 6.8 A draw, and 28 LEDs. The package includes SR-Series 20 Inch Dual Function SAE Auxiliary High Beam Driving Lights with Amber Backlight, two Black powder coated L-shape Brackets, Mounting Hardware, wiring harness.

Key Features & Specs:

• Part Number: 920414
• SKU: RIG920414
• Series: SR-Series
• UPC: 849774033827
• Includes: SR-Series 20 Inch Dual Function SAE Auxiliary High Beam Driving Lights with Amber Backlight, two Black powder coated L-shape Brackets, Mounting Hardware, wiring harness
• Package Type: Box
• Package Dimensions: 6 x 25.3 x 6 in (H x W x D)
• Package Weight: 8.7 lb
• Product Weight: 5.3 lb
• Amp Draw: 6.8 A
• LED Count: 28
• Raw Lumens: 8,253
• Power: 95 W
• Output at 10 m: 342.6 lux
• 1-Lux Distance: 185.1 m
• Peak Beam Distance: 370.2 m
• Peak Intensity: 34,263 cd
• Field Width: 68.7°
• Field Height: 10.2°
• Warranty: Limited Lifetime
• SAE J581 Compliant Street Legal Auxiliary High Beam LED Light
• Toggleable Amber Backlight
• Multi-Function with RIGID Branding Plate
• Integrated Thermal Management System
• 9-36 VDC Operation
• RFI/EMI Protection
• Impact Resistant Polycarbonate Lens
• High Grade Alloy Housing And Heatsink
• Over/Under Voltage Protection
• IP68 Rated - Dust/Water Ingress
• Pressure Equalizing Vent
• Patented Optics
• Durable UV Polyester Powder Coat
• 50,000 Hour Lifespan
• Operating Temp -40 Deg F To +145 Deg F
• RoHS Compliant
• Legal For On Road and Off Road Use

Fitment:

• Universal fit

About the RIGID SR-Series: RIGID Industries SR-Series PRO is a slim single-row LED light-bar family built for applications where a lower-profile housing is preferred. The range includes multiple lengths, beam patterns, lens colors, covers and vehicle-specific kits. Output, electrical draw, road-use compliance, mounting hardware and included wiring vary by exact part number.
