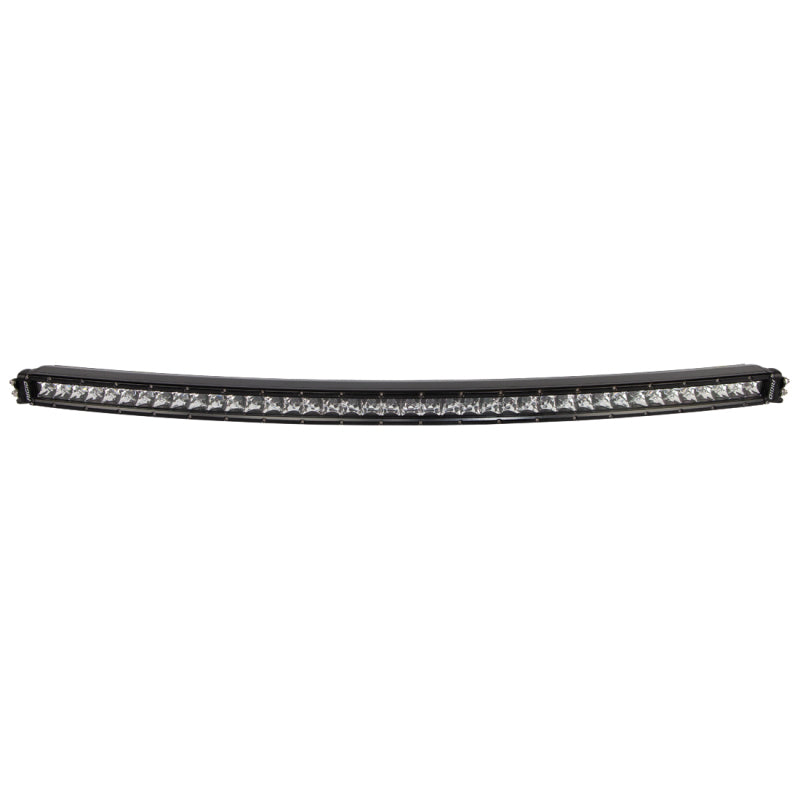

RIGID Industries RDS SR-Series PRO 40-Inch Spot LED Light Bar - 88431

The RIGID Industries RDS SR-Series PRO 40-Inch Spot LED Light Bar, part 88431, is an auxiliary LED light built to project focused forward light for longer-range visibility. It gives shoppers a RIGID solution with the beam, output, electrical and construction details listed below instead of borrowing specifications from a different model. Key part-specific data includes 31,680 raw lumens, 229W W power, 16.4 A draw, and 40 LEDs.

Key Features & Specs:

• Part Number: 88431
• SKU: RIG88431
• Series: RDS SR-Series
• UPC: 849774032561
• Package Type: Box
• Package Dimensions: 8.5 x 43.2 x 4.5 in (H x W x D)
• Package Weight: 12 lb
• Product Weight: 9.2 lb
• Amp Draw: 16.4 A
• LED Count: 40
• Raw Lumens: 31,680
• Power: 229W W
• Output at 10 m: 2,062 lux
• 1-Lux Distance: 454 m
• Peak Beam Distance: 908 m
• Peak Intensity: 206,176 cd
• Field Width: 38.3°
• Field Height: 17.1°
• Warranty: Limited Lifetime
• Black Exposed Printed Circuit Board
• 50,000+ Hr LED Lifespan
• Instant On/Off - No Warm Up
• RoHS Compliant
• Over/ Under Voltage Protection
• Extruded Aluminum Housing
• Durable Polycarbonate Lens
• Integrated Thermal Management
• GORE Pressure Equalizing Vent
• Designed, Engineered, & Assembled in the USA
• Up to 50˚ Horizontal Spread

Fitment:

• Universal fit

About the RIGID RDS SR-Series: RIGID Industries RDS SR-Series PRO combines a curved bar profile with the slimmer SR-style single-row lighting format. The design is intended for applications that need a radius light bar with a lower-profile housing and focused forward illumination. Length, beam pattern, output and mounting specifications vary by exact part number.
