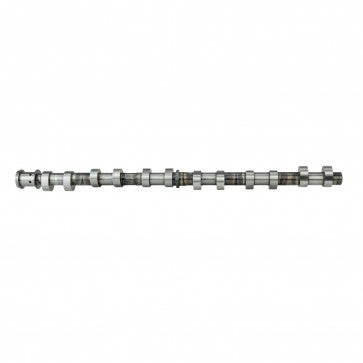

Skunk2 Ultra Series Stage 1 Camshafts for Toyota Supra MK5 / BMW B58 - 305-14-1000

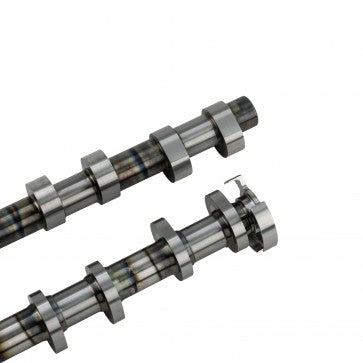

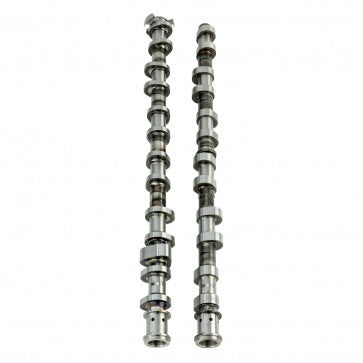

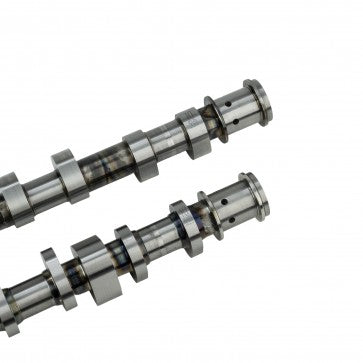

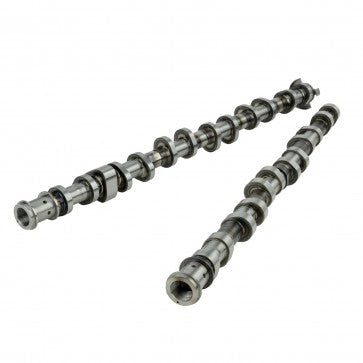

Skunk2 Ultra Series Stage1 Camshafts for Toyota Supra MK5/BMW B58 significantly increases engine efficiency and power output by utilizing advanced lobe profile designs that retain full Valvetronic and Double VANOS functionality, which ensures the widest possible powerband with smooth drivability and idle. For the ultimate in precision and strength/rigidity† Skunk2 Ultra camshafts are machined from forged solid 8660 alloy steel blanks that are then rifle drilled, induction hardened, and CNC precision ground.
Expect gains of 6% to 10% from 3,500rpm to redline with approximate gains of 100hp and 100lb-ft at 40psi boost pressure. Though Ultra Stage1 cams are compatible with stock OEM valve springs, we recommend the use of Skunk2 upgraded High Lift Valve Springs along with Titanium Retainers (PN: 313-14-1000) for the B58 as long term durability using stock valve springs is unknown.

†When pushing performance, all OEM B58 camshafts are prone to bend due to the thin cam barrels designed to save weight and cost. Skunk2 Ultra Camshafts are made from high strength alloy steel and feature a thick-wall barrel design to better resist camshaft flex.

*Note: Actual results will vary based on engine condition, other parts selection, and tuning abilities.

Features:

• • Billet 8660 Alloy Steel Camshafts
  • Retains Double VANOS + Valvetronic fuctionality
  • Improved Efficiency / Power
  • Widest Possible Power Band
  • Smooth Driveability & Idle

*Note: Actual results will vary based on engine condition, other parts selection, and tuning abilities.

Ultra Stage 1 Camshaft Specifications:

Lift: 0.410”/10.41mm

Duration:

227˚ @ 0.050” / 1.3mm
234˚ @ 0.039” / 1.0mm
277˚ @ 0.004” / 0.1mm

Lift: 0.425”/10.79mm

Duration:

245˚ @ 0.050” / 1.3mm
252˚ @ 0.039” / 1.0mm
295˚ @ 0.004” / 0.1mm
