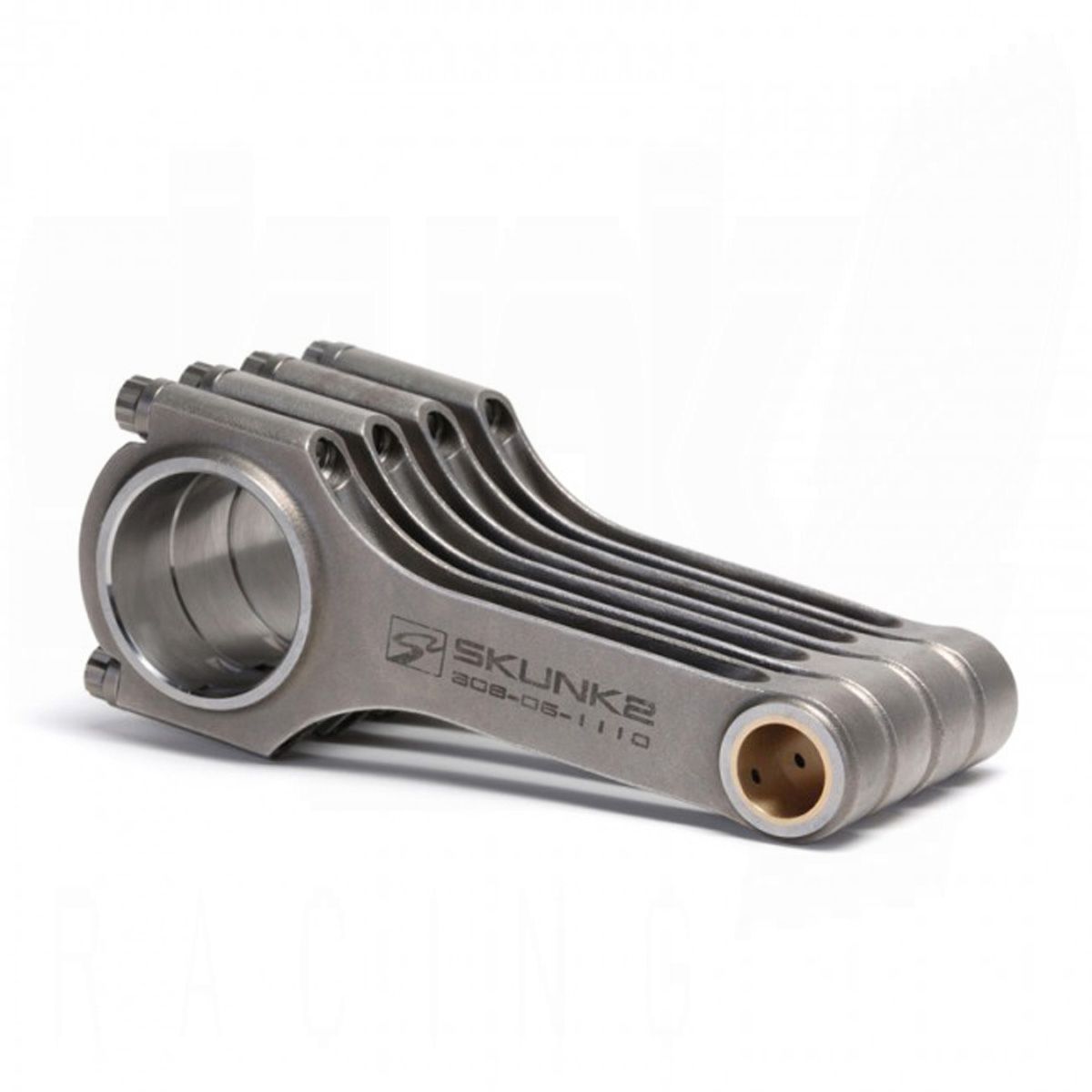

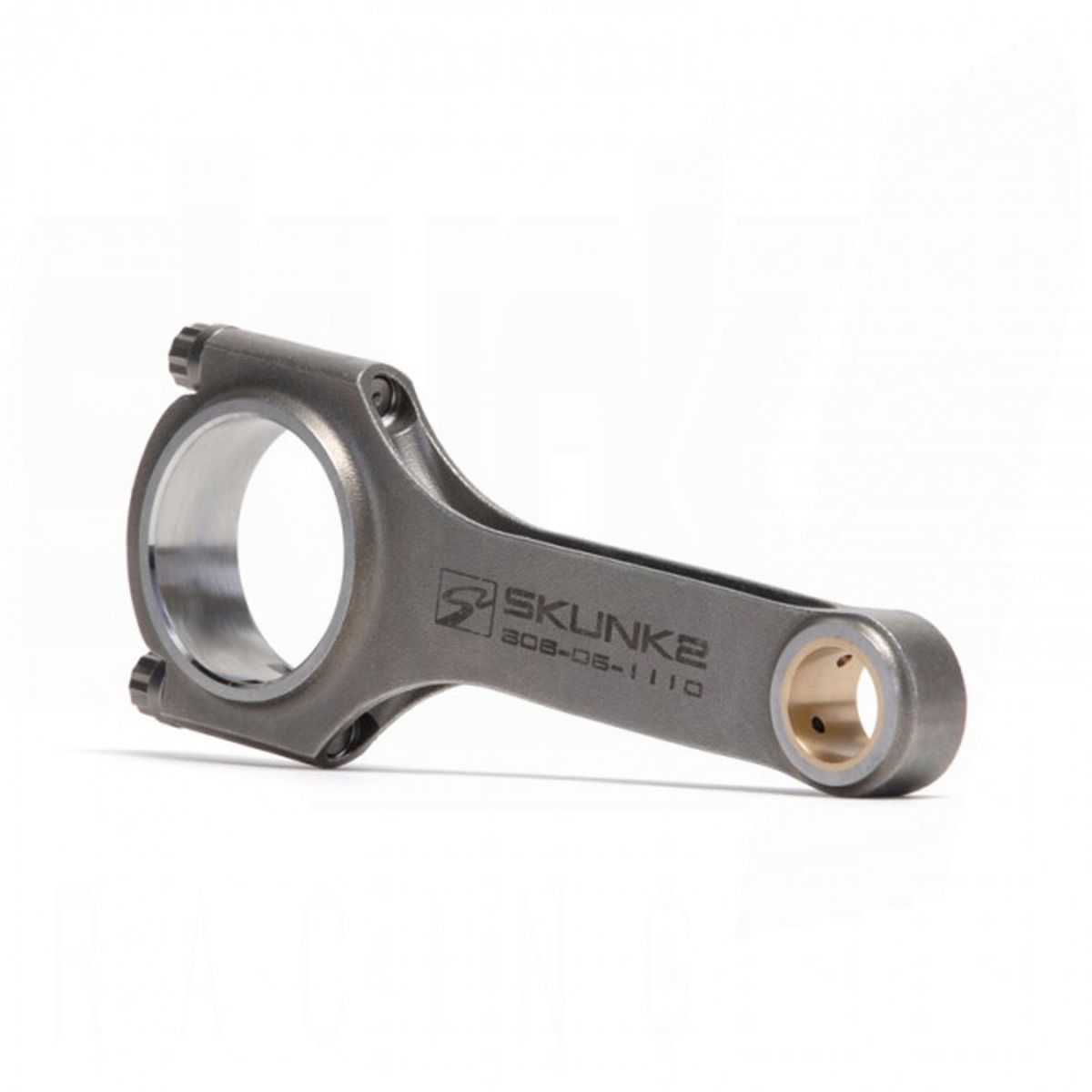

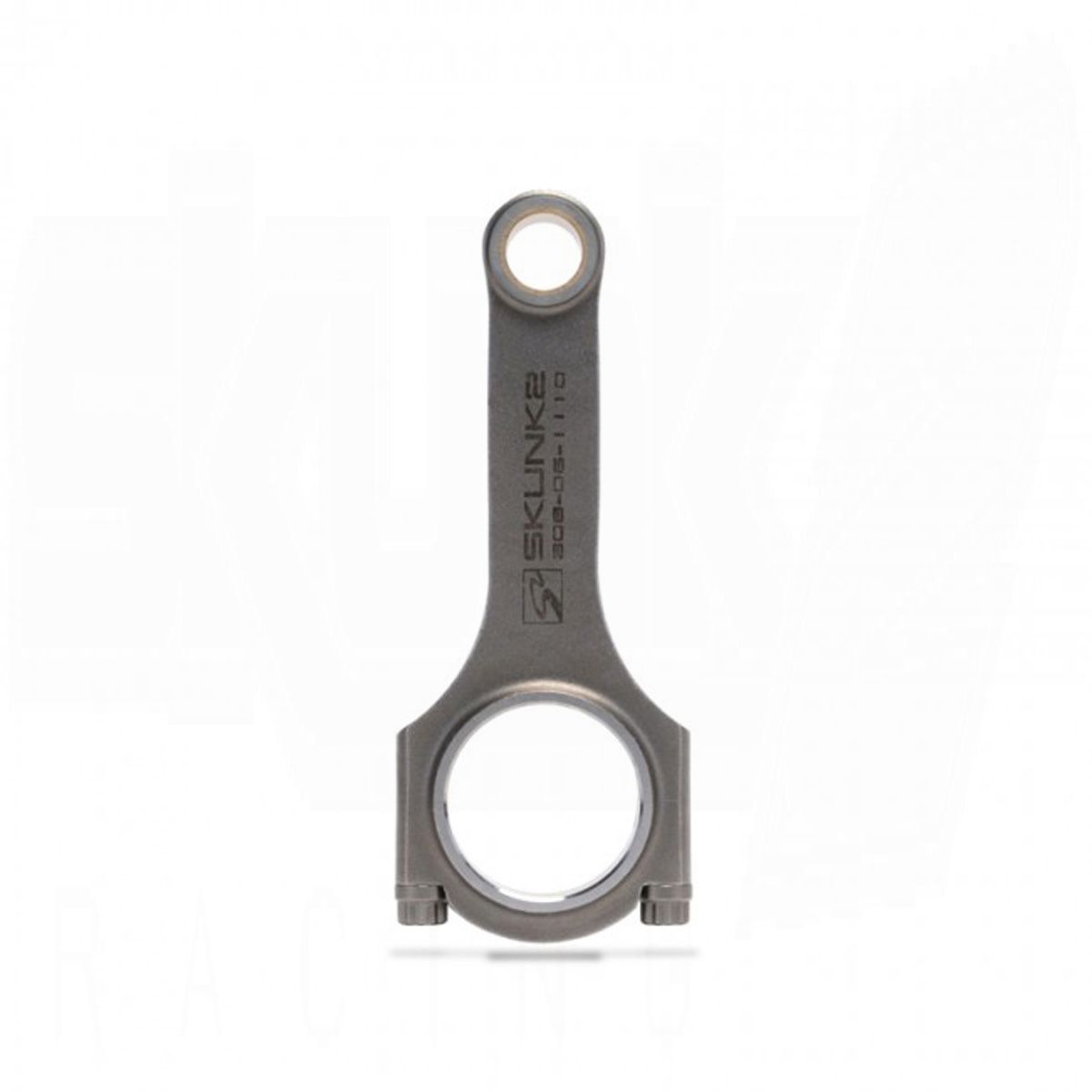

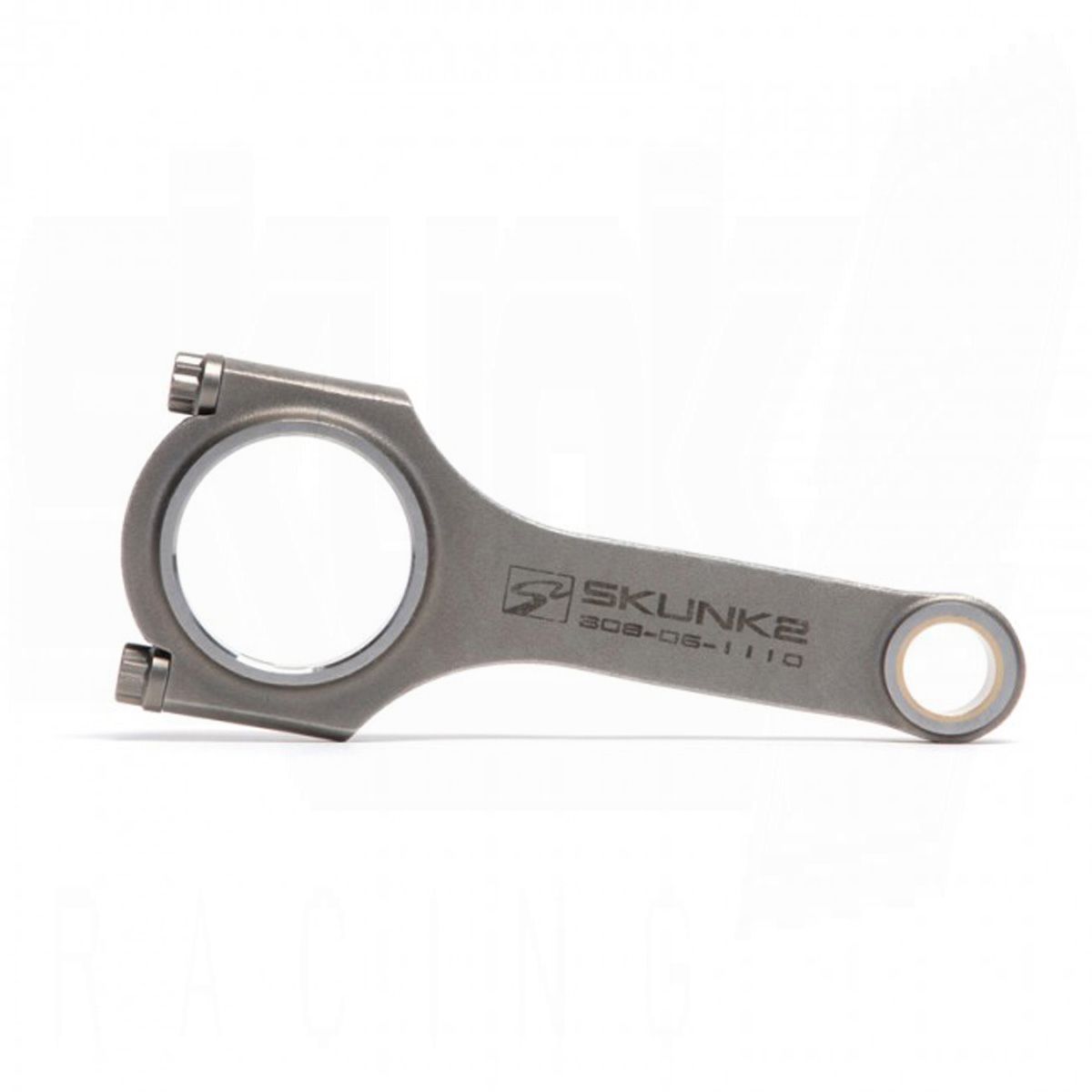

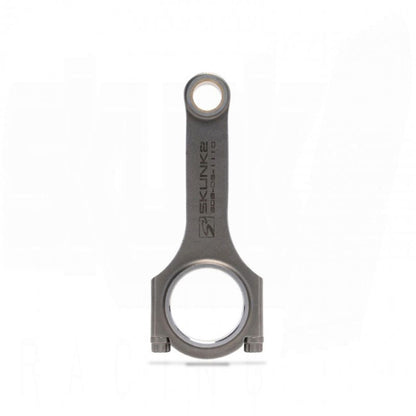

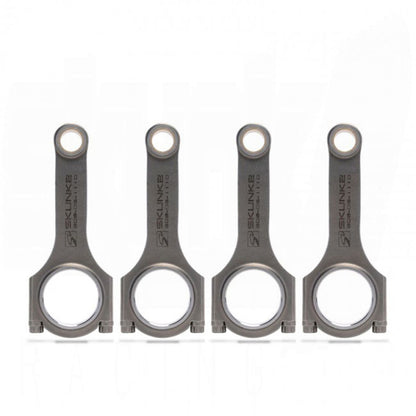

Skunk2 Alpha Series Connecting Rods – Honda D16A / ZC SOHC Engines

Skunk2’s Alpha Series Connecting Rods are engineered for high horsepower Honda SOHC D16A and ZC engines, delivering exceptional strength, balance, and durability. Precision CNC-machined from forged 4340 chromoly steel, each rod features a wide H-beam design and undergoes heat treatment, tempering, and shot peening for improved fatigue resistance. With an optimized strength-to-weight ratio and 3/8" ARP2000 bolts rated to 220,000 psi, these rods are ideal for high-stress performance applications.

Built for engine builders pushing the limits of SOHC power, Alpha Series rods provide industry-leading value and performance. Modifications to the engine girdle and/or block are required for proper installation.

Key Features:

• Forged aircraft-grade 4340 chromoly steel construction

• Wide H-beam design for enhanced durability under high loads

• Precision CNC-machined for consistent weight and balance

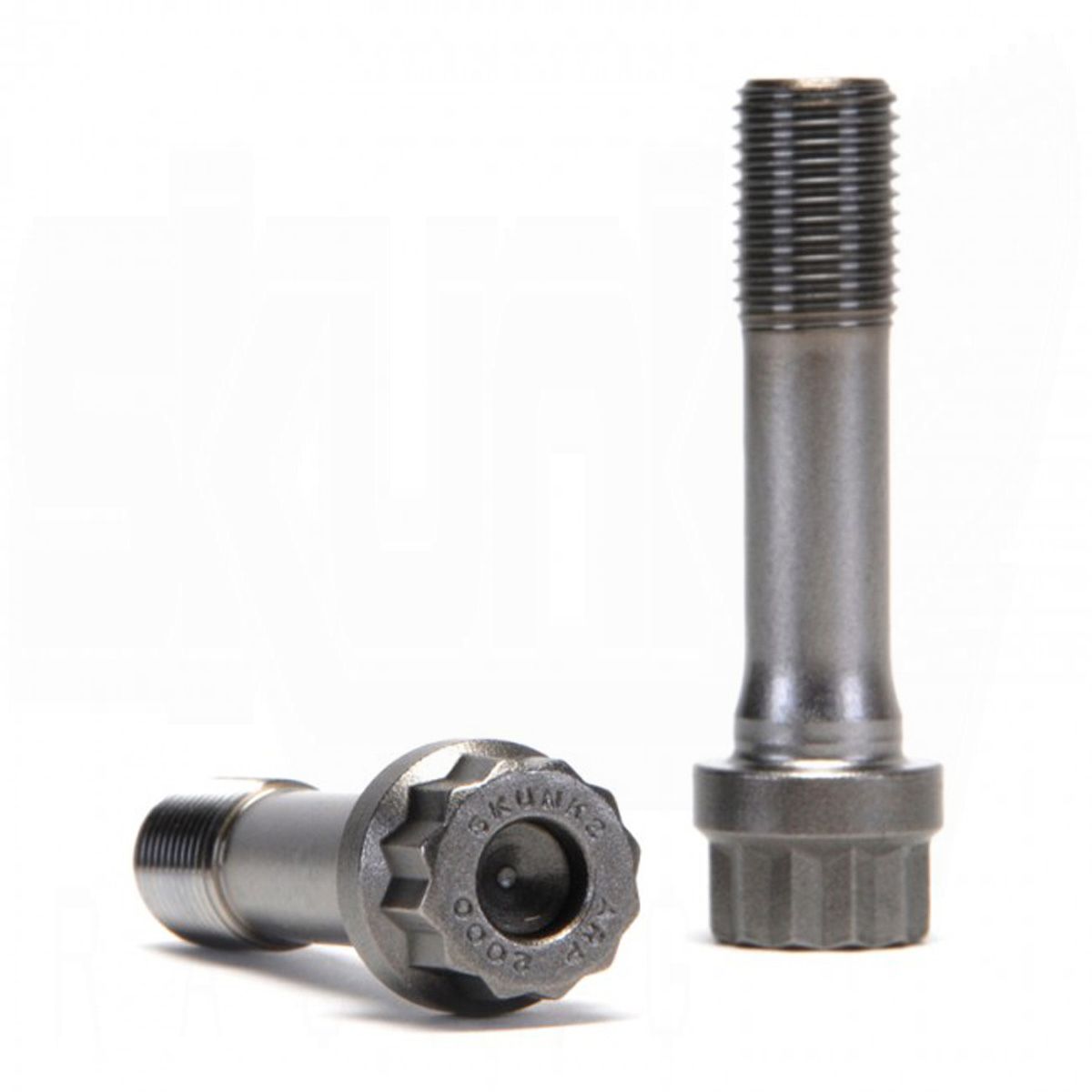

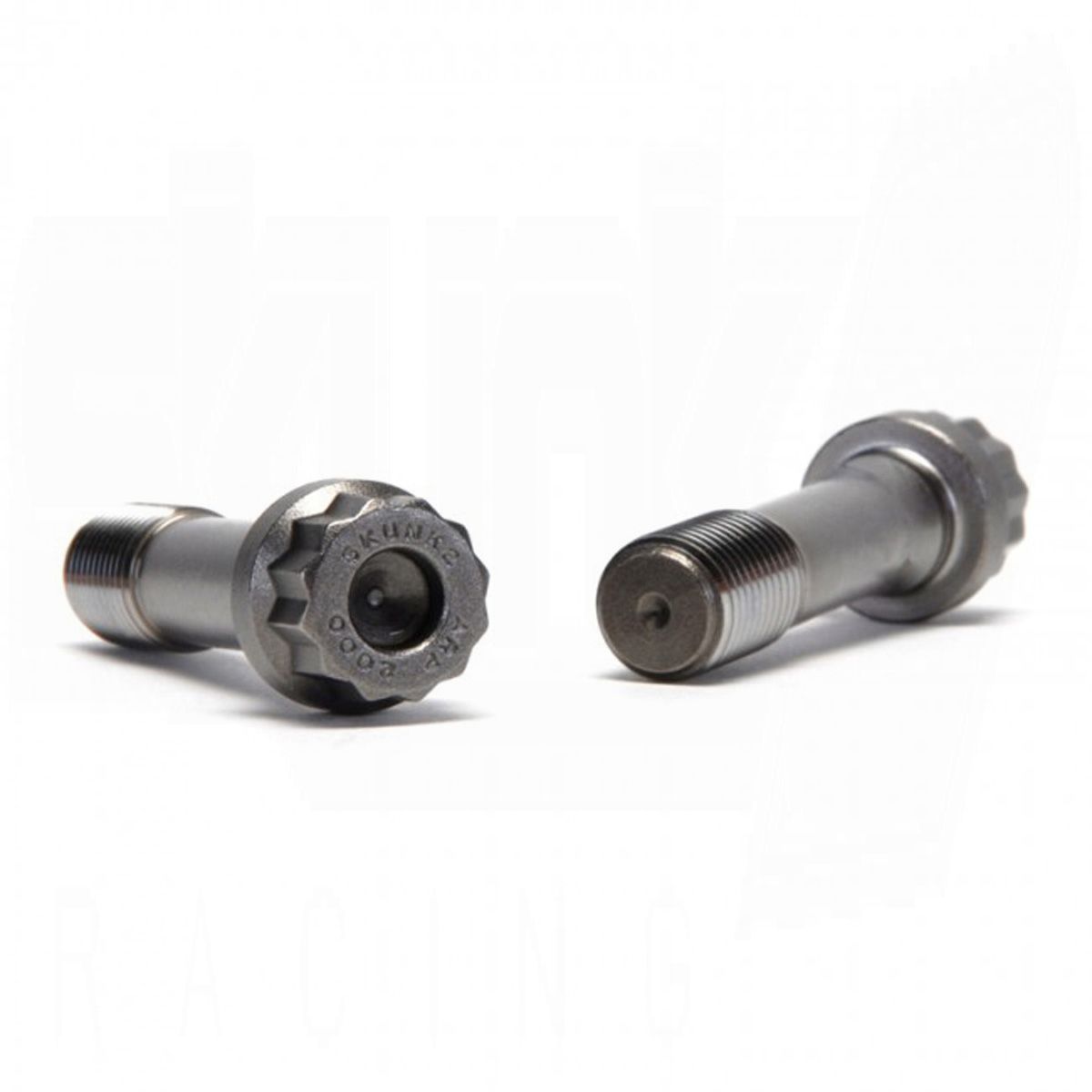

• ARP2000 3/8" rod bolts rated at 220,000 psi tensile strength

• Heat-treated, tempered, and shot-peened for fatigue resistance

• Designed for high horsepower builds

Connecting Rod Specifications:

• Beam Type: H-Beam

• Weight: 472g per rod

• Material: Forged 4340 Chromoly Steel

• Center-to-Center Length: 137mm / 5.394"

• Small End Diameter: 19mm / 0.748"

• Small End Width: 18.161mm / 0.715"

• Big End Bore: 48mm / 1.890"

• Big End Width: 23mm / 0.892"

• Rod Bolt Size: 3/8" ARP2000

• Reciprocating Weight: 111g

• Rotating Weight: 358g

Note: Modification to the girdle and/or block is necessary for proper fitment.

Vehicle Fitment:
Compatible with:

• Honda D16A

• Honda ZC

Included:

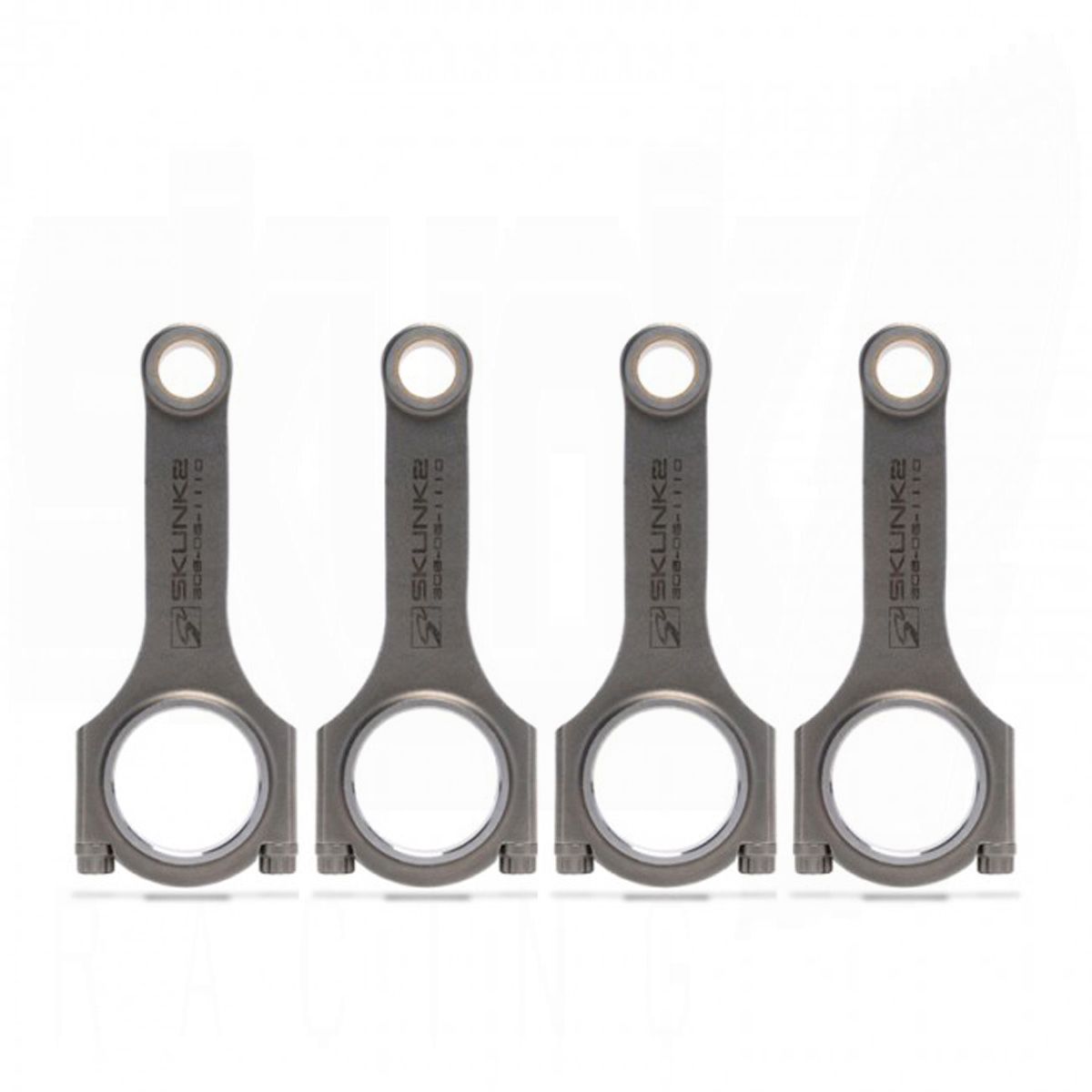

• (4) Alpha Series Connecting Rods

• (8) ARP2000 3/8" Rod Bolts
