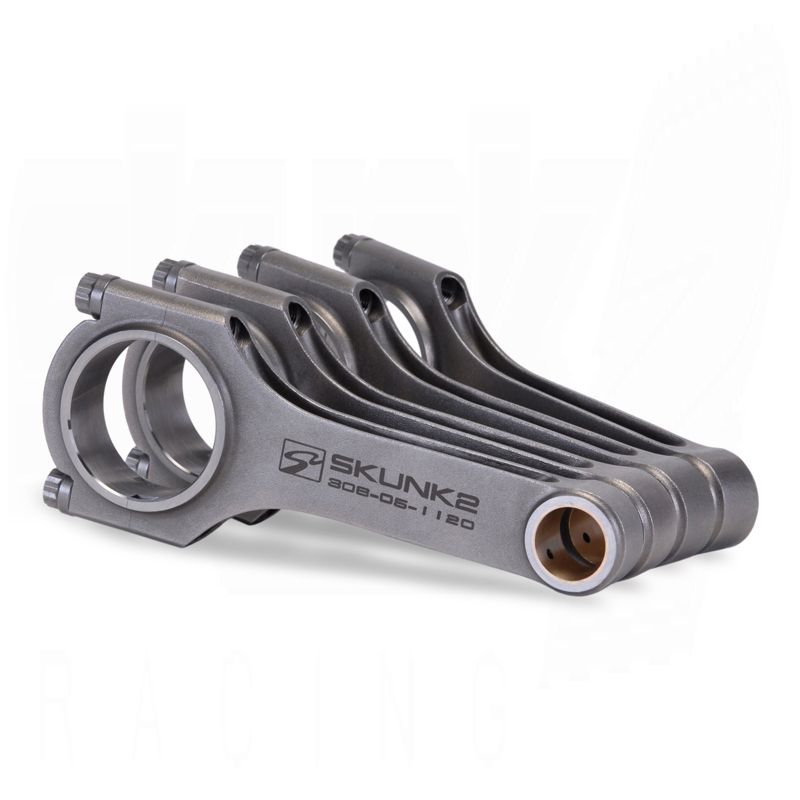

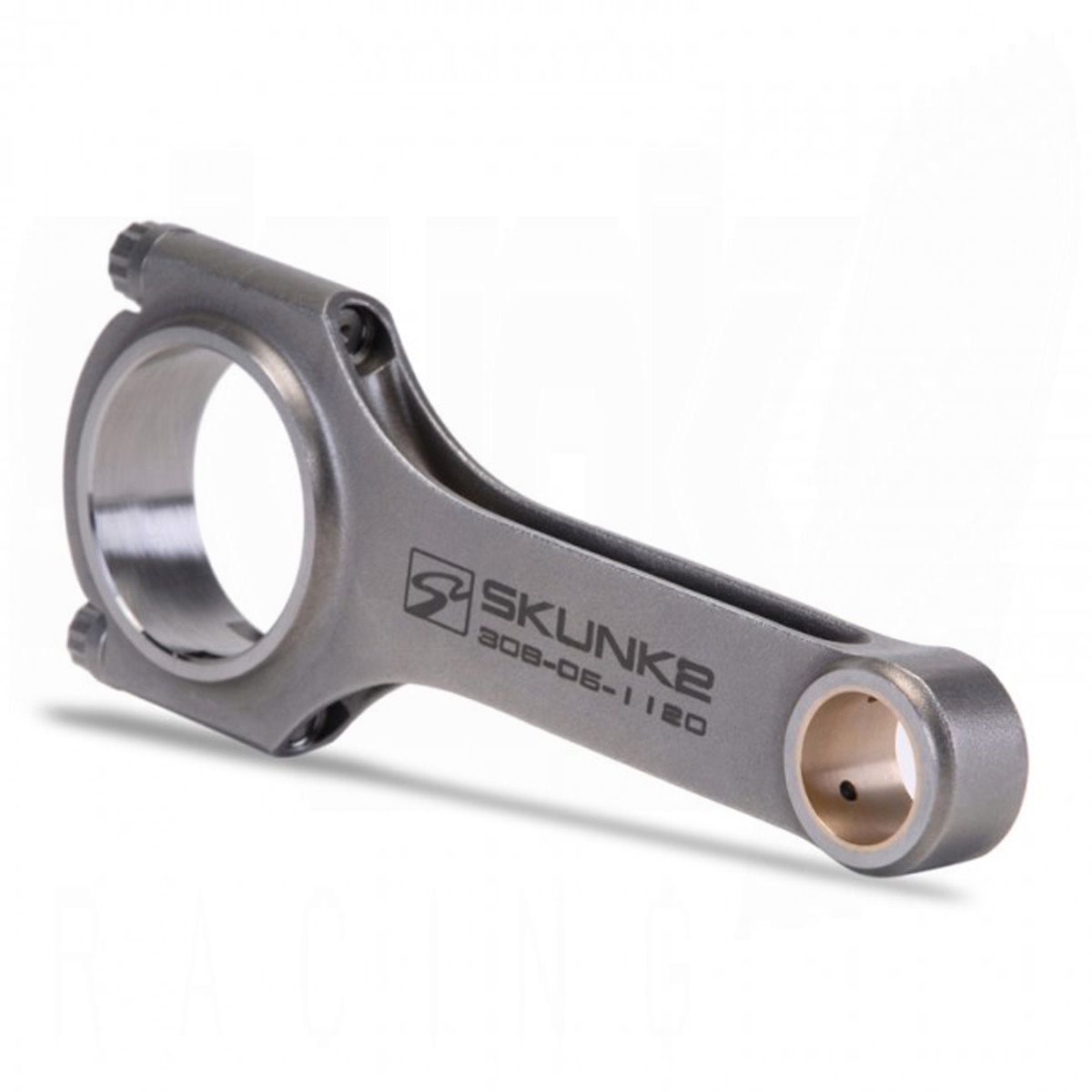

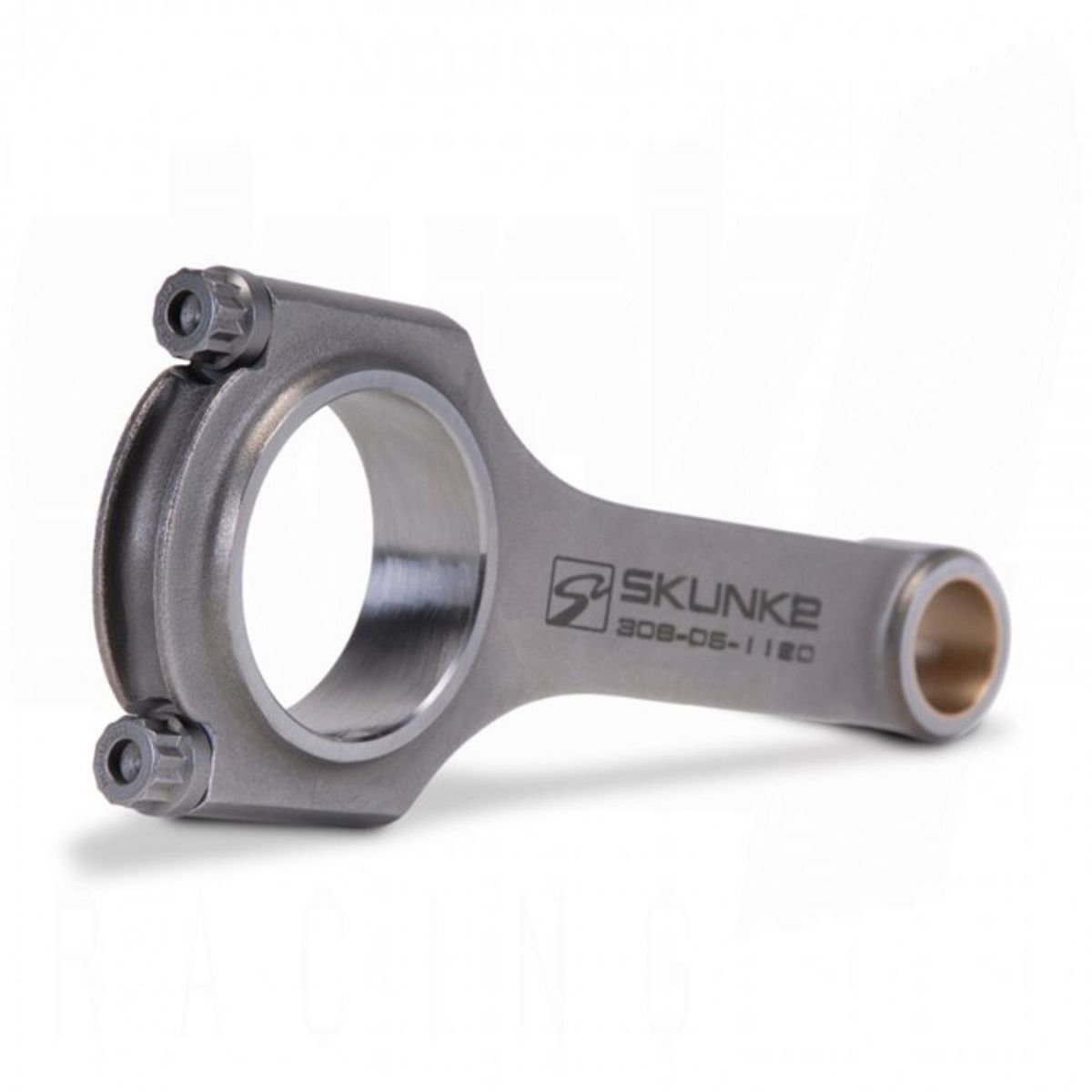

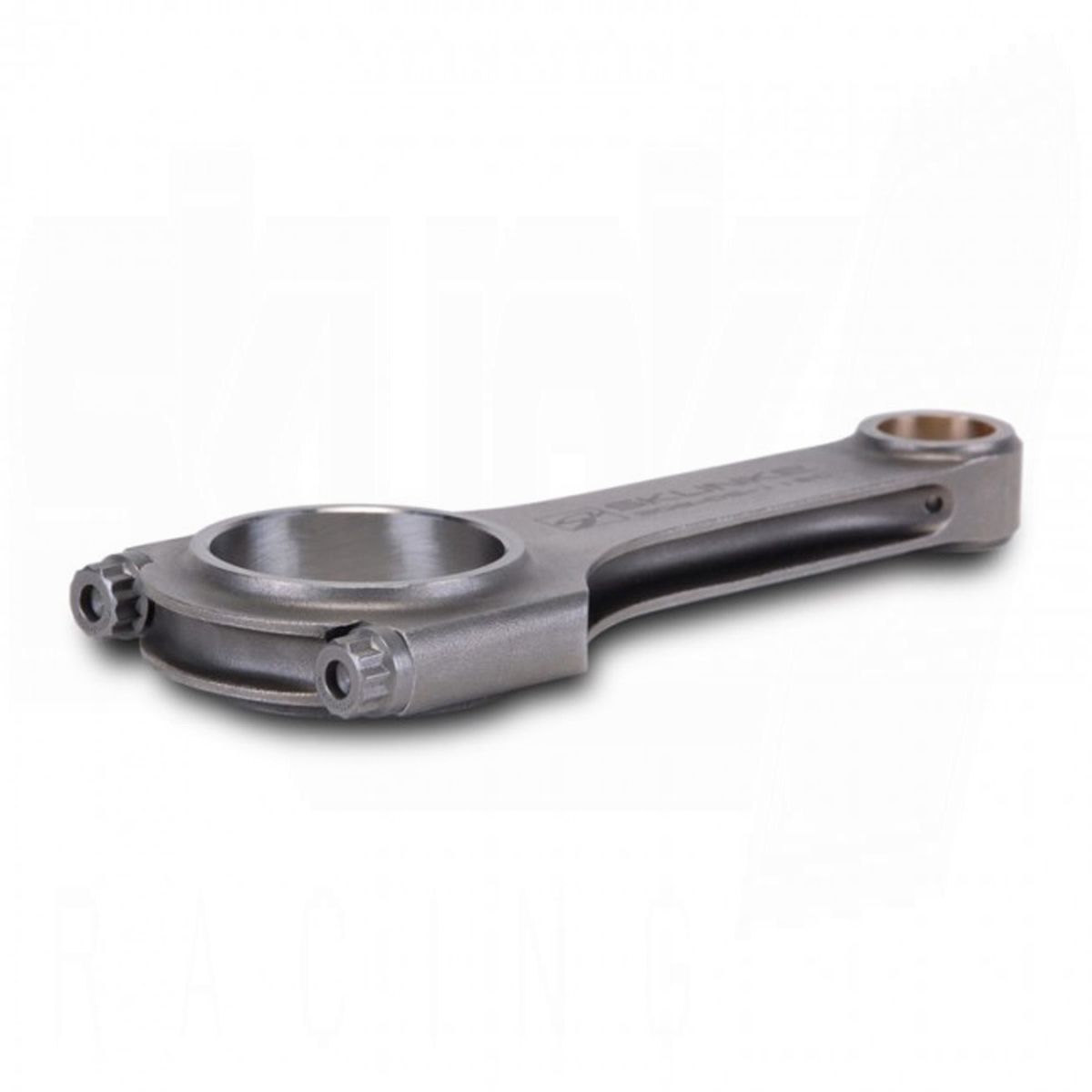

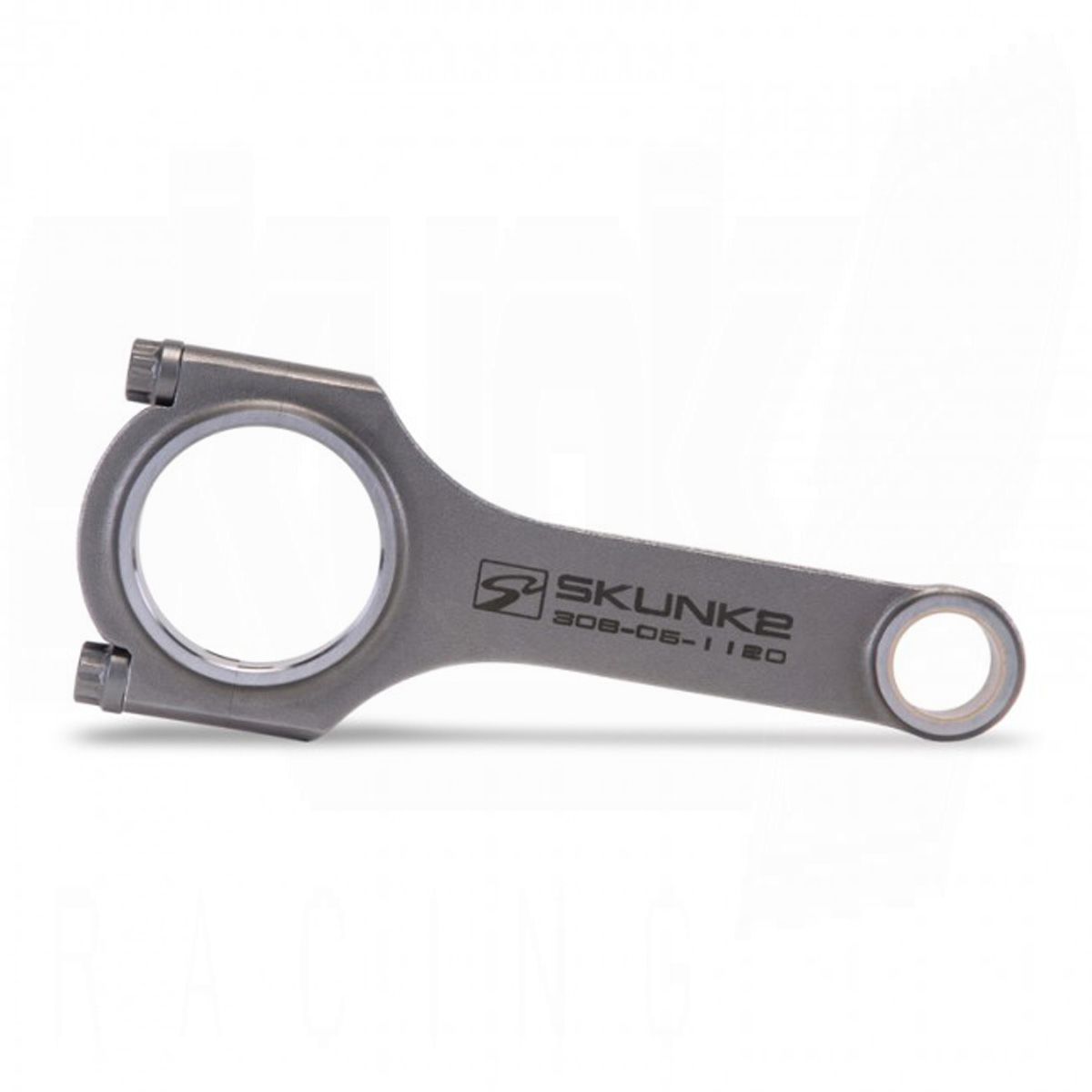

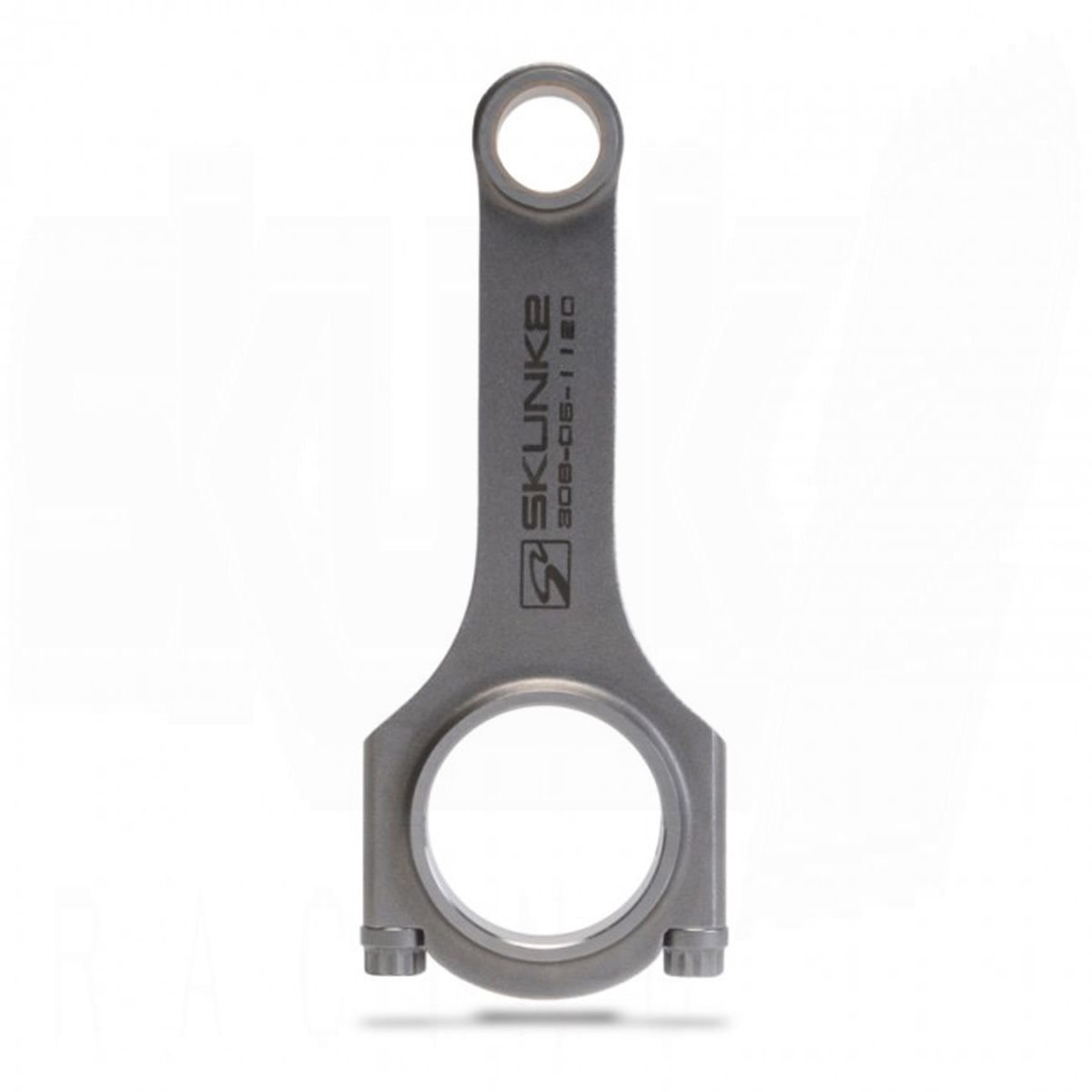

Skunk2 Alpha Series Connecting Rods – D16A / ZC (Vitara Spec)

The Skunk2 Alpha Series Connecting Rods for Honda SOHC D16A and ZC (Vitara Spec) engines are engineered to deliver race-proven durability and strength at an exceptional value. Designed for high-performance turbo and naturally aspirated builds, these rods are CNC-machined from forged 4340 chromoly steel and feature a wide H-beam design optimized for strength-to-weight efficiency.

Using Finite Element Analysis (FEA) technology and advanced heat treatment, tempering, and shot-peening processes, Skunk2 engineers created a rod capable of handling extreme stress and high-RPM conditions with confidence. Each rod is fitted with 3/8-inch ARP 2000 rod bolts, rated at an incredible 220,000 psi tensile strength, ensuring long-term reliability under demanding conditions.

Skunk2 Alpha Rods are trusted by professional engine builders worldwide for their balance, consistency, and proven performance — ideal for boosted D16A or ZC engines running Vitara-style pistons.

Key Features:

• Forged from 4340 Chromoly Steel for maximum durability and fatigue resistance

• Precision CNC-Machined for perfect dimensional accuracy and weight balance

• Wide H-Beam Design for increased rigidity and load distribution

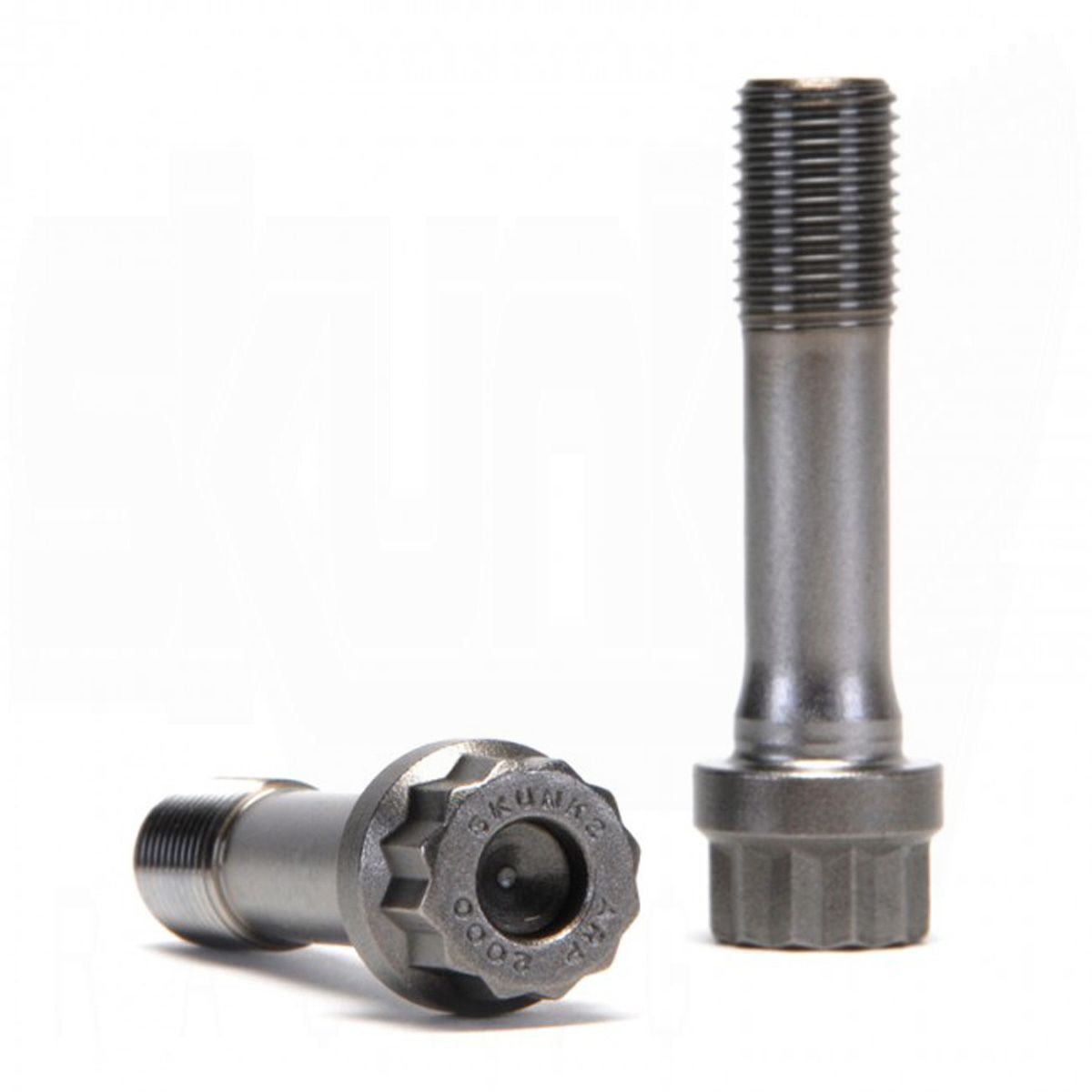

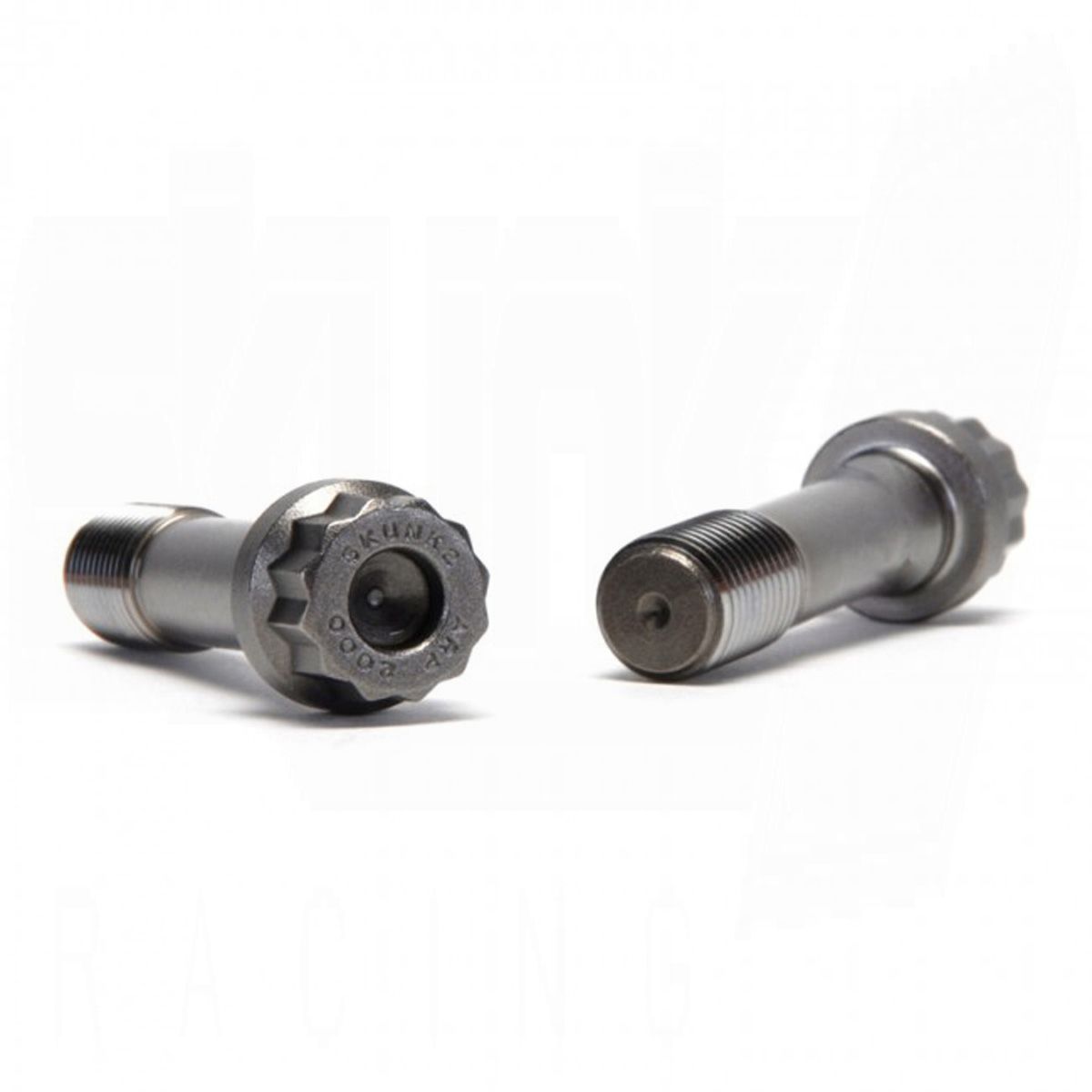

• 3/8” ARP 2000 Bolts Included – rated at 220,000 psi tensile strength

• Heat Treated, Tempered, and Shot Peened for improved strength and longevity

• Finite Element Analysis (FEA) Optimized Design for ideal strength-to-weight ratio

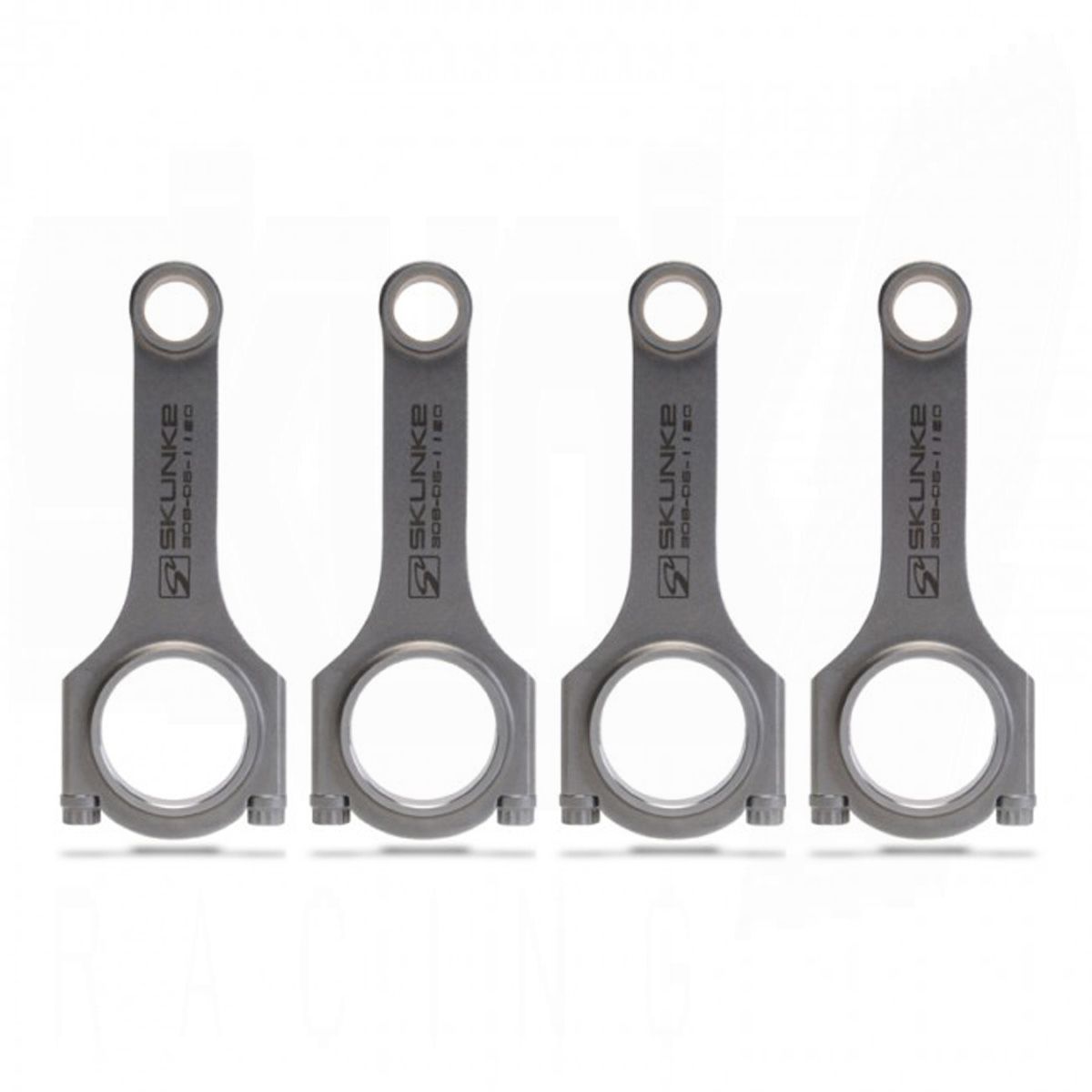

• Set of Four Rods – perfect balance and ready for performance assembly

• Engineered for Turbocharged and High-RPM Applications

• Used Worldwide by Professional Engine Builders

Technical Specifications:

• Beam Type: H-Beam

• Material: Forged 4340 Chromoly Steel

• Center-to-Center Length: 138.63 mm / 5.458”

• Weight: 457 grams per rod

• Rod Bolts: 3/8” ARP 2000 (220,000 psi)

• Small End (SE) Diameter: 19 mm / 0.749”

• Small End Width: 18.19 mm / 0.716”

• Big End (BE) Bore: 48 mm / 1.890”

• Big End Width: 22.6 mm / 0.891”

• Reciprocating Weight: 102 grams

• Rotating Weight: 354 grams

• Total Weight: 457 grams

• Recommended Application: Vitara-spec piston setups

• Note: Some piston brands may require minor shaving for clearance

Vehicle Fitment:
Compatible with:

• Honda D16A

• Honda ZC

Included:

• (4) Alpha Series Connecting Rods

• (8) ARP 2000 Rod Bolts (3/8”)

• (1) Installation & Torque Specification Guide
