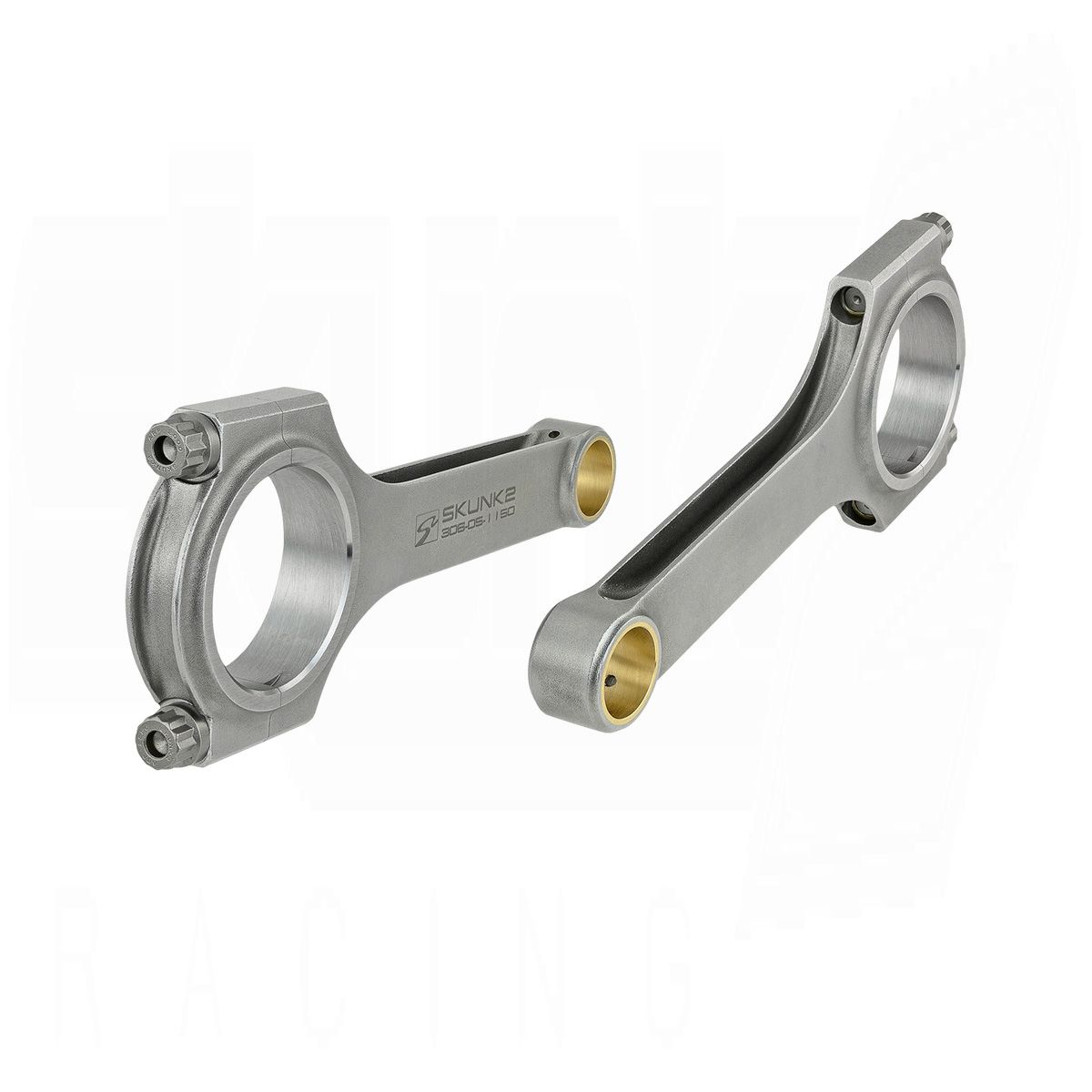

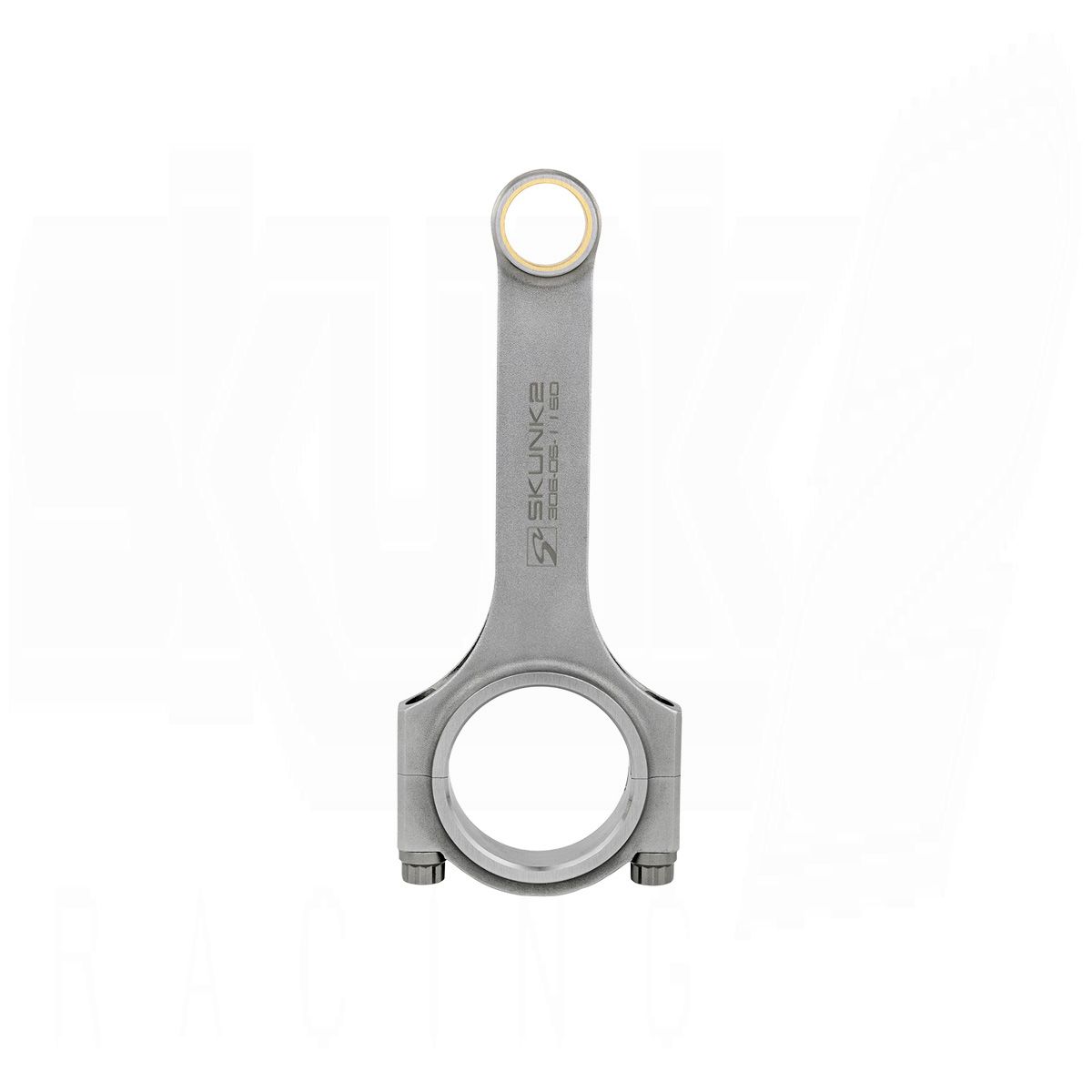

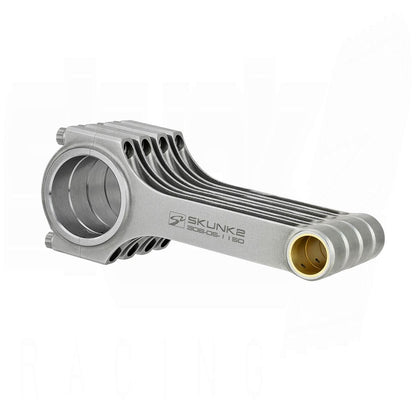

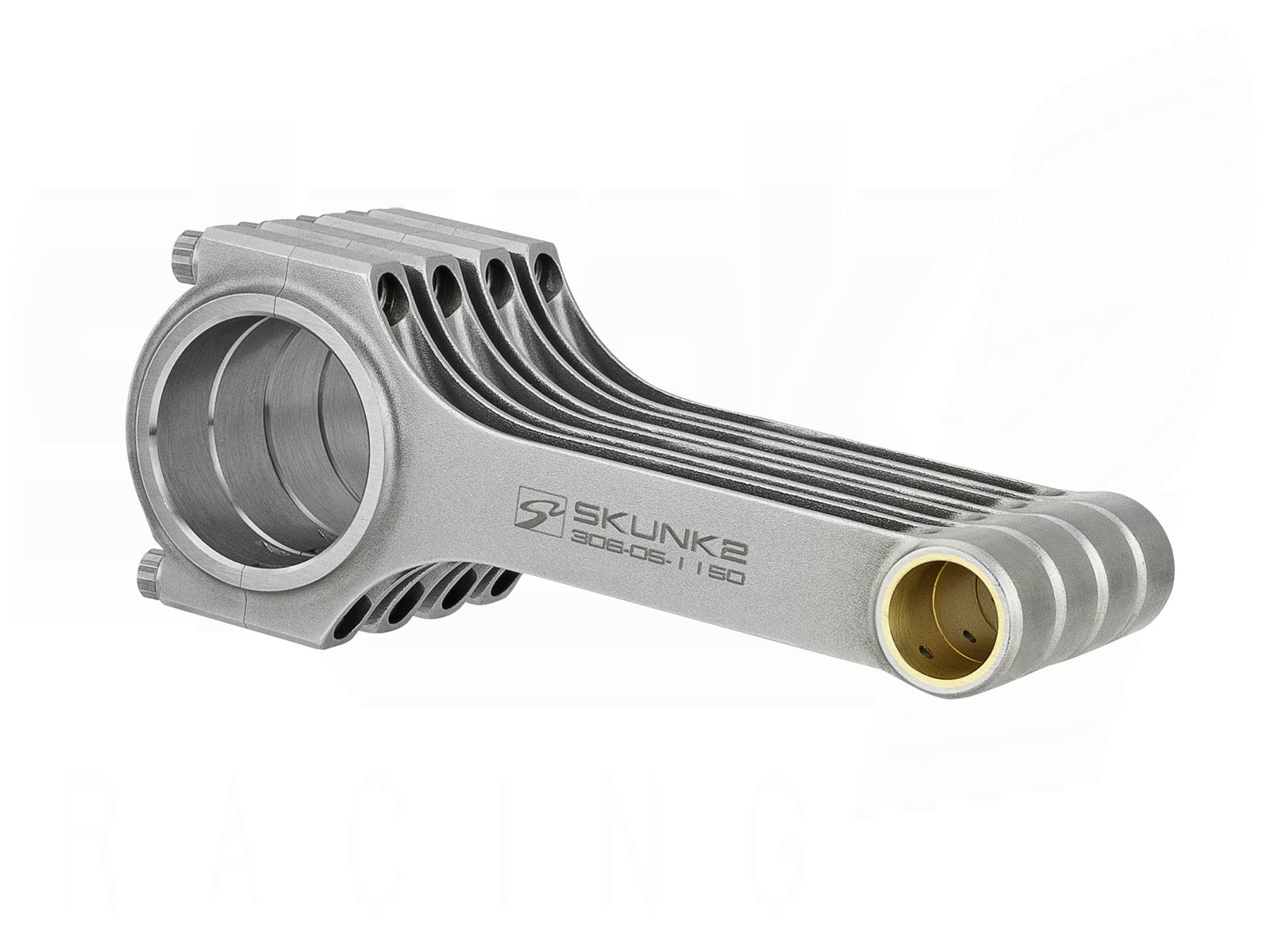

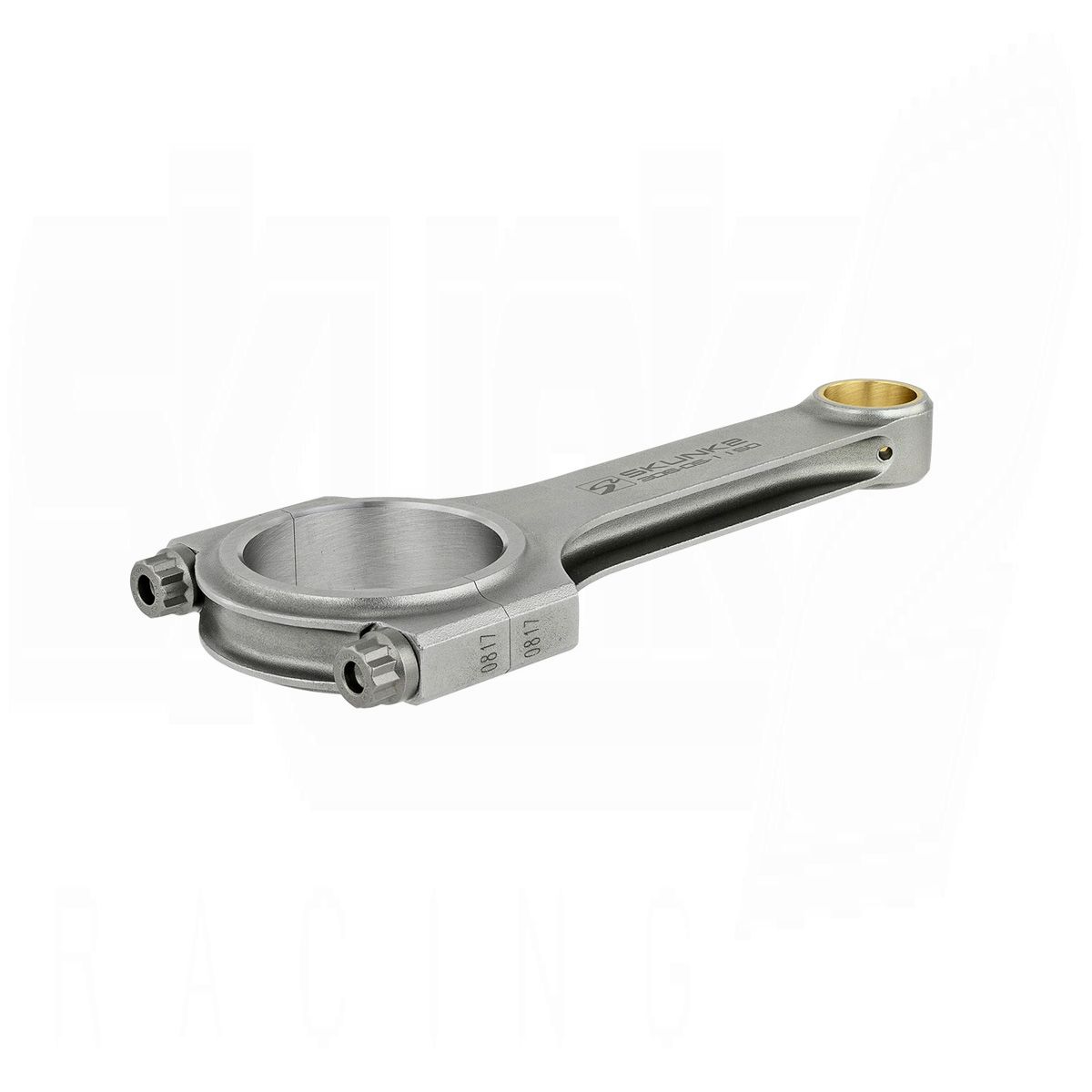

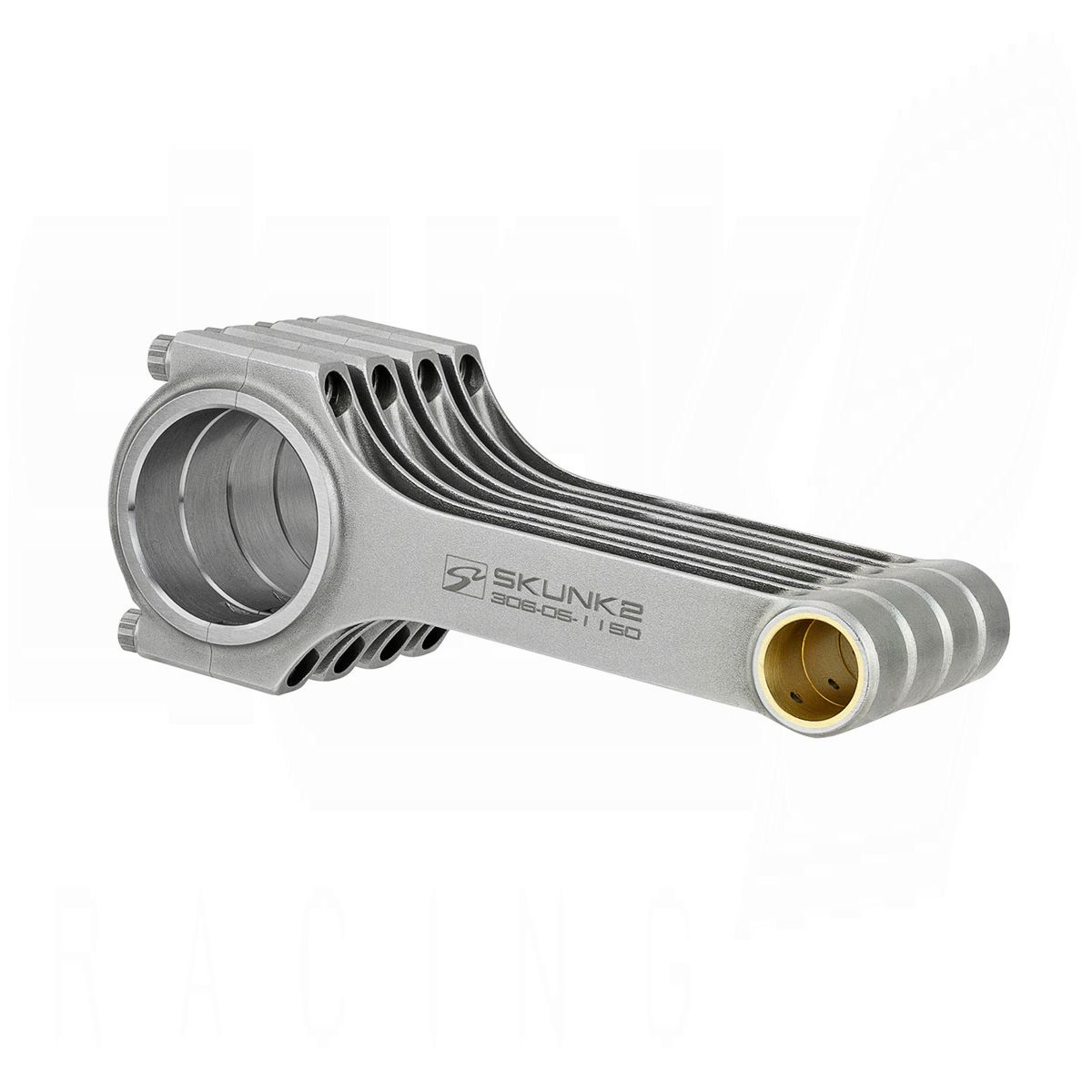

Skunk2 Alpha Series Connecting Rods – Honda K24A / K24Z Engines

Skunk2’s Alpha Series Connecting Rods are designed for Honda K24A1, K24A2, K24A4, K24A8, and K24Z engine platforms, offering exceptional strength, precision, and durability for high-performance builds. These rods are CNC-machined from premium forged 4340 chromoly steel and feature a wide H-beam design refined through Finite Element Analysis for optimal strength-to-weight ratio.

Each rod is subjected to advanced heat treatment, tempering, and shot peening for fatigue resistance. The set includes 3/8" ARP2000 bolts rated at 220,000 psi tensile strength—trusted by engine builders worldwide. Skunk2 Alpha rods are the ideal solution for high-RPM, high-power K-series builds demanding reliability and performance.

Key Features:

• Forged 4340 aircraft-grade chromoly steel construction

• Wide H-beam design for enhanced strength under load

• Precision CNC-machined for consistent sizing and balance

• Heat-treated, tempered, and shot-peened for improved durability

• Includes 3/8" ARP2000 bolts rated at 220,000 psi

• Designed for high-horsepower street and race engines

Connecting Rod Specifications:

• Beam Type: H-Beam

• Weight: 508g per rod

• Material: Forged 4340 Chromoly Steel

• Center-to-Center Length: 152mm / 5.984"

• Small End Diameter: 22mm / 0.868"

• Small End Width: 19.8mm / 0.780"

• Big End Bore: 51mm / 2.008"

• Big End Width: 19.7mm / 0.777"

• Rod Bolt Size: 3/8" ARP2000

• Reciprocating Weight: 126g

• Rotating Weight: 382g

Vehicle Fitment:
Compatible with the following Honda K-Series engines:

• Honda K24

• Honda K24A1 / K24A2 / K24A4 / K24A8

• Honda K24Z

Included:

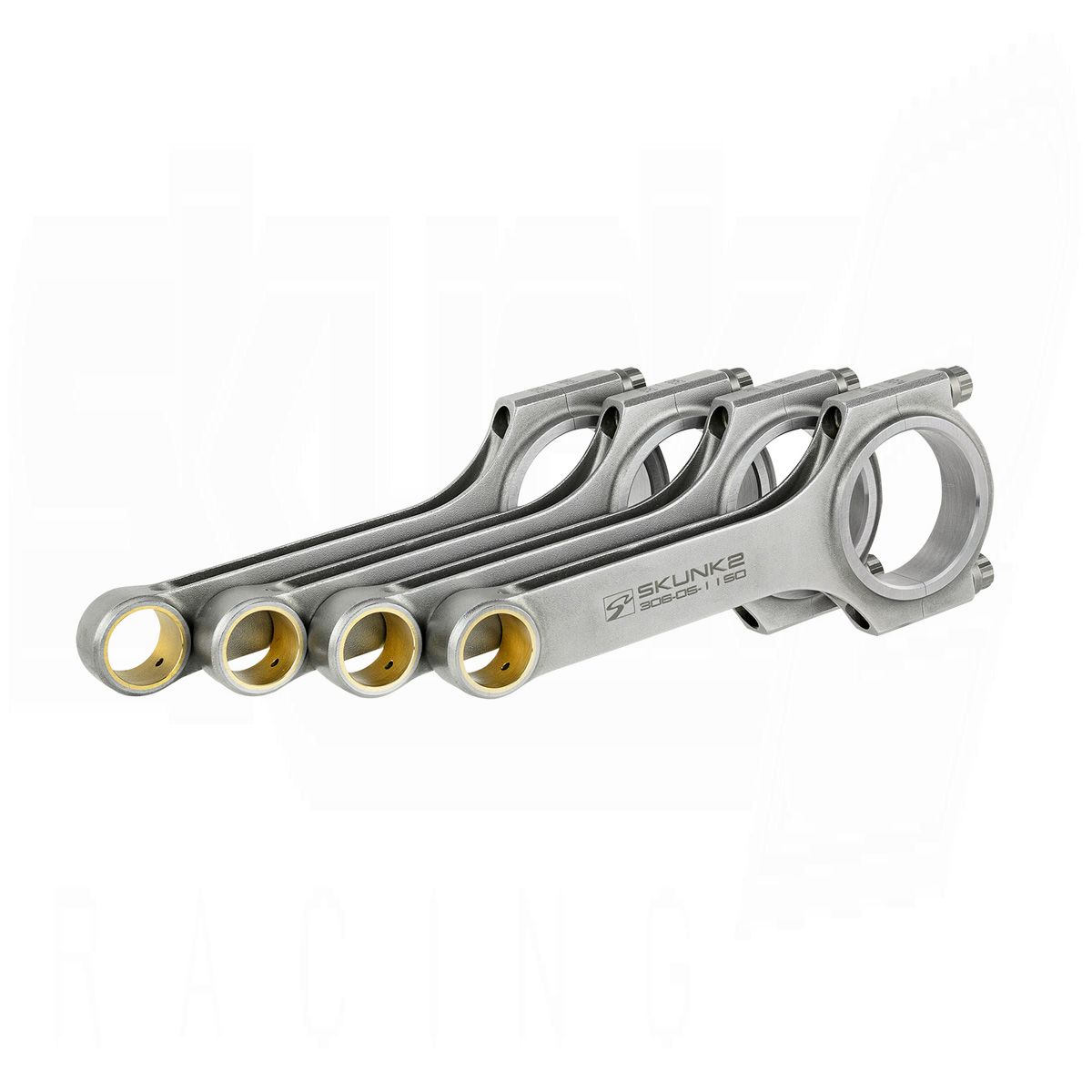

• (4) Alpha Series Connecting Rods

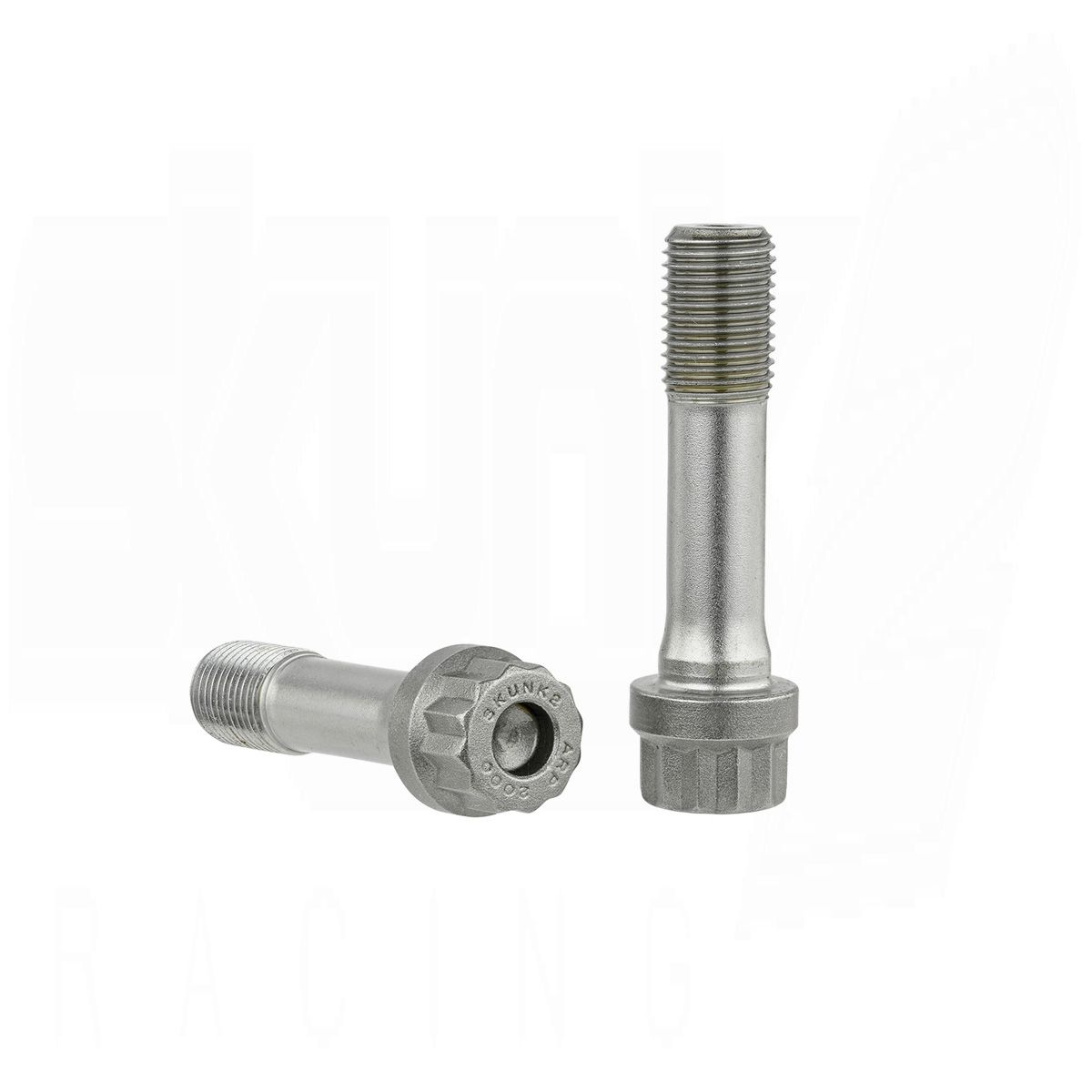

• (8) ARP2000 3/8" Rod Bolts
