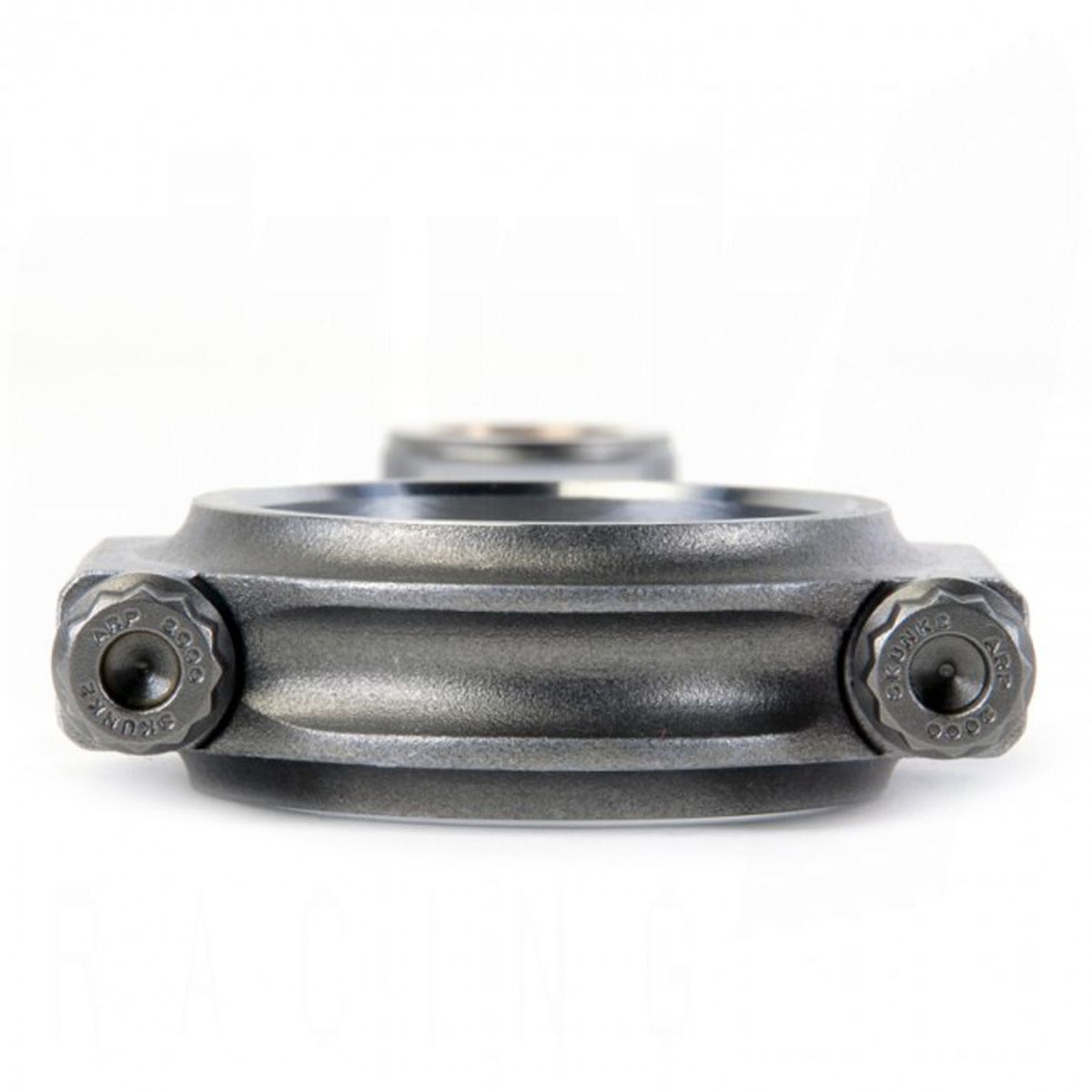

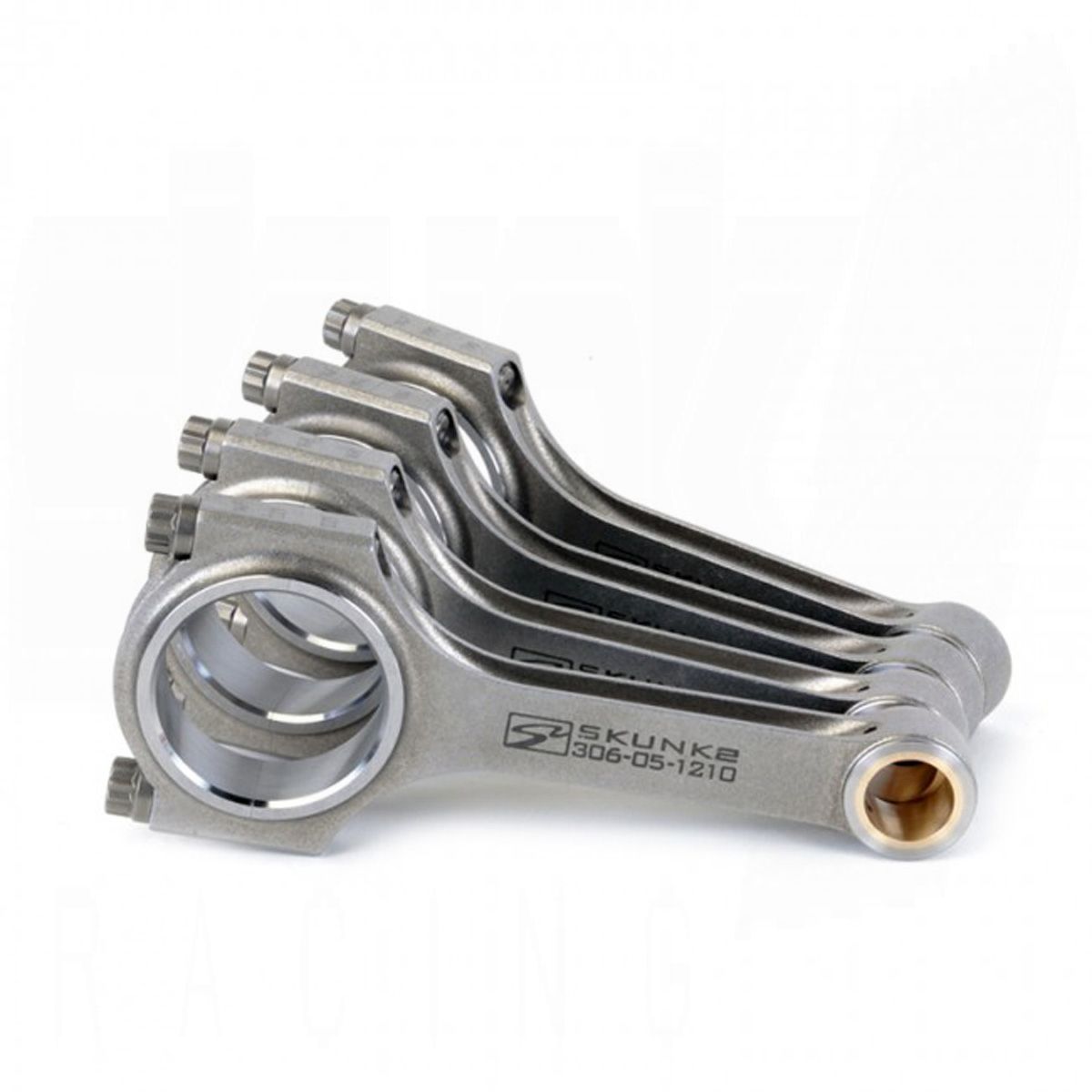

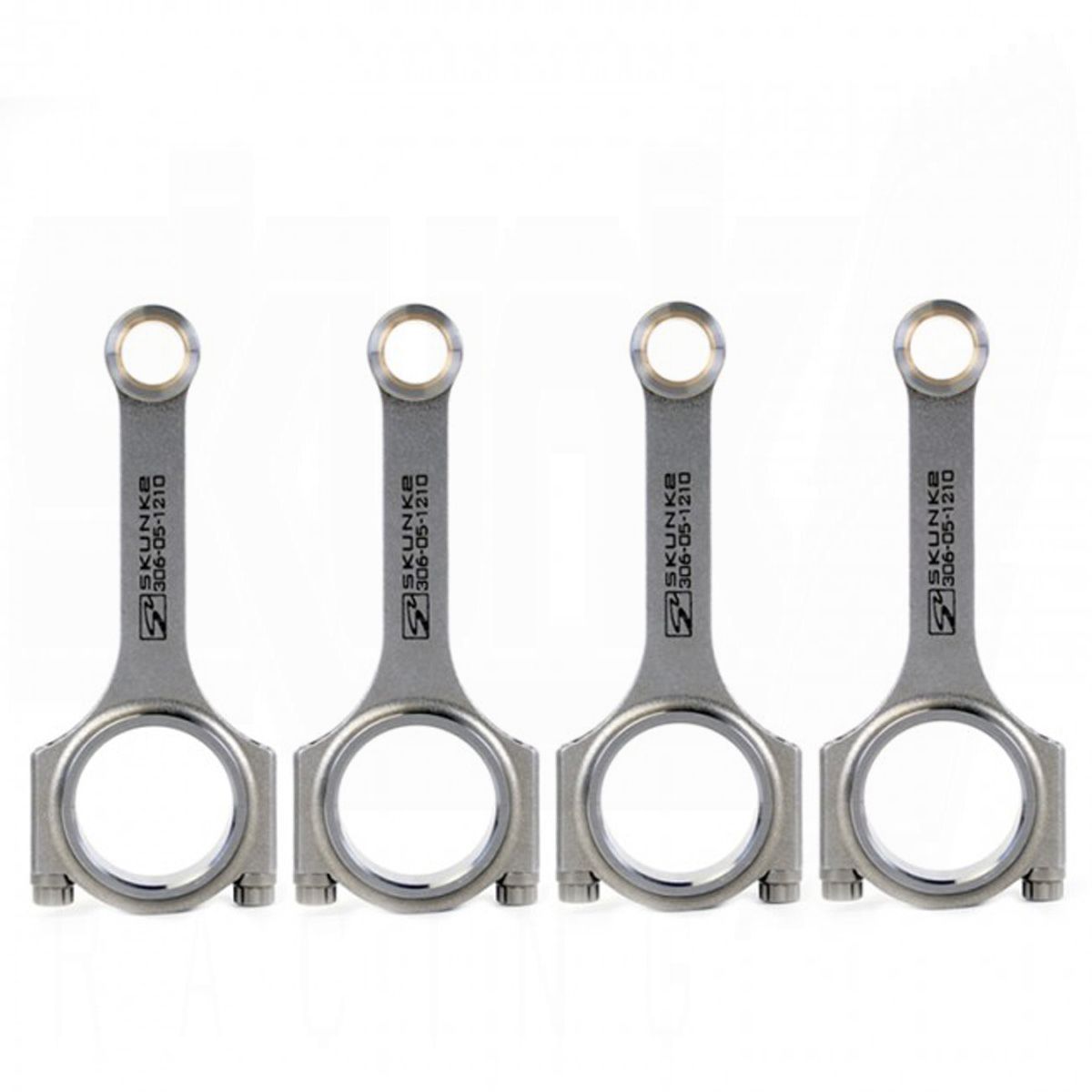

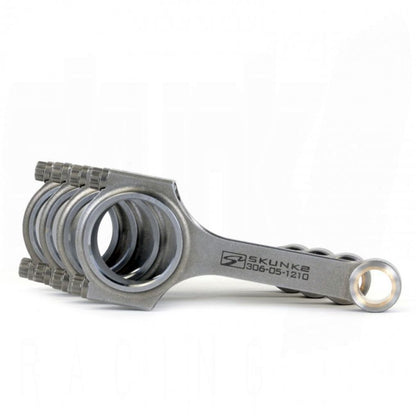

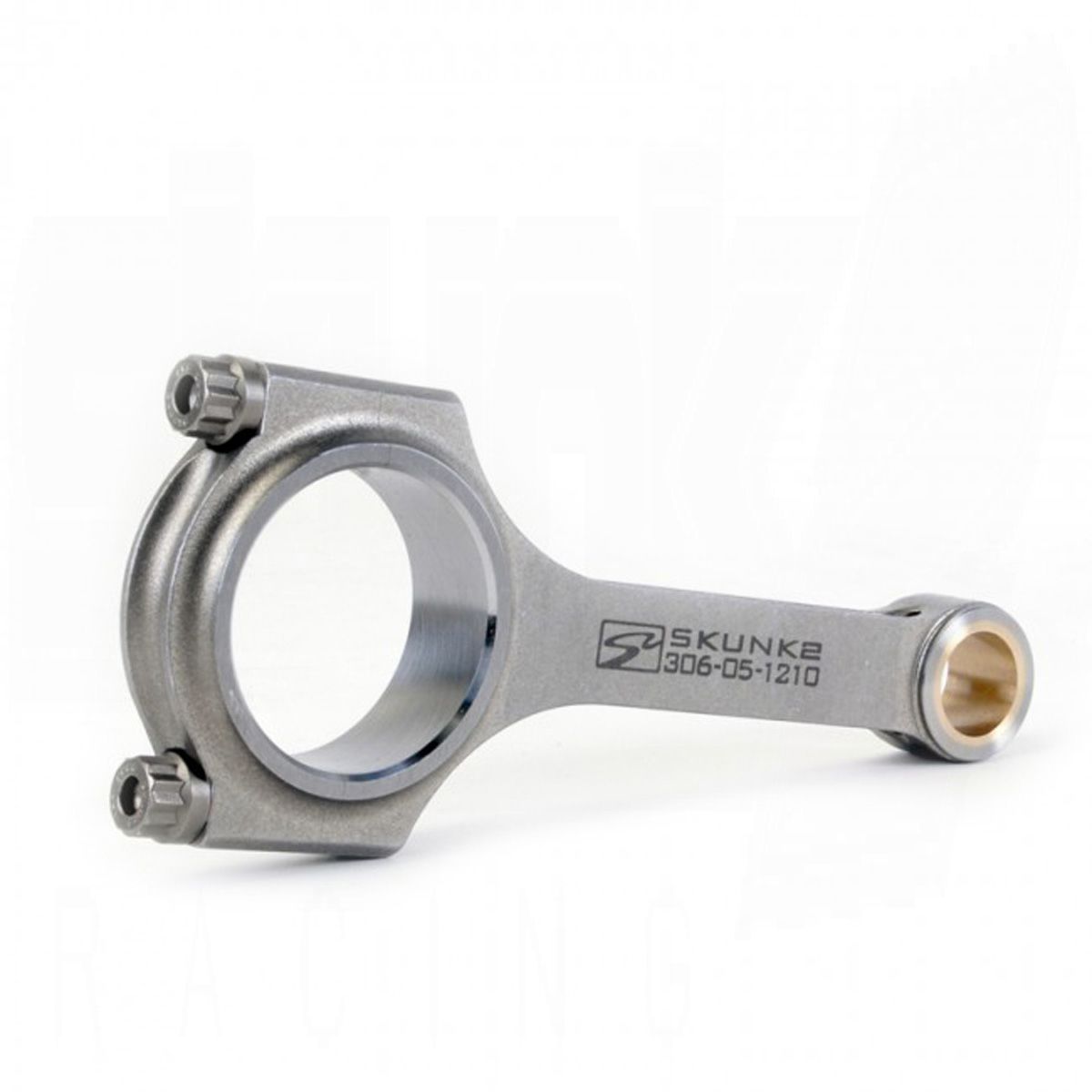

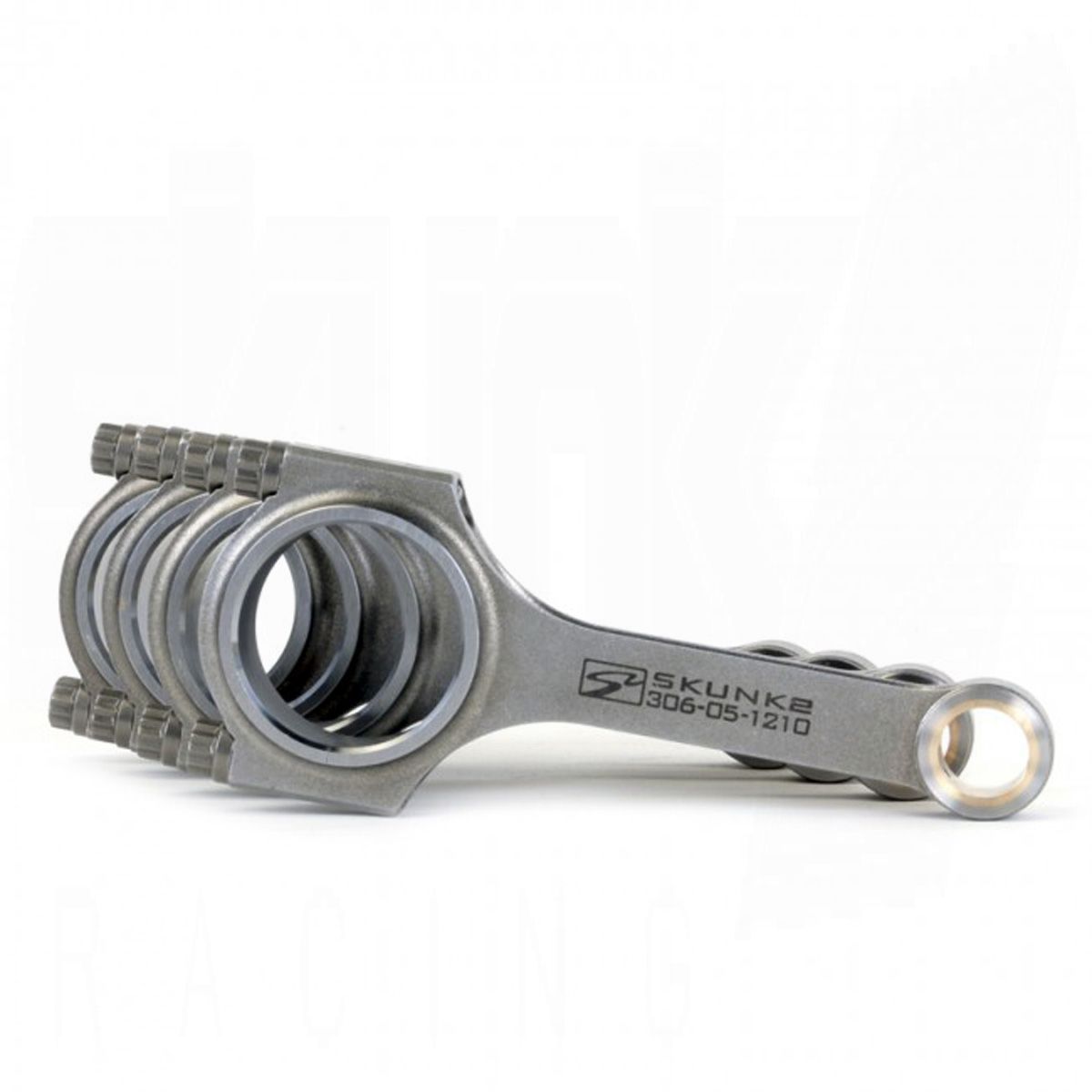

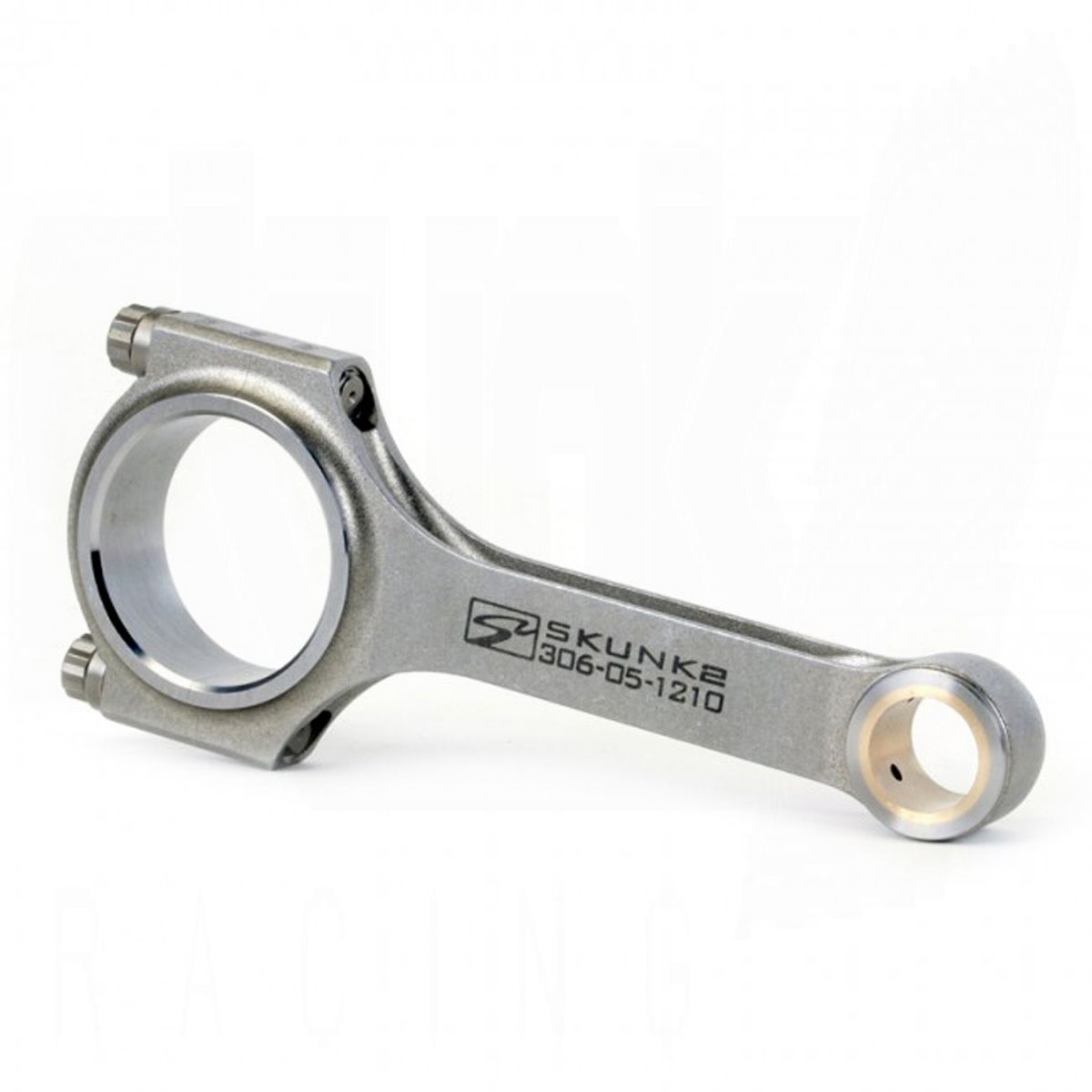

Skunk2’s Alpha Lite Connecting Rods are engineered for Honda’s D16A and ZC SOHC engines, delivering exceptional strength in a lightweight design. CNC-machined from forged 4340 chromoly steel, these rods feature a refined H-beam design and are optimized using Finite Element Analysis to achieve excellent strength-to-weight ratios.
Each rod is heat treated, tempered, and shot-peened for fatigue resistance and longevity. The Lite Spec version is lighter than the standard Alpha rods, making them ideal for high-RPM applications where rotating mass is critical. High-strength ARP2000 bolts (3/8", 220,000 psi tensile strength) are included for secure and durable installation.
Note: Not compatible with OEM-style pistons. Compatible with most aftermarket pistons without machining. Modification to the girdle and/or block is necessary for installation.
Key Features:
Forged from aircraft-grade 4340 chromoly steel
Lightweight H-beam design for reduced rotating mass
CNC precision machined for exact tolerances
ARP2000 3/8" rod bolts rated at 220,000 psi
Heat treated, tempered, and shot-peened for strength
Designed for high-RPM D-Series engine builds
Lite Spec – ideal for engines where weight savings matter
Connecting Rod Specifications:
Beam Type: H-Beam
Weight: 458g per rod
Material: Forged 4340 Chromoly Steel
Center-to-Center Length: 137mm / 5.389"
Small End Diameter: 19mm / 0.750"
Small End Width: 18mm / 0.713"
Big End Bore: 48mm / 1.891"
Big End Width: 22.6mm / 0.889"
Rod Bolt Size: 3/8" ARP2000
Reciprocating Weight: 102g
Rotating Weight: 356g
Vehicle Fitment:
Honda CR-X (1988–1991)
Honda Civic (1988–2000)
Honda Del Sol (1993–1997)
Honda D16A
Honda ZC
Included:
(4) Alpha Lite Series Connecting Rods
(8) ARP2000 3/8" Rod Bolts
