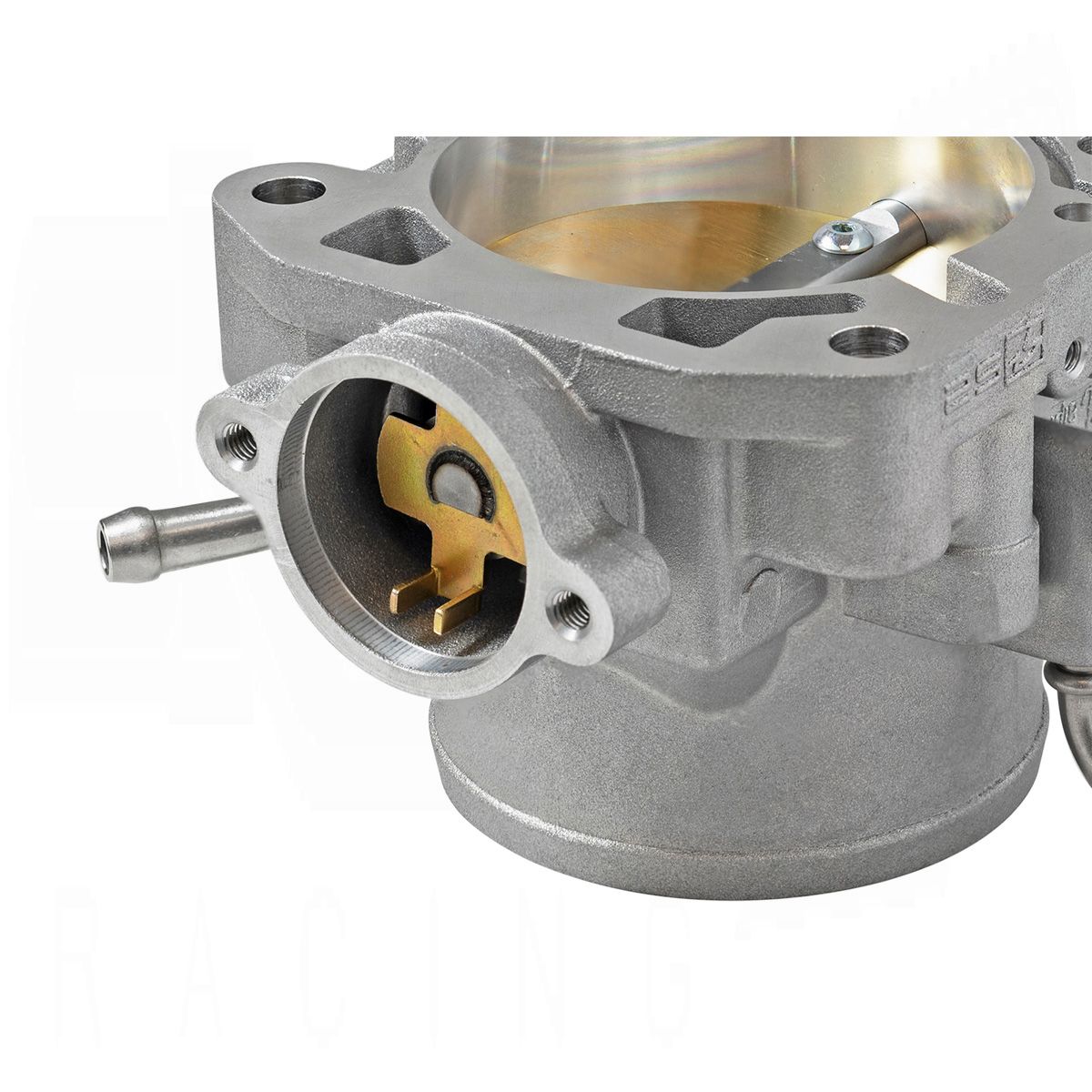

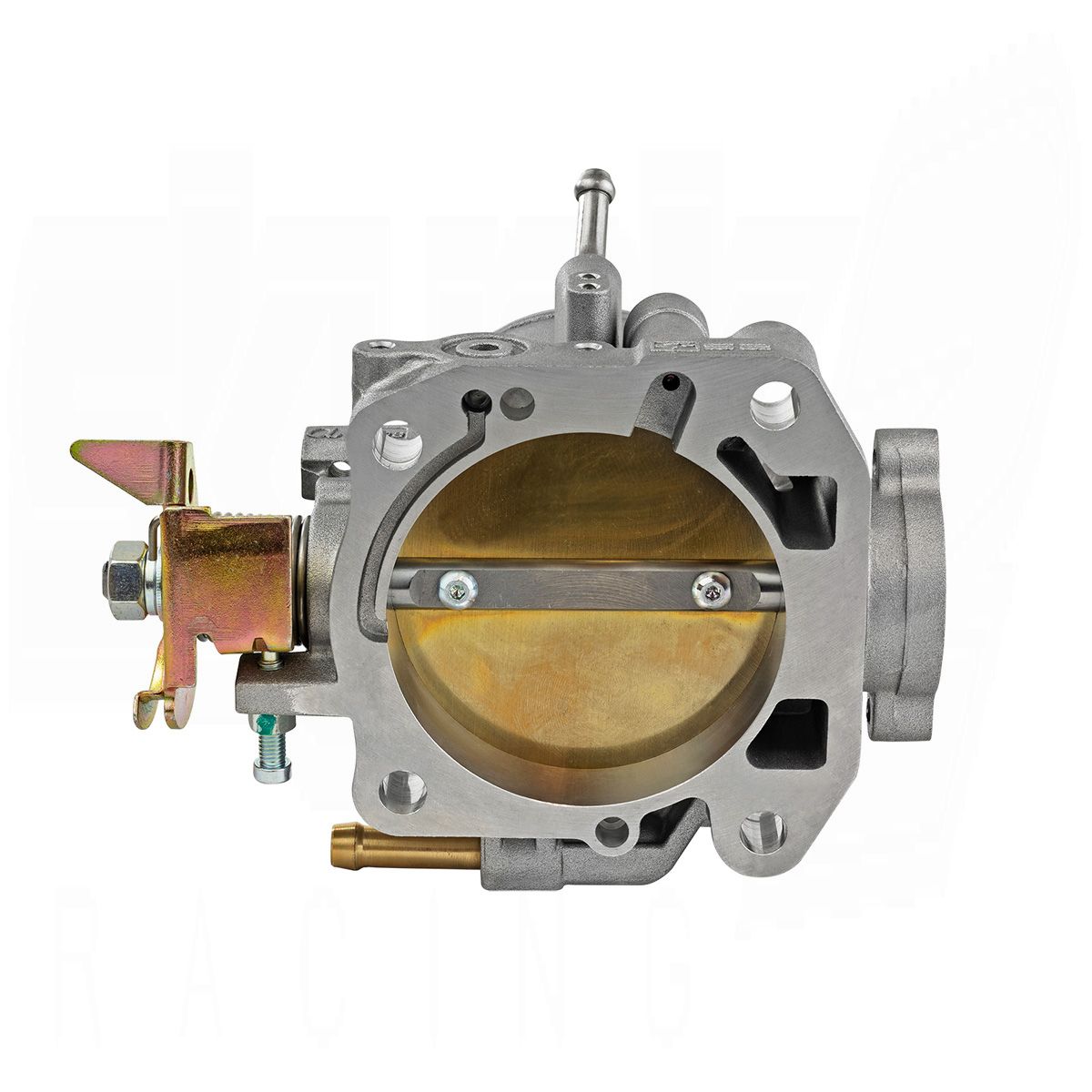

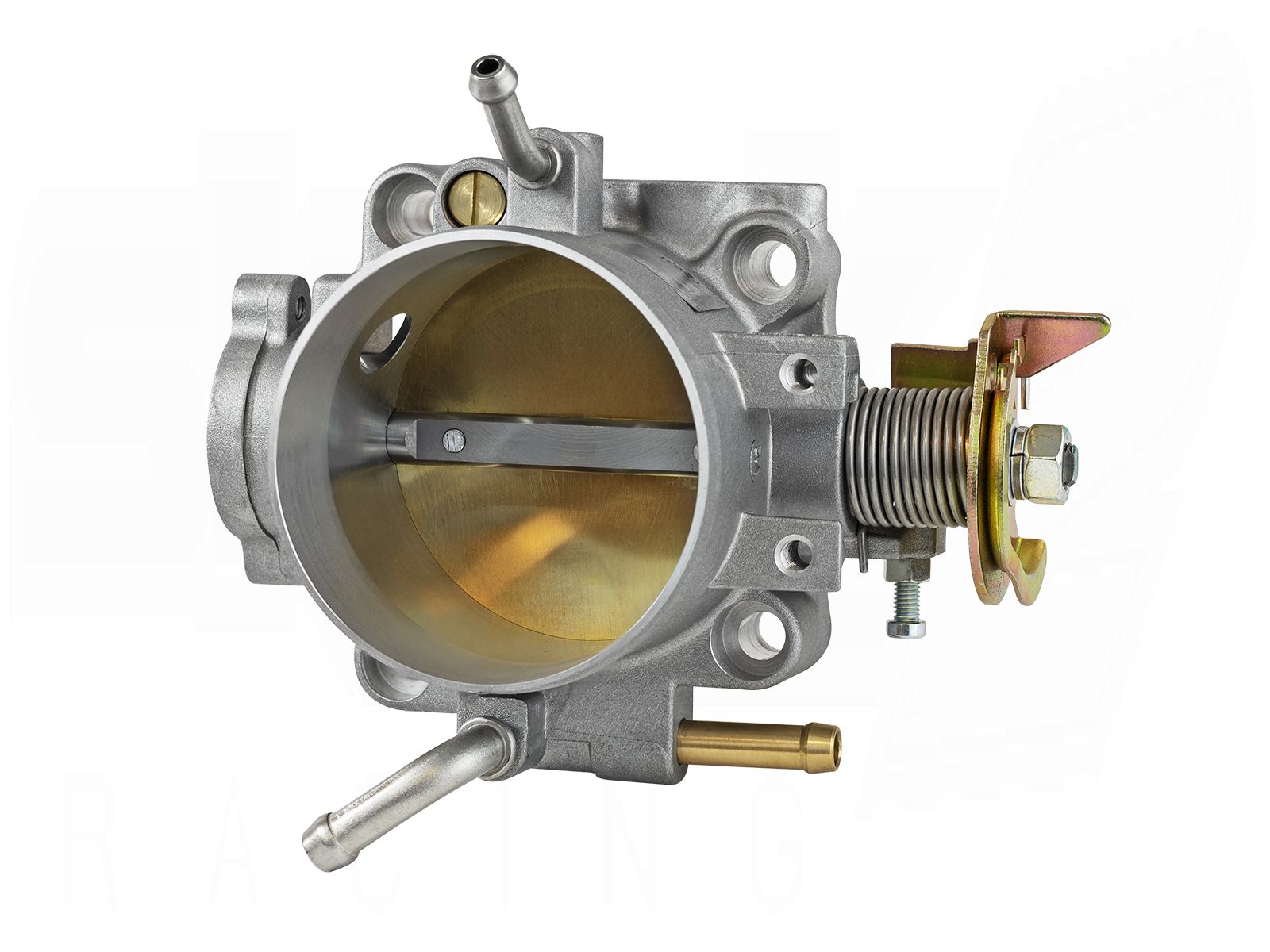

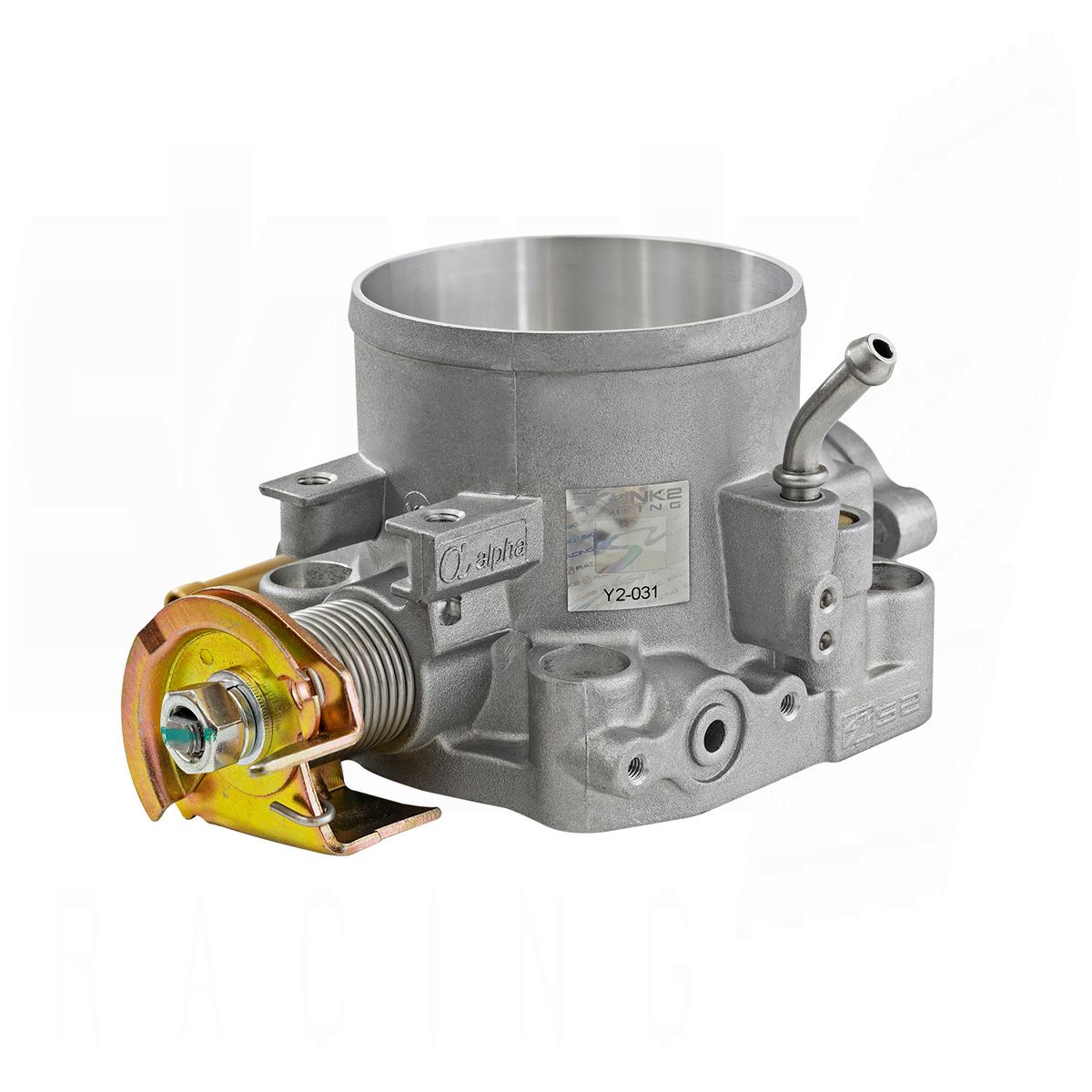

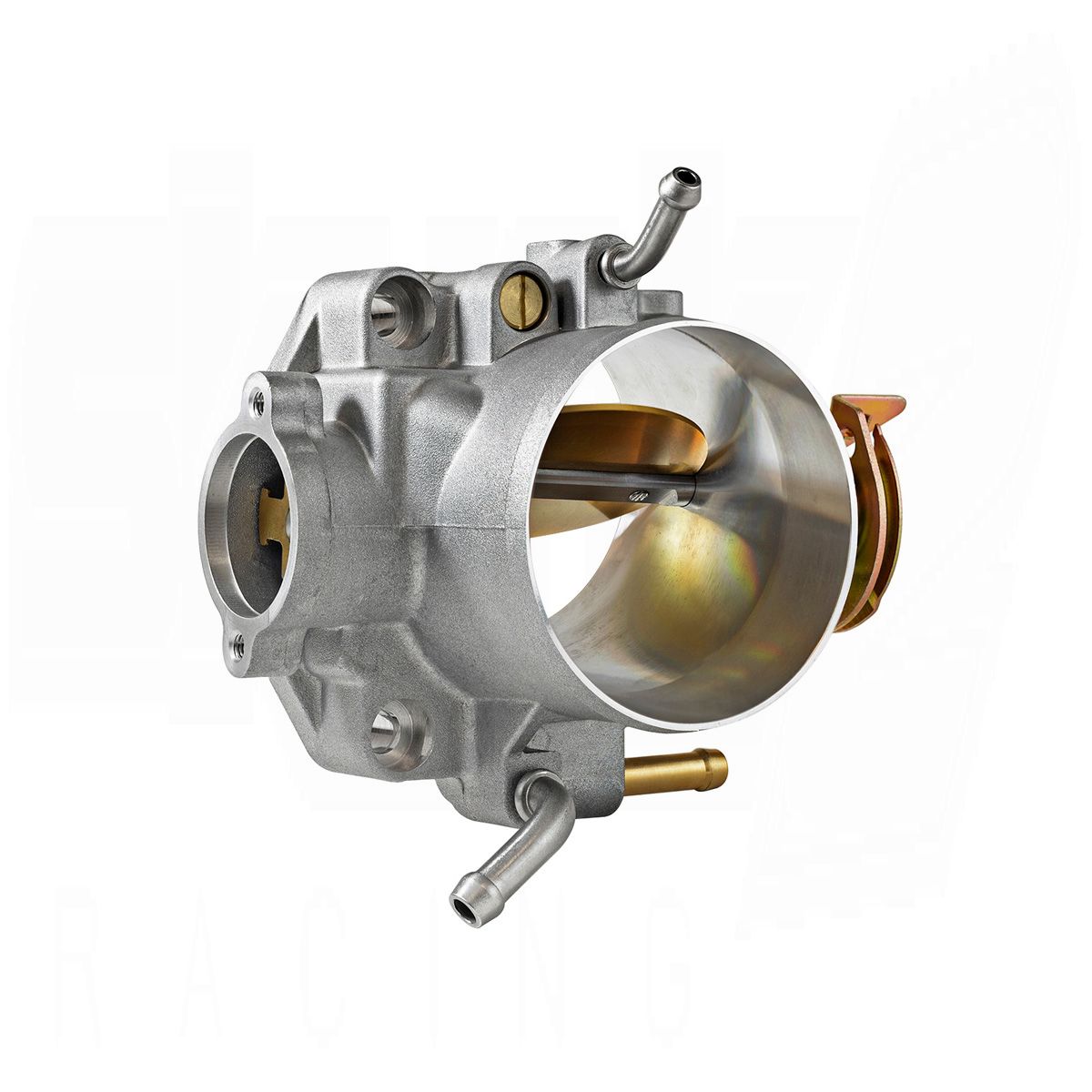

Skunk2 Alpha Throttle Body – B/D/F/H-Series – 66mm

The Skunk2 Alpha Series 66mm Throttle Body is designed to deliver maximum airflow and power gains across the entire RPM range for Honda B-, D-, F-, and H-Series engines. Precision-engineered and competitively priced, it offers a perfect balance of performance, reliability, and fitment versatility — making it an ideal upgrade for both street and race applications.

Constructed from precision die-cast aluminum with a fine shot-blasted finish, the Alpha 66mm throttle body ensures exceptional quality and durability. It features sealed ball bearings for smooth throttle operation, a CNC-machined brass throttle plate, and integrated idle adjustment screws for fine-tuning. The design promotes smoother airflow and improved throttle response, supporting both naturally aspirated and forced induction setups.

For best results, pair this throttle body with a Skunk2 Pro Series Intake Manifold. Some modification to the intake manifold flange may be required to match the bore diameter and maintain IAC passage separation.

Key Features:

• 66mm bore for increased airflow and power potential

• Precision die-cast aluminum body with shot-blasted finish

• CNC-machined brass throttle plate

• Sealed ball bearings for smooth, long-lasting operation

• Includes gasket, hardware, and idle adjustment screws

• Compatible with OEM throttle cables and sensors

• Bolt-on performance for N/A and forced induction builds

• Designed to pair perfectly with Skunk2 Pro Series manifolds

Technical Specifications:

• Material: Die-cast aluminum

• Finish: Fine shot-blasted aluminum

• Bore Size: 66mm

• Throttle Plate: Precision-machined brass

• Compatibility: Pro Series, OEM, or modified aftermarket intake manifolds

• Transmission Type: Manual only

Vehicle Fitment:

Compatible with the following Honda engines:

• B-Series: B16A/B, B17A, B18A/B/C, B20B/Z

• D-Series: D15B, D15Y, D16Y, D16Z

• F-Series: F20C, F22C, F23

• H-Series: H22A, H23A

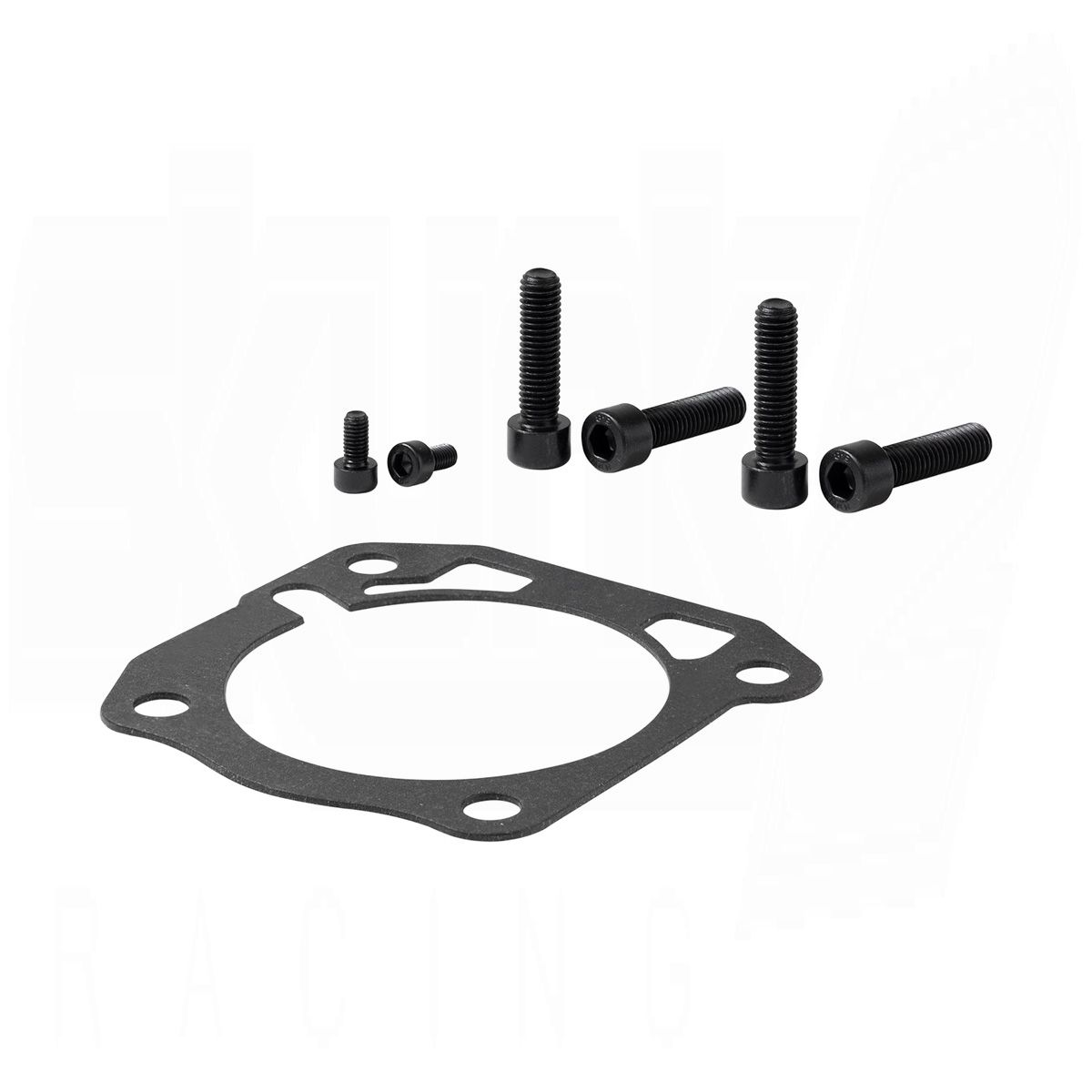

Included:

• (1) 66mm Alpha Series Throttle Body

• (1) Gasket

• (1) Hardware Kit
