Skunk2 Billet Timing Chain Cover – Black – Honda K24

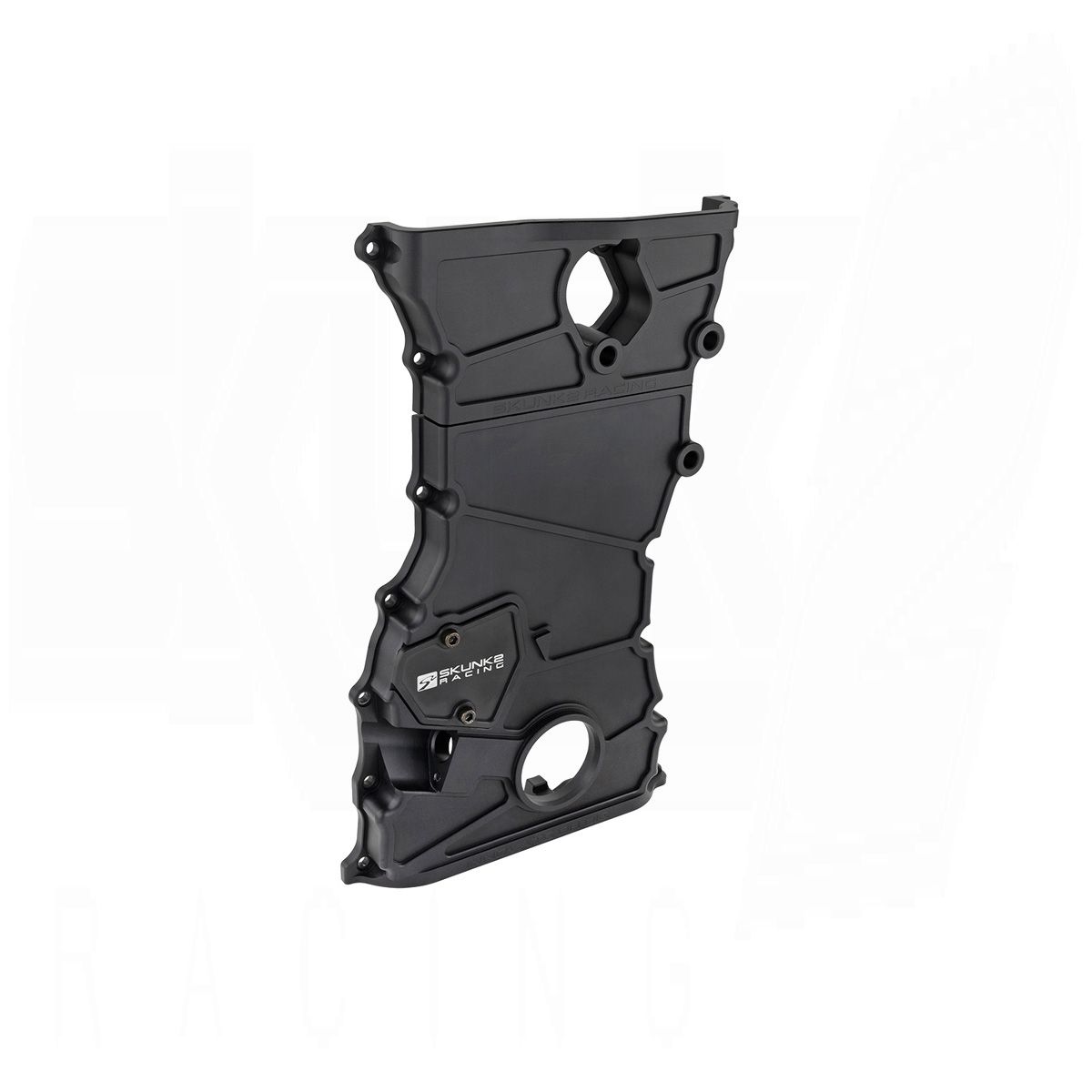

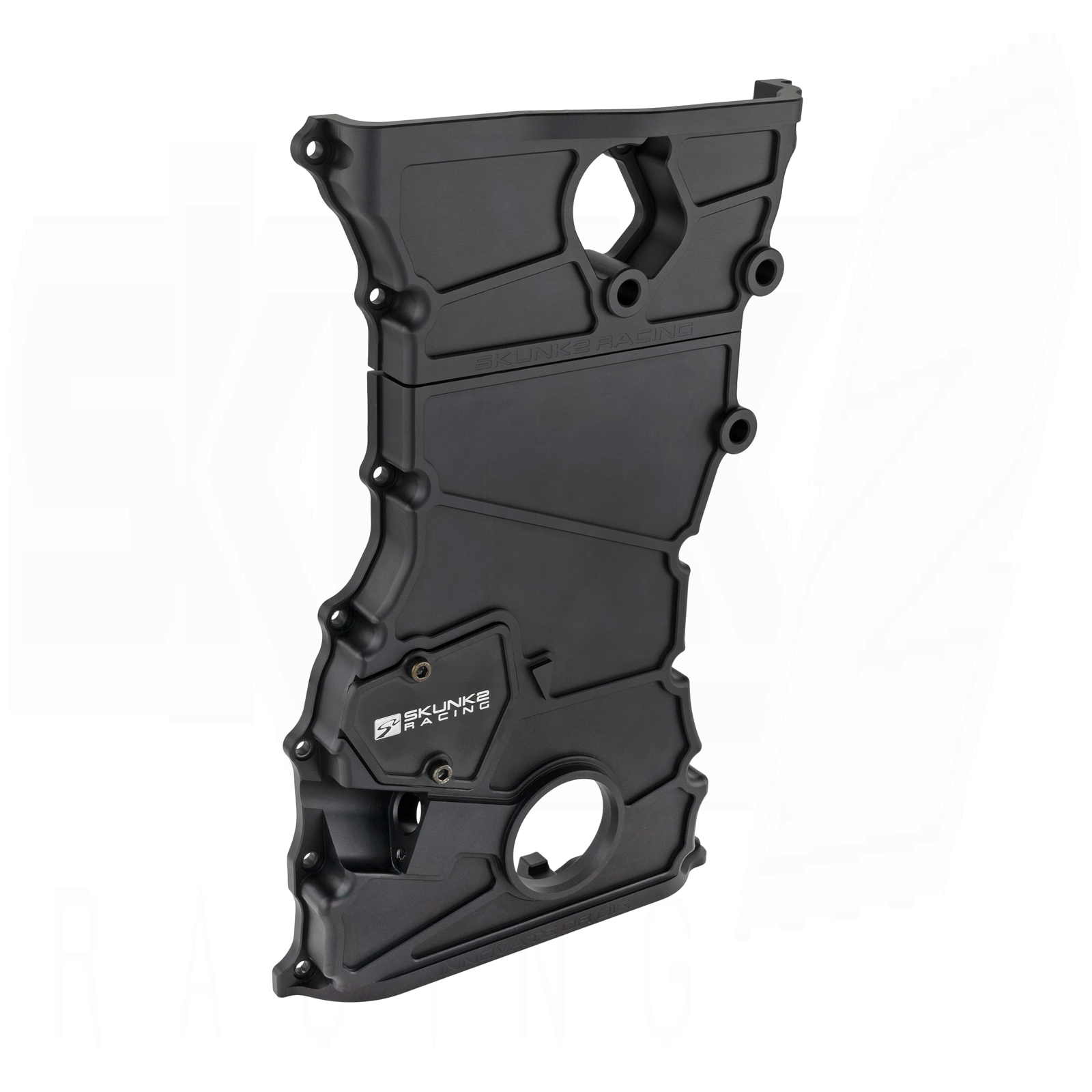

The Skunk2 Billet Timing Chain Cover for Honda K24A and K24Z engines represents the original and most refined K-series chain cover design in the aftermarket. Crafted from CNC-machined 6061 aluminum billet, this premium two-piece modular cover offers superior strength, precise fitment, and easy maintenance access while delivering a sleek, performance-oriented appearance.

Developed over a decade ago and continuously refined, this two-piece design allows quick access to the timing components and makes cylinder head removal effortless—ideal for tuners, builders, and racers. The O-ring sealed interface between the upper and lower sections ensures leak-free operation, even under extreme conditions, while the oversized access door provides convenient entry to the timing chain tensioner.

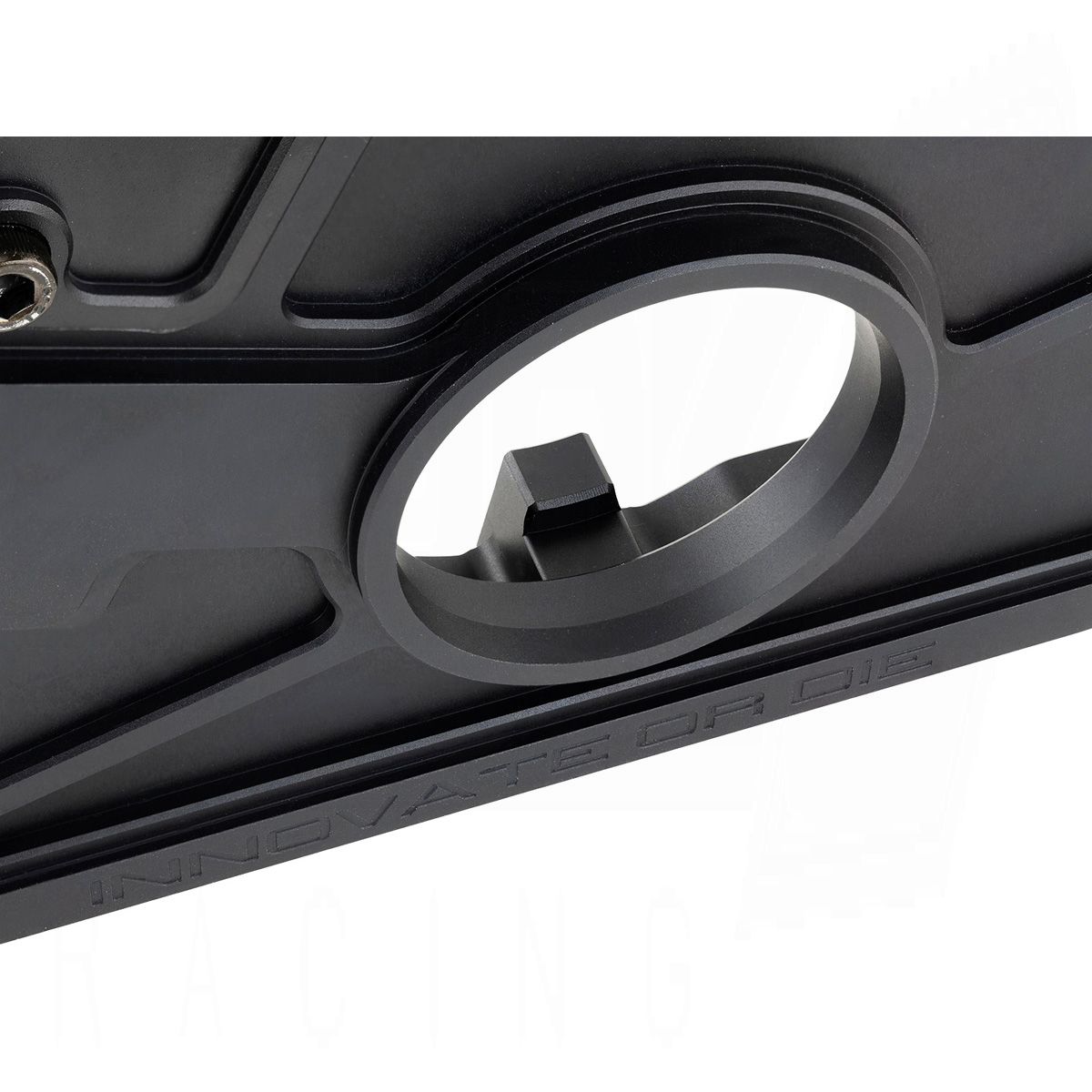

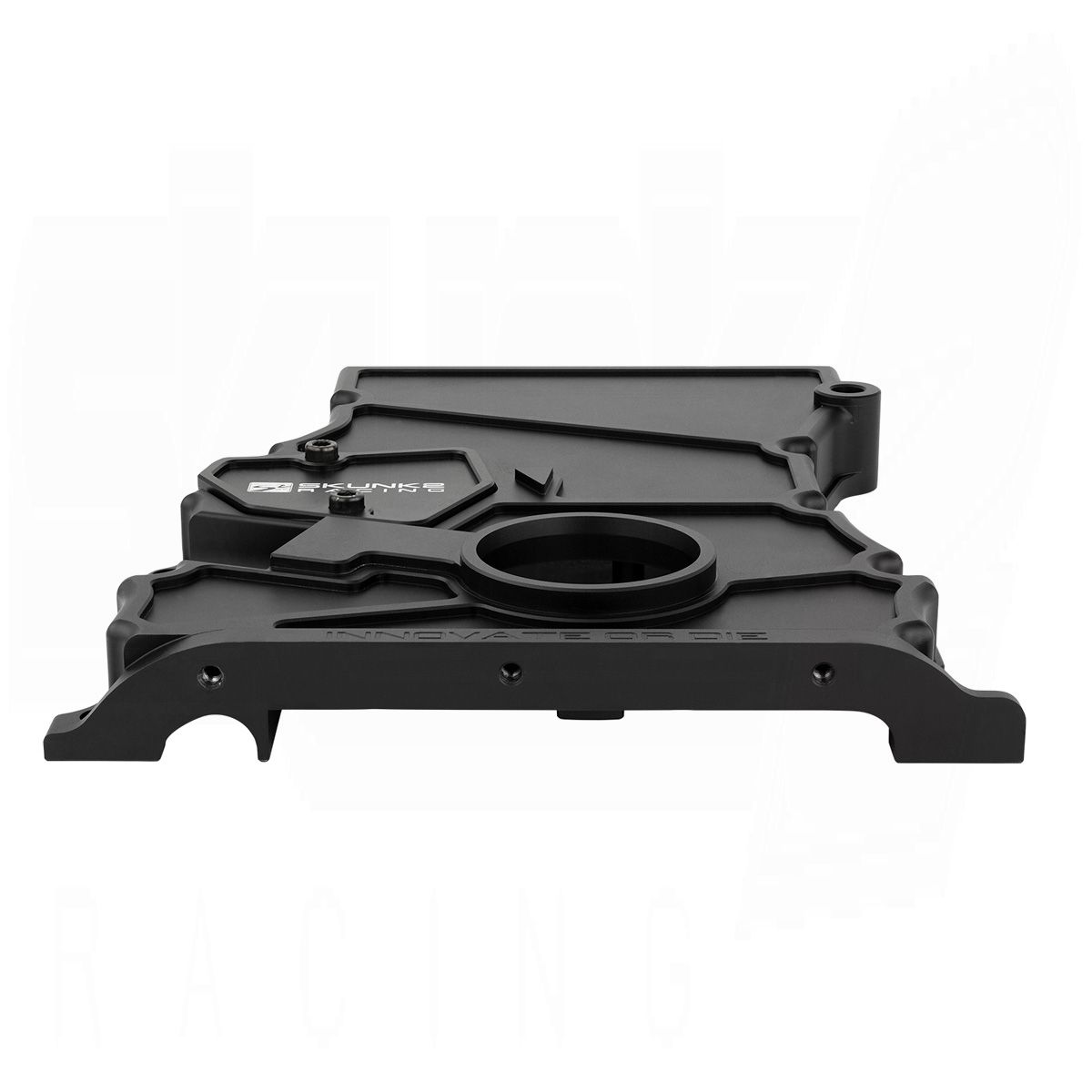

An integrated chain guide helps maintain proper chain alignment and prevents the chain from jumping teeth during service or head removal. The cover is also 14% lighter (10 oz less) than OEM, contributing to both performance and aesthetics. Finished in a durable black anodized coating, the cover is engraved with “Skunk2 Racing” on the upper section and “Innovate or Die” on the lower section — a true mark of Skunk2 engineering excellence.

Key Features:

• CNC Machined from 6061 Billet Aluminum for superior precision and strength

• Two-Piece Modular Design for quick timing gear and head access

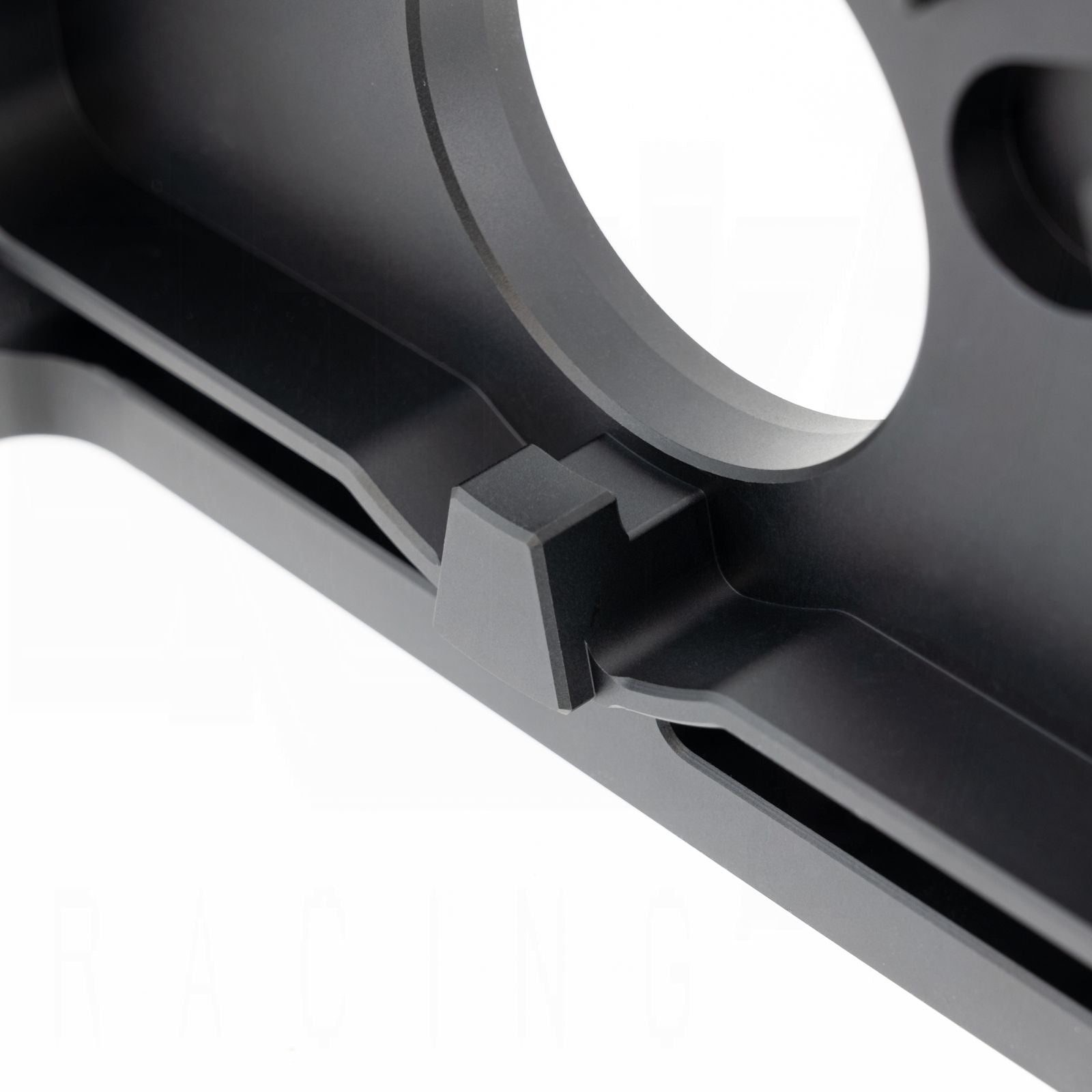

• Integrated Chain Guide prevents chain misalignment and tooth skipping

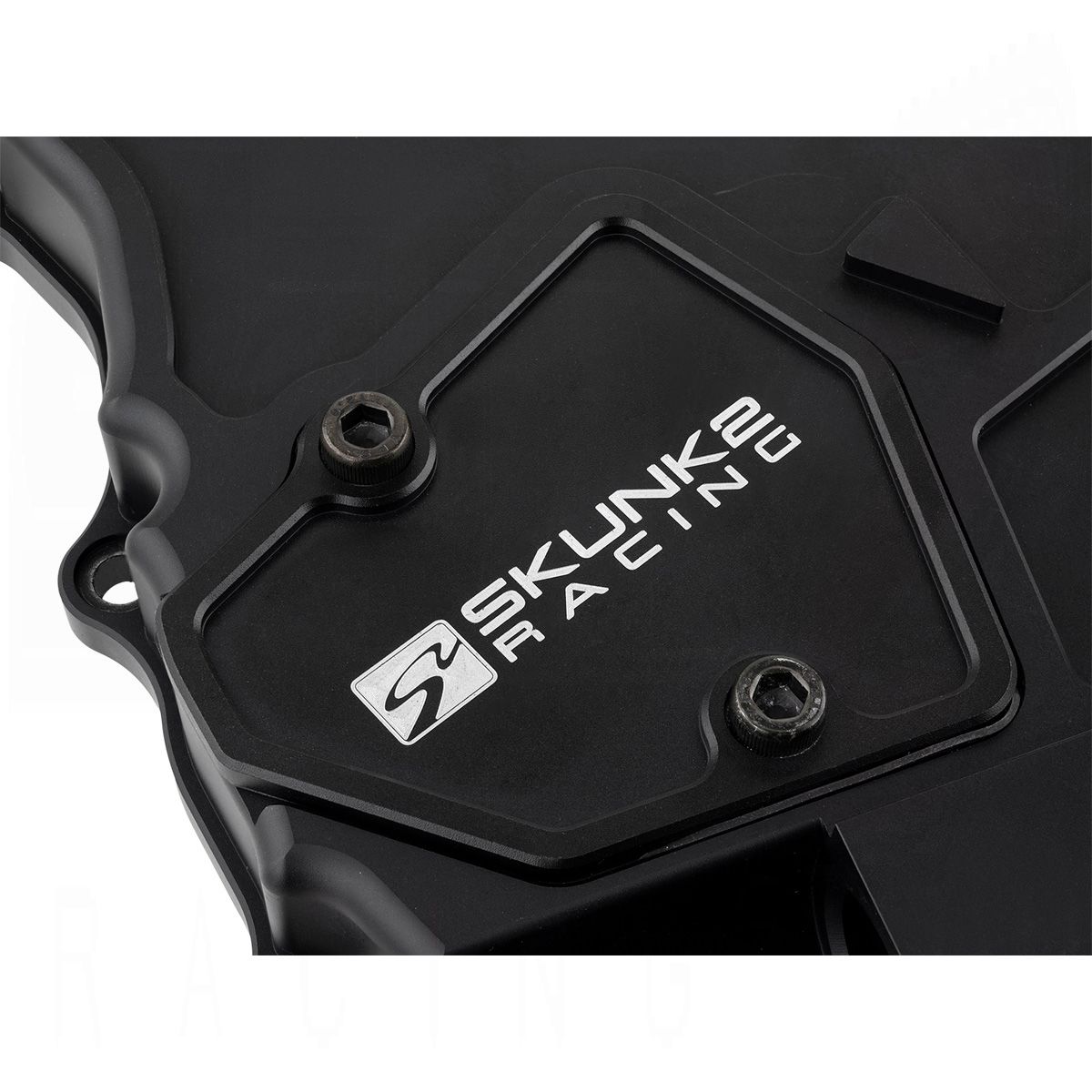

• Oversized Timing Chain Tensioner Door for easy adjustments

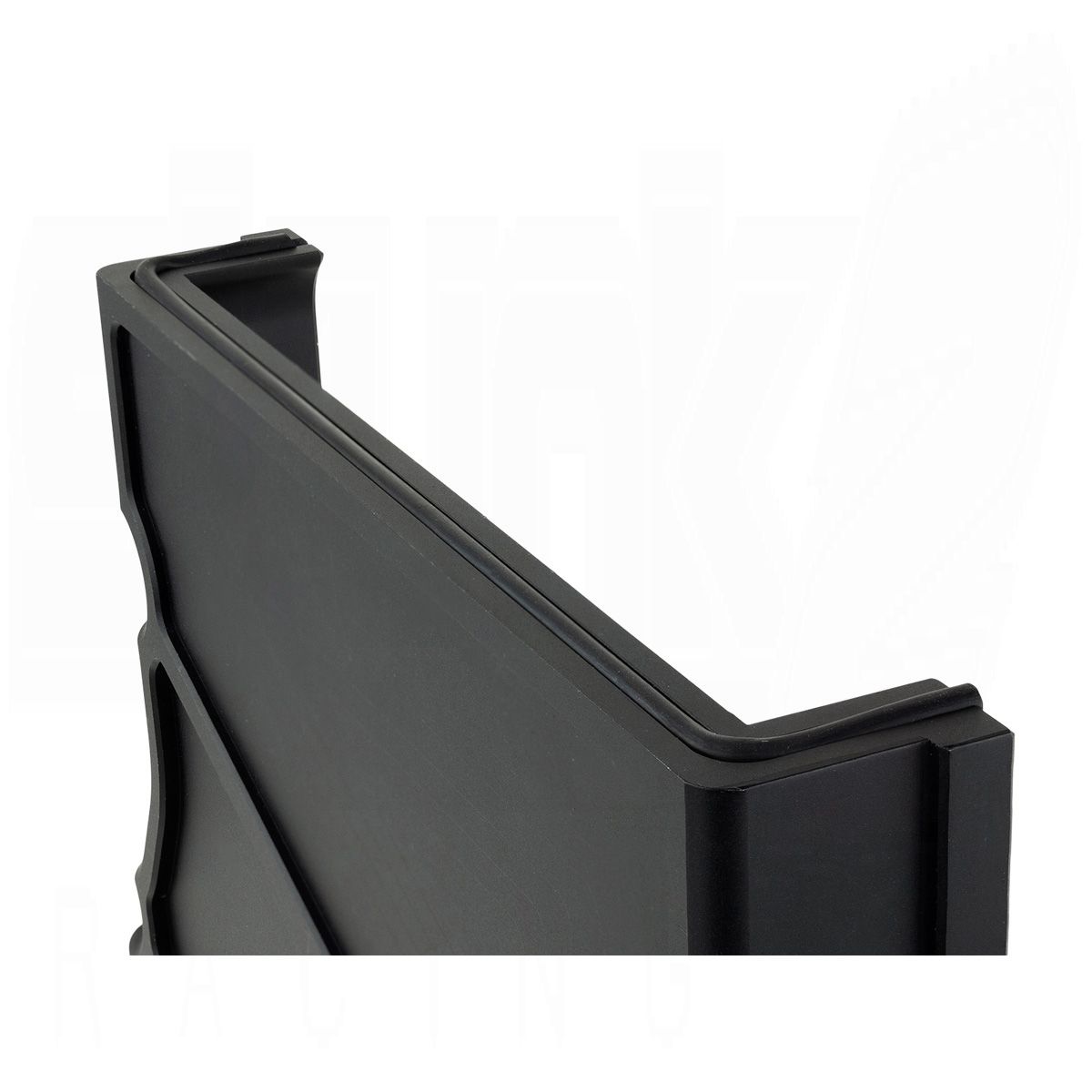

• O-Ring Sealed Interface for a secure, leak-free fit

• 14% Weight Savings (10 oz lighter than OEM cover)

• Black Anodized Finish for corrosion resistance and race-inspired aesthetics

• Laser-Engraved Skunk2 Branding – “Skunk2 Racing” / “Innovate or Die”

• Includes Stainless Steel Mounting Hardware

• Direct OEM Fitment – no modifications required

Technical Specifications:

• Material: CNC-machined 6061 aluminum billet

• Design: 2-piece modular with integrated guide

• Weight Reduction: 14% lighter than OEM (approx. 10 oz savings)

• Sealing: O-ring groove seal system

• Finish: Black anodized

• Hardware: Stainless steel included

• Compatibility: Only for K-series engines with 3 upper mounting bolts

• Exclusions: Not compatible with K20Z3 or K24Z7 engines

Vehicle Fitment:
Compatible with:

• Honda K24

• Honda K24A

• Honda K24Z

Recommended Pairings:

• Ultra Lightweight Magnesium Valve Cover – 666-05-0200

• VTEC Block-Off Plate (Raw / Black) – 639-05-0700 / 0705

• VTEC Solenoid Housing (Hard / Black Anodized) – 639-05-0400 / 0405

• VTEC Solenoid Delete (Raw / Black) – 639-05-0500 / 0505

• Cylinder Head Port Covers – 666-05-0100

• Ignition Coil Cover (Raw / Black) – 632-05-1000 / 1005

• Reservoir Brake/Clutch Cover – 660-99-0010

Included:

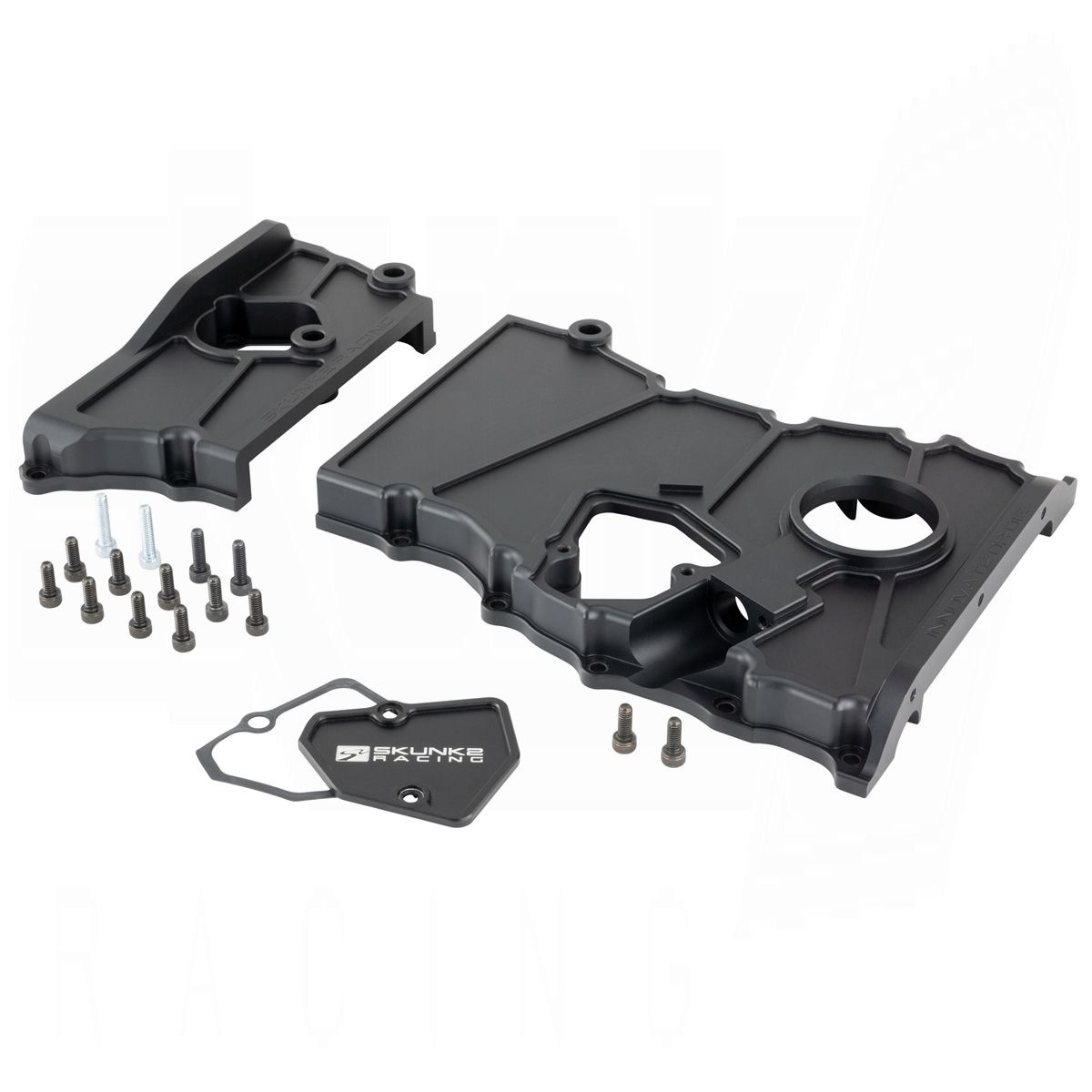

• (1) 2-Piece Billet Timing Chain Cover (Black Anodized)

• (1) O-Ring Gasket Set

• (1) Stainless Steel Hardware Kit

• (1) Installation Guide
