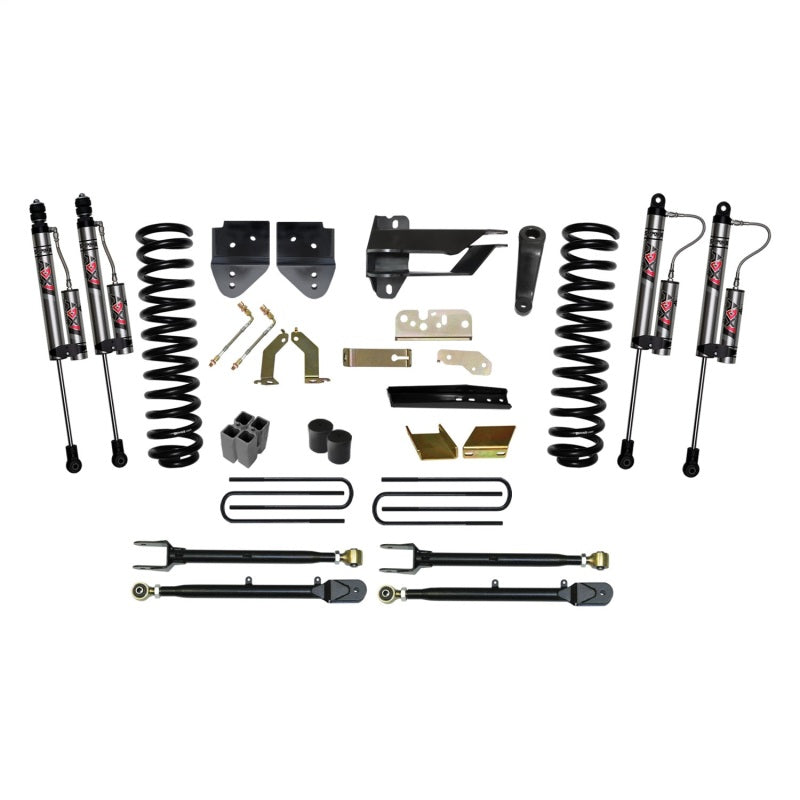

Skyjacker 6 IN KIT 2017 F250 4WD GAS

Skyjacker re-engineered the Super Dutys suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with RB style rubber bushing. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. A drop pitman arm corrects steering angle. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 4.5-inch rear block and U-bolt kit delivers a more level stance. E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks. ADX 2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Reap the benefits: On-Road Refinement and Off-Road Readiness.

This Part Fits:

Year	Make	Model	Submodel
2020-2022	Ford	F-250 Super Duty	King Ranch
2020-2022	Ford	F-250 Super Duty	Lariat
2020-2022	Ford	F-250 Super Duty	Platinum
2020-2022	Ford	F-250 Super Duty	XL
2020-2022	Ford	F-250 Super Duty	XLT
