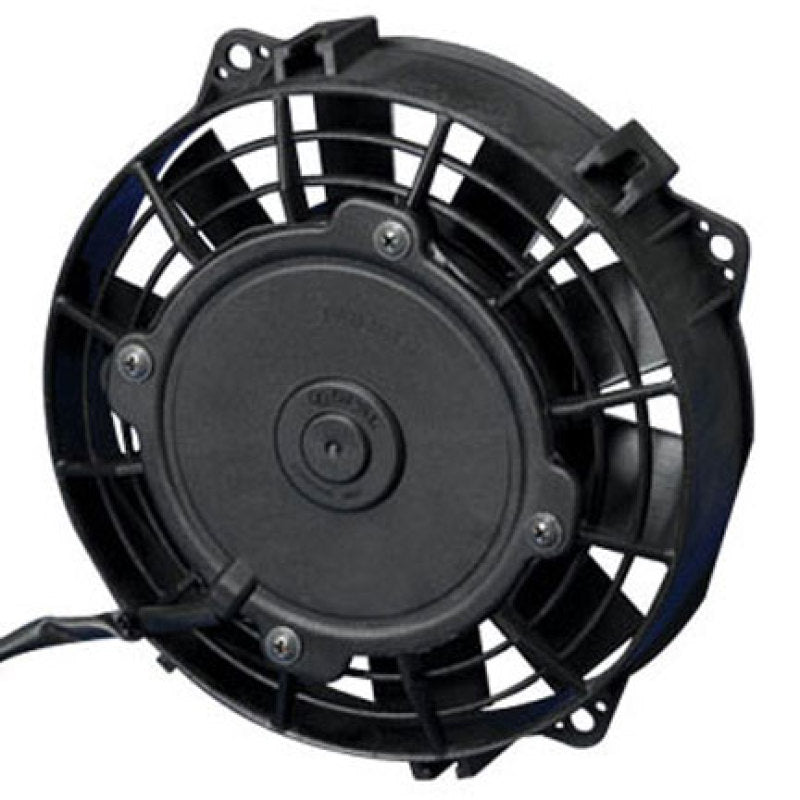

Spal 30100403 Low Profile 6-1/2" Straight Blade Pusher Heat Exchanger Or Oil Cooler Fans 301 CFM

Straight Blade Pusher Heat Exchanger Or Oil Cooler Fans

Description
Spal's low profile electric fan for heat exchangers or oil coolers. You can use Spal's 30130013 or Maradyne's M0912T push in mounting pins. For CBR and Long Tru-Cool oil coolers, the Spal 30130013 push through pins work better. Long Tru-Cool can only fit Spal's 1/16" pins and they go in at about a 45° angle. You can also use Spal's plastic slide on mounting brackets to extend the mounting out.

• 10 Straight blades
• Pusher
• Uses FRPT plug
• 301 CFM at '0' static pressure
• 12 Volt
• 6-1/2" Diameter
• 2" Thick
• 4 Bolt 5-5/16" x 5-5/16" pattern
• 1/4" Mounting holes
