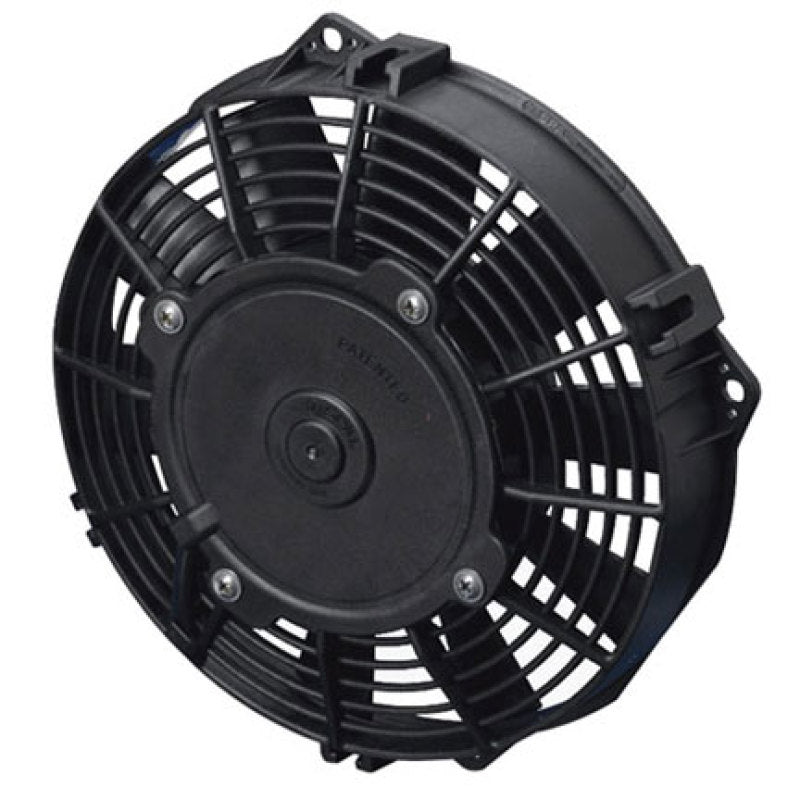

Spal Low Profile 7-1/2" Straight Blade Pusher Heat Exchanger Or Oil Cooler Fans 348 CFM

Straight Blade Pusher Heat Exchanger Or Oil Cooler Fans

Description :

Spal's low profile electric fan for heat exchangers or oil coolers. You can use Spal's 30130013 or Maradyne's M0912T push in mounting pins. For CBR and Long Tru-Cool oil coolers, the Spal 30130013 push through pins work better. Long Tru-Cool can only fit Spal's 1/16" pins and they go in at about a 45° angle. You can also use Spal's plastic slide on mounting brackets to extend the mounting out.

For Long Tru-Cool's 36 plate engine or transmission oil cooler, their 117120 aluminum mounting brackets and Spal's 30130017 plastic mounts work better than the push in mounting pins.

• 10 Straight blades
• Pusher
• Uses FRPT plug
• 348 CFM at '0' static pressure
• 12 Volt
• 7-1/2" Diameter
• 2" Thick
• 4 Bolt 5-15/16" x 5-15/16" pattern
• 1/4" Mounting holes
