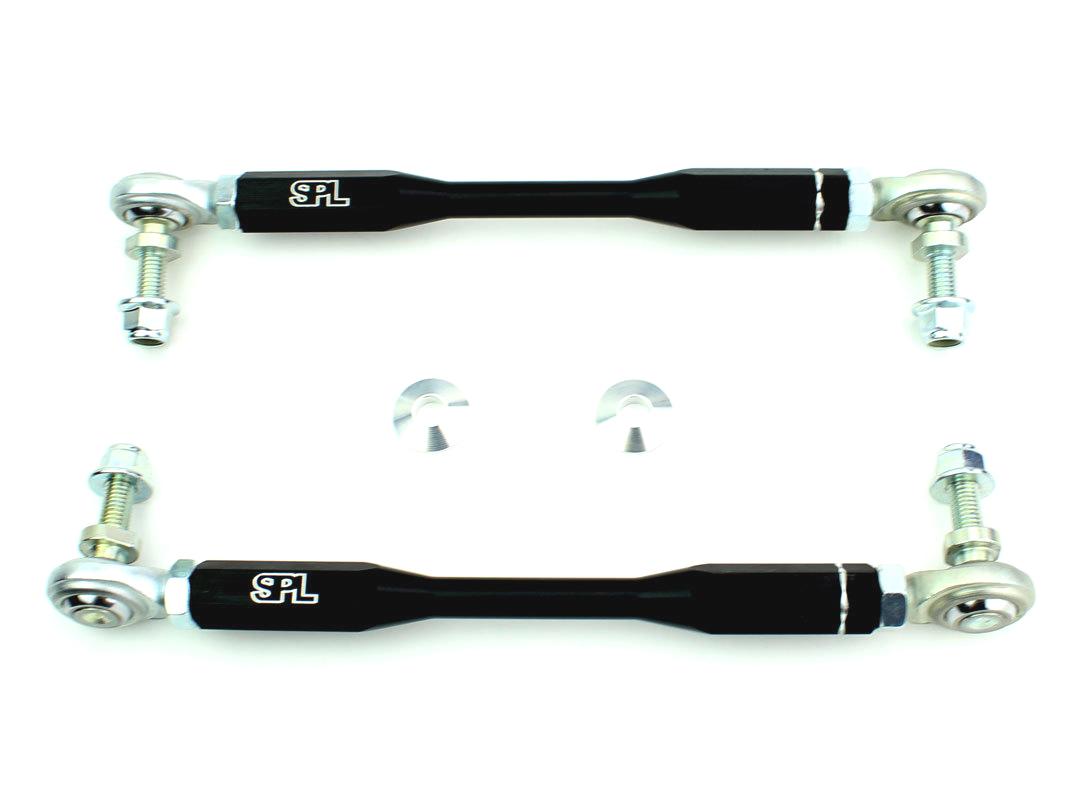

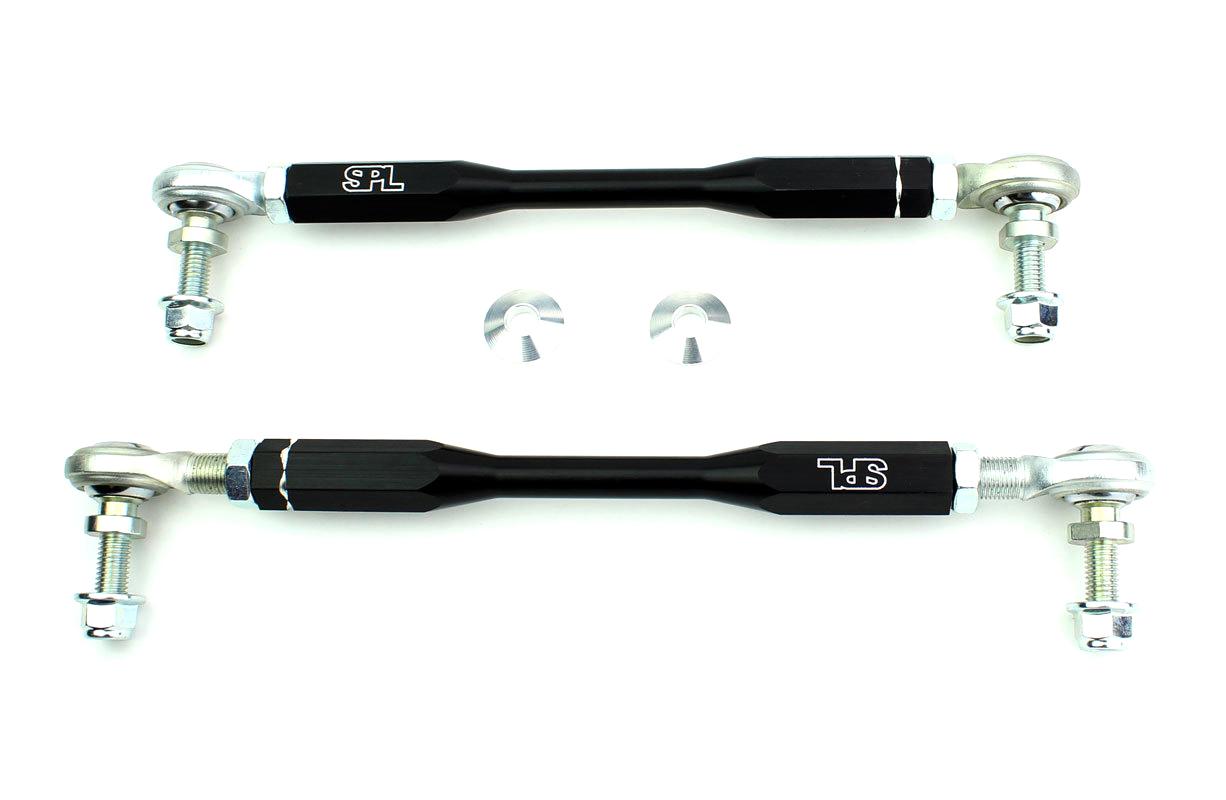

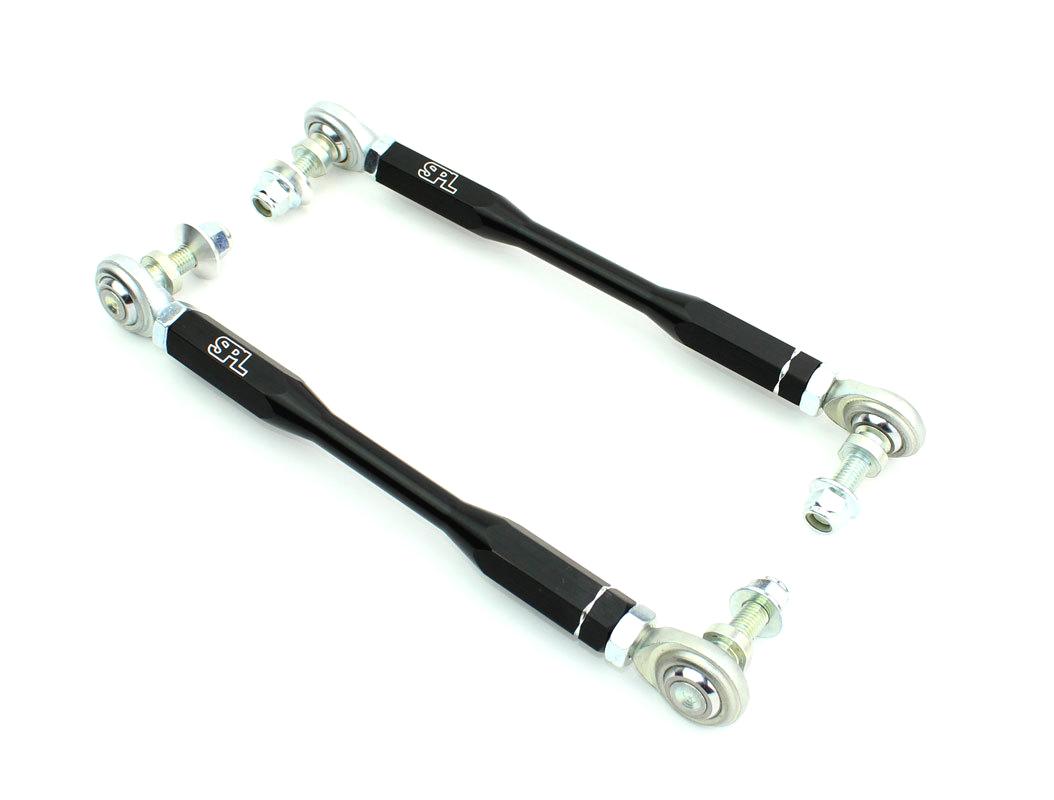

SPL Parts Front Adjustable Endlinks - BMW M2 / M3 / M4 - SPL FE F8X

The SPL Parts Front Adjustable Endlinks (Part #SPL FE F8X) are engineered to handle the extreme loads created by stiffer aftermarket sway bars on BMW F and G chassis M cars. Designed for both street and race use, these front endlinks eliminate sway bar preload while providing exceptional articulation and durability for aggressive driving and track conditions.

Featuring massive 1/2-inch FK Teflon-lined bearings and custom heat-treated chromoly high-misalignment studs, these endlinks maintain smooth, bind-free operation even when used with multi-hole adjustable sway bars.

• Brand: SPL Parts
• Part Number: SPL FE F8X
• Position: Front
• Component Type: Adjustable front sway bar endlinks
• Bearings: Massive 1/2-inch FK Teflon-lined rod ends for high load capacity
• Studs: Heat-treated chromoly high-misalignment studs
• Articulation: Up to 65 degrees of misalignment
• Adjustment: Length adjustable to eliminate sway bar preload
• Turnbuckles: Black anodized 6061-T6 aluminum
• Threading: Left and right hand threaded rod ends for precise adjustment
• Application: Street and race use
• Sold As: Pair
• Manufacturing: Made in the USA

Performance Benefits

• Eliminates sway bar preload caused by uneven ride height or corner weighting
• Prevents binding when used with adjustable aftermarket sway bars
• Handles extreme loads from stiff performance sway bars
• Improves front-end response and suspension consistency
• Suitable for daily driving and competitive track use

Important Fitment Note

If your vehicle is equipped with aftermarket shocks or coilovers, mounting locations may differ from OEM.

• Required mounting distance between sway bar and shock mount: 11.4 inches to 12.9 inches
• If your setup falls outside this range, contact SPL Parts with the required measurement
• SPL cannot confirm fitment with aftermarket shocks or coilovers outside this range

Vehicle Fitment

• BMW F80 M3 (2014-2021)
• BMW F82 M4 (2014-2021)
• BMW F83 M4 Convertible (2014-2021)
• BMW F87 M2 (2016-2021)
• BMW G80 M3 (2021+)
• BMW G82 M4 (2021+)
• BMW G83 M4 Convertible (2021+)
• BMW G87 M2 (2023+)
