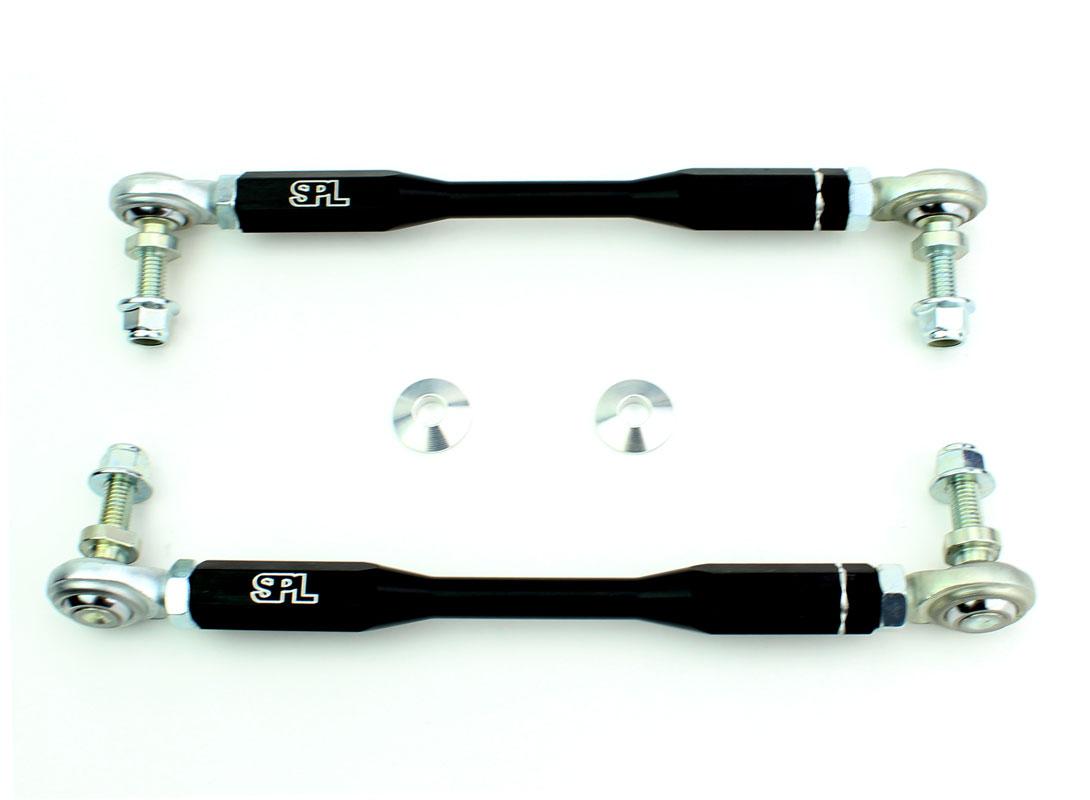

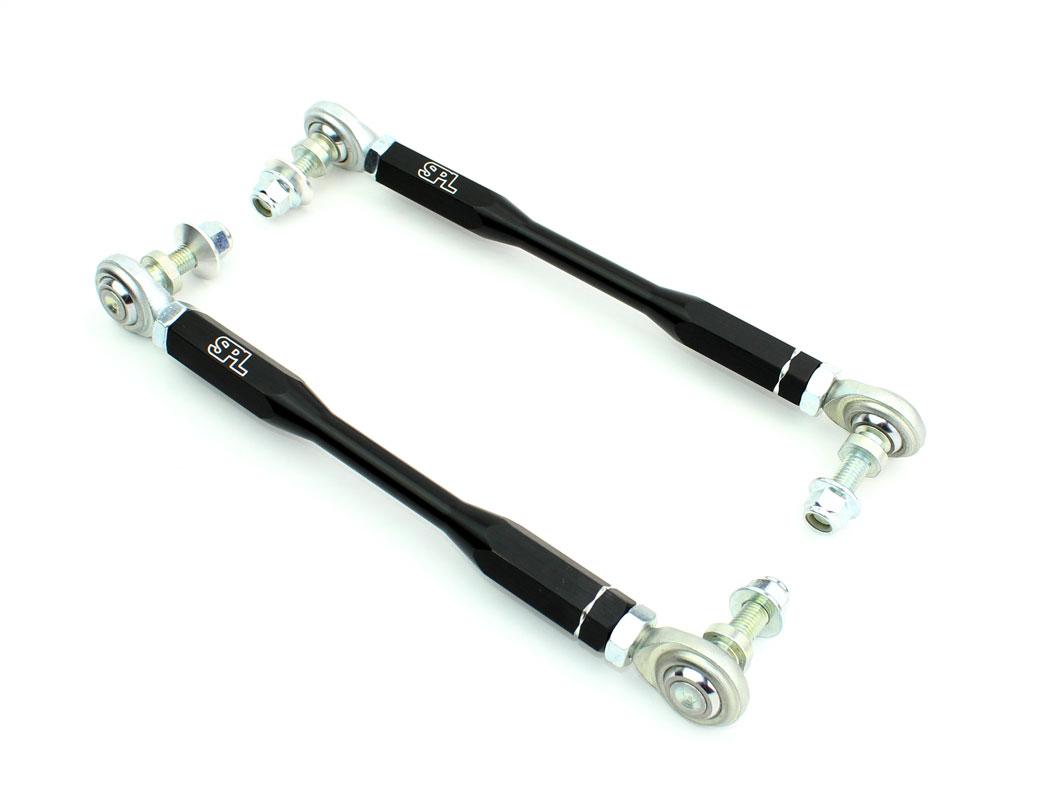

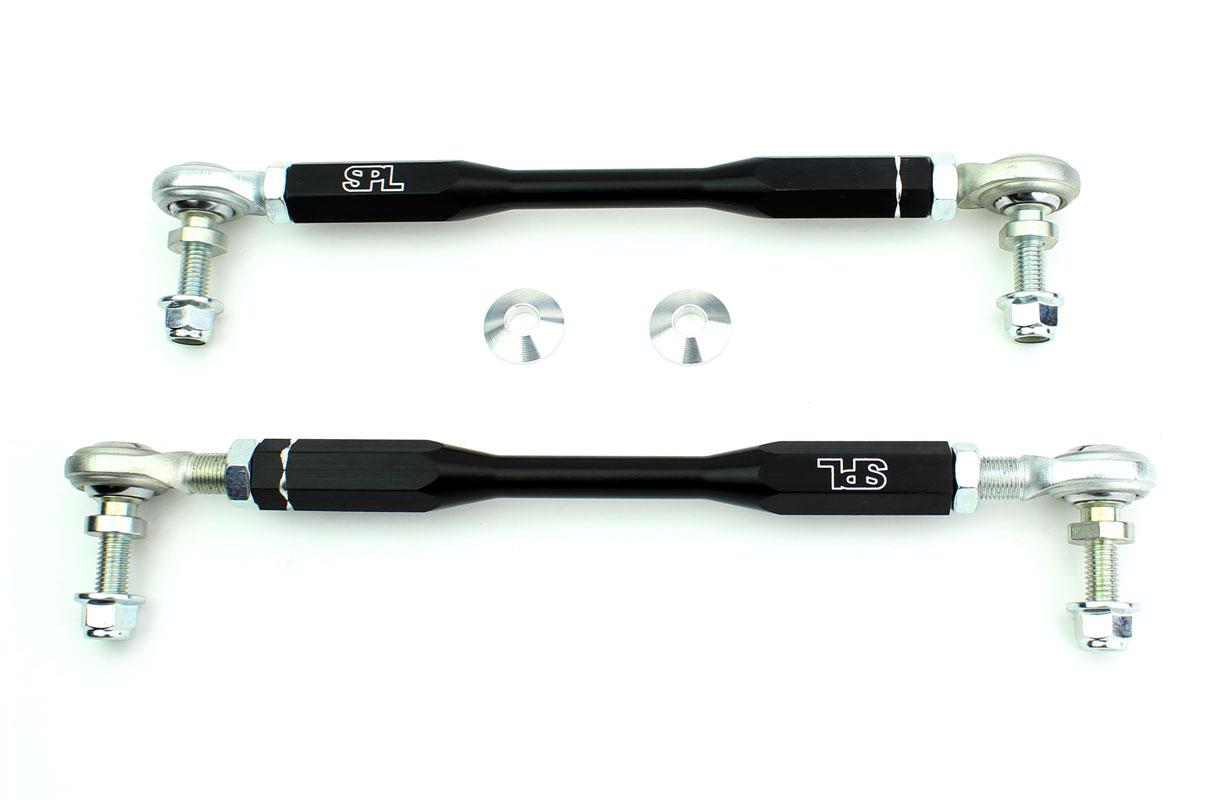

SPL Parts Adjustable Front Sway Bar Endlinks - BMW E8X / E9X Non-M - SPL FE E9X

The SPL Parts Adjustable Front Endlinks (Part #SPL FE E9X) are designed to support high-load aftermarket sway bars on BMW E8X and E9X non-M chassis vehicles. Built for both street and race use, these front sway bar endlinks eliminate preload, prevent binding, and deliver consistent suspension performance even under aggressive driving conditions.

Massive 1/2-inch FK Teflon-lined bearings and custom heat-treated chromoly high-misalignment studs provide exceptional strength and up to 65 degrees of articulation, ensuring smooth operation when used with multi-hole adjustable sway bars.

• Brand: SPL Parts
• Part Number: SPL FE E9X
• Position: Front
• Component Type: Adjustable front sway bar endlinks
• Bearings: 1/2-inch FK Teflon-lined spherical bearings
• Studs: Heat-treated chromoly high-misalignment studs
• Articulation: Up to 65 degrees
• Adjustment: Length adjustable to eliminate sway bar preload
• Turnbuckles: Black anodized 6061-T6 aluminum
• Threading: Left and right hand threaded rod ends for precise adjustment
• Use Case: Street and race applications
• Sold As: Pair
• Manufacturing: Made in the USA

Performance Benefits

• Eliminates sway bar preload caused by uneven ride height or corner weighting
• Prevents binding with adjustable aftermarket sway bars
• Handles increased loads from stiffer performance sway bars
• Improves front-end response and suspension consistency
• Ideal for daily driving, spirited street use, and track events

Important Fitment Note

If your vehicle is equipped with aftermarket shocks or coilovers, the mounting location may differ from OEM.

• Required mounting distance between sway bar and shock mount: 10.4 inches to 11.9 inches
• If outside this range, contact SPL Parts with the required measurement
• SPL cannot confirm fitment with aftermarket shocks or coilovers

Vehicle Fitment

• BMW E8X 1 Series non-M

• E81, E82
• 128i, 135i

• BMW E9X 3 Series non-M

• E90, E91, E92
• 328i, 335i, 335d
