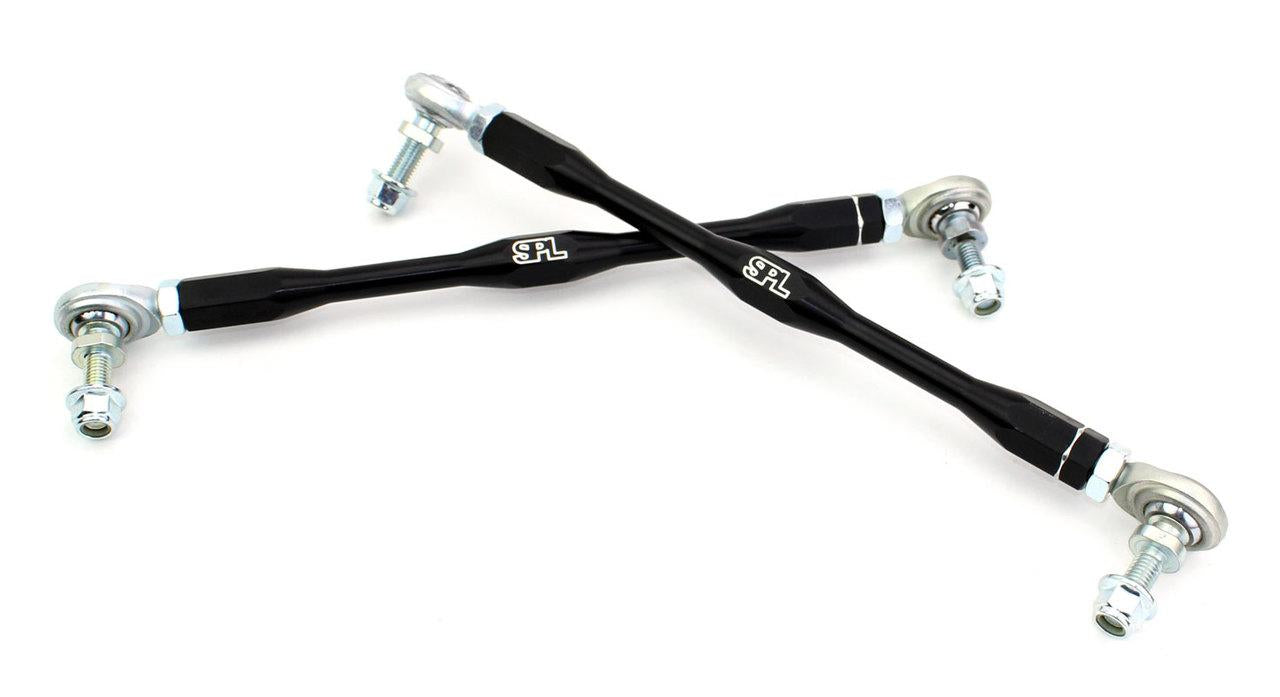

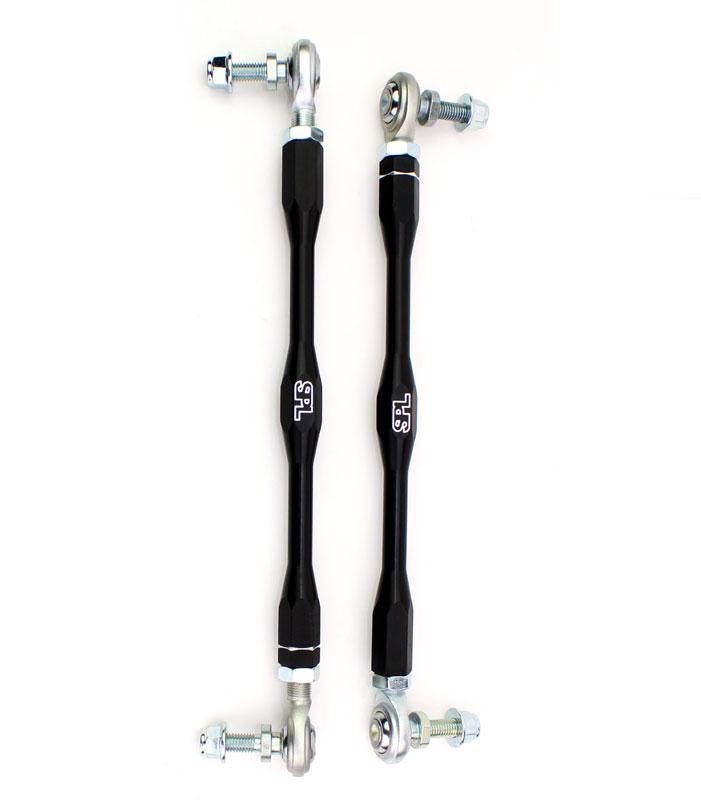

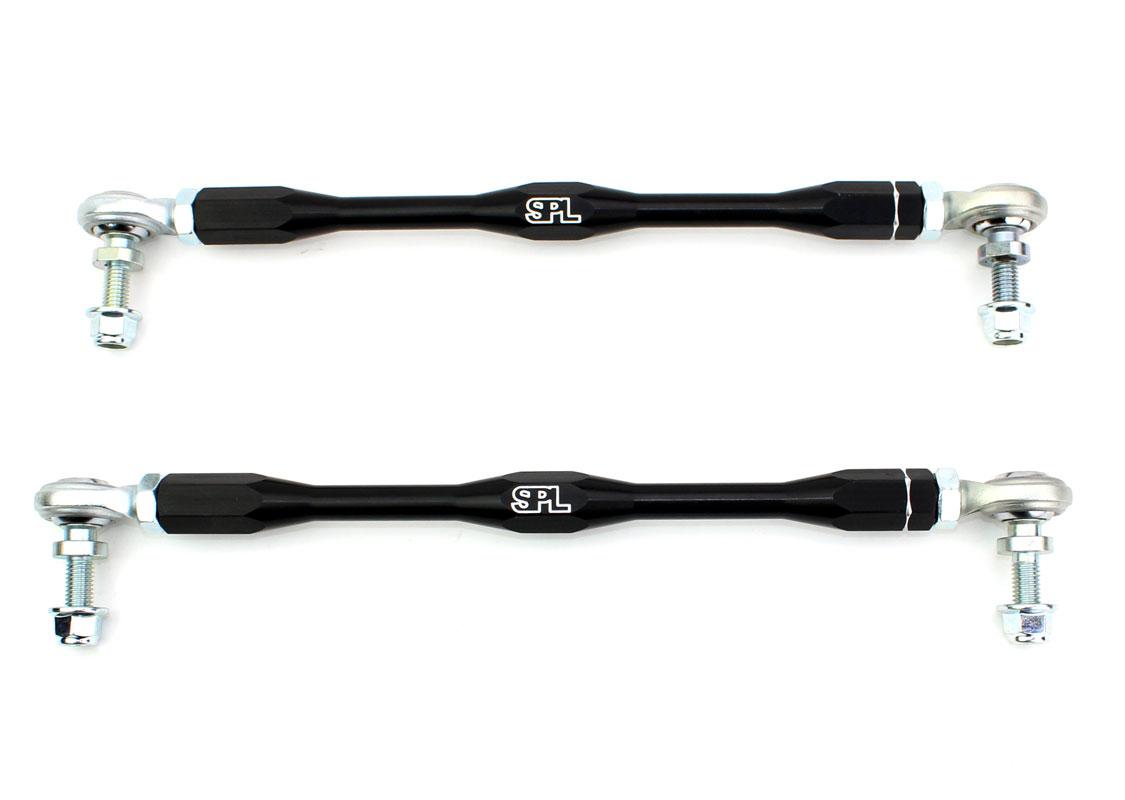

SPL Parts Adjustable Front Sway Bar Endlinks - BMW M & G-Series - SPL FE E9M

The SPL Parts Adjustable Front Sway Bar Endlinks (Part #SPL FE E9M) are built to handle the extreme loads generated by high-performance aftermarket sway bars on BMW M and G-series platforms. Designed for street and race use, these endlinks eliminate sway bar preload, prevent binding, and maintain consistent suspension performance under aggressive driving conditions.

Featuring massive 1/2-inch PTFE-lined FK bearings and custom heat-treated chromoly high-misalignment studs, these endlinks provide exceptional strength and up to 65 degrees of articulation, making them ideal for multi-hole adjustable sway bars.

• Brand: SPL Parts
• Part Number: SPL FE E9M
• Position: Front
• Component Type: Adjustable front sway bar endlinks
• Bearings: 1/2-inch FK PTFE-lined spherical bearings
• Studs: Heat-treated chromoly high-misalignment studs
• Articulation: Up to 65 degrees
• Adjustment: Length adjustable to eliminate sway bar preload
• Turnbuckles: Black anodized 6061-T6 aluminum
• Threading: Left and right hand threaded rod ends for precise adjustment
• Use Case: Street and race applications
• Sold As: Pair
• Manufacturing: Made in the USA

Performance Benefits

• Eliminates sway bar preload from uneven ride height or corner weighting
• Prevents binding with adjustable aftermarket sway bars
• Handles extreme loads from stiff performance sway bars
• Improves front-end response and steering consistency
• Suitable for daily driving, track days, and competitive motorsports

Important Fitment Note

If your vehicle is equipped with aftermarket shocks or coilovers, mounting locations may vary.

• Required distance between sway bar and shock mount: 12.9 inches to 14.4 inches
• If outside this range, contact SPL Parts with the required measurement
• SPL cannot confirm fitment with aftermarket shocks or coilovers

Vehicle Fitment

• BMW E8X 1 Series M Chassis
• E82, E88, 1M
• BMW E9X 3 Series M Chassis
• E90, E91, E92, E93
• M3, M3 GTS
• BMW G20 330i / 340i / M340i (2019+)
• BMW G22 430i / 440i / M440i (2021+)
• BMW G8X M3 / M4 (2022+)
• BMW G87 M2 (2022+)
