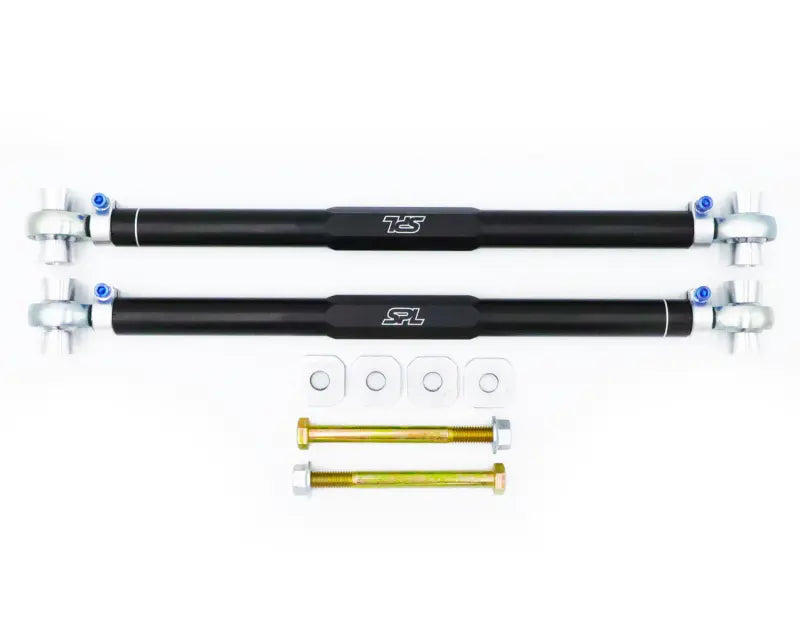

SPL TS/ATS-V/CTS/CTS-V Rear Toe Links + Eccentric Lockout - RTAEL ATS

SPL Parts ATS Camaro Rear Toe Arms Features:

• Gun drilled 2024 Aluminum Links to reduce unsprung weight

• Blue Anodized Titanium Socket Head Cap Screws
• 6061-T6 Aluminum Rotating Clamp design
• Teflon lined FK Heim Joints and Rod Ends
• 6061-T6 Aluminum Eccentric Lockout Washers
• Grade 10.9 Hex Cap Bolts with Lock Nuts

Applications:

2013-2019 Cadillac ATS/ATS-V

2013-2019 Cadillac CTS/CTS-V

ATS-V (RTAEL) for the 2013+ chassis increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments.  Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car.  The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer.  Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength.

Installation Instructions:

SPL RTAEL ATS-V Instructions
