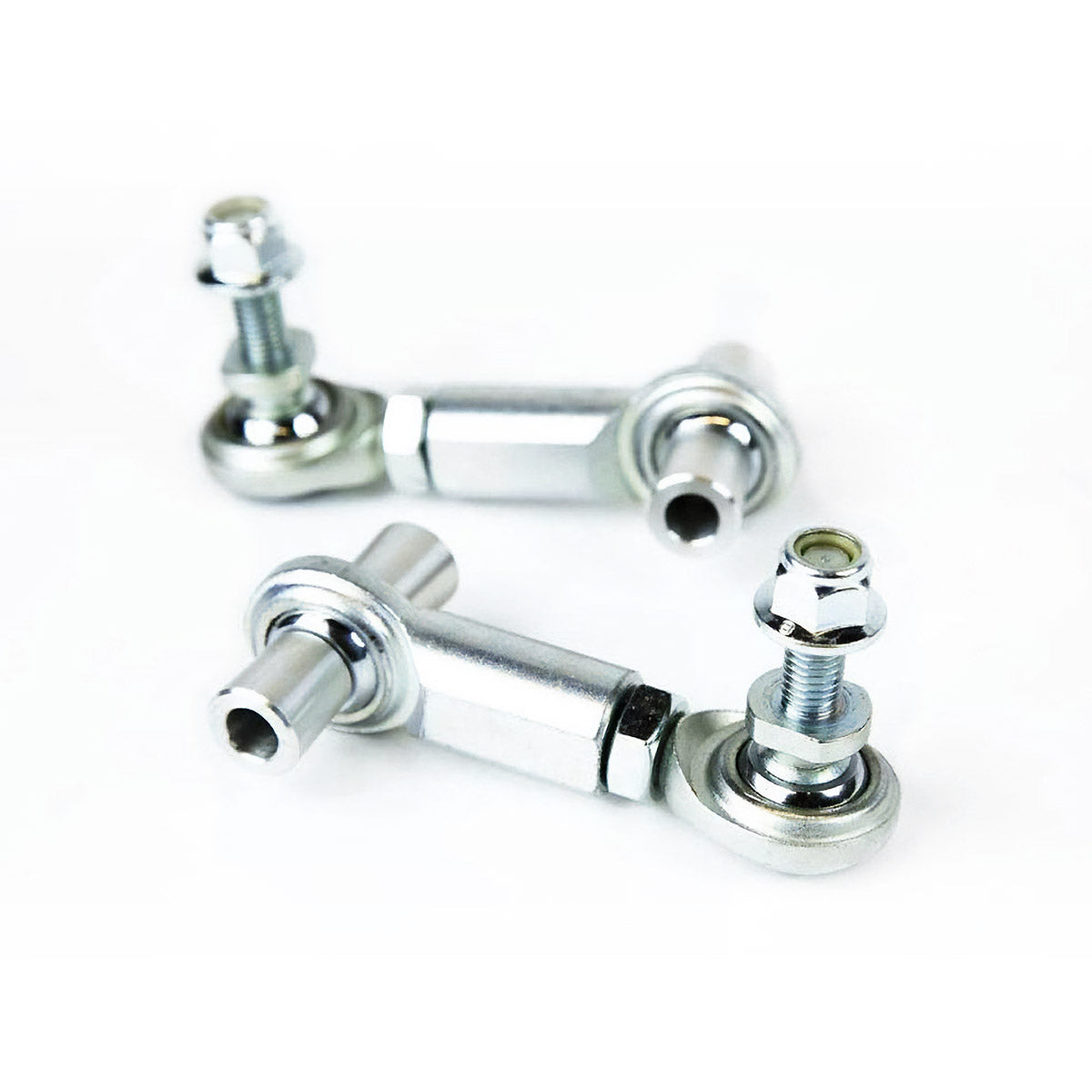

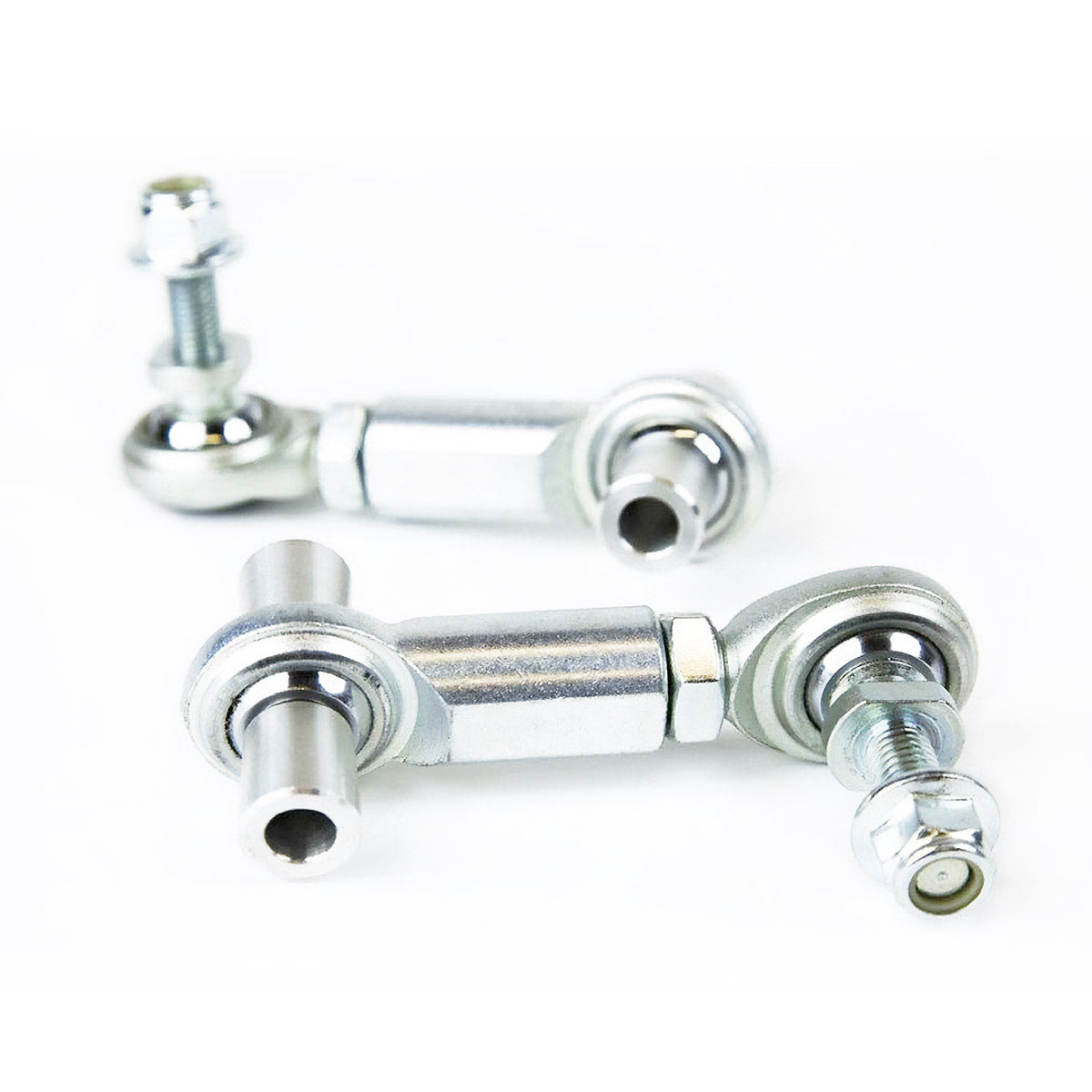

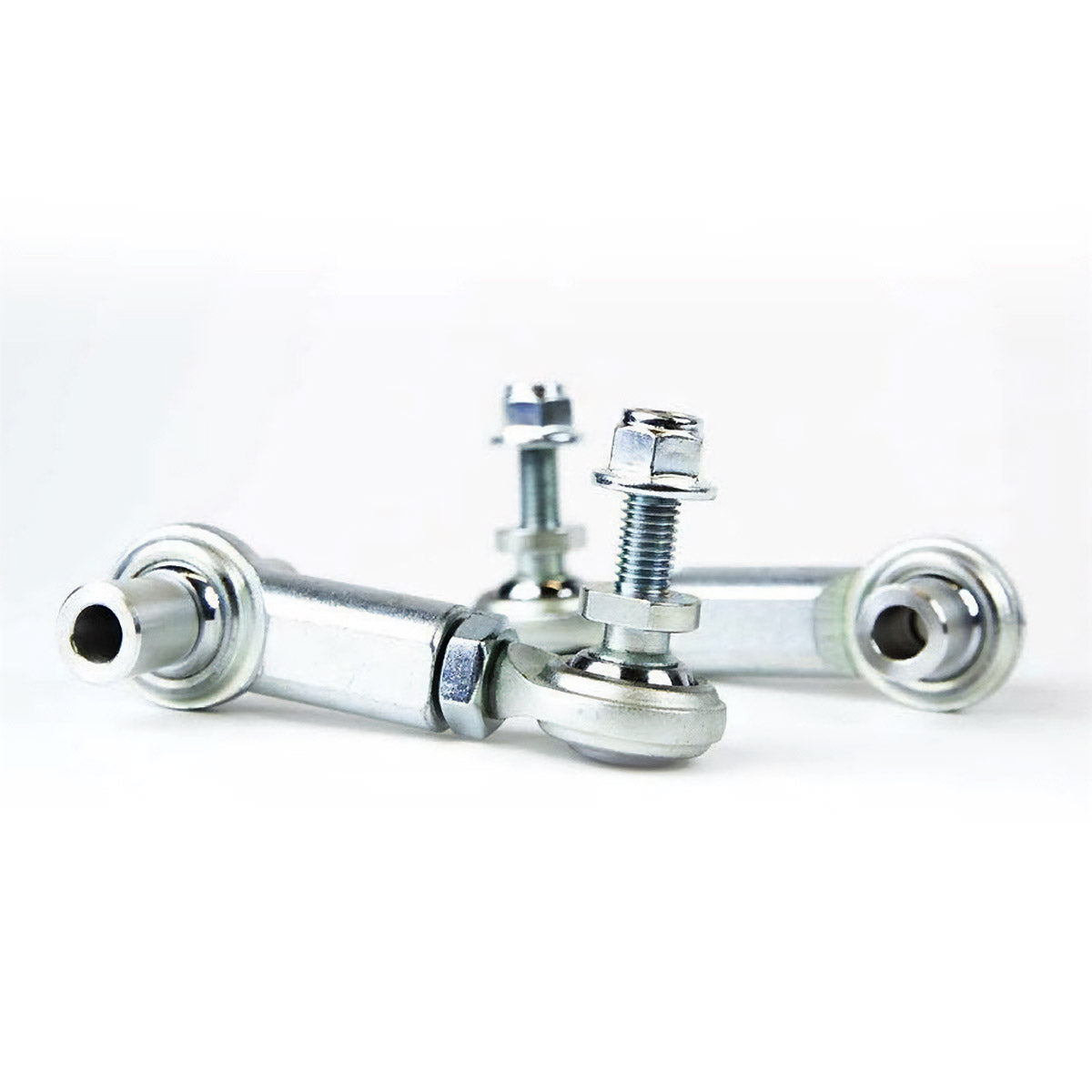

SPL Parts Adjustable Rear Sway Bar Endlinks - SPL RE FRS

SPL Parts Adjustable Rear Sway Bar Endlinks - SPL RE FRS

Regular price $206.10 USD
Regular price $229.00 USD Sale price $206.10 USD
-10%
Shipping calculated at checkout.
SPL Parts
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

SPPSPL RE FRS
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

SPL RE FRS
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

In stock
Sway Bar Endlinks
The SPL Parts Adjustable Rear Sway Bar Endlinks (Part #SPL RE FRS) are engineered to deliver precise sway bar geometry, eliminate preload, and improve rear suspension response on Toyota and...
Read more
Found a better price elsewhere?
secure-payments
View full details

Description

The SPL Parts Adjustable Rear Sway Bar Endlinks (Part #SPL RE FRS) are engineered to deliver precise sway bar geometry, eliminate preload, and improve rear suspension response on Toyota and Subaru performance platforms. Built with oversized PTFE-lined FK bearings and high-misalignment hardware, these rear endlinks are designed to withstand the loads of stiff aftermarket sway bars while maintaining smooth, bind-free articulation.

Unlike many short endlinks that reduce bearing size, SPL uses massive 1/2-inch FK bearings to maintain high radial load capacity and extend service life. The result is better handling balance, quicker sway bar response, and more consistent performance between left and right turns.

  • Brand: SPL Parts
  • Part Number: SPL RE FRS
  • Position: Rear
  • Component Type: Adjustable rear sway bar endlinks
  • Adjustability: Useful range to eliminate preload and set proper sway bar angle
  • Bearings: FK PTFE-lined 1/2-inch spherical bearings (F1-spec, self-cleaning)
  • Studs: High-misalignment chromoly studs with up to 65 degrees of articulation
  • Construction: High-strength aluminum and chromoly components
  • NVH Impact: Minimal - no increase in ride harshness
  • Use Case: Daily driver, performance street, and race applications
  • Sold As: Pair
  • Manufacturing: Made in the USA



Performance Benefits

  • Eliminates unwanted rear sway bar preload
  • Corrects sway bar installation angle on lowered cars
  • Improves rear response and consistency during cornering
  • Increases effective rear sway bar rate for quicker response
  • Provides better sway bar tuning and corner balance capability

While spherical rear endlinks may transmit minor noise over uneven, asymmetrical bumps, vibration is well isolated from the cabin by OEM bushings, rear seat structure, and vehicle mass. Ride comfort is not negatively affected.



Construction & Materials

  • 6061-T6 aluminum spacers
  • FK PTFE-lined 65-degree studded rod end (F1 spec, self-cleaning)
  • FK PTFE-lined 65-degree spherical bearing (F1 spec, self-cleaning)



Vehicle Fitment

  • Toyota GR86 ZN8 (2021+)
  • Toyota 86 / Scion FR-S ZN6 (2013-2021)
  • Subaru BRZ ZC6 / ZD8 (2013+)
  • Subaru WRX / WRX STI GR / VA / VB (2008+)
  • Subaru Legacy BM / BN (2010-2019)
  • Subaru Impreza GE / GH / GJ / GP (2008-2016)

Also fits lowered Subaru models (over 1.5 in / 38 mm):

  • Subaru Forester SH / SJ (2009-2018)
  • Subaru Crosstrek / XV GP (2013-2017)
  • Subaru Outback BR / BS (2010-2019)



Replaces OEM Part Numbers

  • Toyota: SU003-00398
  • Subaru: 20470-AJ000, 20470-FG000, 20470-AJ010
