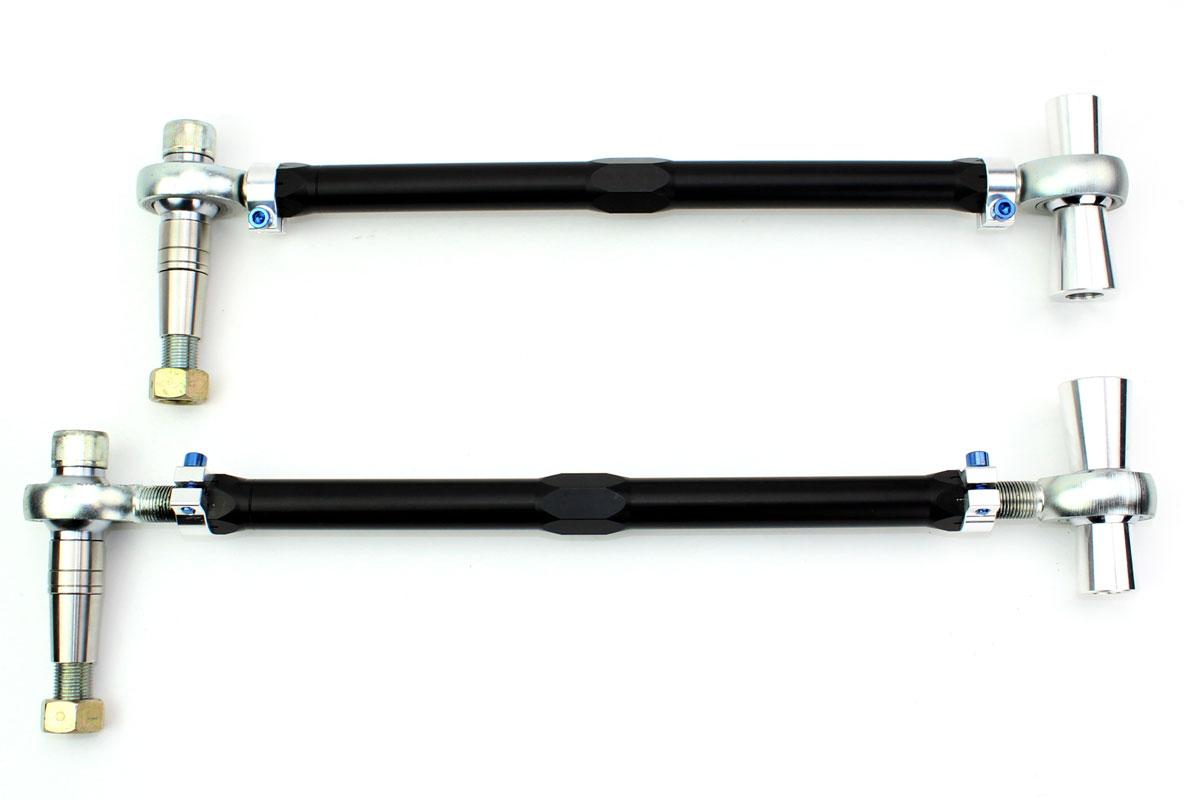

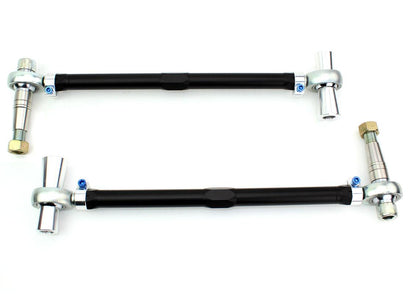

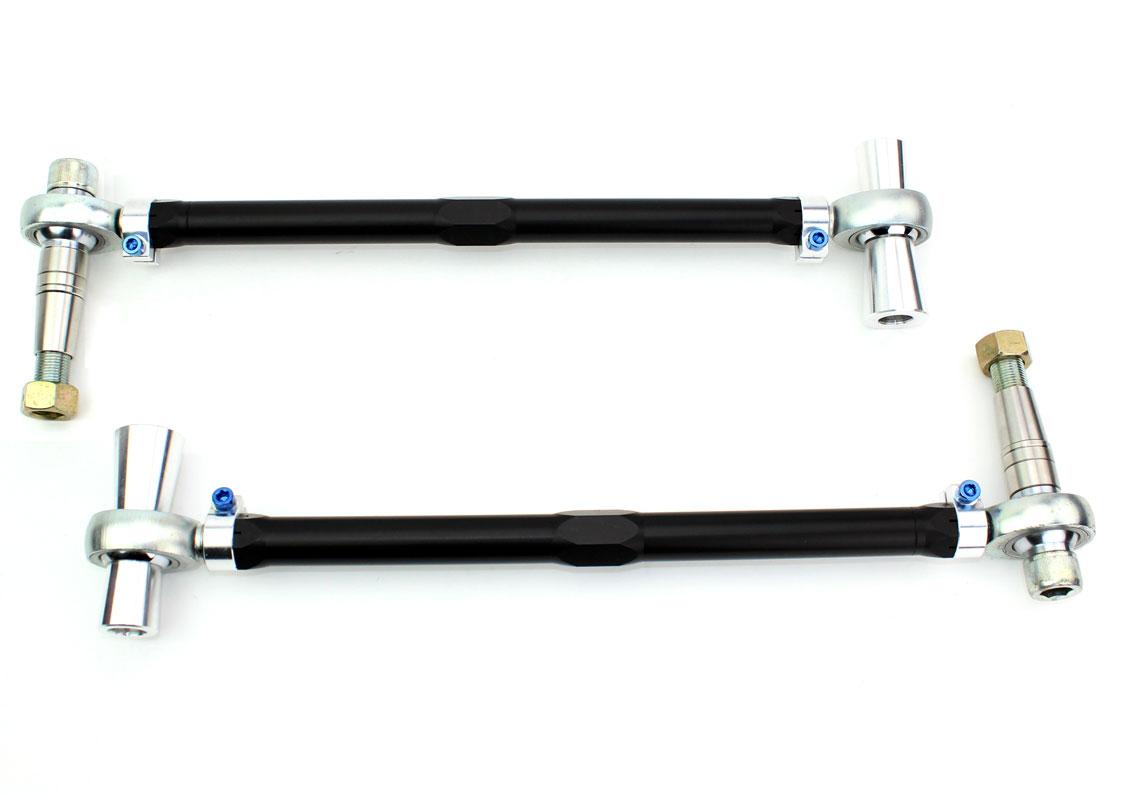

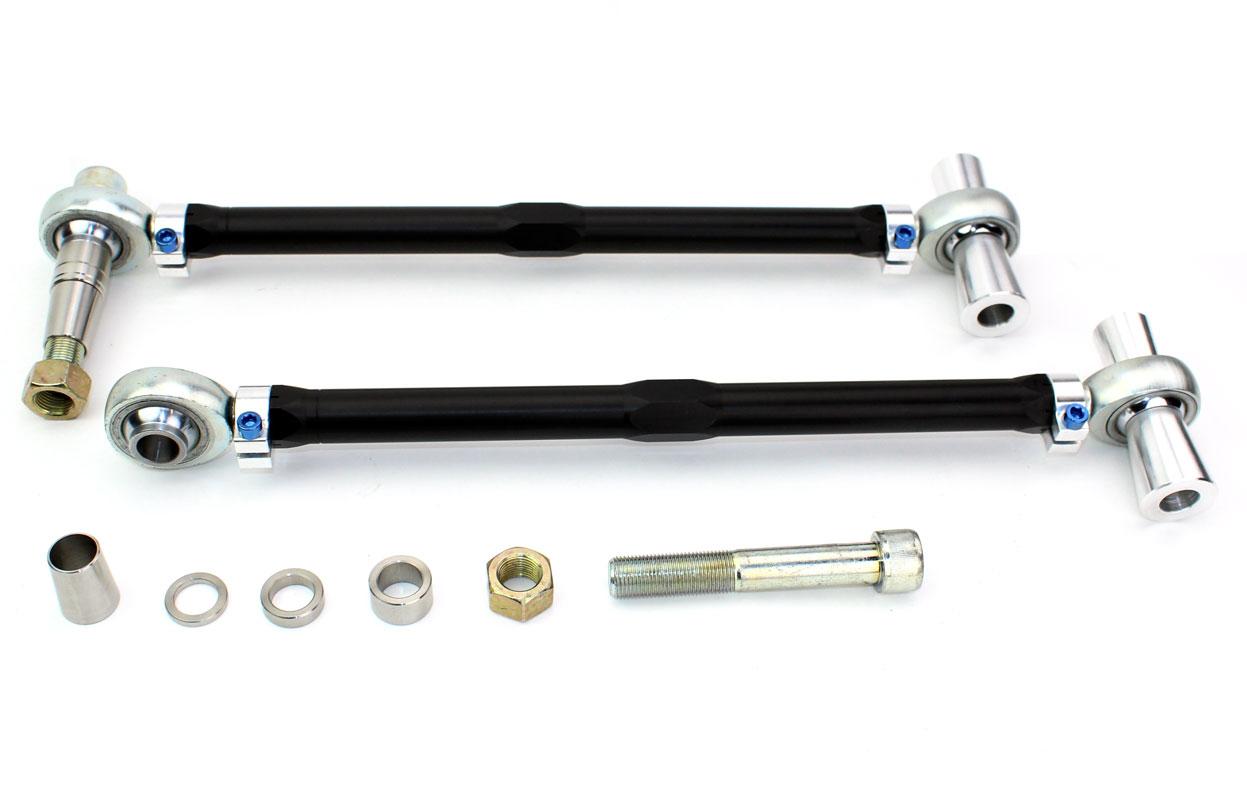

SPL 2015-2019 GT350 Mustang Front Tension Rods - TR GT350

SPL GT350 Mustang Front Tension Rods - TR GT350

SPL Shelby GT350 Tension Rods (TR) provide front caster and anti-dive adjustment for the S550 GT350 and GT350R, allowing for symmetrical and ideal caster angle on both sides. The stock mushy rubber bushing is replaced by a US-made, low friction, hardened FK spherical bearing to eliminate deflection and bind, resulting in improved handling, direct braking feel, and sharp steering.

Using a mixture of billet 2024-T351 aluminum, stainless steel, chromoly steel, and titanium results in strong, adjustable arms that are 3.0 lbs lighter than the stock aluminum GT500 arms. Our 360° aluminum clamp design allows for fast, precise on-car adjustment by simply loosening two titanium Allen head cap screws and turning the arm. Once set, simply tighten the cap screws and you're done. No more fumbling wrenches trying to hold everything together while you tighten jam nuts.

Install Instructions

SPL TR GT350 Install Instructions

Benefits

• Adjustable Caster and Anti-Dive

• Eliminates Bushing Deflection

• Improved Camber Gain with Added Caster

• Lightweight, High-Strength Construction

Materials

• Hollow, Black Anodized 2024-T351 Aluminum Arms

• 4340 CrMo Steel Studs

• Ti6Al4V Titanium Socket Head Cap Screws

• 304SS Knuckle, Anti-Dive Adjustment, and Rod End Spacers

• 6061-T6 360° Clamps

• FK JMX Hardened PTFE-lined Spherical Bearings (F1 spec, self-cleaning)

Applications

2015 - 2019 Shelby GT350 and GT350R
