SPL Parts Shortened Adjustable Front Sway Bar Endlinks - GR86 / BRZ / FR-S - SPL FES FRS

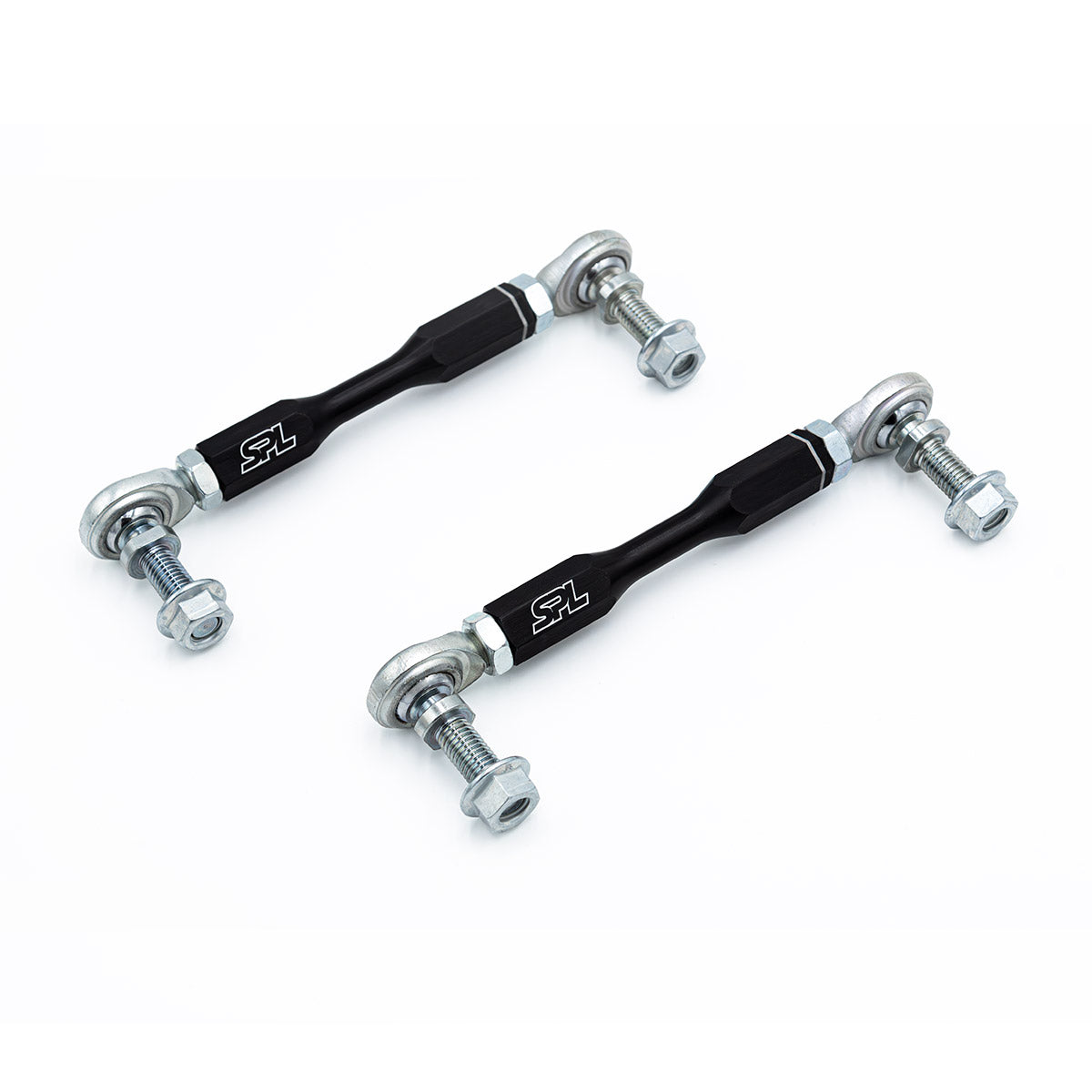

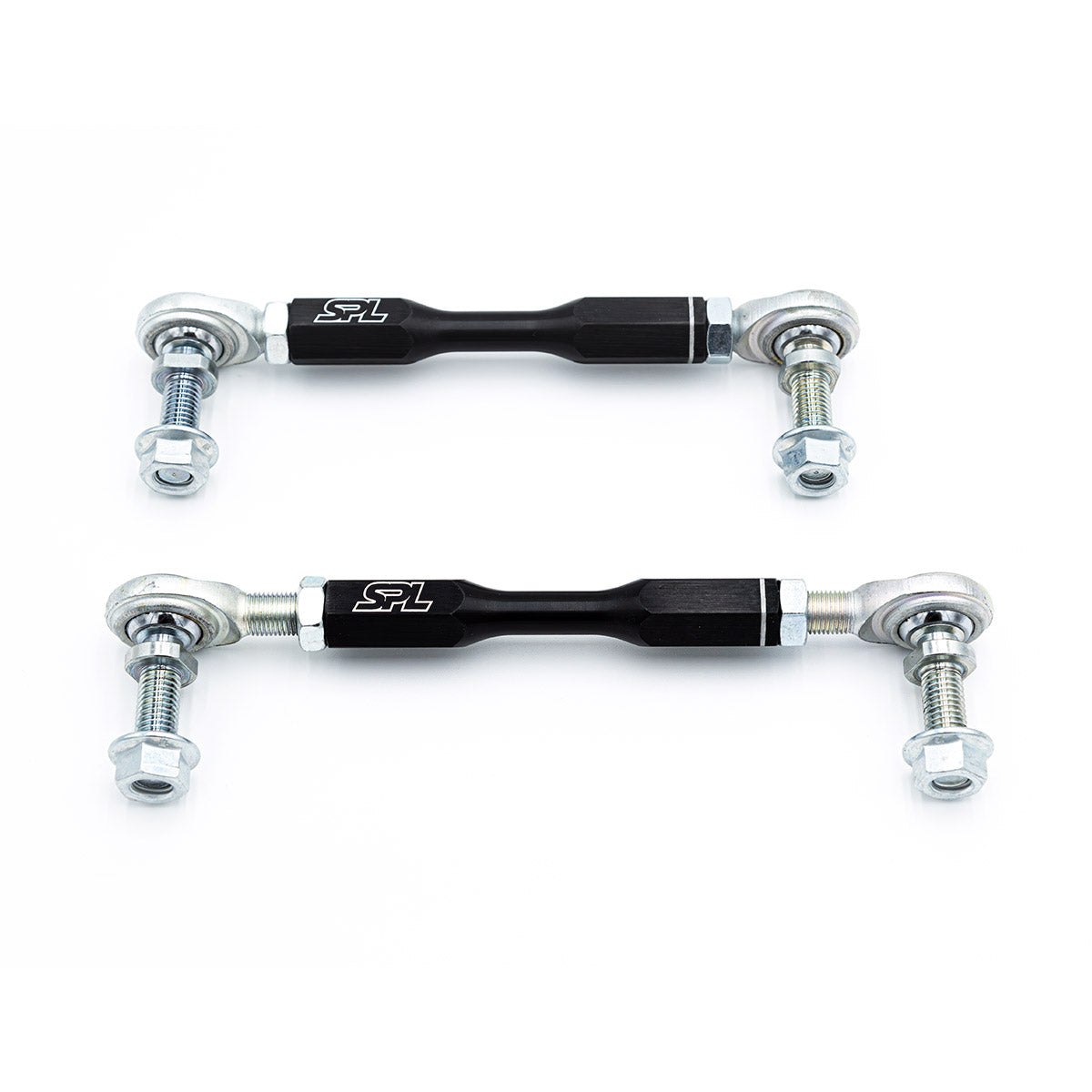

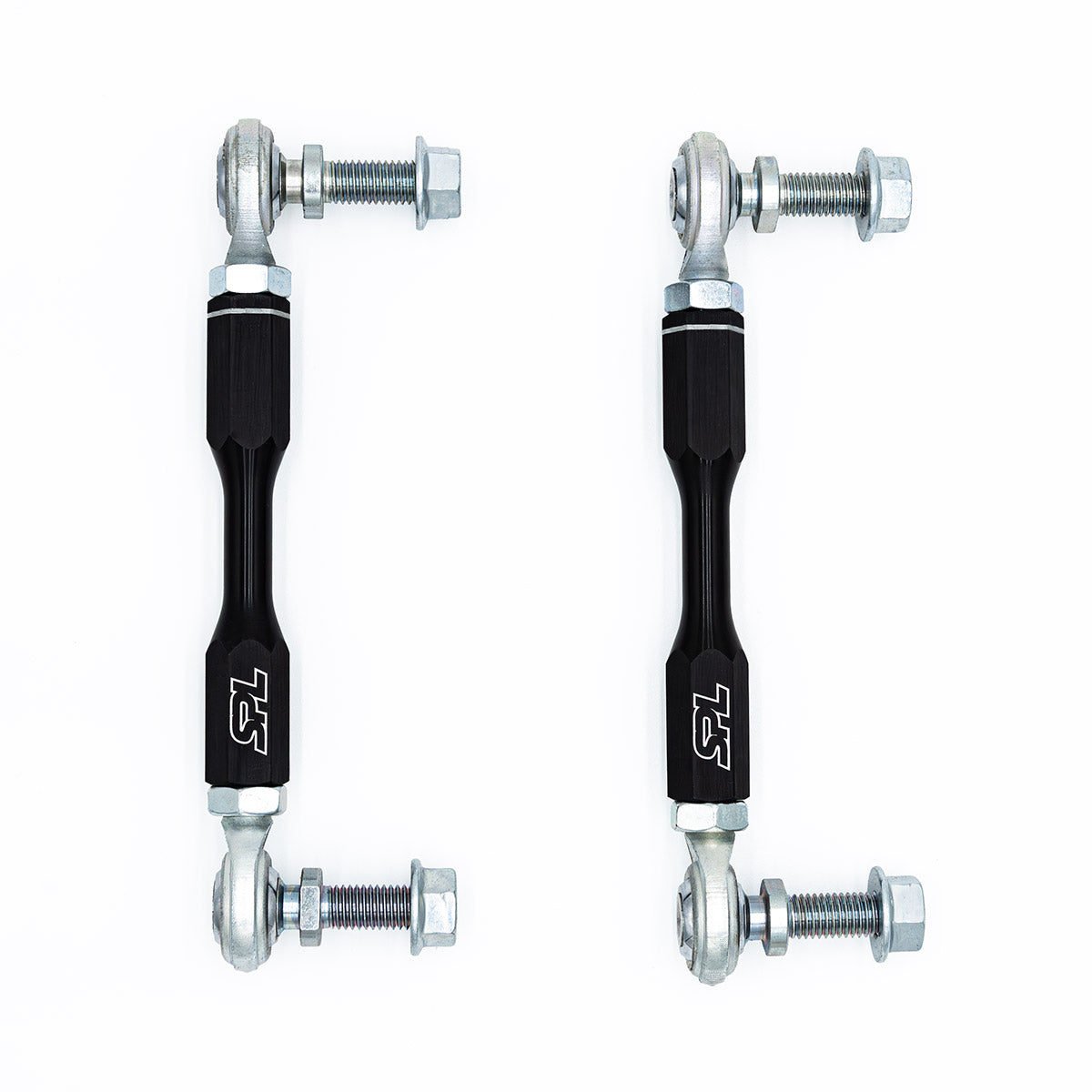

The SPL Parts Shortened Adjustable Front Sway Bar Endlinks (Part #SPL FES FRS) are purpose-built for modified Toyota GR86, Subaru BRZ, GT86, and Scion FR-S platforms that require a shorter endlink length for proper sway bar geometry and clearance. These endlinks are ideal for vehicles equipped with coilovers, aftermarket lower control arms, or other suspension modifications that alter sway bar mounting points.

With a large adjustment range, high-strength lightweight construction, and self-cleaning FK PTFE-lined bearings, these endlinks eliminate sway bar preload, correct sway bar installation angle, and deliver consistent handling performance for both street and track use.

• Brand: SPL Parts
• Part Number: SPL FES FRS
• Position: Front
• Component Type: Shortened adjustable front sway bar endlinks
• Adjustability: Large adjustment range for modified suspension geometry
• Bearings: FK PTFE-lined 1/2-inch spherical bearings, F1-spec, self-cleaning
• Studs: High-misalignment chromoly studs with up to 65 degrees of articulation
• Turnbuckles: 6061-T6 aluminum, anodized black
• Adjustment Method: Opposing left-hand and right-hand threads for on-car adjustment
• Use Case: Street performance and track use
• Sold As: Pair
• Manufacturing: Made in the USA

Performance Benefits

• Eliminates unwanted sway bar preload
• Corrects sway bar installation angle on lowered or modified cars
• Improves handling consistency and corner balance
• Prevents endlink binding with adjustable sway bars
• Provides more effective sway bar tuning and predictable response

Unlike OEM endlinks, SPL adjustable endlinks allow precise length changes while installed on the car. Simply rotate the turnbuckle to fine-tune length, then secure the jam nuts to lock in the setting.

Construction & Materials

• 6061-T6 aluminum turnbuckles, anodized black
• FK PTFE-lined 65-degree studded rod ends (self-cleaning, US-made)
• Lightweight, high-strength aluminum and chromoly construction

Vehicle Fitment

• Toyota GR86 ZN8 (2021+)
• Toyota 86 / Scion FR-S ZN6 (2013-2021)
• Subaru BRZ ZC6 / ZD8 (2013+)

Replaces OEM Part Numbers:

• Toyota: SU003-00394
• Subaru: 20420-CA000
