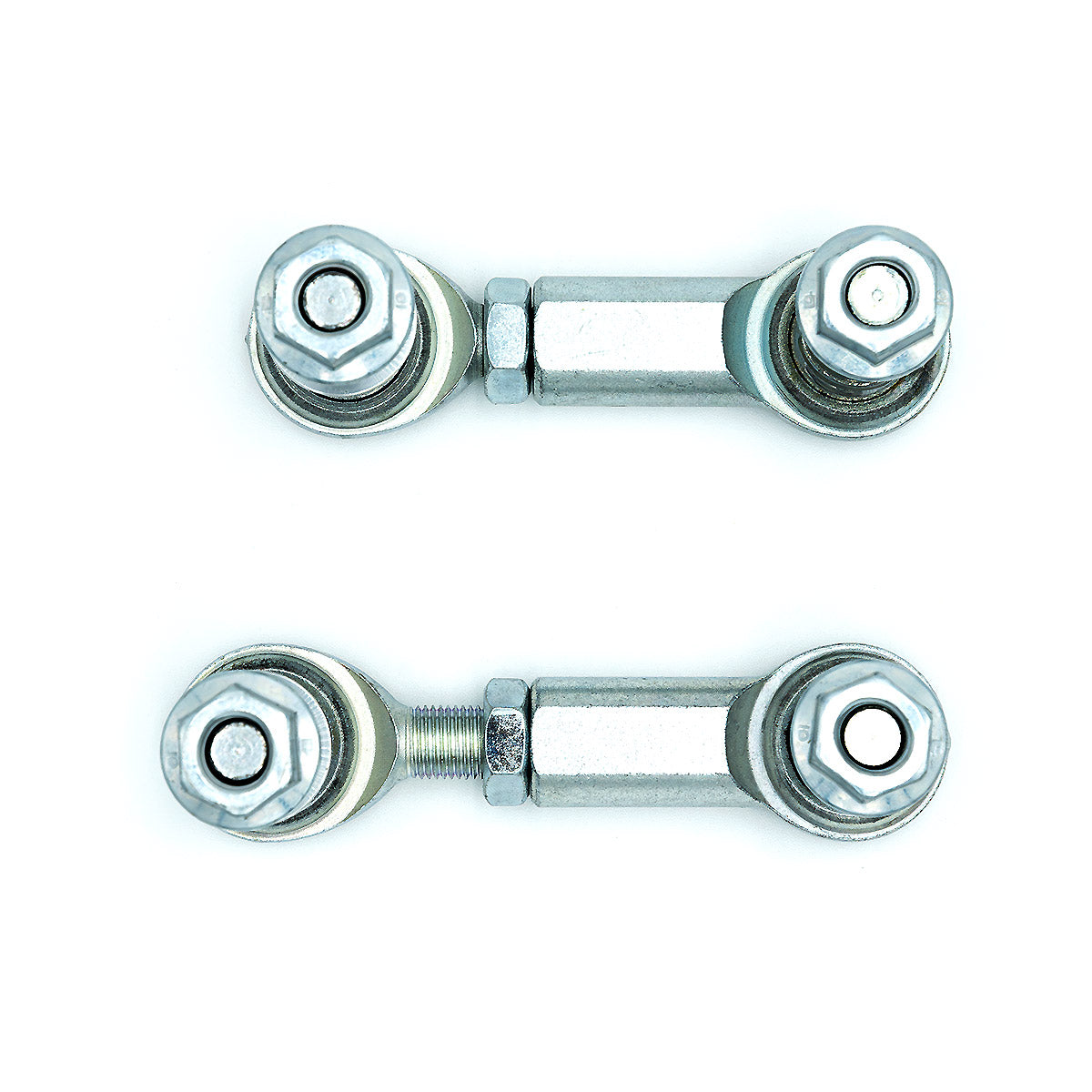

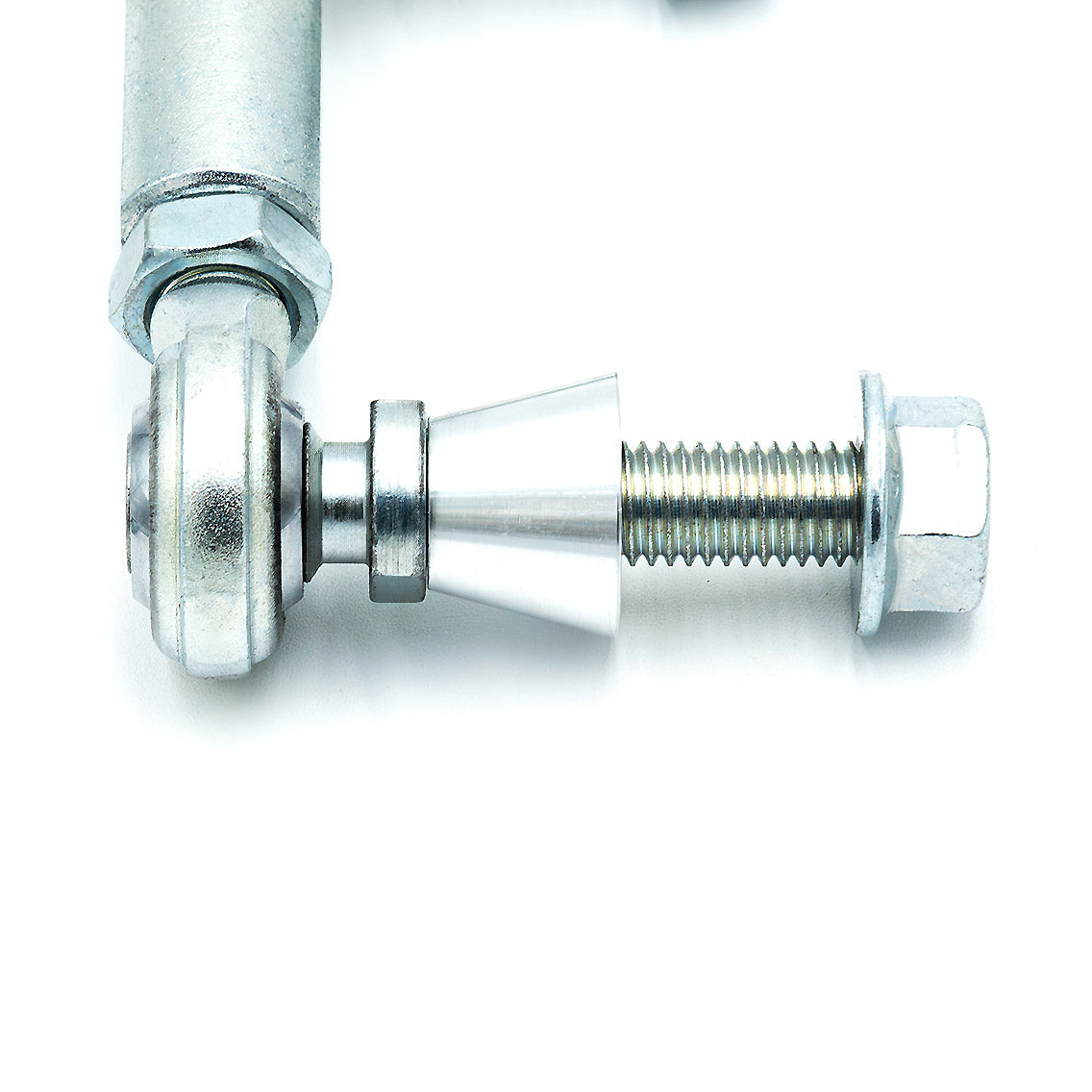

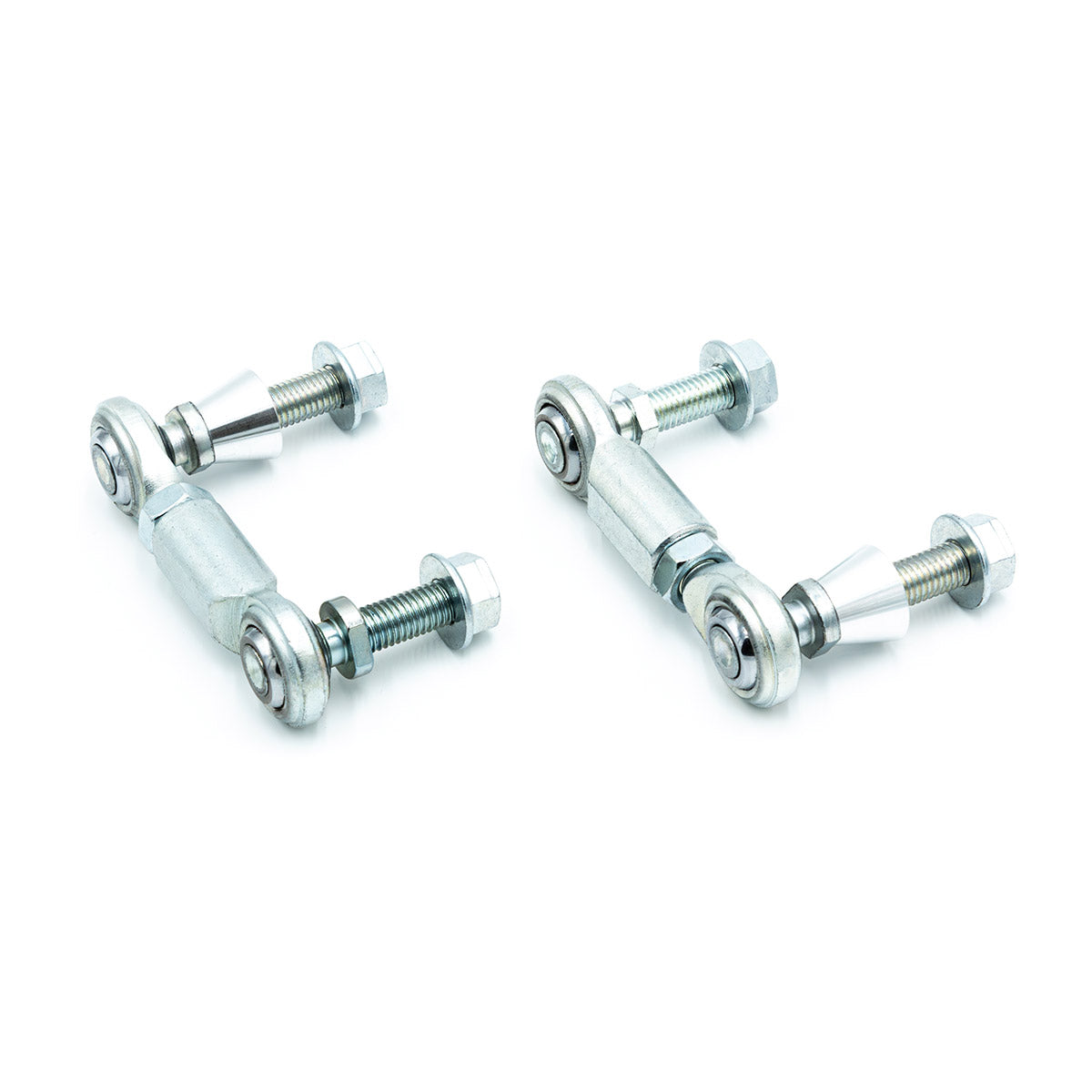

SPL Parts Adjustable Rear Sway Bar Endlinks - SPL RE E210

The SPL Parts Adjustable Rear Sway Bar Endlinks (Part #SPL RE E210) are engineered to improve rear sway bar effectiveness, response, and consistency on the Toyota GR Corolla. By replacing the OEM rubber bushing end with oversized PTFE-lined FK spherical bearings, these endlinks eliminate preload, prevent binding, and increase the effective rear sway bar rate for sharper, more predictable handling.

Massive 1/2-inch FK bearings and heat-treated chromoly high-misalignment studs provide up to 65 degrees of articulation, ensuring smooth operation with stock or aftermarket sway bars. Adjustable length allows you to set the correct sway bar angle, properly corner balance cars with coilovers, and remove preload that occurs even on stock vehicles when the driver is seated.

• Brand: SPL Parts
• Part Number: SPL RE E210
• Position: Rear
• Component Type: Adjustable rear sway bar endlinks
• Adjustability: Length adjustable to eliminate sway bar preload
• Bearings: FK PTFE-lined 1/2-inch spherical bearings (F1 spec, self-cleaning)
• Studs: Heat-treated chromoly high-misalignment studs
• Articulation: Up to 65 degrees to prevent binding
• Function: Improves rear sway bar rate, response, and consistency
• Use Case: Daily driver, street performance, track, and race use
• Sold As: Pair
• Manufacturing: Made in the USA

Performance Benefits

• Eliminates unwanted rear sway bar preload
• Corrects sway bar installation angle
• Increases rear sway bar effectiveness and response
• Improves balance and consistency between left and right turns
• Works with stock or aftermarket sway bars

Construction & Materials

• 6061-T6 aluminum spacers
• FK PTFE-lined 65-degree studded rod ends (self-cleaning, US made)

Vehicle Fitment

• Toyota GR Corolla (2023+)

Replaces OEM Part Number:

• 48830-06090
