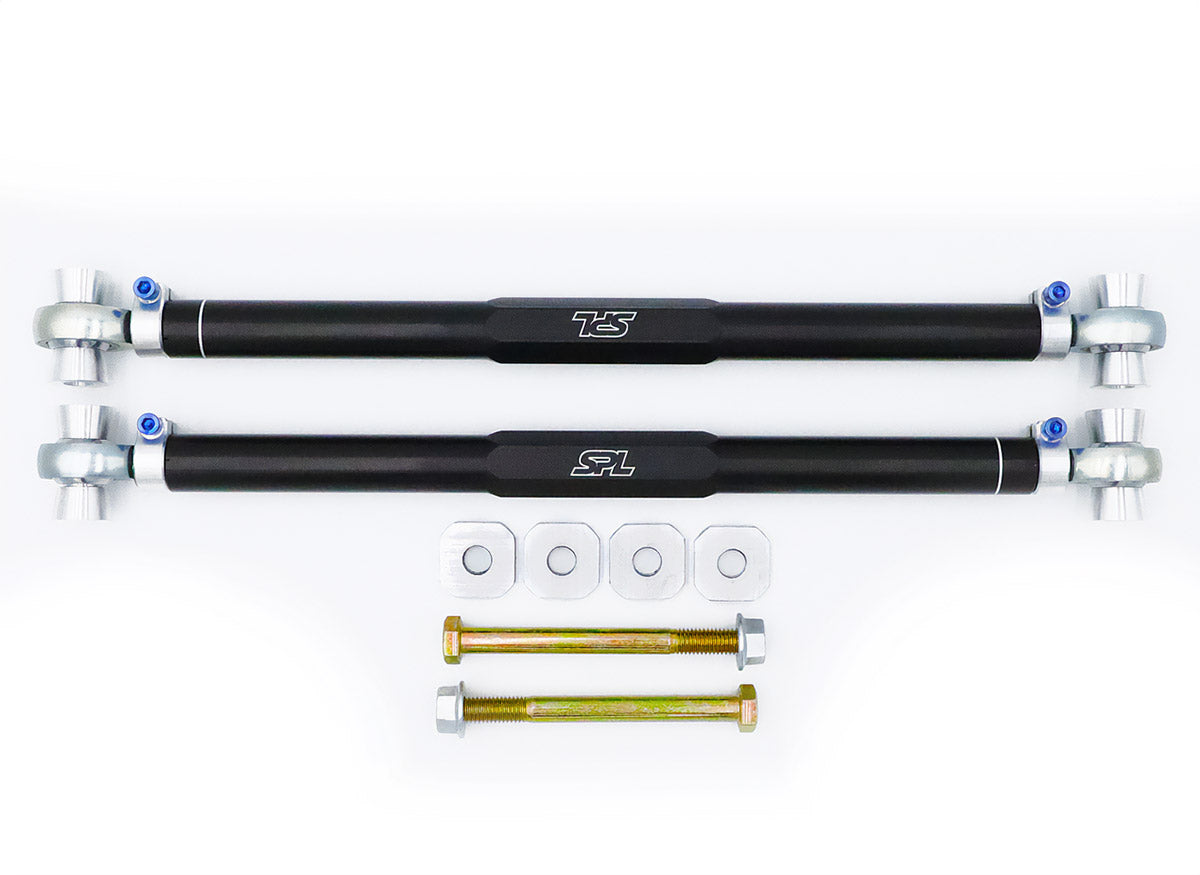

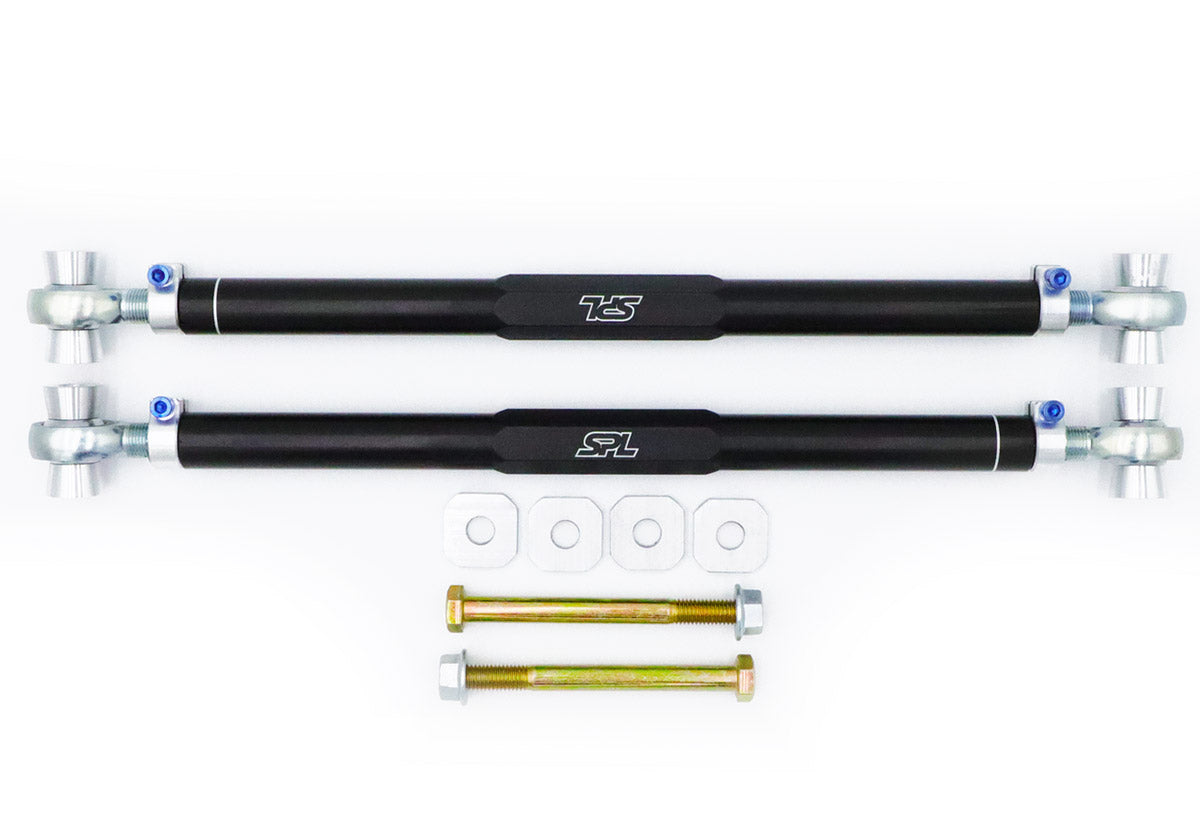

SPL Parts Adjustable Rear Toe Links with Eccentric Lockout - SPL RTAEL CAM6

The SPL Parts Adjustable Rear Toe Links with Eccentric Lockout (Part #SPL RTAEL CAM6) are engineered to dramatically improve rear stability, alignment accuracy, and driving confidence on the 6th Gen Chevrolet Camaro and CT5 Blackwing. By eliminating factory rubber bushing deflection and replacing slip-prone OEM eccentric bolts, these toe links keep rear alignment locked under hard cornering, braking, and acceleration.

Lowered Camaros and performance-aligned setups demand a wider and more precise rear toe adjustment range than factory components can provide. SPL’s solution combines lightweight, gun-drilled aluminum construction with a jam nut-free 360-degree rotating clamp system for fast, precise, on-car adjustments that stay put.

• Brand: SPL Parts
• Part Number: SPL RTAEL CAM6
• Position: Rear
• Component Type: Adjustable rear toe links with eccentric lockout kit
• Adjustment Range: Large rear toe adjustment range for lowered and track-aligned cars
• Center Links: Gun-drilled 2024 aluminum to reduce unsprung weight
• Finish: Black anodized
• Clamp Design: 6061-T6 aluminum 360-degree rotating clamps (no jam nuts)
• Hardware: Blue anodized titanium socket head cap screws

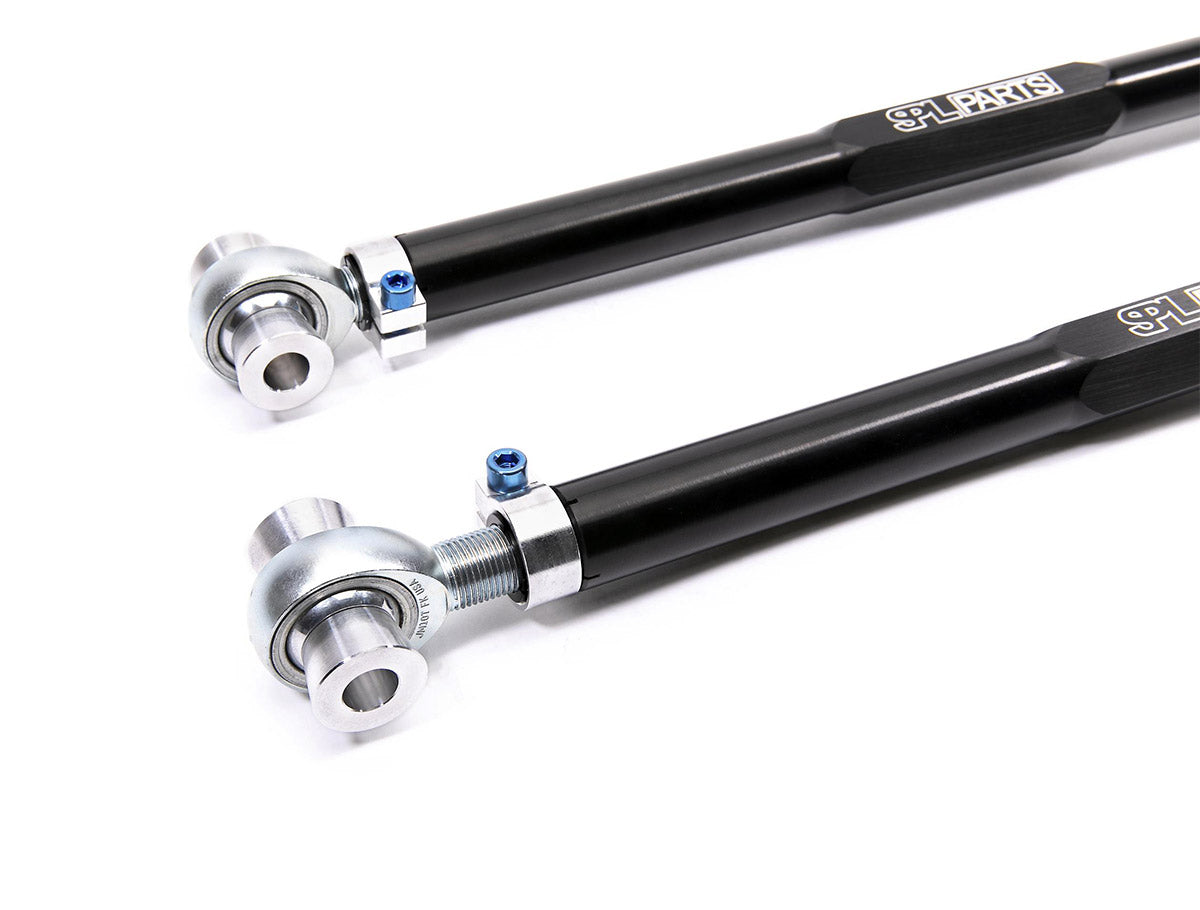

• Rod Ends: Low-friction FK PTFE-lined spherical bearings (self-cleaning)
• Eccentric Lockout: CNC-machined 6061-T6 aluminum lockout washers
• Fasteners: Zinc-plated grade 10.9 bolts with lock nuts
• Operating Temp Range: -65 F to 325 F
• Use Case: Performance street, track, and race applications
• Sold As: Pair
• Manufacturing: Made in the USA

Performance Benefits

• Eliminates bushing deflection and unwanted rear toe change
• Locks out OEM eccentrics to prevent alignment slip
• Improves rear stability, traction, and braking confidence
• Allows fast, repeatable on-car toe adjustments
• Helps maximize grip on track and extend tire life on the street

FK spherical bearings are manufactured in Connecticut and feature chemically bonded PTFE liners for quiet operation, smooth articulation, and exceptional load capacity in demanding environments.

Vehicle Fitment

• Chevrolet Camaro (6th Generation) (2016+)
• Cadillac CT5 Blackwing (2022+)
