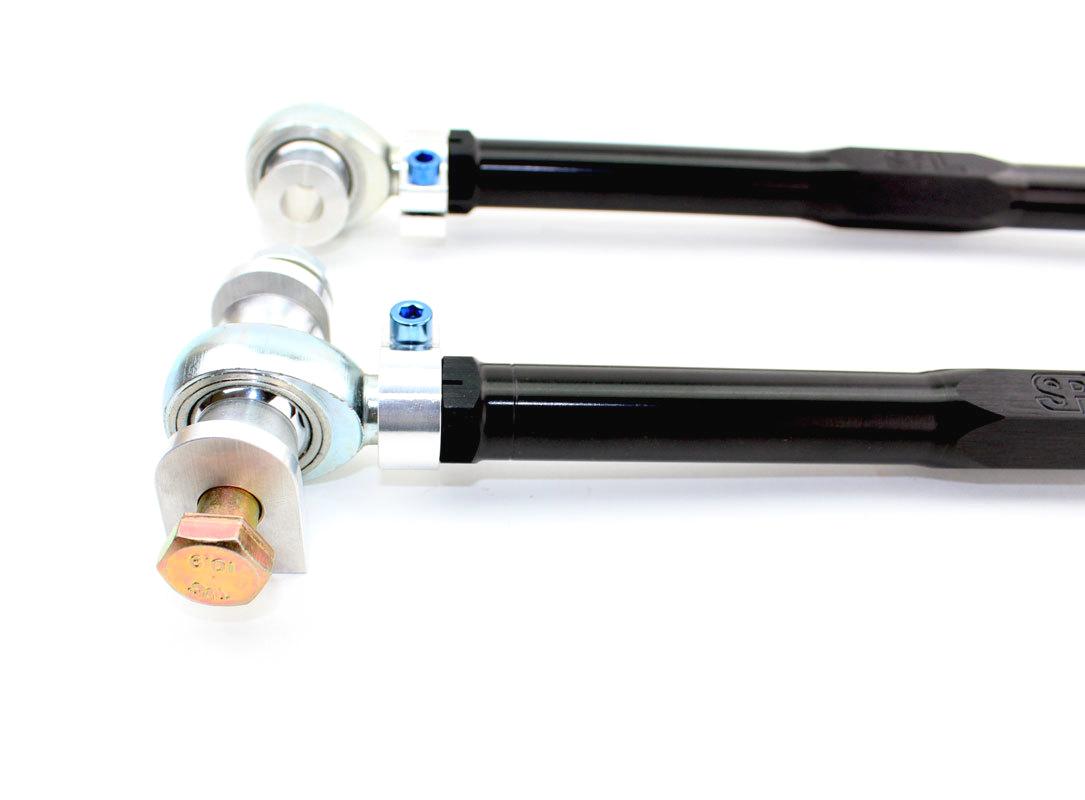

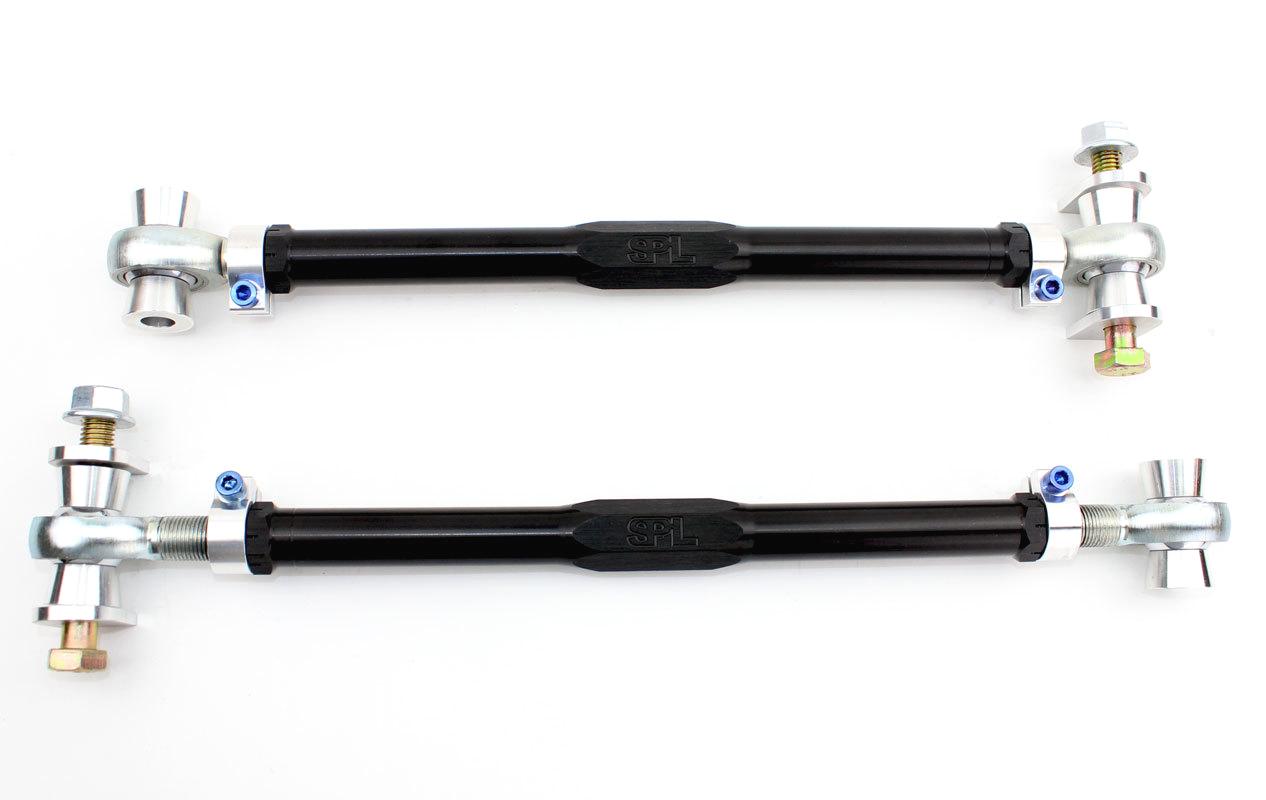

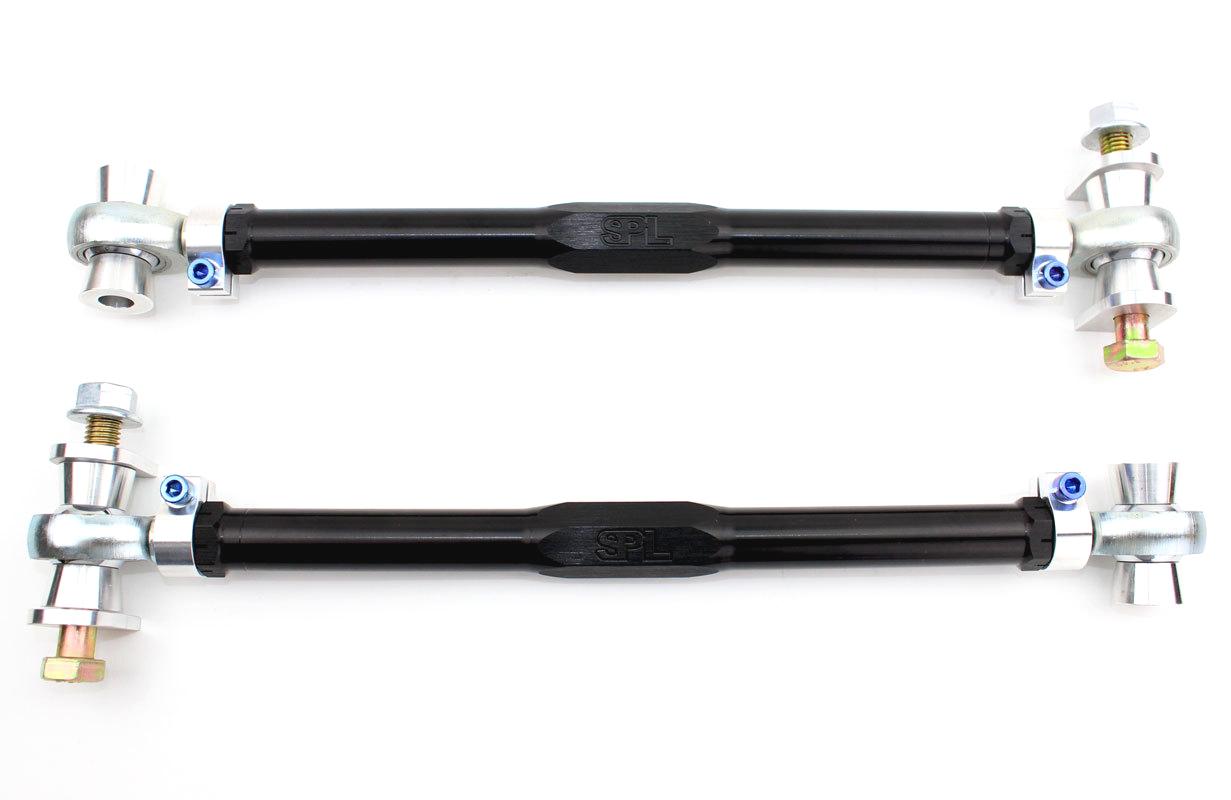

SPL Parts Titanium Series Adjustable Rear Toe Links with Eccentric Lockout - SPL RTAEL F8X

The SPL Parts Titanium Series Rear Toe Links with Eccentric Lockout (Part #SPL RTAEL F8X) are engineered to dramatically improve rear-end stability, precision, and alignment control on BMW F and G chassis performance vehicles. By eliminating factory bushing deflection and eccentric slip, these adjustable rear toe arms deliver consistent alignment under load, making them ideal for both street-driven cars and dedicated track builds.

Designed with lightweight, gun-drilled aluminum links and SPL’s 360-degree rotating clamp system, these toe links allow for fast, precise toe adjustments with a significantly wider adjustment range than OEM components.

• Brand: SPL Parts
• Part Number: SPL RTAEL F8X
• Position: Rear
• Component Type: Adjustable rear toe links with eccentric lockout
• Material: Gun-drilled 2024 aluminum main links
• Finish: Black anodized links
• Hardware:
• Blue anodized titanium socket head cap screws
• Grade 10.9 hex cap bolts with lock nuts
• Clamp Design: 6061-T6 aluminum 360-degree rotating clamp
• Rod Ends: Low-friction 3-piece FK Teflon-lined heim joints
• Eccentric Lockout: 6061-T6 aluminum eccentric lockout washers
• Sold As: Pair
• Country of Origin: Made in the USA

Performance Benefits

• Eliminates factory bushing deflection under load
• Prevents rear toe slip caused by OEM eccentric bolts
• Provides increased toe adjustment range for lowered vehicles
• Improves rear-end stability, response, and traction
• Helps maximize grip on track cars and extend tire life on street cars

The FK PTFE-lined rod ends are manufactured in Connecticut and feature chemically bonded Teflon liners for quiet operation, smooth articulation, and long service life. Operating temperature range is -65 F to 325 F, ensuring durability in demanding street and track environments.

Vehicle Fitment

• BMW F80 M3 (2014-2018)
• BMW F82 M4 (2014-2020)
• BMW F83 M4 Convertible (2014-2020)
• BMW F87 M2 / M2 Competition (2016-2021)
• BMW G80 M3 (2022+)
• BMW G82 M4 (2022+)
• BMW G83 M4 Convertible (2022+)
• BMW G87 M2 (2023+)
