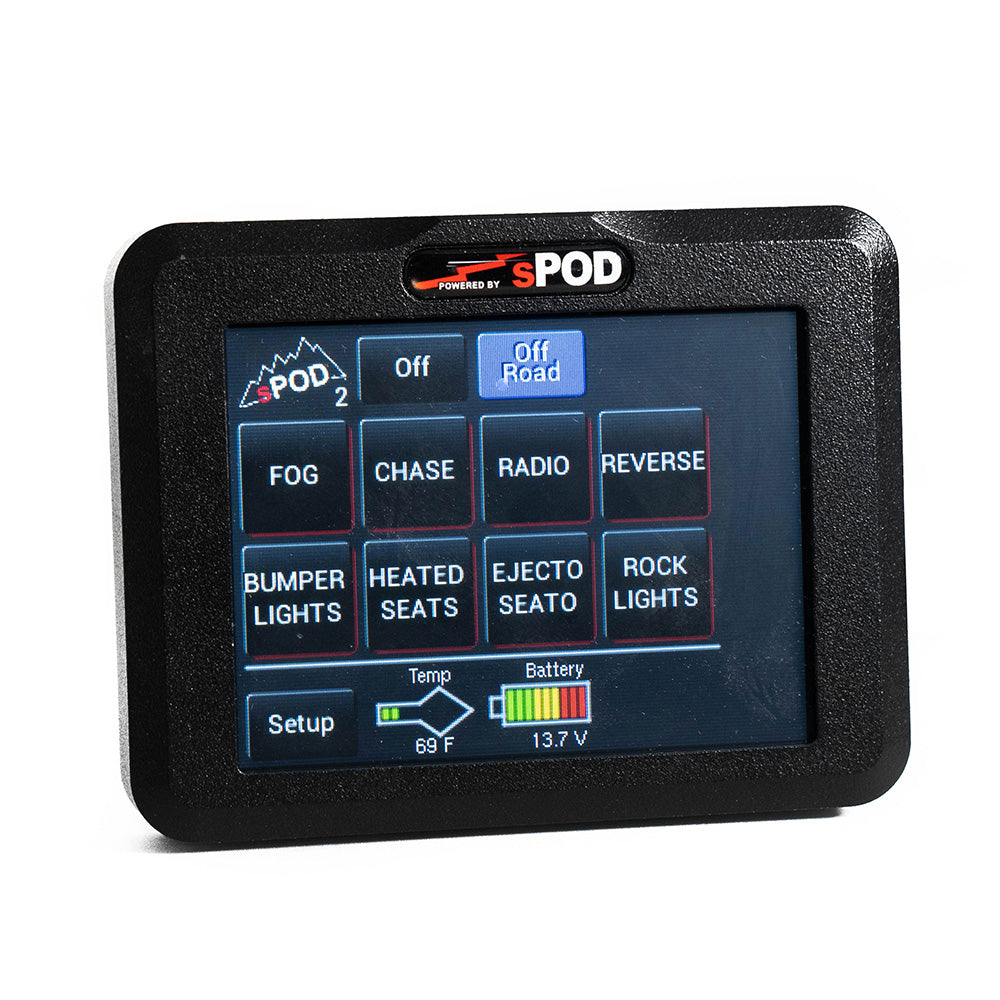

Spod Add-On Touchscreen for BantamX 8-Circuit Systems – Universal (SKU: 860800)

Upgrade your Spod BantamX 8-circuit system with the Add-On Touchscreen. Designed as either a primary or secondary touchscreen, this compact controller provides enhanced programmability and streamlined operation. Compatible only with 8-circuit systems (BantamX), this touchscreen is not compatible with 6-circuit SourceLT setups.

Available with a 10-foot or 30-foot Ethernet control cable, the Add-On Touchscreen installs easily and offers intuitive control with its industrial-grade resistive interface.

Key Features:

Touchscreen Control

• 3.5" LED-backlit TFT LCD display (320x240 resolution, 16.7m colors)

• Compact billet aluminum housing (3-3/4"W x 2-7/8"H x 5/8"D)

• Works with pressure-based resistive technology for reliable touch response

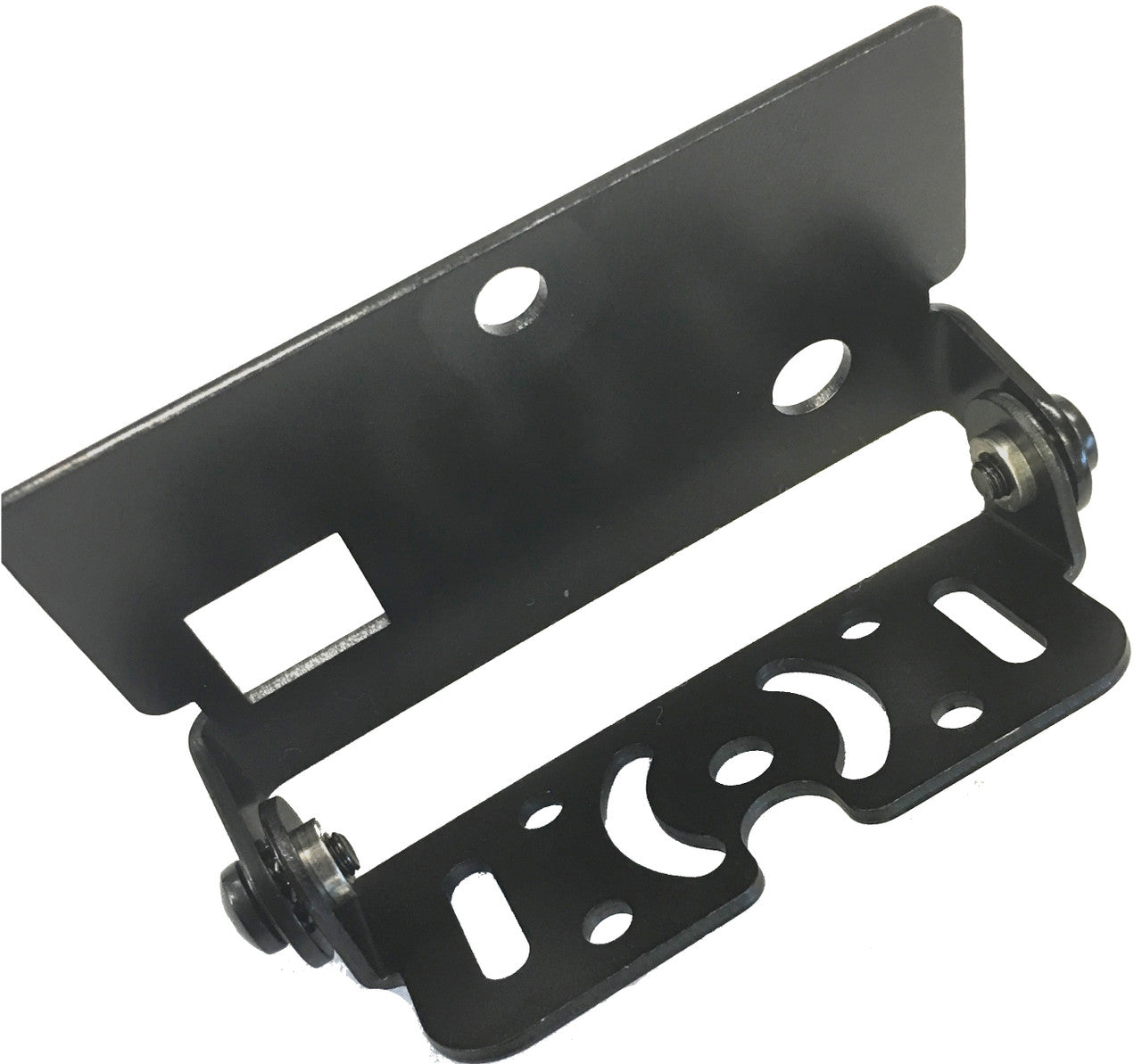

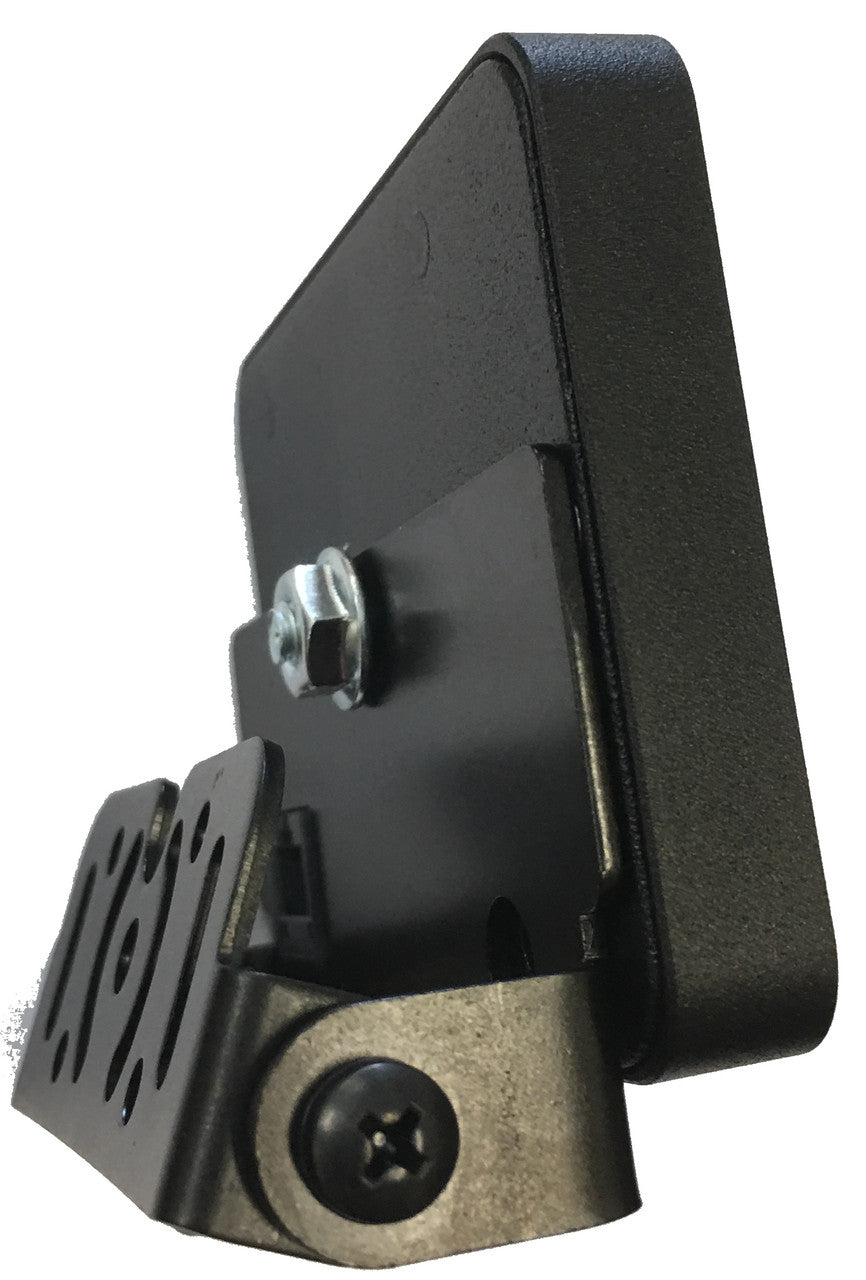

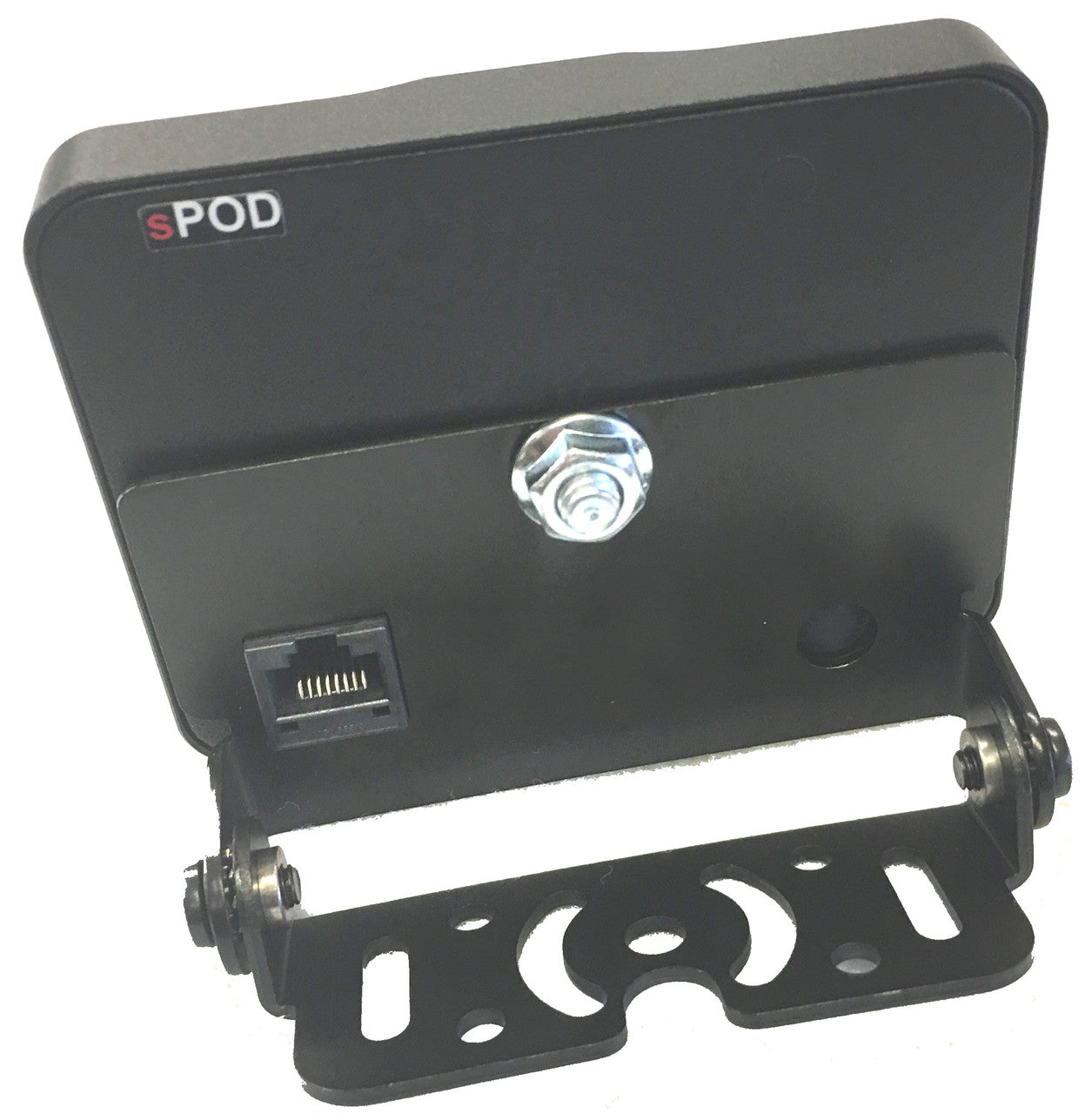

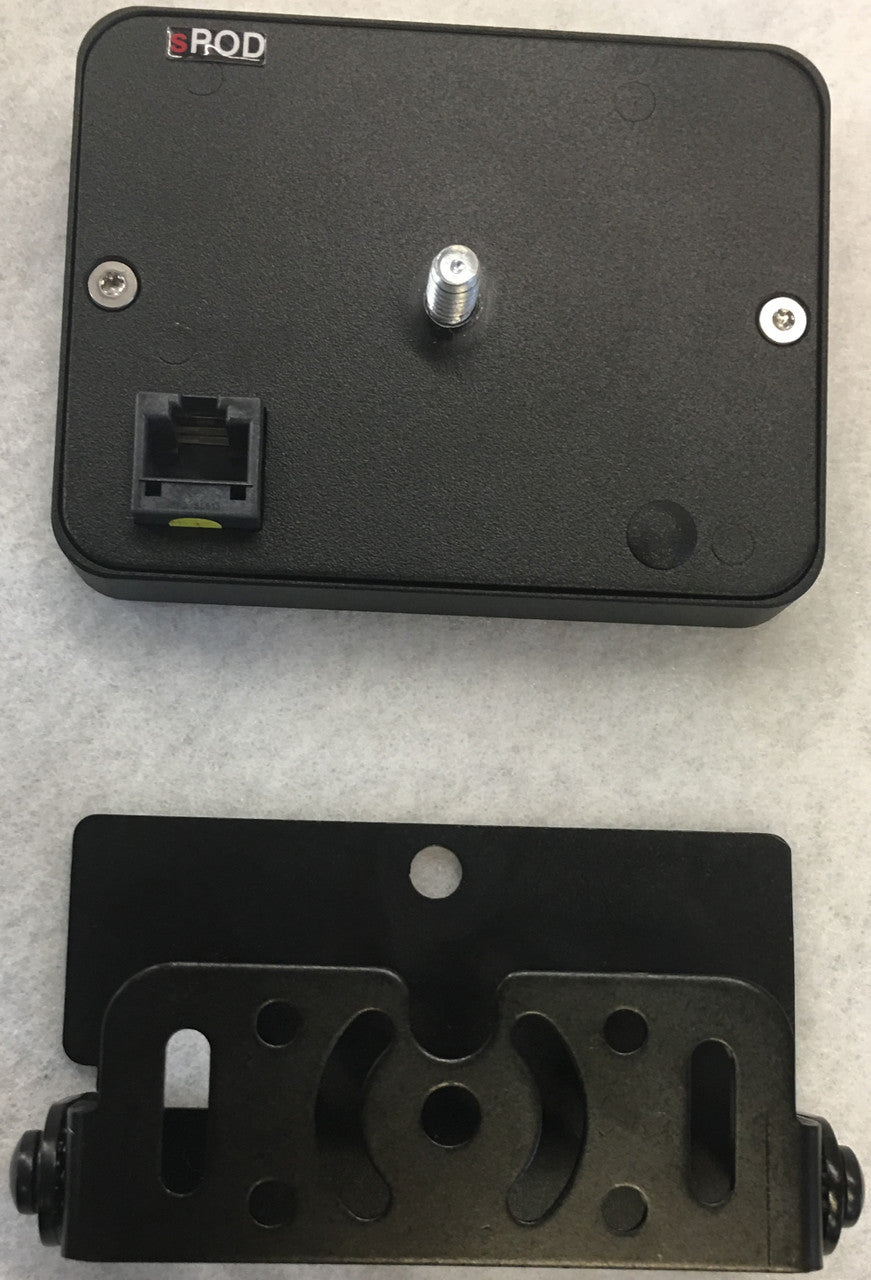

• Universal mounting bracket included

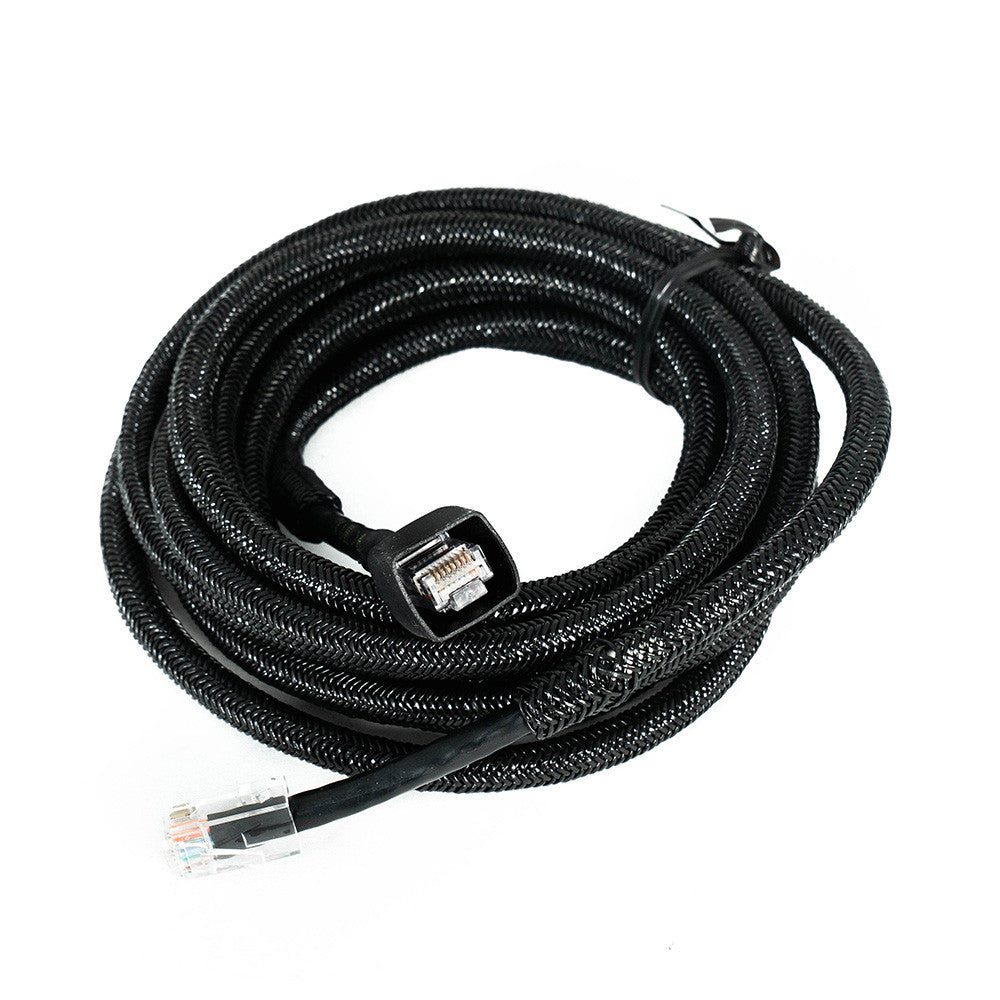

• Connects via standard Ethernet cable (10ft included; 30ft optional)

Programmable Switch Functions

• Dimming, strobe, flash, and momentary functions

• Switch linking for multi-accessory control

• On-road and off-road mode options

• One-touch OFF function to disable all circuits instantly

System Monitoring

• Displays vehicle battery/alternator voltage

• Monitors BantamX board temperature

• Customizable legends (3 lines of text per switch)

• Feedback on individual circuit activity

Power-Saving Features

• Automatic backlight shutoff after 30 minutes of inactivity

• Deep sleep mode after 6 hours of inactivity

• Auto power-off when the touchscreen is unplugged

Benefits:

• Simplifies installation by reducing wiring complexity

• Manages up to 32 circuits with one touchscreen

• Reduces harness weight for improved vehicle efficiency

• Extends lifecycle compared to mechanical switches

Mounting Options (Sold Separately):

• RAM-201U – Double Socket Arm for 1" RAM Ball

• RAM-238U – Base with 1" RAM Ball for fixed surface mounting

• RAM-224-1U – Suction Cup Base with 1" RAM Ball

Fitment:

• Universal – Compatible with Spod BantamX 8-Circuit Systems only

• Not compatible with 6-circuit SourceLT systems

Important Notes:

• Touchscreen is not weather-resistant and must be mounted inside the cab.

• Operates only above 45°F – allow vehicle interior to warm before use.

• Integrated Bluetooth is for programming only (range approx. 5–15ft).
