Spod BantamX with 8-Switch Panel – Jeep Wrangler JK 2009–2018 | Blue Switches

The Spod BantamX is a fully digital, compact 8-circuit control system designed to simplify your Jeep Wrangler JK’s wiring setup while delivering unmatched control and safety for all your 12V/24V accessories. Paired with a vehicle-specific mounting solution and a pre-wired, dual-lit 8-switch panel, this system is engineered for clean installations, minimal wiring, and maximum reliability—making it ideal for off-road, overlanding, or custom builds.

Key Features:

BantamX Control Module

• 8 programmable solid-state circuits (30A each @ 12.5VDC)

• Expandable system – daisy chain up to 4 units

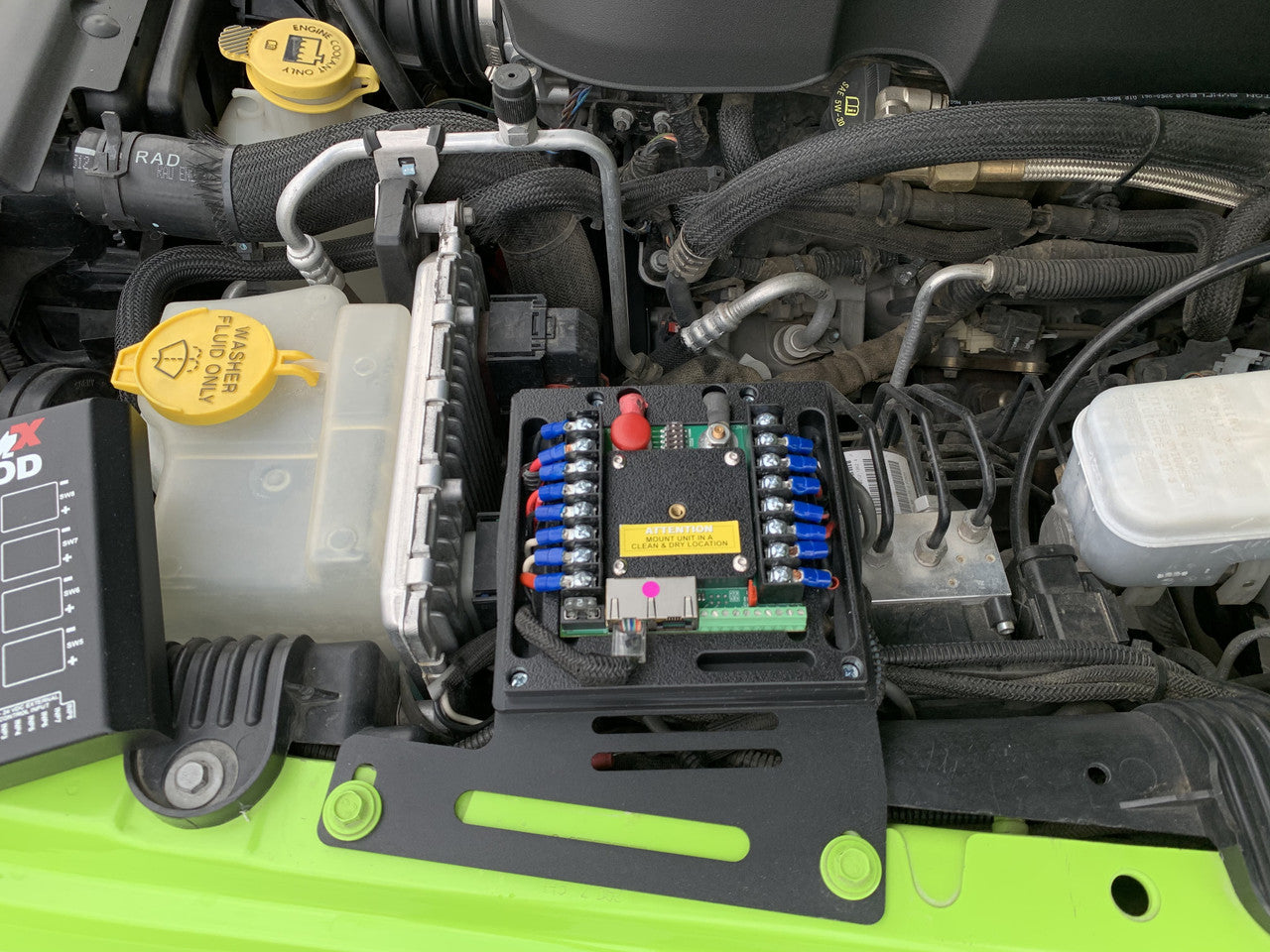

• 16-position terminal block for easy accessory hookup

• Built-in LVCO (Low Voltage Cutoff) with override option

• Microprocessor-controlled MOSFETs with self-healing fault protection (1.5–30A)

• 50A auto-reset circuit breaker and 100A in-line fuse

• Built-in Bluetooth for mobile app configuration

• Compatible with 12V and 24V systems

• Powder-coated steel base with weatherproof silicone gasket

8-Switch Panel

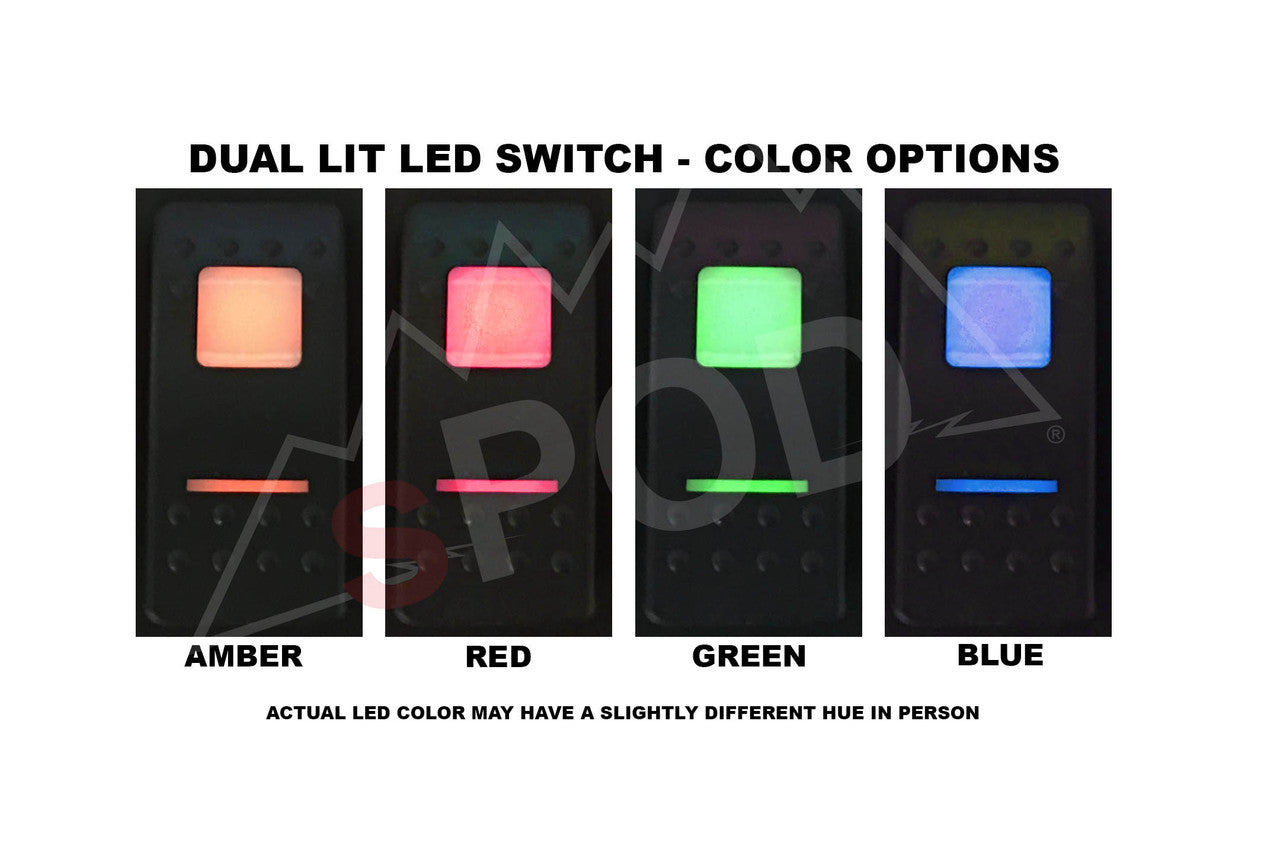

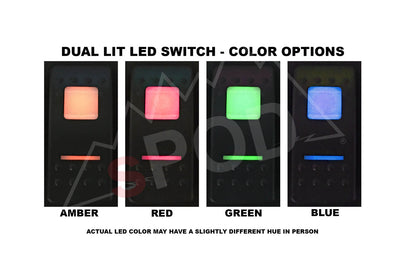

• Includes 8 Carling Contura dual-lit switches (Blue LEDs)

• IP66/IP68-rated for harsh environments

• Auto shutdown when panel is disconnected

• Aluminum panel with black powder coat finish

• Includes 10ft CAT-6 Ethernet cable (extendable to 25ft)

• All wires wrapped in high-temp abrasion-resistant braided sleeving

• Daisy-chain capable for multiple switch panels

Mobile App Features:

• Free App: Program switch behavior (Dimming, Flash, Strobe, Momentary, Linking, On/Off-Road modes)

• Pro App (Paid): Unlock advanced features such as timers, lockouts, current limiting, deep sleep override, ignition control, and more

External Control Compatibility:

• Compatible with Raspberry Pi, Arduino, third-party switches, sensors, thermostats, Alpine KAC-001, and more (with an existing sPOD controller)

Vehicle Fitment:

• Jeep Wrangler JK: 2009–2018

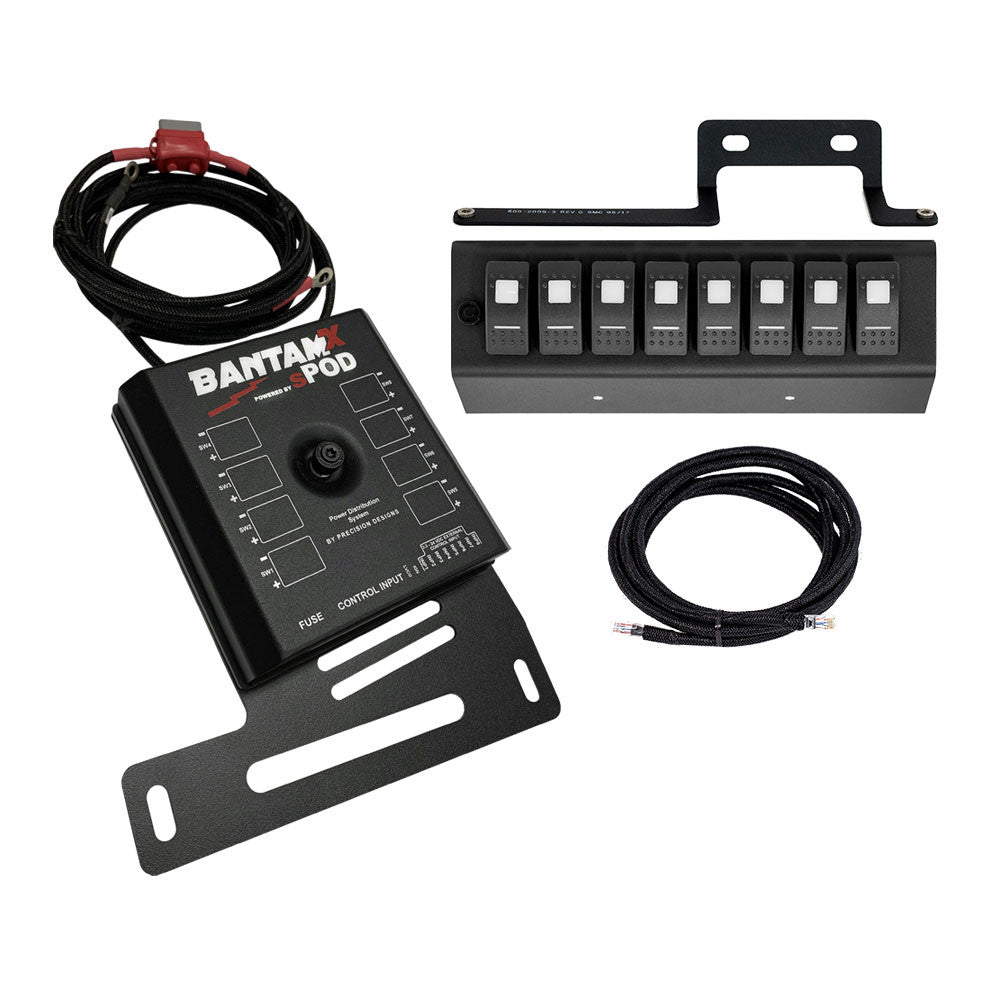

What's Included:

• (1) BantamX 8-Circuit Power Control Module

• (1) Pre-Wired 8-Switch Panel with Blue Dual-Lit LEDs

• (1) 10ft CAT-6 Ethernet Control Cable

• Vehicle-Specific Mounting Bracket and Wiring Harnesses
