Spod BantamX with HD Control Panel – Jeep Wrangler JK 2007–2018 (SKU: 870020)

The Spod BantamX with HD Control Panel is a premium 8-circuit power and control system built for Jeep Wrangler JK (2007–2017) and 2018 JL models. This all-in-one digital switching solution simplifies your vehicle's wiring setup with a single Ethernet connection into the cab—eliminating the need for cutting, tapping, or fishing wires through the firewall. With the robust HD panel and a solid-state BantamX module, this system is engineered for off-road durability, user customization, and professional-grade installation.

Key Features:

BantamX Control Module

• 8 solid-state circuits rated at 30A each @ 12.5 VDC

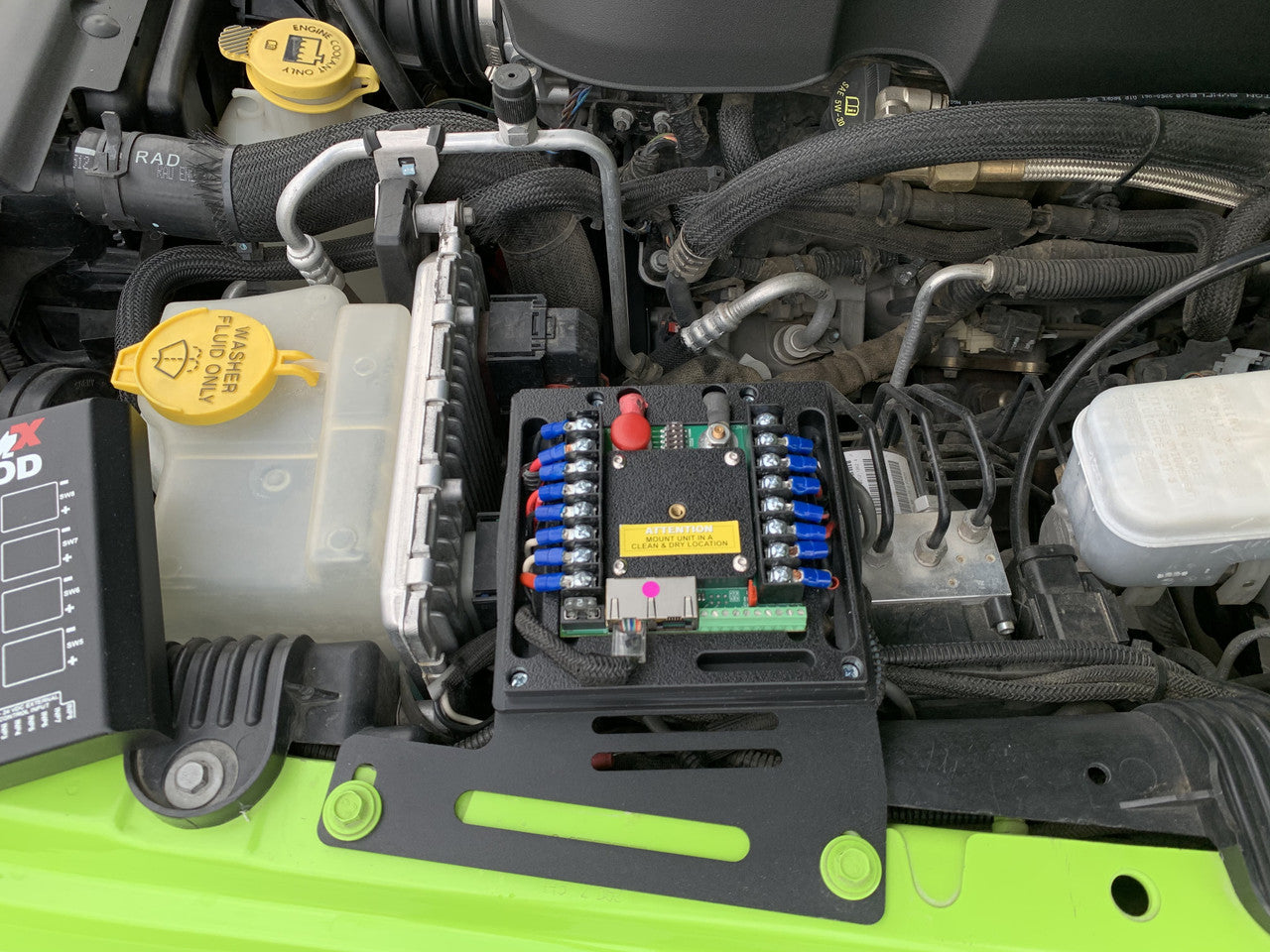

• 16-position terminal block for direct accessory connections

• Integrated LVCO (Low Voltage Cutoff) with override

• Current-sensing MOSFETs with self-healing fault protection (1.5–30A)

• 100A inline fuse & 50A auto-reset breaker

• Built-in Bluetooth for app-based configuration

• 12VDC or 24VDC system compatibility

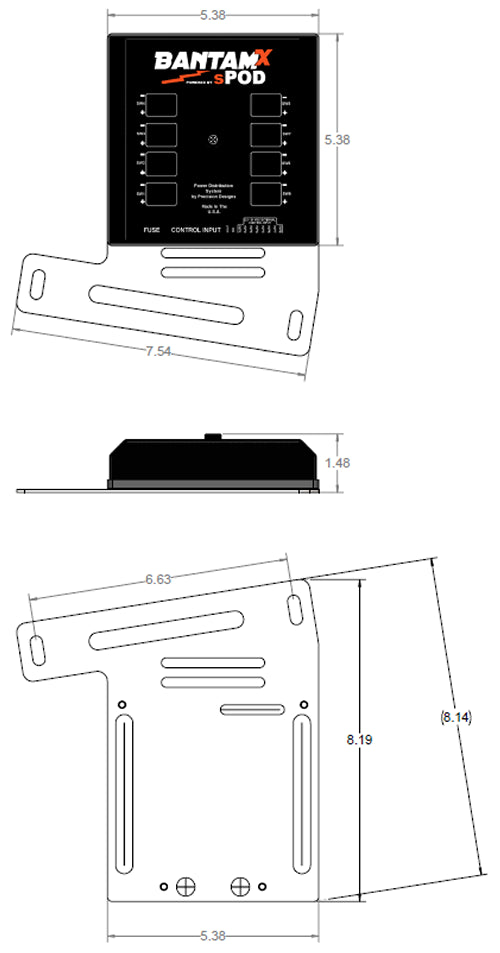

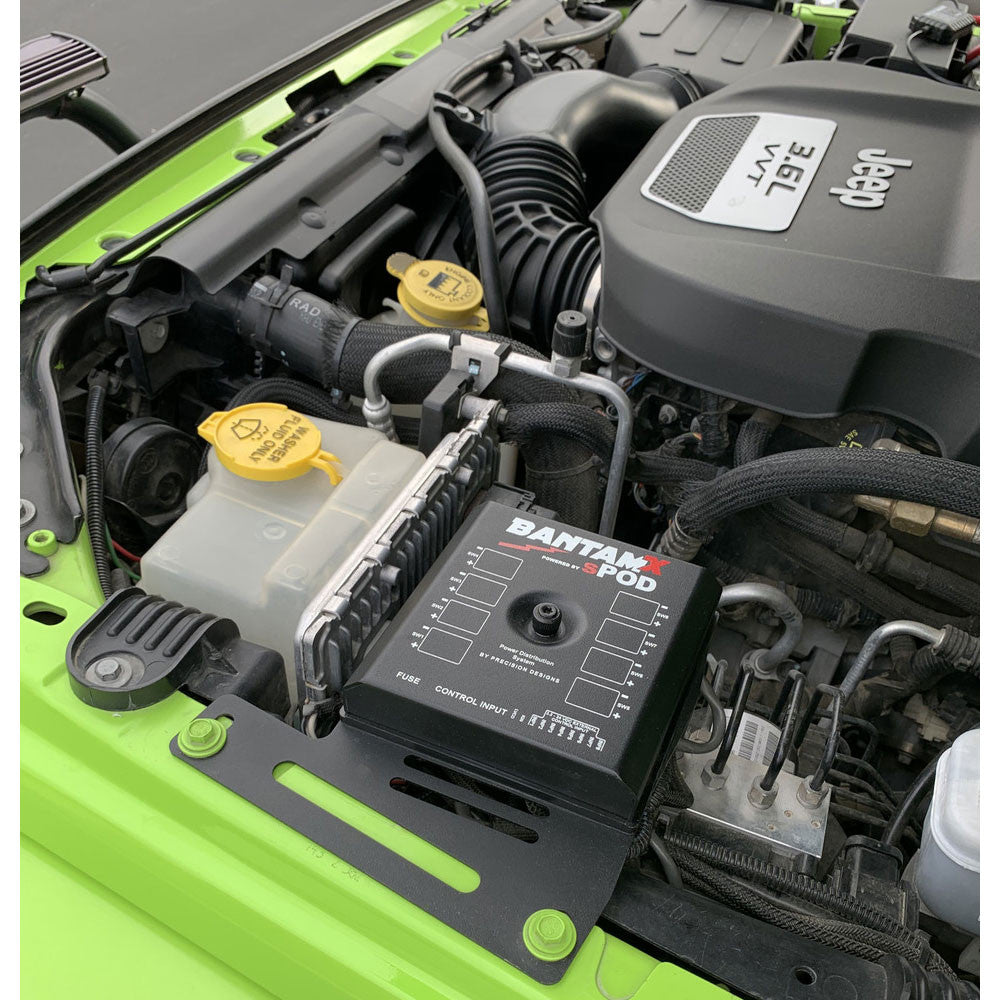

• Vehicle-specific mount and weatherproof housing

HD Control Panel

• Billet aluminum housing, powder-coated black

• Silicone tactile switches with RGB backlighting

• Programmable for dimming, strobe, flash, momentary, and switch linking

• Adjustable backlight timer, panel lockout, and multi-status indicator lights

• Comes with 10ft CAT-6 Ethernet cable (extendable to 25ft)

• Built-in Bluetooth for secure app-based control/programming

• Includes sheet of 72 switch legends

Mobile App Capabilities:

• Free App: Program switch behavior (Dimming, Strobe, Flash, Momentary, Linking)

• Pro App (Paid): Unlock circuit timers, switch lockouts, auto-restart, current limiting, and more

• App requires Bluetooth 4.0, iOS 11+/Android 8.0+

External Control Compatibility:

• Supports third-party controllers: Raspberry Pi, Arduino, sensors, Alpine KAC-001, etc.

Vehicle Fitment:

• Jeep Wrangler JK: 2007–2017

• Jeep Wrangler JL: 2018

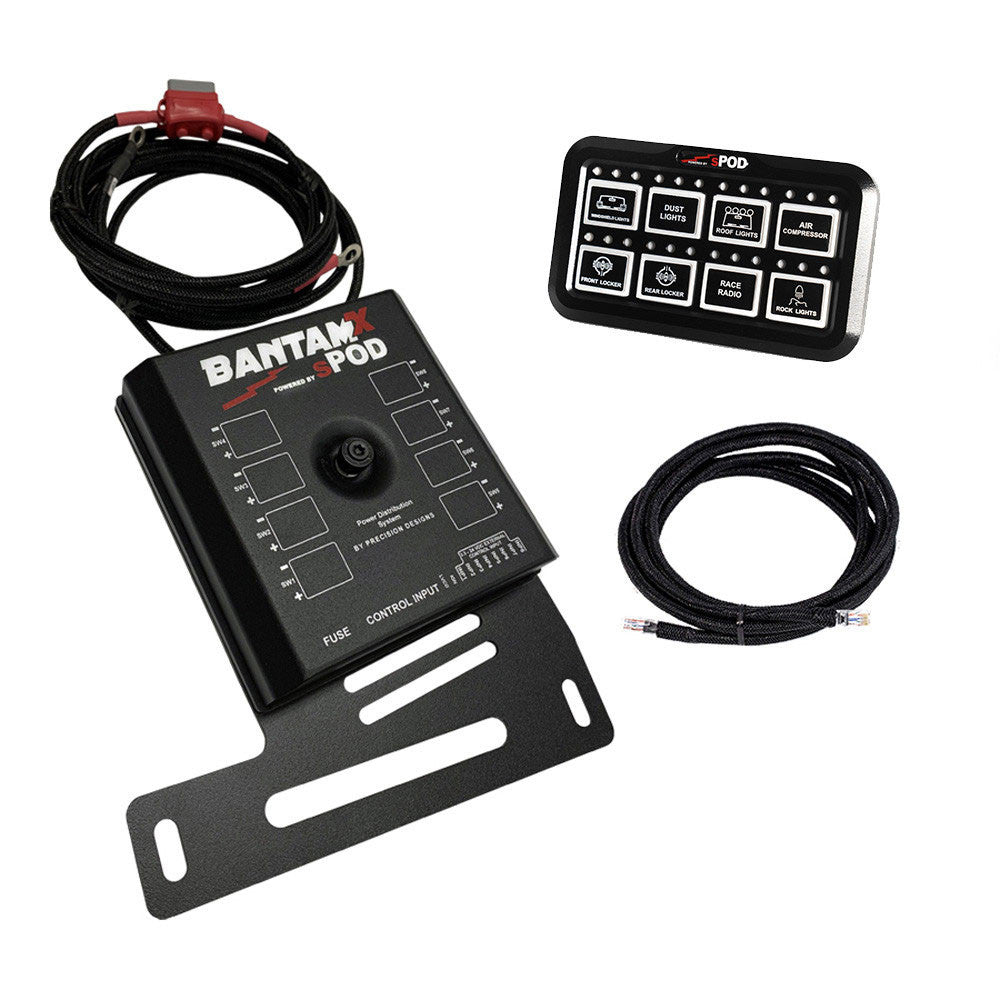

What's Included:

• (1) BantamX 8-Circuit Control Module

• (1) HD Control Panel

• (1) 10ft CAT-6 Ethernet Cable

• Vehicle-Specific Mount and Pre-Wired Harness

• (1) Sheet of 72 Pre-Printed Legends
