Spod BantamX HD – Jeep Wrangler JL & Gladiator JT | 2018–2024 (SKU: 870025)

The Spod BantamX HD system for Jeep JL and JT models offers a clean, reliable solution for powering and managing 12/24V accessories. With just one Ethernet cable into the cab and a compact under-hood design, this 8-circuit (expandable) system eliminates the need for wire fishing or tapping into factory wiring. The included Jeep-specific mounting bracket makes installation fast and seamless.

Paired with the billet aluminum HD control panel and app-enabled customization, this setup delivers advanced power management and switch control—ideal for off-roaders, overlanders, and Jeep builders.

Key Features:

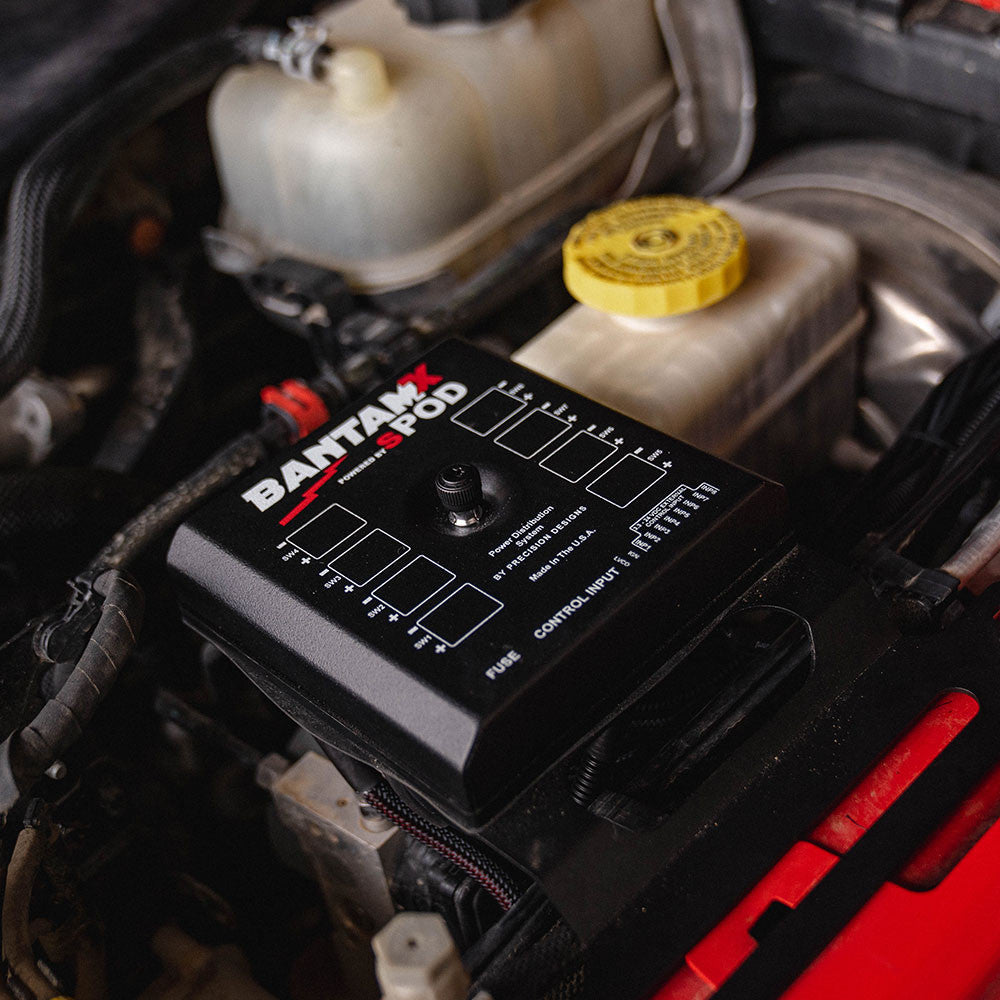

BantamX Control Module

• 8 solid-state circuits rated at 30A @ 12.5 VDC

• 16-position terminal block and 2 RJ45 ports for controller integration

• Built-in Bluetooth for mobile app programming

• LVCO (Low Voltage Cutoff) battery protection with override option

• 100A inline fuse with braided battery cables

• Self-healing MOSFET fault protection (1.5–30A)

• Compatible with 12VDC and 24VDC systems

• Weather-sealed with powder-coated steel base and aluminum lid

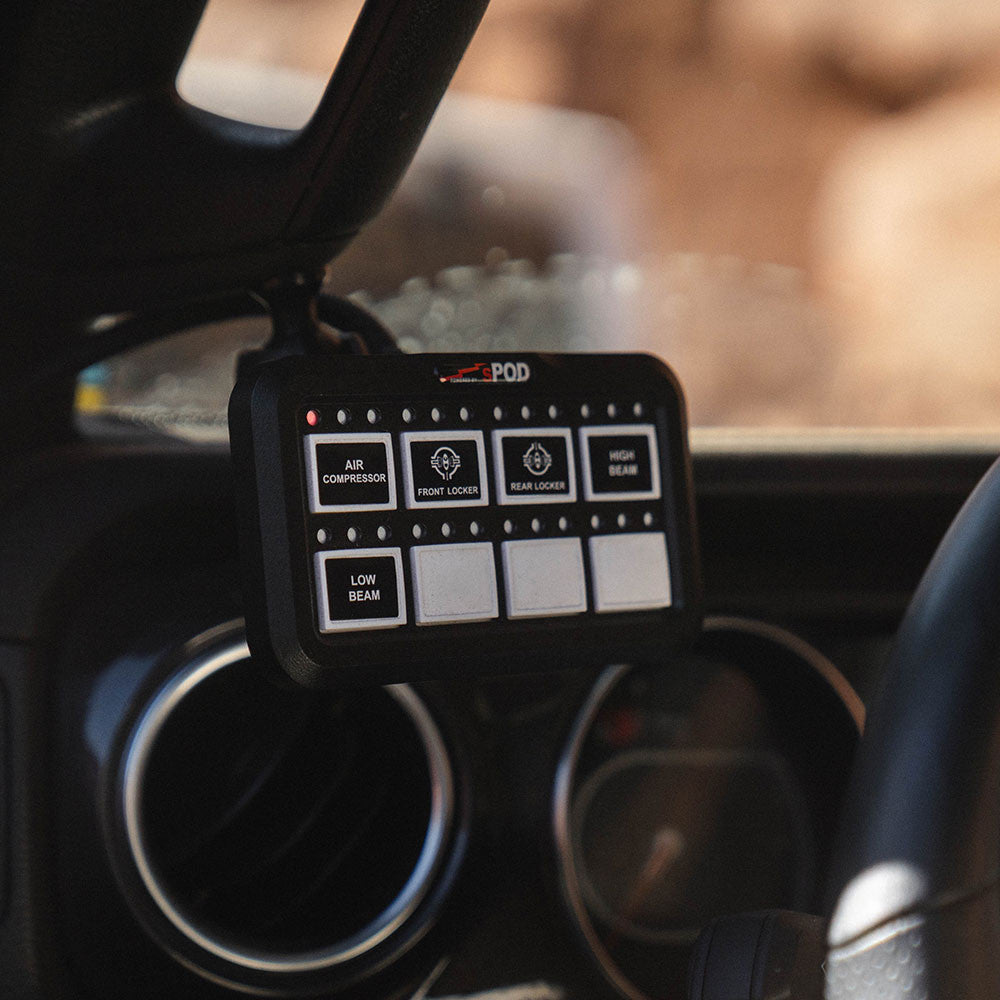

HD Control Panel

• Compact billet aluminum housing, black powder-coated

• Silicone tactile switches with RGB backlighting

• Programmable for dimming, strobe, flash, momentary, switch linking

• 3 status indicators per switch: Red (On), White (Strobe), Blue (Activation)

• Bluetooth LE for secure app programming (limited range: 5–15 ft)

• Panel lock-out feature and backlight dimming

• Comes with 10ft CAT-6 Ethernet cable (25ft max)

Mobile App Features:

• Free sPOD App: Switch customization (Dimming, Flash, Strobe, Momentary, Linking), on-/off-road modes

• Pro App (Paid): Unlocks circuit timers, switch lockout, deep sleep override, current limiting, ignition control, and variable strobe patterns

• Requires Bluetooth 4.0, iOS 11+/Android 8.0+

Vehicle Fitment:

• Jeep Wrangler JL: 2018–2024 (Excludes 392 V8 models)

• Jeep Gladiator JT: 2020–2024

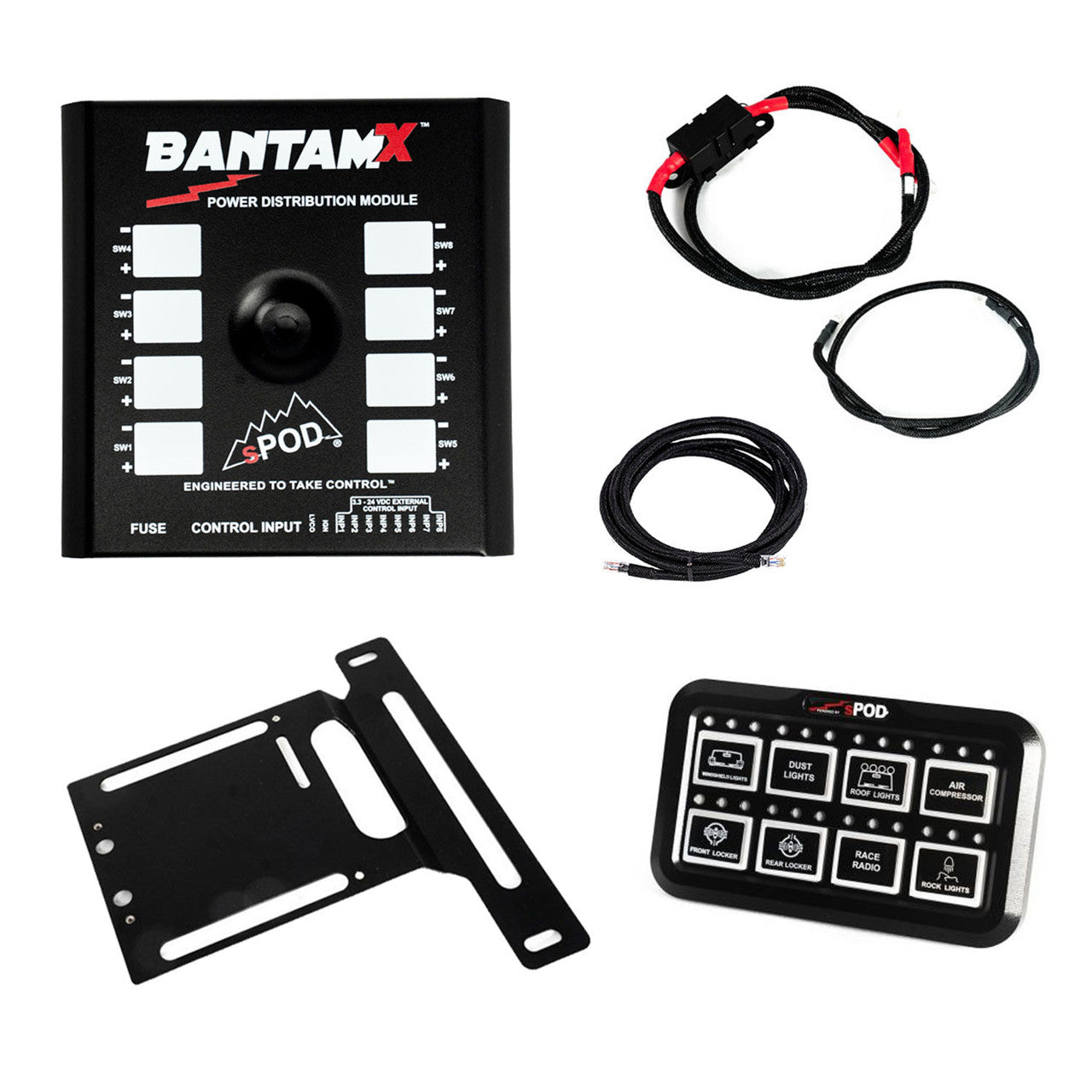

What's Included:

• (1) BantamX 8-Circuit Power Control Module

• (1) HD Control Panel with RGB Backlit Switches

• (1) 10ft CAT-6 Ethernet Cable

• (1) Jeep JL/JT-Specific Mounting Bracket

• (1) 36" Battery Cable with 100A Inline Fuse

• Pre-wired harness and installation hardware
