Spod BantamX with Touchscreen – Jeep Wrangler JK 2007–2018 (SKU: 870035)

The Spod BantamX with Touchscreen is a powerful 8-circuit solid-state power distribution system designed to simplify accessory wiring in your Jeep Wrangler JK (2007–2018). Featuring a compact power module and a user-friendly touchscreen interface, this system provides clean, programmable control over your 12V or 24V accessories—all with just one Ethernet cable into the cab. Ideal for overlanders, off-roaders, and custom builds, the BantamX saves time, reduces wiring complexity, and delivers unmatched flexibility.

Key Features:

BantamX Power Module

• 8 circuits rated at 30A @ 12.5VDC (expandable up to 32 circuits)

• 16-position terminal block for accessory connection

• Built-in LVCO (Low Voltage Cutoff) with override

• Smart self-healing fault protection (1.5–30A)

• 100A inline fuse and braided battery cables included

• Dual RJ45 ports for control panel communication

• Supports 12VDC and 24VDC systems

• Bluetooth-enabled for app-based configuration

• Weather-sealed steel enclosure with powder coating and silicone gasket

Touchscreen Control Panel

• Real-time voltage and amperage feedback per switch

• Displays board temperature and status indicators

• Fully customizable legends (3 lines per switch)

• Programmable features: dimming, strobe, flash, momentary, switch linking

• One-touch circuit shutoff, deep sleep mode, and backlight dimming

• Machined billet aluminum housing with included mounting bracket

• Bluetooth integration for programming (not for long-range control)

Mobile App Capabilities:

• Free sPOD App: Configure switch functions, modes, and lighting behavior

• Pro App (Paid): Unlocks advanced features—circuit timers, current limiting, auto-restart, ignition control, and more

• Compatible with Android 8.0+ and iOS 11+ (Bluetooth 4.0 required)

External Control Compatibility:

• Works with third-party controllers including Arduino, Raspberry Pi, Alpine KAC-001, and more

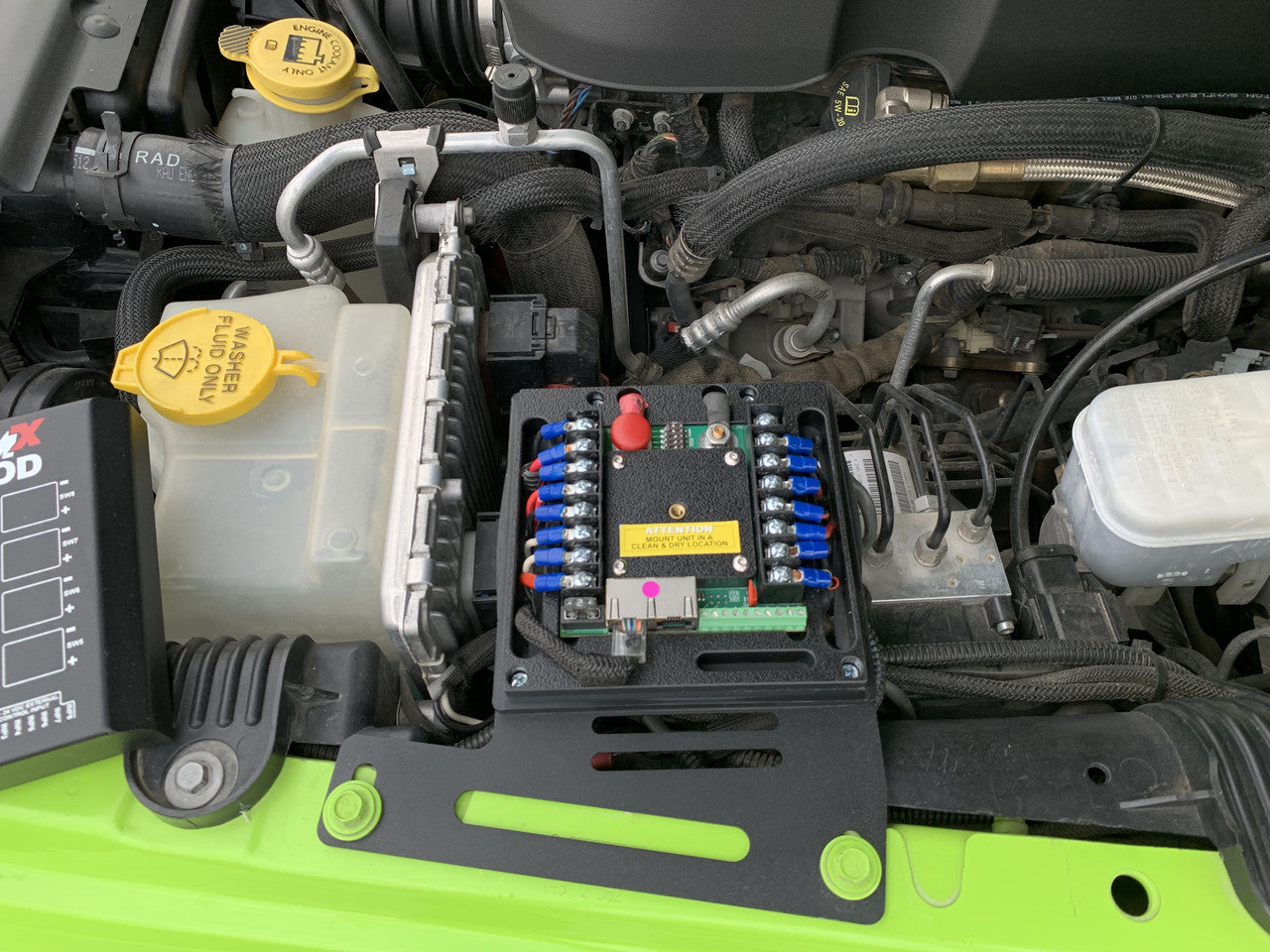

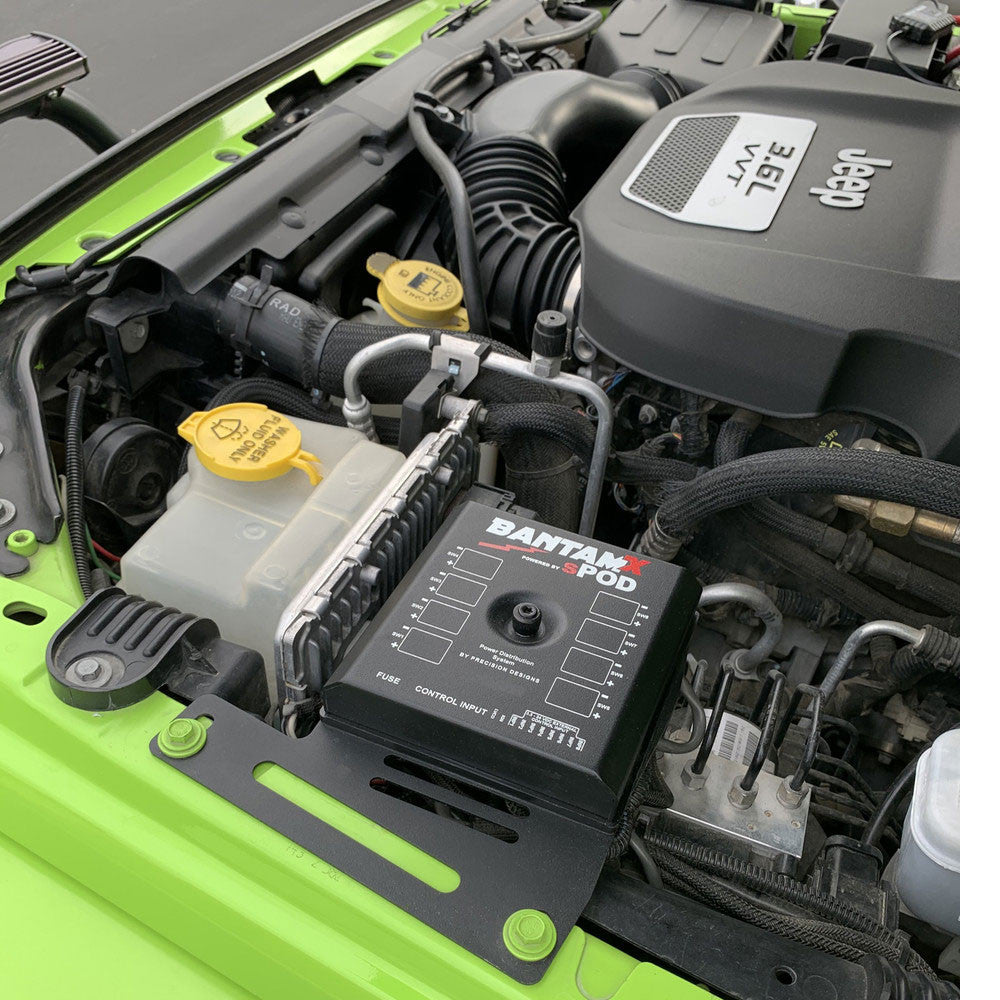

Vehicle Fitment:

• Jeep Wrangler JK: 2007–2018

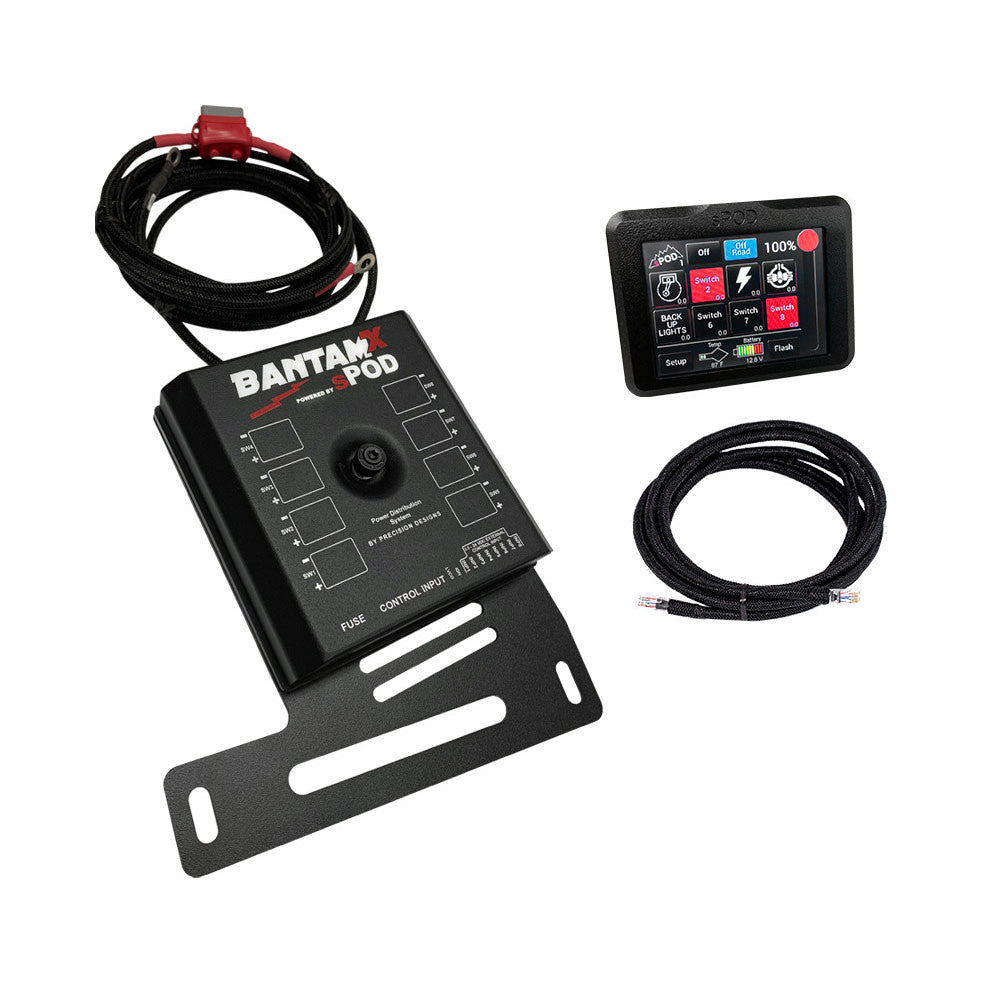

What's Included:

• (1) BantamX 8-Circuit Power Module

• (1) Touchscreen Control Panel

• (1) Mounting Bracket for Touchscreen

• (1) 10ft CAT-6 Ethernet Control Cable

• Battery Cables and Fuse

• Pre-wired installation harness
