Spod BantamX with Touchscreen – Jeep Wrangler JL & Gladiator JT (SKU: 870040)

The Spod BantamX Touchscreen system for Jeep JL (2018–2024) and Gladiator JT (2020–2024) provides a seamless, vehicle-specific power management solution for aftermarket accessories. With an 8-circuit solid-state module and a touchscreen panel, this system streamlines wiring with a single Ethernet cable into the cab, eliminating cutting or tapping into the factory harness.

Built for off-roaders and overlanders, the BantamX offers advanced programmable control, app integration, and rugged durability.

Key Features:

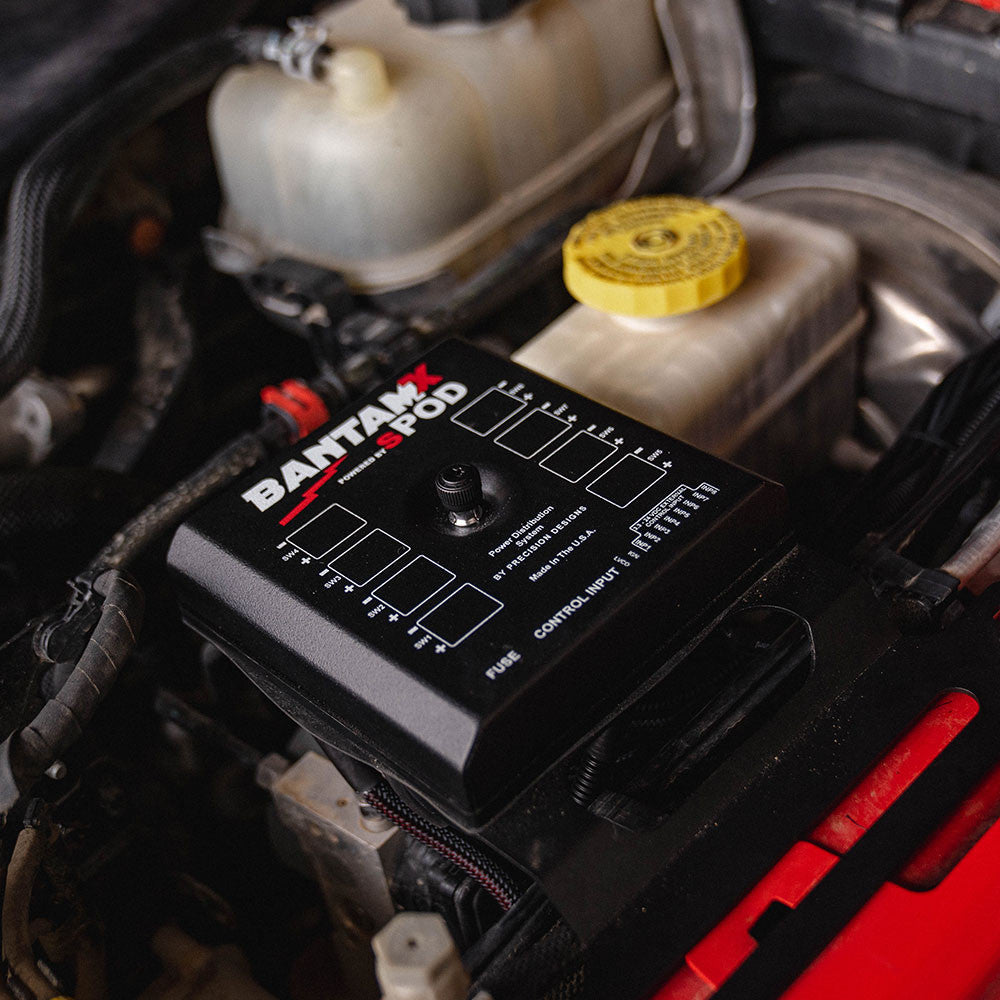

BantamX Power Module

• 8 programmable solid-state circuits rated at 30A each @ 12.5VDC

• Expandable to 32 circuits with additional BantamX units

• Built-in LVCO (Low Voltage Cutoff) battery protection with override

• Microprocessor-controlled MOSFETs (no fuses/relays required)

• Self-healing fault protection (1.5–30A)

• 100A inline fuse with braided battery cables

• Dual RJ45 ports for Ethernet connections

• Built-in Bluetooth for app-based configuration

• Weather-sealed steel housing with powder-coated finish and silicone gasket

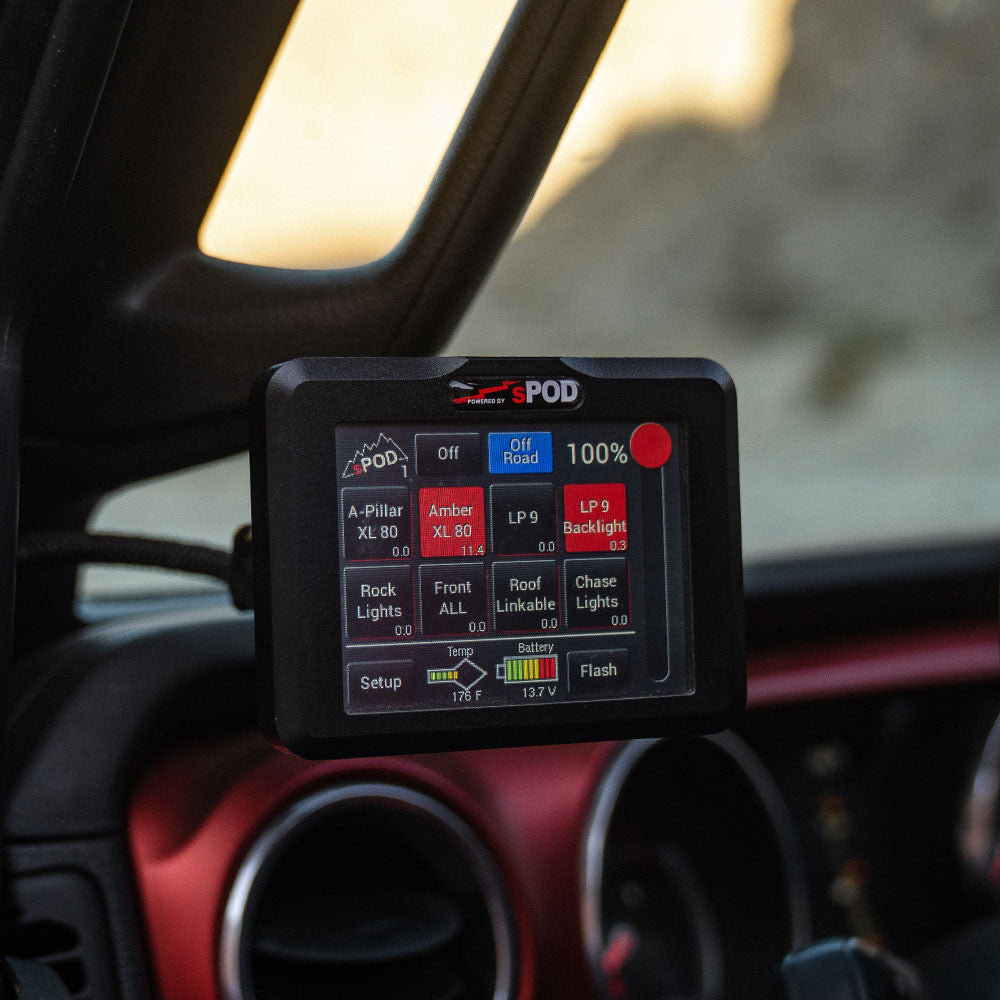

Touchscreen Control Panel

• Real-time monitoring of voltage, amperage, and system temperature

• Controls up to 32 circuits with one touchscreen

• Programmable switch functions: dimming, strobe, flash, momentary, linking

• Automatic backlighting and deep sleep mode for power saving

• Customizable legends (3 lines of text)

• Machined billet aluminum housing with mounting bracket included

• Bluetooth programming for setup (range: 5–15 ft typical)

• Note: Touchscreen may not operate below 20°F; allow cab to warm up

Mobile App Features:

• Free App: Configure switch functions and lighting modes

• Pro App (Paid): Unlocks advanced options including timers, current limiting, ignition control, auto-restart, and lockout features

• Compatible with Android 8.0+/iOS 11+ (Bluetooth 4.0 required)

Additional Touchscreen Mounts (Sold Separately):

• RAM-201U: Double Socket Arm for 1" RAM Ball

• RAM-238U: Base with 1" RAM Ball

• RAM-224-1U: Suction Cup Base with 1" RAM Ball

Vehicle Fitment:

• Jeep Wrangler JL: 2018–2024 (Excludes 392 V8)

• Jeep Gladiator JT: 2020–2024

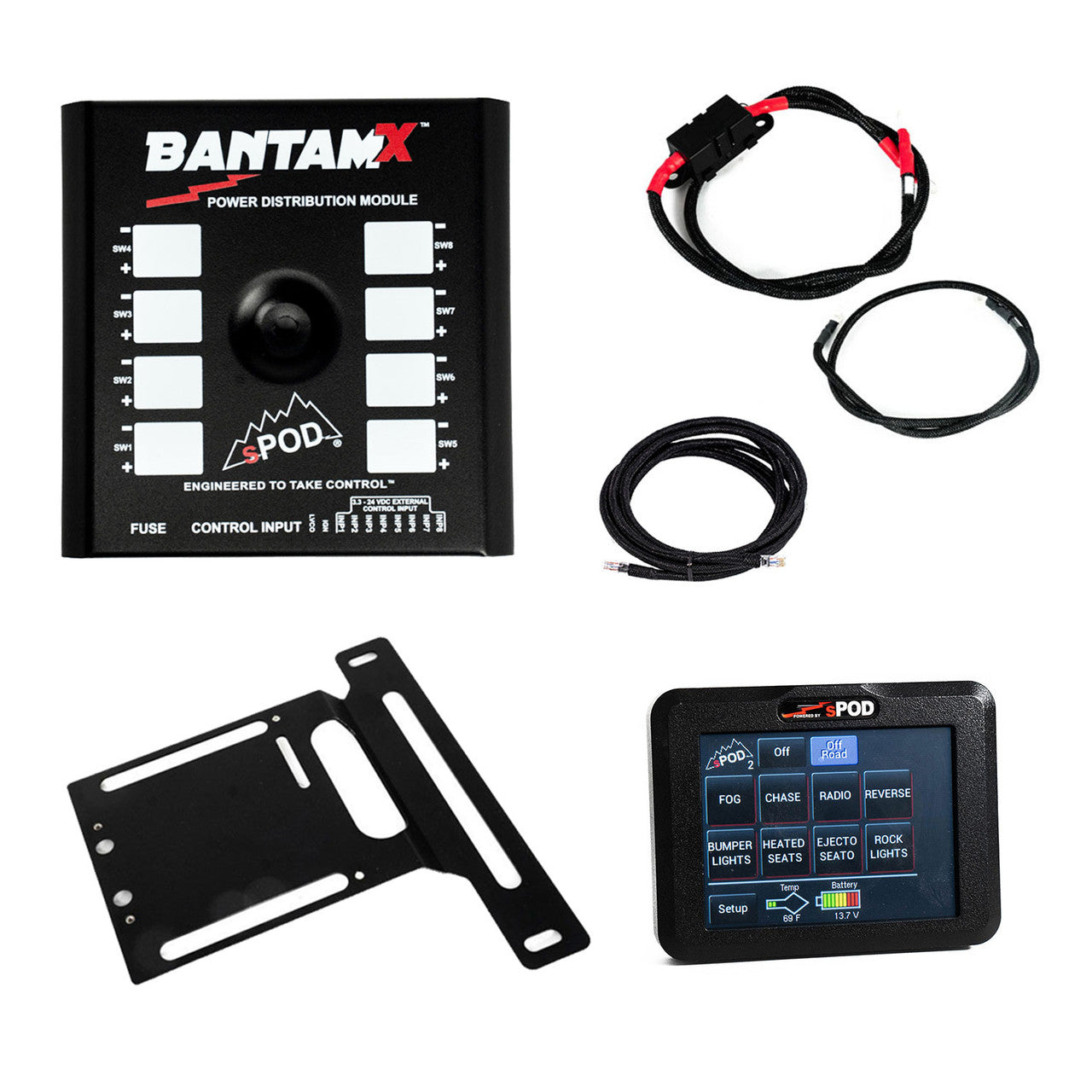

What's Included:

• (1) BantamX 8-Circuit Power Module

• (1) Touchscreen Control Panel with Mount

• (1) 10ft CAT-6 Ethernet Cable

• (1) 36" Battery Cable with 100A Inline Fuse

• Pre-Wired Harness & Installation Hardware
