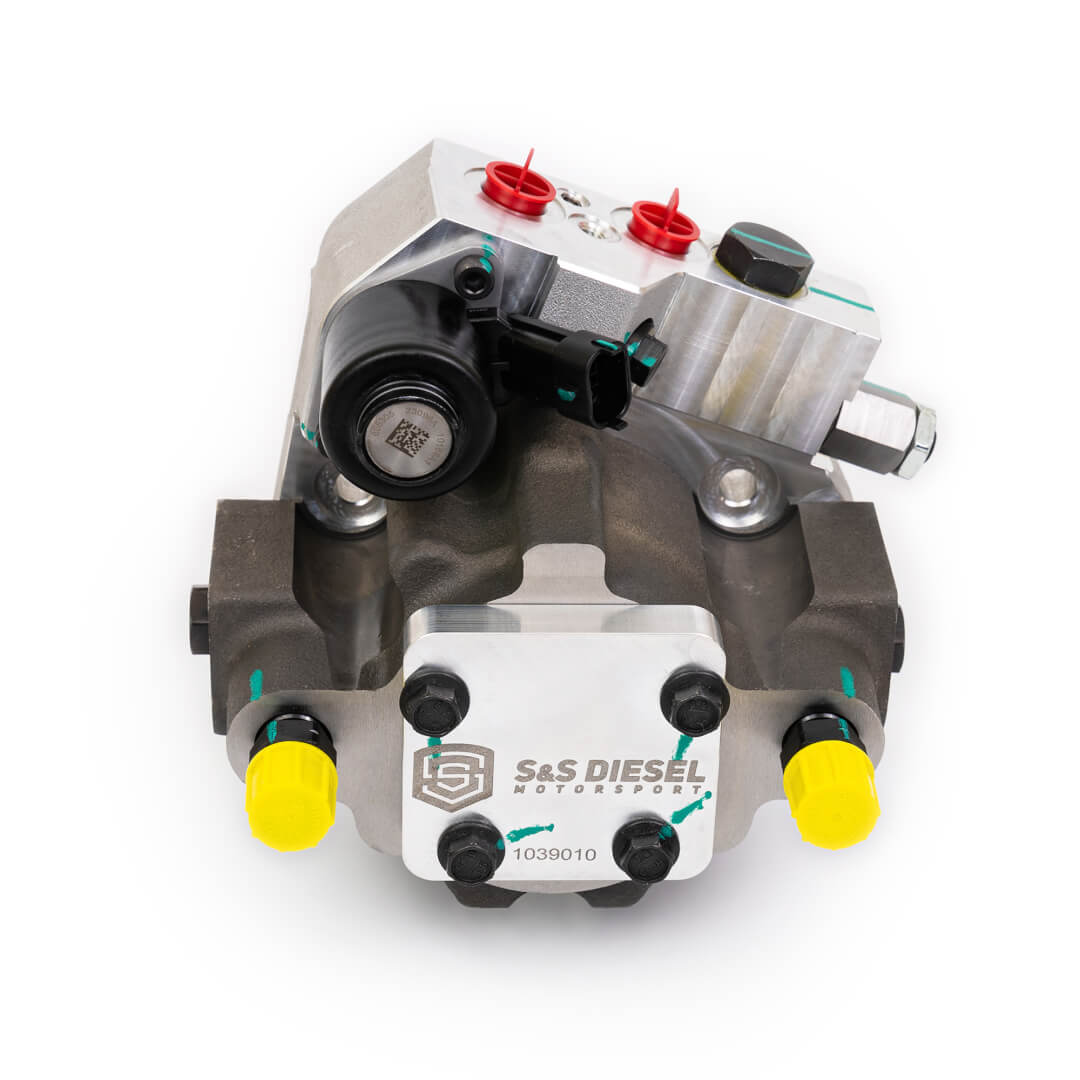

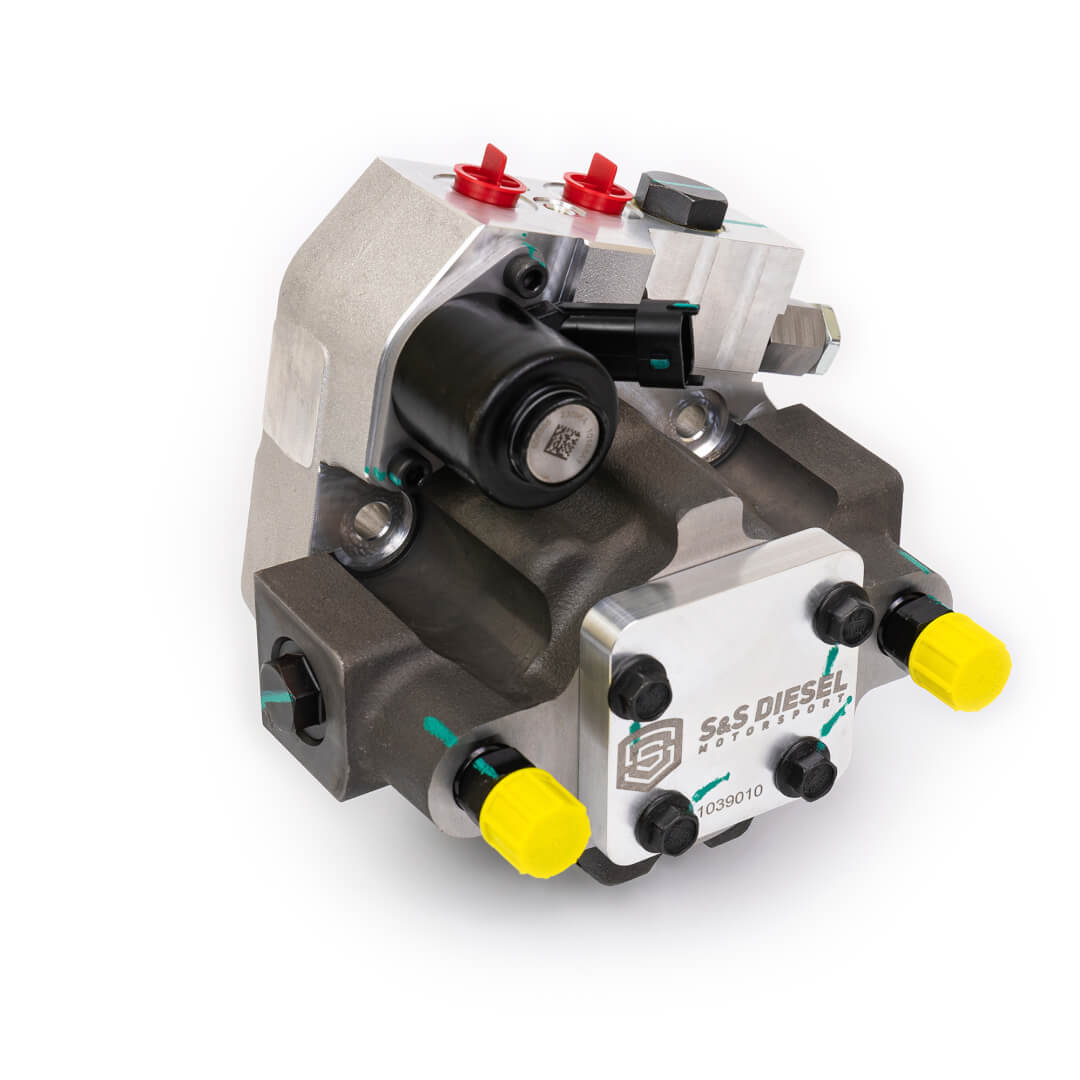

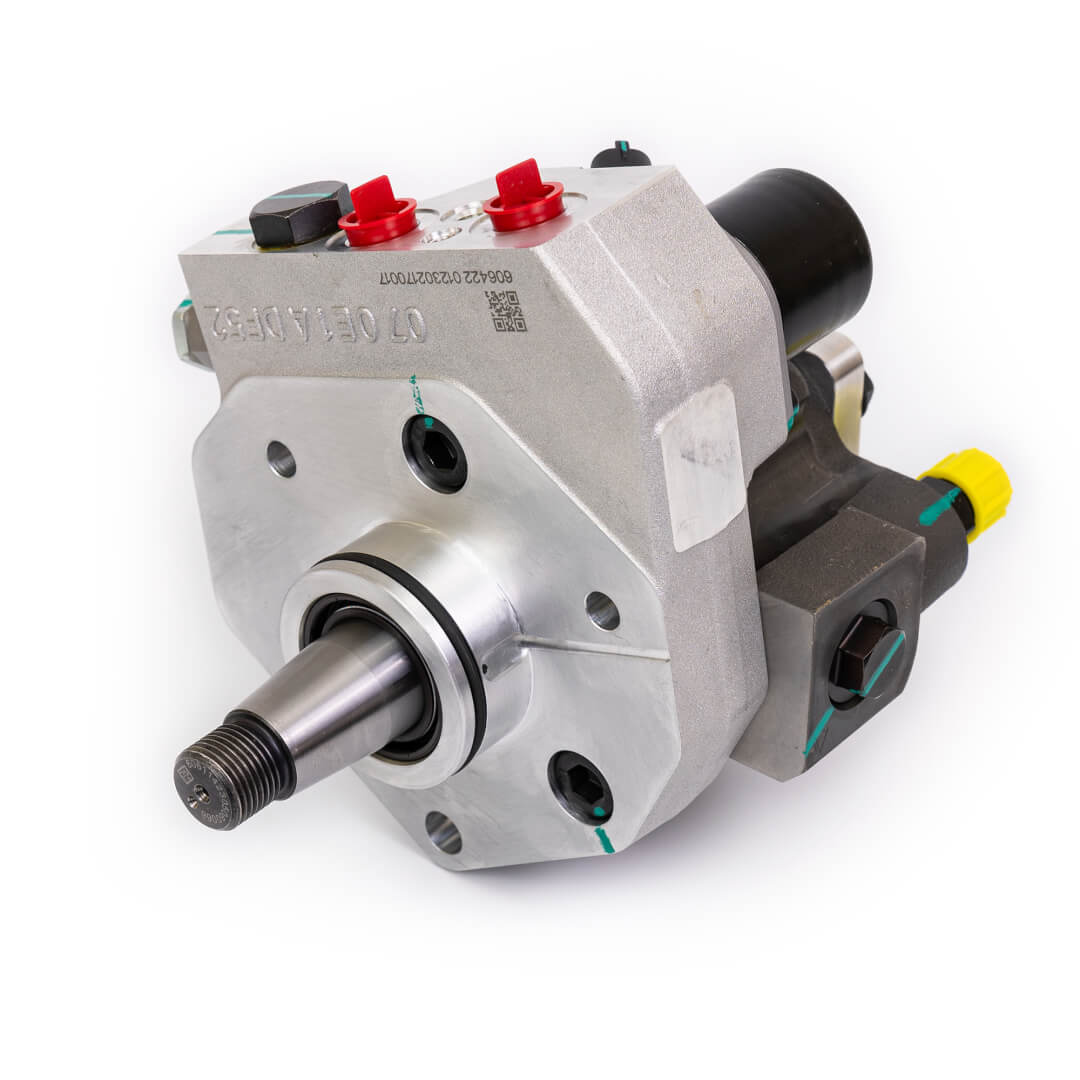

S&S Diesel DCR Fuel Pump Conversion Kit - 2011-2025 Ford 6.7L Powerstroke F-250 F-350 - 6.7F-DCR-1

The S&S Diesel Motorsport DCR Fuel Pump Conversion Kit is a direct, plug-and-play replacement for the factory CP4 high-pressure fuel pump found on 2011-2025 Ford 6.7L Powerstroke diesel trucks. The OEM CP4 pump is known to fail without warning and can cause extensive damage to the high-pressure fuel system.

This conversion kit replaces the CP4 with a more durable two-piston DCR pump co-developed by S&S Diesel and PurePower Technologies. The DCR pump provides OE fit and function, increased displacement, and improved durability without requiring any ECU calibration. It is designed to work with modern diesel fuels, including biofuel and low-lubricity fuel, and is fully emissions compliant.

Key Features:

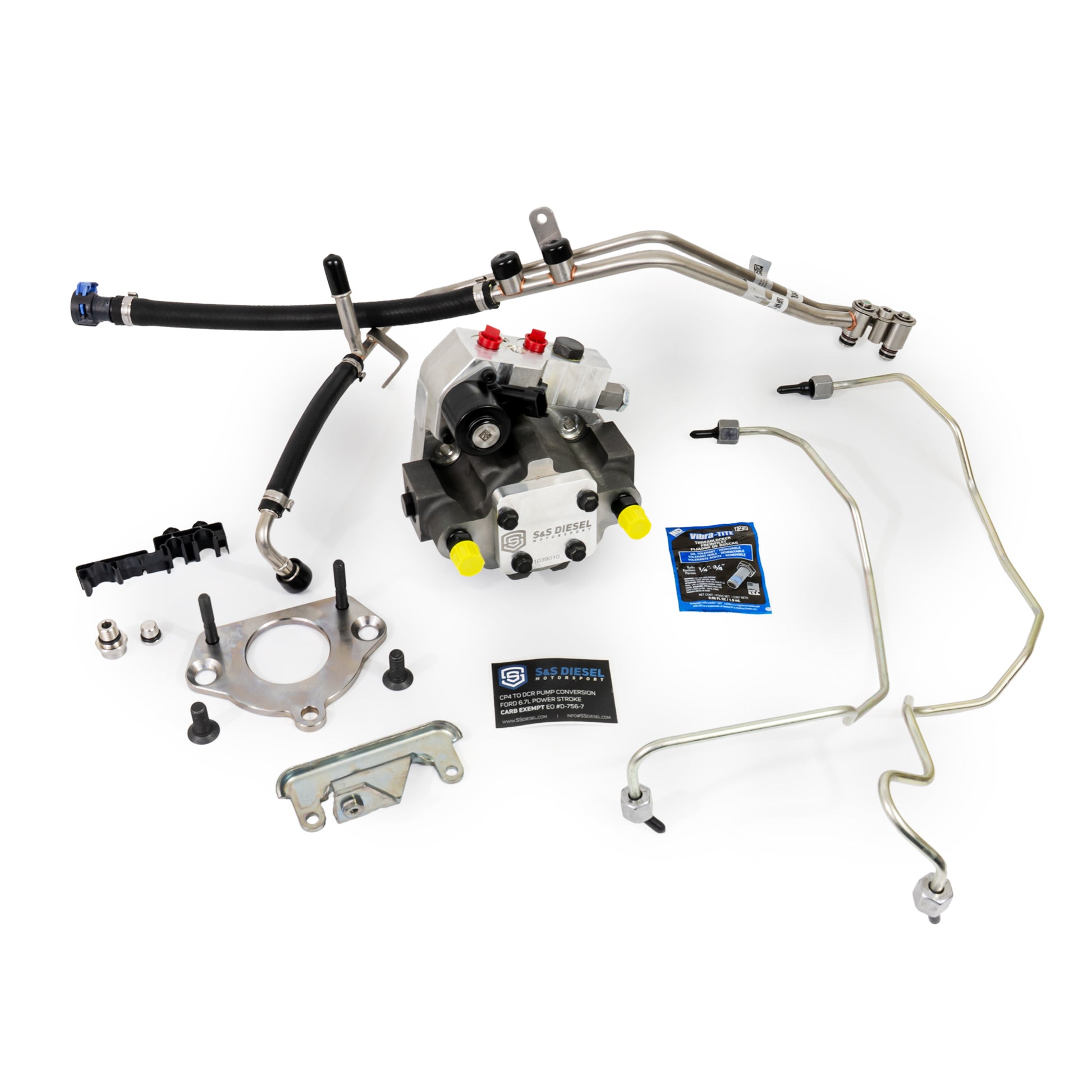

• Fuel pump conversion kit replacing factory CP4 pump
• Plug-and-play installation
• No ECU calibration required
• OE fit and function
• Two-piston DCR pump co-developed with PurePower

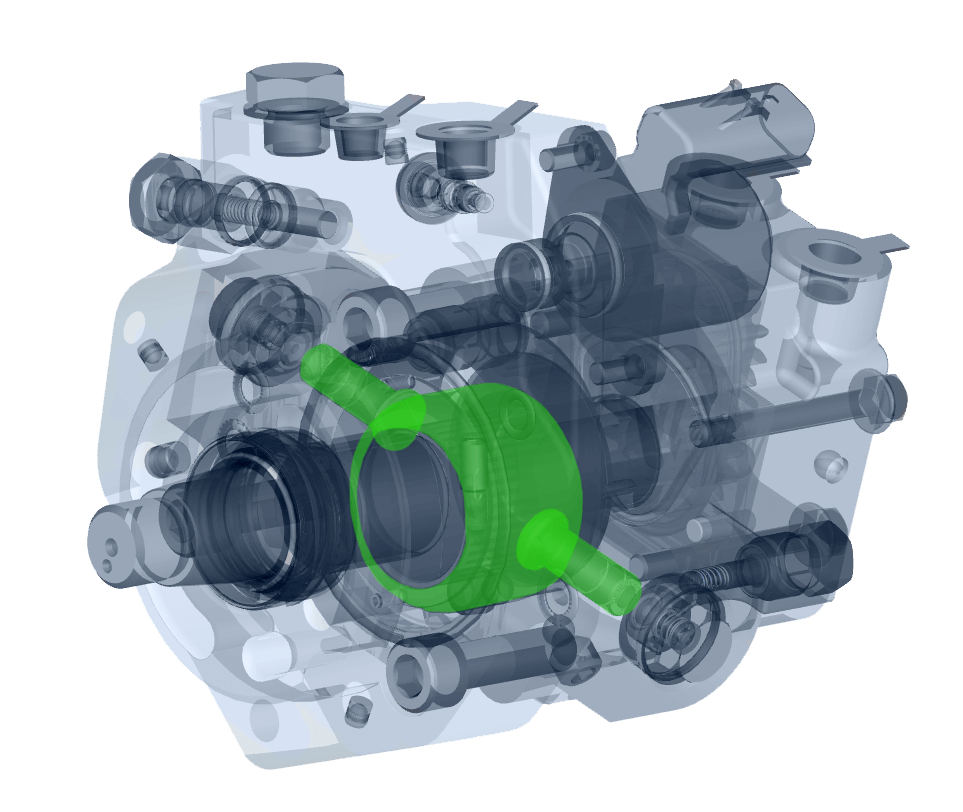

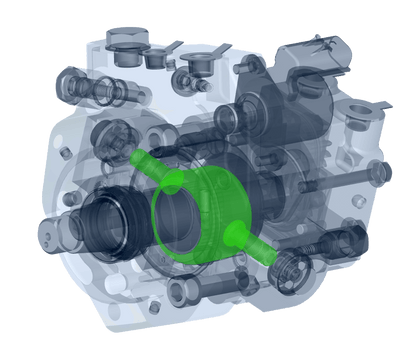

• Patented eccentric drive pumping technology
• Pressure-lubricated cam and bushings
• Corrosion-resistant FCA
• Compatible with biofuel and low-lubricity diesel fuel
• Increased displacement vs CP4.2
• Designed to improve durability and reliability

Specifications:

• Pump Type: DCR two-piston high-pressure pump
• Displacement: 1,250 mm³ per revolution (CP4.2 +25%)
• Emissions Compliance: CARB EO: D-756-7, SEMA Certified Emissions Compliant (SC-SDM01-0034)
• Warranty: 2-year unlimited-mile warranty

Vehicle Fitment:

• 2011-2025 Ford F-250 6.7L Powerstroke
• 2011-2025 Ford F-350 6.7L Powerstroke
• 2011-2025 Ford F-450 6.7L Powerstroke
• 2011-2025 Ford F-550 6.7L Powerstroke
• 2011-2025 Ford F-650 6.7L Powerstroke
• 2011-2025 Ford F-750 6.7L Powerstroke

Installation Notes:

• 2011-2016 models require a new vacuum pump gasket
• Required part: 6.7F-VAC-GASKET (sold separately)

Part Number:

6.7F-DCR-1
