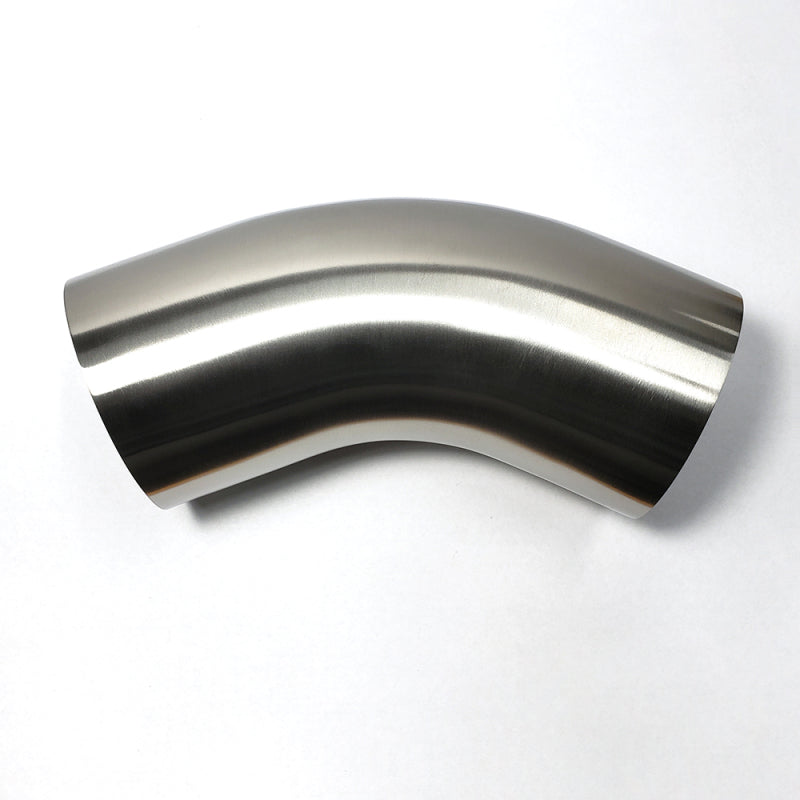

Stainless Bros 1.5in Diameter x 45deg Elbow Tubing 16 Gauge SS304

Features

• Compact-radius elbow geometry helps route tubing where a longer mandrel bend will not fit.
• Preformed angle reduces the number of welded segments needed for a tight change in direction.
• Useful for turbo manifolds, headers, downpipes and other space-constrained fabrication.

Specifications

• Brand: Stainless Bros
• Product Type: Steel Tubing
• Fabrication Family: Extruded Elbow
• Material: SS304 / Stainless Steel
• Listed Size(s): 1.5in
• Source Configuration: 1.5in Diameter x 45deg Elbow Tubing 16 Gauge SS304
• Manufacturer Part Number: 601-03826-4100
• Variant SKU: STB601-03826-4100

About Stainless Bros Extruded Elbow

Stainless Bros elbows provide compact-radius fabrication options where packaging space is tighter than a typical long-radius mandrel bend allows. The manufacturer's SS304 elbow line uses matching stainless tubing material, with individual forming/extrusion, laser-cut ends and ultrasonic cleaning to provide a fabrication-ready component. Tight and loose radius options, different angles, schedule sizes and leg configurations allow the elbow to be matched to headers, turbo manifolds, downpipes and other high-temperature piping layouts. Confirm the tube size, schedule or wall thickness, radius and whether the elbow includes legs before planning the cut and weld layout.

Fabrication Note: Confirm material grade, tubing size, wall thickness, connection style and all listed dimensions before cutting or welding. Custom-fabrication components are generally not vehicle-specific unless an exact engine, turbocharger or sensor application is stated in the product details.
