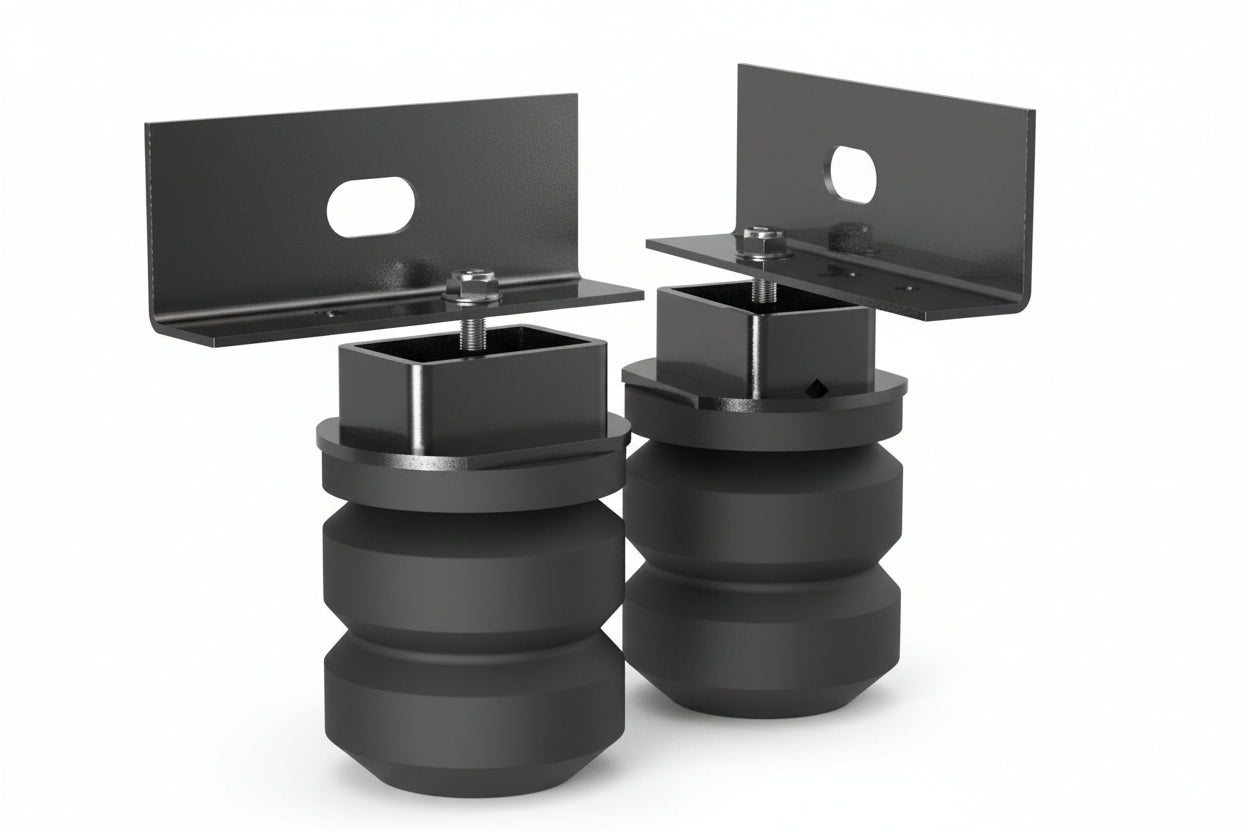

Timbren Rear Suspension Enhancement System for 1997-2004 F-150 & F-250 - FR1525HD

Key Features & Specs:

• Part Number: FR1525HD
• Brand: Timbren
• Product Type: Suspension Enhancement System
• Location: Rear Suspension
• Kit Type: Rear Kit
• Rated Capacity: 6,000 lbs
• Spring Type: Patented Aeon® hollow rubber springs
• Performance Benefit: Helps control sag, sway, and body roll when towing or hauling
• Ride Quality: Maintains a comfortable ride whether loaded or unloaded
• Installation: DIY bolt-on installation
• Maintenance: No post-installation maintenance required
• Warranty: Lifetime warranty

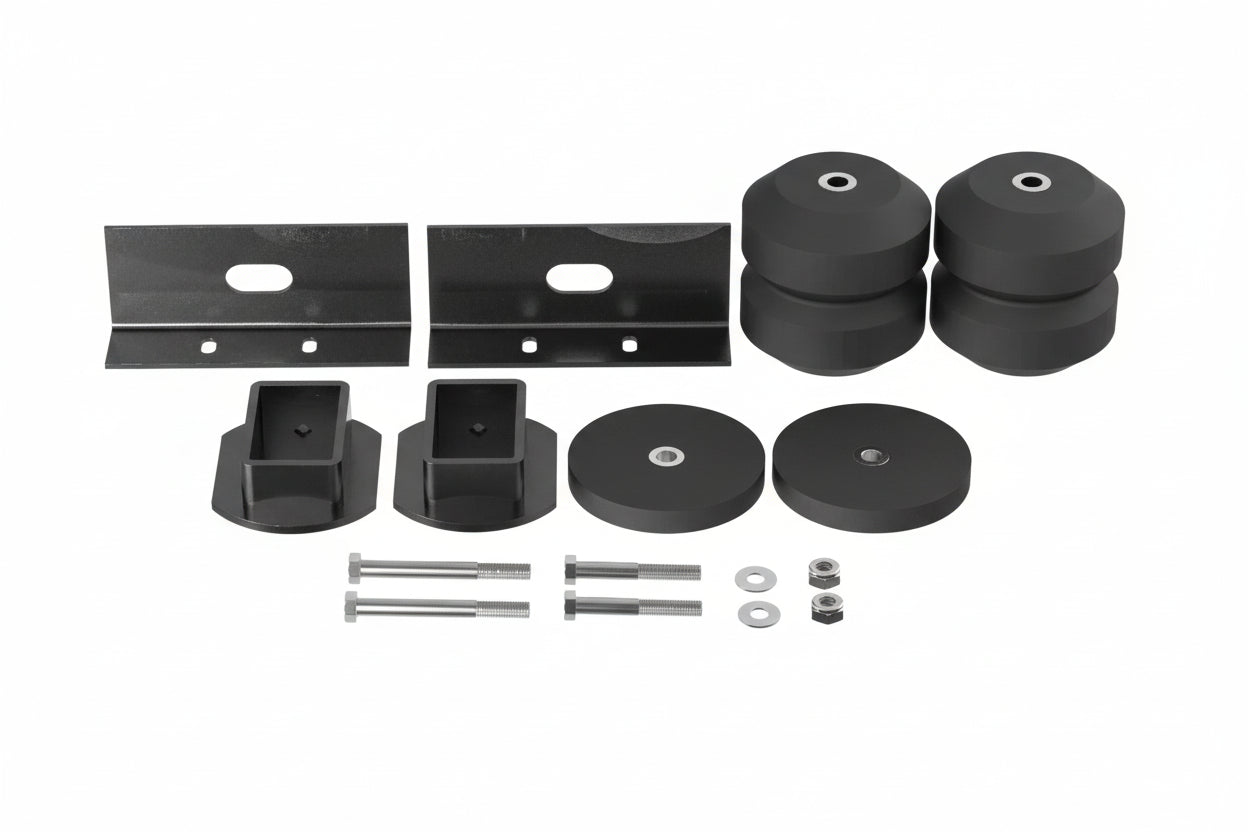

What’s Included:

• Springs: 2 x Patented Aeon® SES suspensions (hollow rubber springs)
• Bracket Holders: 2 x Bracket holders
• Rubber Spacers: 2 x Rubber spacers
• Mounting Brackets: 2 x Mounting brackets
• Hardware: All necessary installation hardware

Fitment:

• 1997-2003 Ford F-150 2WD
• 1997-2003 Ford F-150 4WD
• 2004 Ford F-150 Heritage 2WD
• 2004 Ford F-150 Heritage 4WD
• 1997-1999 Ford F-250 2WD (Torsion Bar Front Suspension)
• 1997-1999 Ford F-250 4WD (Torsion Bar Front Suspension)

The Timbren FR1525HD Suspension Enhancement System is designed to add extra rear suspension support for Ford F-150 and select F-250 trucks. Built with Timbren’s patented Aeon® hollow rubber springs, this system provides progressive load support to help control rear-end squat, reduce sway, and limit body roll when towing trailers or hauling cargo. The rubber springs remain inactive during normal driving and engage as weight is added, helping maintain ride comfort whether the truck is loaded or running empty. This rear kit installs with a straightforward bolt-on setup and requires no ongoing maintenance once installed. The system is backed by Timbren’s lifetime warranty for long-lasting reliability.
