Titan Gen 7 XXL Mid-Ship Fuel Tank – Fits 2020–2026 GM 2500HD/3500HD Crew Cab Short Bed, Duramax Diesel | Part #7010220

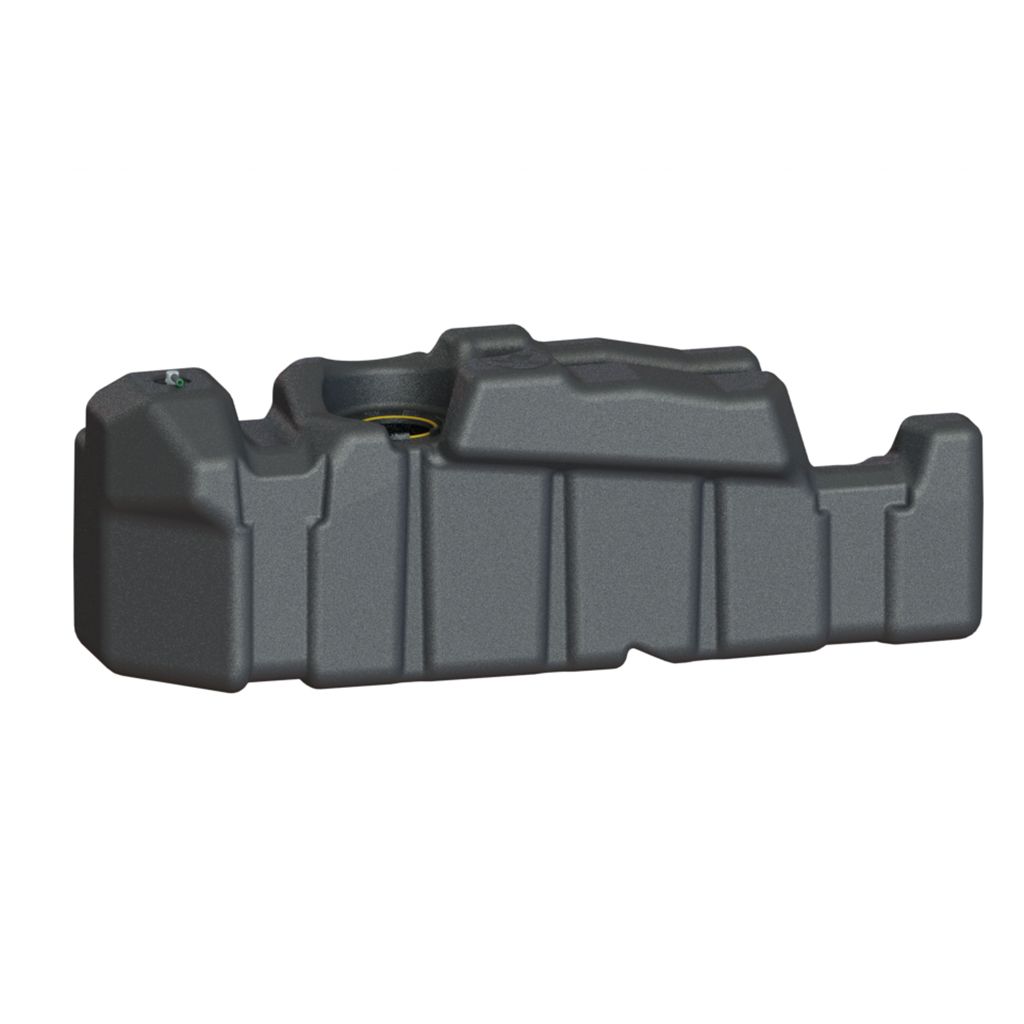

The Titan 7010220 XXL Mid-Ship Replacement Fuel Tank is engineered to deliver increased capacity and performance for 2020–2026 GM 2500HD and 3500HD Crew Cab pickups with 6.5 ft. beds and Duramax diesel engines. This 56-gallon tank replaces the factory 36-gallon unit, adding 20 gallons of usable capacity for extended range and reduced fuel stops.

Crafted from military-grade, cross-linked polyethylene (XLHDPE), the tank offers exceptional durability and corrosion resistance. It uses Titan’s low fuel trap design to ensure the full 56 gallons are usable and installs without cutting or welding—it's a direct-fit, bolt-in solution.

Note: Due to GM's software, some trucks may display incorrect fuel levels after installation. See details below.

Key Features:

• 56-Gallon Usable Capacity – Increases range with 20 gallons more than the factory 36-gallon tank
• Application Specific Fitment – Fits 2020–2026 GM 2500HD & 3500HD Crew Cab Short Bed (6.5 ft), Duramax diesel only
• Durable XLHDPE Construction – Built from ¼" thick cross-linked polyethylene for extreme durability
• Low Fuel Trap Design – Ensures all 56 gallons are usable
• No Fabrication Needed – Direct bolt-in replacement with included mounting components
• OE-Compatible – Works with OEM sending unit; compatible with FASS, Fleece, AirDog
• Accessory Clearance – Will not interfere with powered steps or airbag systems
• Lifetime Warranty – Titan stands behind their tanks with long-term support

Fitment Details:

• Make: Chevrolet / GMC
• Models: Silverado 2500HD / 3500HD, Sierra 2500HD / 3500HD
• Years: 2020–2026
• Cab Type: Crew Cab
• Bed Style: Short Bed (6.5 ft)
• Engine: 6.6L Duramax Diesel
• Fuel Type: Diesel only
• Exclusions: Not compatible with Curt hitch #60642/#60611 or Hellwig sway bar #7782; use B&W hitch #GNRK1020 instead

What's Included:

• 56-Gallon Mid-Ship Replacement Fuel Tank (7010220)
• Black-coated galvanized steel mounting straps
• Front support system
• Installation hardware and instructions

Additional Details:

• Stock Tank Capacity: 36 Gallons
• Titan Tank Capacity: 56 Gallons
• Increased Capacity: 20 Gallons
• UPC: 848135000331
• Tank accessory kits (fast fill vent, pickup tube, transfer pump) sold separately

Technical Note – Fuel Gauge Behavior (GM 6.6L Diesel Models):

• Issue: After install, the fuel gauge may incorrectly drop to empty
• Cause: GM software monitors float speed and may misread the slow descent in larger tanks
• Resolution: In some cases, the issue self-corrects over time; however, Titan recommends using an aftermarket digital fuel monitor for accurate readings
