Torque Solution V2 HD Oil Pan (Race) for Subaru EJ Engines - TS-SU-599v2-R

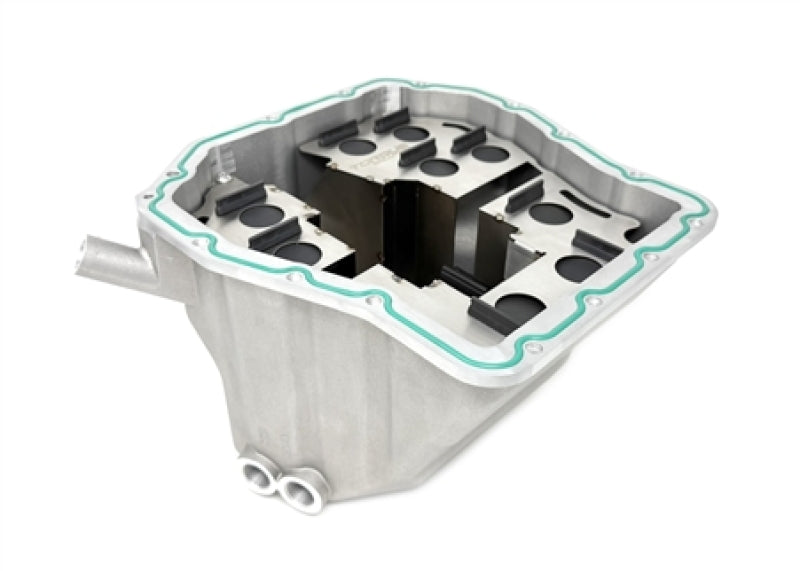

Torque Solution V2 HD Oil Pan (Race) (Part Number: TS-SU-599v2-R) is built for Subaru EJ Engines. Torque Solution V2 HD Oil Pan is the perfect solution to keep your EJ engine happy and lubricated. Torque Solution's pan is molded from cast aluminum and then CNC'd to perfection providing approximately 6 quarts of oil capacity. It also features a CNC oil pan groove with a FKM rubber o-ring gasket for a leak proof seal that offers ease of installation and future removal. No more scraping off gasket material!! We also incorporated cooling fins to the bottom of the pan, which are positioned to have air flow pass through them to aid in keeping oil temps down. The new and improved oil pan now features a bolt-in baffle. The baffle is an integral part of the oil pan to prevent slosh and help keep the oil at the pickup where it is needed. All necessary install hardware is included. No need to buy any extra parts to install!!

Key Features & Specs:

• CNC Cast Aluminum
• 6 Quart Oil Capacity (Over 30% Increase In Oil Capacity)
• Material: Stainless Steel / Tig Welded Bolt-In Internal Race Baffle
• Material: FKM Rubber Oil Control Flaps
• Material: Seamless FKM Rubber O-Ring Gasket
• CNC Cooling Fins
• M20 (OEM) and 1/2" NPT Ports
• Material: Stainless Steel Install Hardware
• Installation: No Additional Install Hardware Needed!!
• Warranty: Limited Lifetime Warranty

Fitment:

• All EJ20/25 Engines

Includes:

• Cast Aluminum Oil Pan (1)
• Bolt-In Stainless Steel Race Baffle w/ FKM Rubber Oil Control Flaps (pre-installed) (1)
• M6 x 15 Stainless Button Head Bolt (pre-installed w/ baffle) (4)
• Seamless FKM Rubber Oil Pan O-Ring Gasket (1)
• FKM Rubber Dipstick Tube 2x10mm O-Ring Gaskets (2)
• M20 OEM Subaru Drain Plug P/N: 807020010 (1)
• M20 Copper Drain Plug Gaskets (5)
• 1/2" NPT Brass Plug w/ Teflon Tape (used if not using a temp sensor)
• 1/2" NPT to 1/8" NPT Brass Plug w/ Teflon Tape (optional for oil temp sensor)
• Billet Aluminum Oil Pick Up Suction Tube Spacer w/ x2 -117 FKM O-Ring Gasket (1)
• Billet Aluminum Oil Pick Up Pedestal Spacers (2)
• FKM Rubber Spacer Bolt Retainer -008 O-Ring Gaskets (4) (used to pre-install the spacers onto the oil pick-up)
• M6 Stainless Steel Flat Washer (4) (for oil pick up spacer bolts)
• M6 x 30 Stainless Steel Socket Cap Bolt (2) (oil pickup tube)
• M6 x 18 Stainless Steel Socket Cap Bolt (14) (outside oil pan bolts)
• M6 x 25 Stainless Steel Socket Cap Bolt (2) (oil pickup tube leg spacers)
• Disclaimers:
• Must use with an aftermarket oil pick up.
• Will not work with the OEM or Moroso Oil Pick Ups.
• 02-05 WRX EJ20 engines must use an EJ25 Dipstick Part # 11140AA150

Important Notes:

• Tested to fit with most headers. Confirmed fitment with ETS and Killer B header. Perrin header needs a little work to fit, such as compressing the primary upper tube slightly down towards the lower tube.
