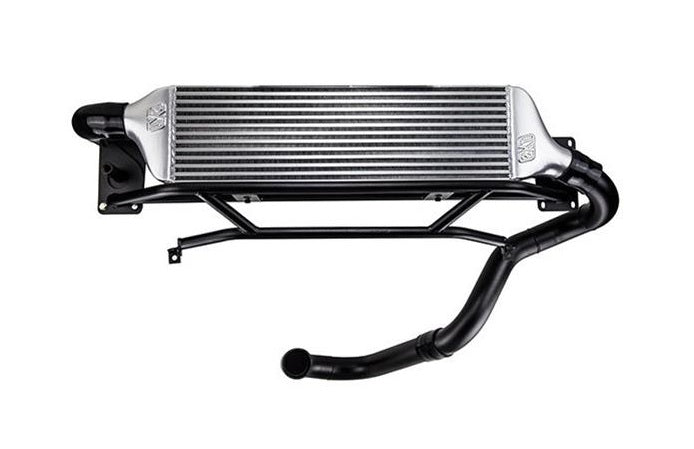

Turbo XS W15-FMIC-BLK - TurboXS WRX Front Mount Intercooler Kit Wrinkle Black Pipes; 2015-2016.
The TurboXS 2015+ Subaru WRX Front Mount Intercooler Kit might be the single best modification you can do to your 2015-2016 WRX. One of the biggest keys to making consistent power in a 2015+ WRX is managing the intake manifold temperature. This is an issue when the WRX is bone stock and becomes an even bigger issue when you start to modify it. The stock top mount intercooler simply isn’t up to the task. After just a few minutes of hard driving, the small, overworked TMIC quickly becomes heat soaked. Intake manifold temperatures rise quickly and power output drops off even more quickly. The power drop is not just due to the hotter, less dense air coming out of the intercooler but also because the WRX ECU logic will actually start to reduce ignition timing as intake manifold temperatures climb. Reduced ignition time directly reduced power output. You could replace the stock TMIC with an well-designed aftermarket TMIC. While they are certainly much better than the stock TMIC, our testing shows that even they can only delay the inevitable intake manifold temperature increase that comes from having a small intercooler core sitting inside a hot engine bay.
Enter the TurboXS Front Mount Intercooler for the 2015+ WRX. The bar and plate core is 28 inches wide, 8 inches tall, and 3.75 inches thick and absolutely dwarfs the factory TMIC with over 80% more frontal area, 172% more volume, and a massive 225% more thermal mass. With our FMIC installed on our 2015 WRX, intake manifold temperatures stay constant even after repeated pulls to redline. With the TurboXS Front Mount Intercooler, inconsistent power output due to sky-high intake manifold temperatures is a thing of the past!
The data shows that with the OEM TMIC and even our own TMIC, intake manifold temperatures increase dramatically. With our FMIC installed, however, temperatures stay the same or actually get better. There can be no doubt that in order to maintain consistent temperatures and power output in your WRX you have to go with an FMIC.
In addition to performing the design funtion of cooling the intake charge flawlessly, our FMIC include some cool features such as a powdercoated tubular steel mounting beam with integrated threaded tow hook mount. This unique feature allows you to actually use your tow hook or use any License Plate Relocation kit that uses the tow hook mount such as our TOWTAG-W15 (sold separately). This keeps you legal while also keeping your front license plate from blocking airflow to your FMIC. No other FMIC on the market that we know of has this unique, one-of-a-kind feature!
This is why we think that the TurboXS 2015+ Subaru WRX Front Mount Intercooler Kit might be the single best modification you can do to your WRX.
W15-FMIC Key Features and Specifications
- Bar and Plate Aluminum Intercooler Core
- Intercooler Core Dimension: 28 x 8 x 3.75 inches
- Cast Aluminum End Tanks
- Aluminum Intercooler Pipes Available in a Choice of Three (3) Different Finishes: Polished, Wrinkle Black Powder Coat, Wrinkle Red Powder Coat
- 100% Bolt-on with No Cutting of the Bumper
- Powder Coated Tubular Steel Fabricated Bumper Beam/Chassis Brace ﻿﻿
- Retains the Factory Toe Hook Mount﻿﻿
