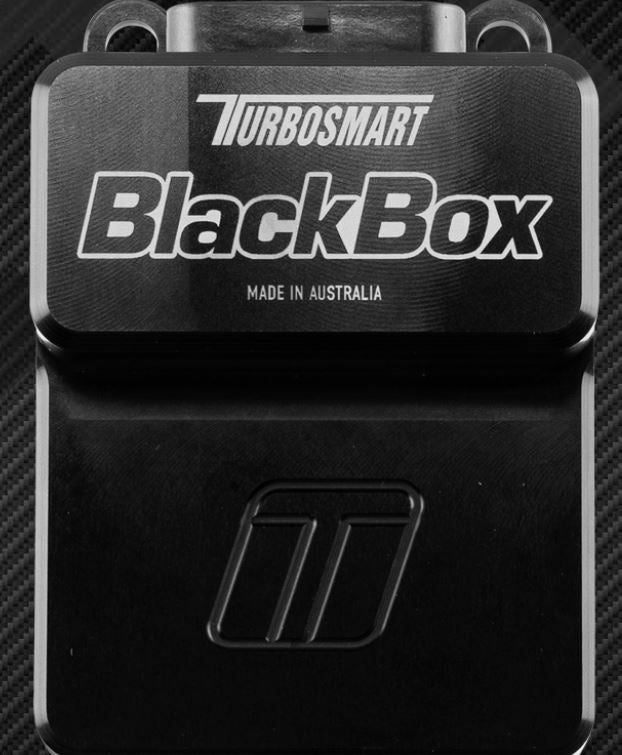

Turbosmart BlackBox Electronic Wastegate Controller
BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller. The BlackBox protects from the current demands and...
- $564.95
$774.23- $564.95
- Unit price
- per
Please hurry! Only 6 left in stock
Subtotal:
$564.95
10 customers are viewing this product
Couldn't load pickup availability
Description
xBlackBox by Turbosmart is a dedicated Electronic Wastegate Controller. The BlackBox protects from the current demands and translation of basic and more advanced boost control strategies into a gate position and can be used on single or twin electronic wastegate systems for the ultimate boost control. They are used in cooperation with a range of Factory, Aftermarket and Motorsport ECU.

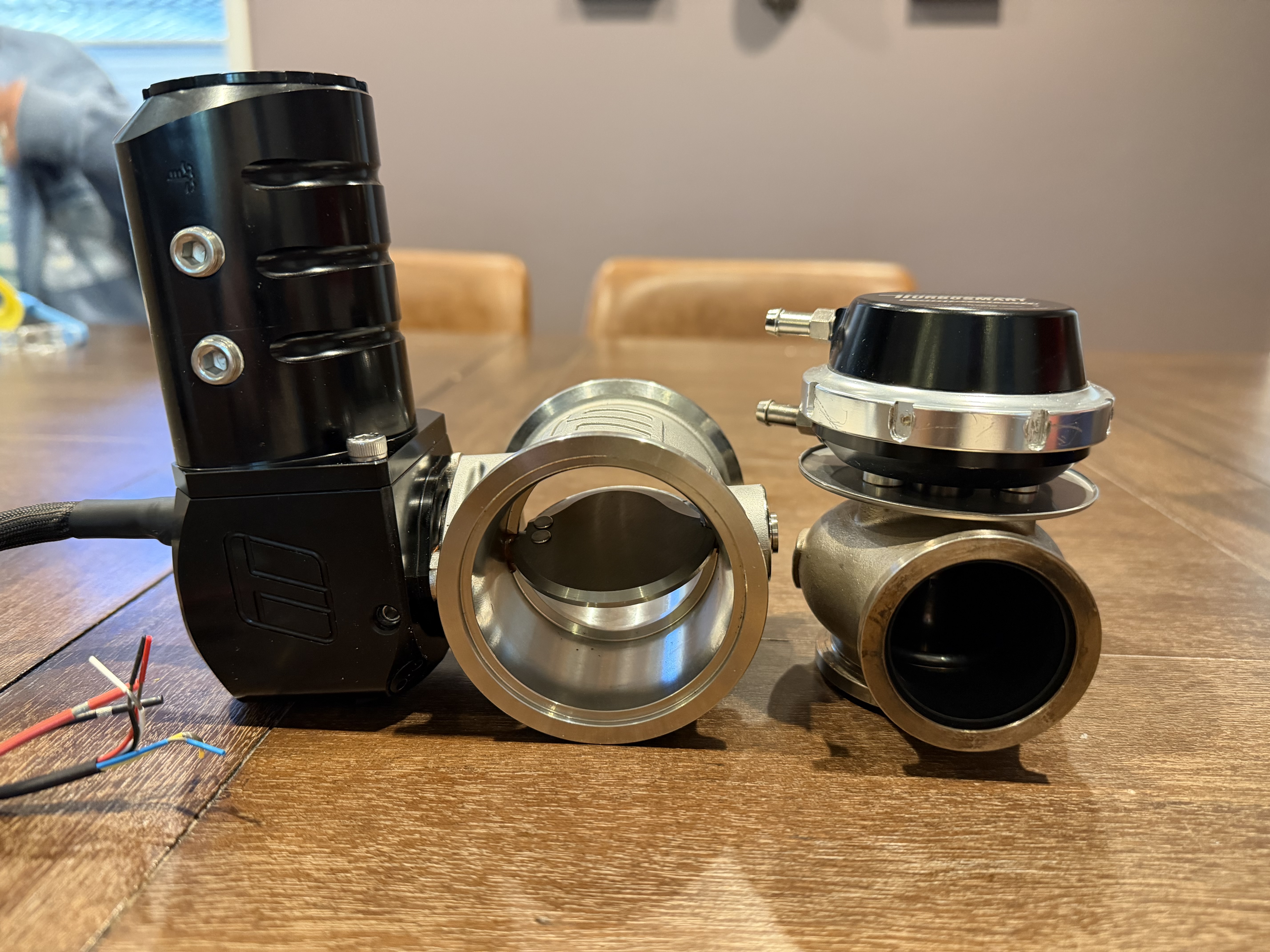

The BlackBox is a Dual Channel, High current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50 and our Electronic poppet style gates including; CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates
The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as traditional boost control solenoids, 0-5v position target CAN position target and CAN bus override for more advanced ECU’s where control strategy can be developed natively. The Blackbox auto-calibration of Electronic External Wastegates via a full sweep and includes over-temp safety features using the temperature sensor inputs.
The BlackBox is pre-configured with the flow vs. lift calibration data of all Electronic Actuatuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC-based application. Unlimited control strategies can be implemented with the CAN-based override system, limiting your strategy only by your ECU’s capability.
Compatible With:
StraightGate50
GenV Electronic CompGate40 eWG40
GenV Electronic HyperGate45 eWG45
GenV Electronic ProGate50 eWG50
GenV Electronic PowerGate60 eWG60
Features Include:
- Dual-Channel High Current H-Bridge Outputs
- 2 x Wastegate Valve Position Inputs (0-5v)
- 2 x Wastegate Temperature Inputs (0-5v)
- 2 x Frequency Inputs (Advanced Wastegate Position Encoder)
- PWM Target Position Input
- Analog 0-5v Position Target
- CAN Bus Position Demand Target
- CAN Bus Valve Area Target
- CAN Bus Programmable PID Mode Option
- Factory Loaded PID Calibration for all Turbosmart eGates
- Internal Over-Current Protection
- Internal Over-Temp Protection
- Auto Position Calibration
- Anodized Aluminium Housing
- 34 Pin Superseal Connector
