Turbosmart GenV UltraGate38 14psi External Wastegate (Black) - TS-0551-1012

Turbosmart GenV UltraGate38 14psi External Wastegate (Black) - TS-0551-1012

Features
Traditional 3 Bolt Flange & Orientation
Optional Position Sensor Upgrade
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option

Available In
Black, Blue, Red, Purple and Sleeper Colours
HP High Pressure Version – Black Only

The GenV WG38 UltraGate38 External Wastegate is a Motorsport-proven, cost-effective external wastegate.
The Turbosmart GenV range is the Highest Flowing Wastegate range in the World.

The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management. The GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Install

Installation

Data Sheet

Fitment

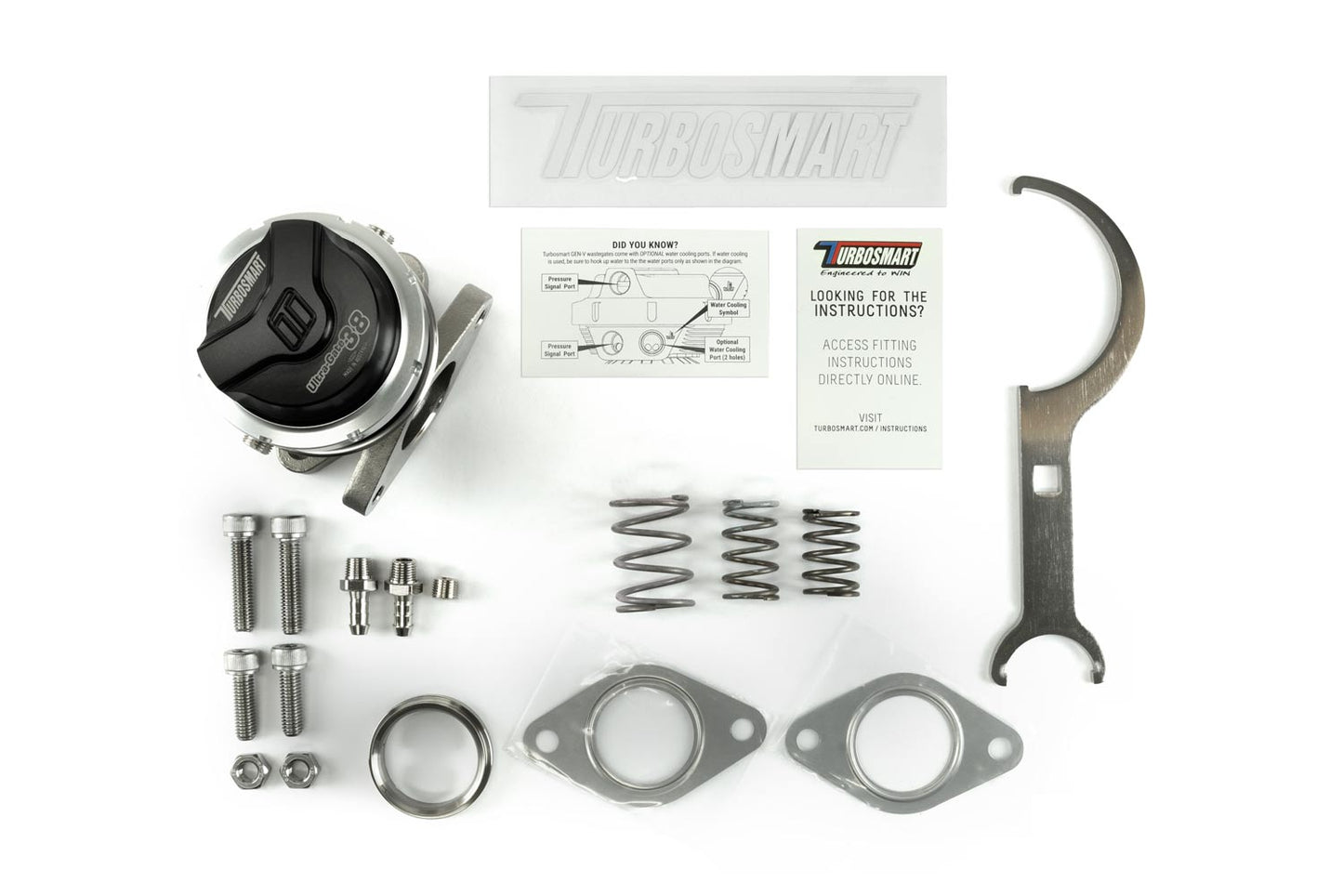

• GenV Wastegate Unit

• All Springs Included

• (3,5,7,14 (1 Inst. As per Desciption)

• GenV SS316 Valve Seat

• GenV UltraGate38 SS Gaskets

• Hose Tail & Blank Fitting Kit

• Turbosmart Decal

• DOES NOT INCLUDE WELD FLANGES
