Turbosmart OPR T40 Oil Pressure Regulator 40psi (Blue) - TS-0801-1001

Turbosmart OPR T40 Oil Pressure Regulator 40psi (Blue) - TS-0801-1001

Turbosmart’s Patent Pending OPRt40 is an Oil Pressure Regulator designed for your Turbocharger.

Features
Fixed 40psi Configuration
-4 AN Ports
1/8 NPT Gauge Port

Available in
Black: TS-0801-1002
Blue:   TS-0801-1001

Many Turbochargers are built around a bearing and oil pressure profile much lower than is seen by modern & high-performance engines. Feeding these turbochargers the appropriate oil pressure has always been challenging. Traditional methods to limit oil pressure have been with a restrictor aimed at reducing pressure – However, this also reduces flow.

Turbosmart’s OPRt40 is a genuine regulator because a target oil pressure of 40psi can be achieved without compromising oil flow. This takes the guesswork out of the restrictor or feed and drain hose selection and ensures the oil going to the turbocharger never exceeds the manufacturer’s tolerances. This will provide you with rock-solid oil supply pressure within the manufactures tolerances.

Install

Installation

Data Sheet

Fitment

SUPPLIED WITH

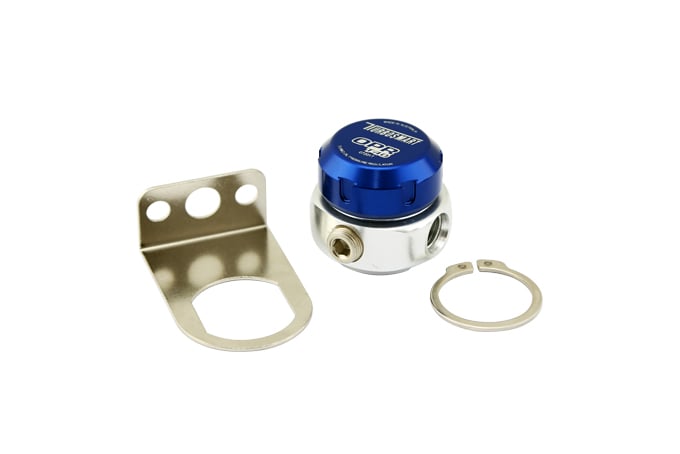

• Turbosmart OPRT40 Oil Pressure Regulator
• Mounting Bracket & Circlip
• 1/8NPT Gauge Port Blanking Screw
• Turbosmart Decal
