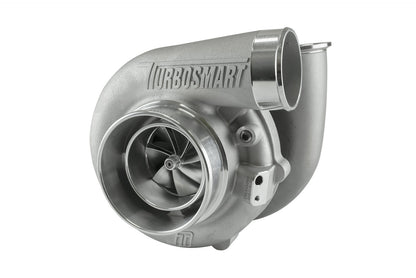

Turbosmart TS-1 7170 Kompact Performance Turbocharger V-Band 0.96 A/R Externally Wastegated

The Turbosmart TS-1 7170 Kompact Performance Turbocharger is designed for high-performance street and motorsport builds that demand excellent transient response, efficient exhaust flow, and strong horsepower capability in a compact package. Utilizing advanced CFD-driven aerodynamics and modern manufacturing techniques, the TS-1 series delivers a turbocharger that is smaller, lighter, and faster-responding than traditional alternatives.

This externally wastegated V-band 0.96 A/R configuration provides an ideal balance of spool and top-end airflow, making it well suited for a wide range of high-boost applications. Turbosmart’s proprietary dual ceramic bearing system and ultra-low rotating mass shaft assembly work together with aggressive compressor aerodynamics to deliver fast response at lower shaft speeds while maintaining power at higher loads.

Each TS-1 turbocharger includes essential installation components such as weld flanges, V-band clamps, and oil fittings, ensuring a premium, installation-ready solution backed by Turbosmart’s reputation for performance, reliability, and motorsport-proven engineering.

Key Features & Benefits

• Kompact design for improved packaging and reduced weight

• Unparalleled transient response for its size

• Aggressive 7+7 splitter compressor wheel design

• 2618 aluminum compressor wheel for strength and efficiency

• Lightweight 310S stainless steel investment-cast turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and airflow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for smooth, reliable operation

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Technical Specifications

• Turbo Series: TS-1

• Cooling: Oil-cooled

• Wastegate Type: Externally wastegated

• Compressor Inlet: 4.00 in (101.6mm)

• Compressor Inducer: 71mm

• Turbine Inlet: 3.00 in V-Band

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: 3.00 in V-Band

• Horsepower Rating: 875–1010 HP

• Weight: 6.43 kg / 14.17 lbs

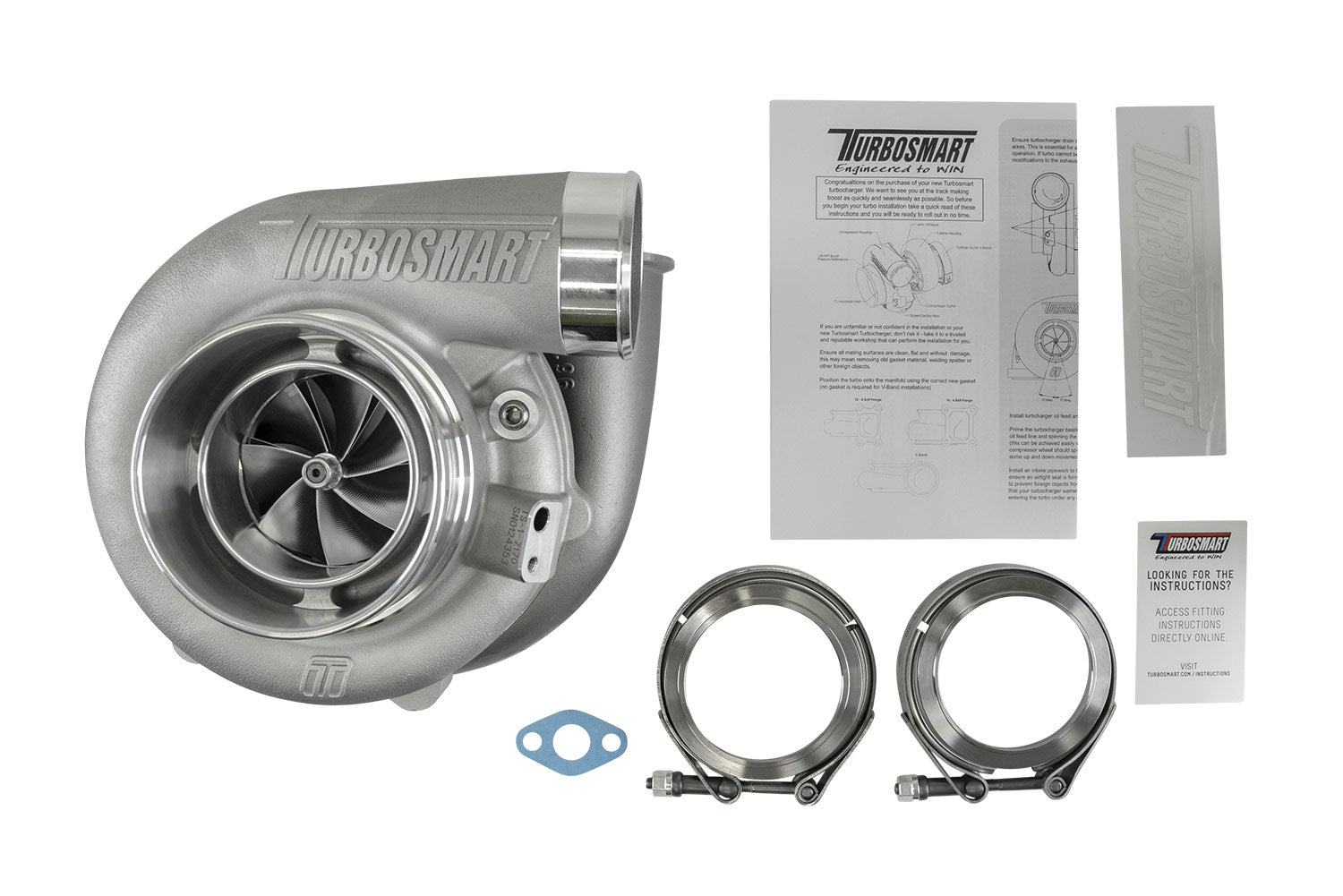

What’s Included

• Turbosmart TS-1 7170 Kompact Performance Turbocharger

• (2) Weld flanges (turbine inlet & outlet)

• (2) V-band clamps (turbine inlet & outlet)

• Oil drain gasket

Installation Notes

• Universal turbocharger – custom mounting and exhaust fabrication required

• External wastegate required (sold separately)

• Professional installation recommended
